HITHOS LED Bed Frame
HITHOS King Upholstered LED Bed Frame with Storage Drawers - Instruction Manual
Model: LED Bed Frame
Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your HITHOS King Upholstered LED Bed Frame. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Image: Front view of the HITHOS King Upholstered LED Bed Frame with wingback headboard and storage drawers.
Image: Close-up details of the headboard construction, highlighting the foam padding, wingback design, and silver brushed metal accents.
Safety Information
WARNING:
- Do not exceed the maximum weight recommendation of 1000 lbs (453 kg). Exceeding this limit may result in structural damage or injury.
- While designed for quiet operation, complete silence is not guaranteed. Minor sounds may occur during use.
- Ensure all components are securely fastened before use. Regularly check and tighten all connections.
- Keep small parts away from children during assembly to prevent choking hazards.
Package Contents
Before assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Headboard (with integrated LED lights)
- Footboard (with 2 storage drawers)
- Side Rails
- Wooden Slats
- Support Legs
- Assembly Hardware (screws, bolts, washers, Allen wrench)
- Remote Control for LED Lights
- Power Adapter for LED Lights
- Installation Manual (this document)
Setup and Assembly
Assembly typically takes approximately 2 hours with two people. It is recommended to assemble the bed frame in the room where it will be used. A mattress is sold separately and is not included.
- Unpack Components: Carefully remove all components from the packaging. Lay them out on a clean, soft surface to prevent scratches.
- Attach Side Rails to Headboard: Connect the side rails to the headboard using the provided hardware. Ensure all bolts are finger-tightened initially.
- Attach Side Rails to Footboard: Connect the other end of the side rails to the footboard, again finger-tightening the bolts.
- Install Center Support: Assemble and install any central support beams or legs as indicated in the detailed diagram.
- Place Wooden Slats: Position the wooden slats across the bed frame. Secure them using the plastic snap locks or other fastening mechanisms to ensure a noise-free fit.
- Tighten All Hardware: Once all major components are in place, systematically tighten all bolts and screws using the Allen wrench. Do not overtighten.
- Install Storage Drawers: Insert the two footboard storage drawers into their designated slots. Ensure they slide smoothly.
- Connect LED Lights: Connect the LED light strip power adapter to the headboard and then to a power outlet.

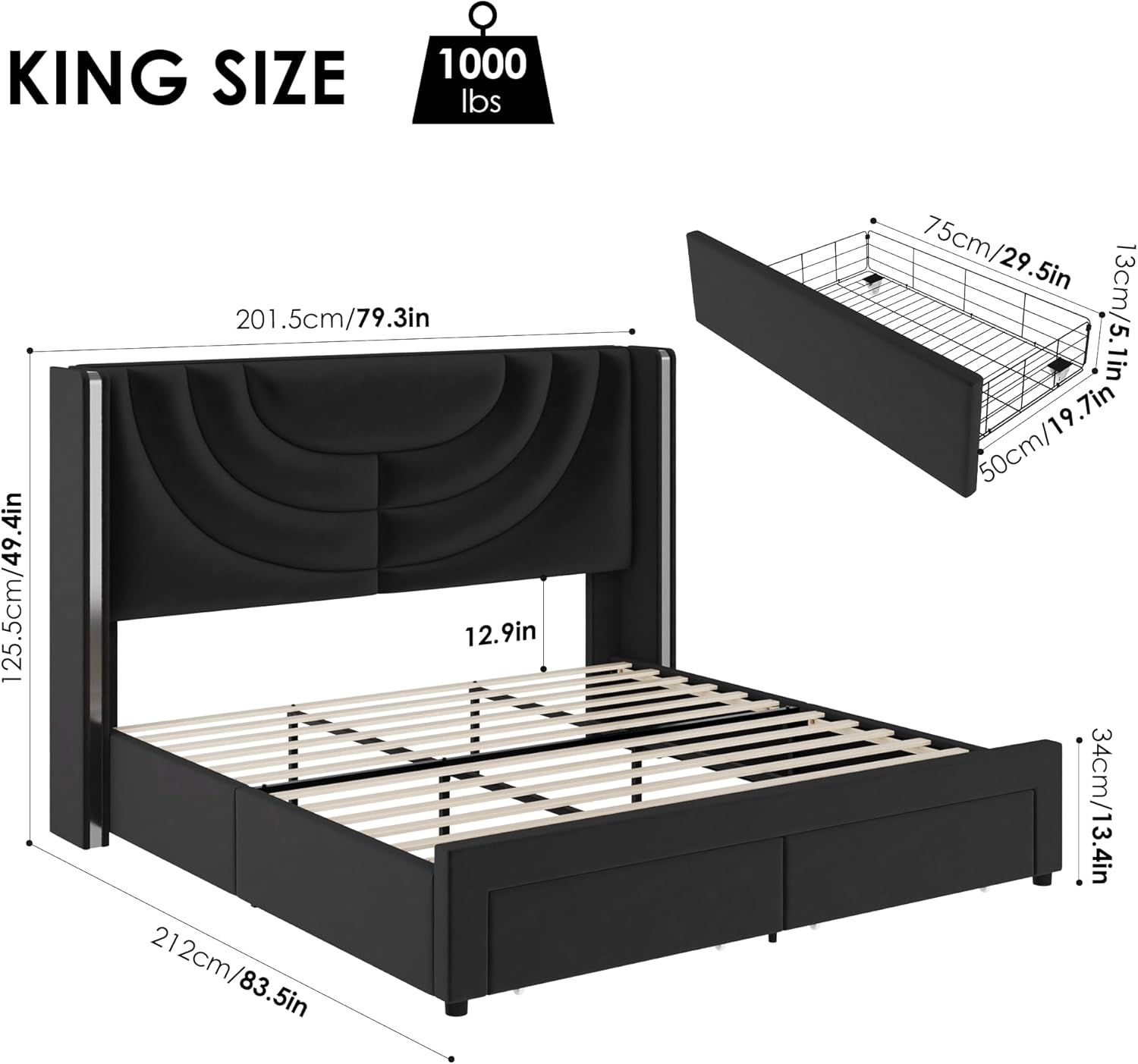

Image: Detailed dimensions of the King size bed frame and storage drawers, indicating a 1000 lbs weight capacity.
Operating Instructions
LED Headboard Lights
The integrated RGB LED lights in the headboard can be controlled via a remote control or a dedicated smartphone application.
- Power On/Off: Use the power button on the remote or within the app to turn the lights on or off.
- Color Selection: Choose from multiple colors or single color options using the color palette on the remote or app.
- Brightness Adjustment: Adjust the brightness levels to your preference.
- Mode Selection: Select various lighting modes (e.g., flash mode, timing function) as available through the control interface.
- App Control: Download the specified app (refer to packaging or a sticker on the LED controller for app name/QR code) to unlock additional features and control options from your smartphone.
Image: Illustration of LED strip lights with app and remote control options, highlighting multi-color, timing, flash, and microphone modes.
Image: Comparison of the LED headboard lights during day and night, showcasing the ambient lighting effect.
Storage Drawers
The two footboard drawers provide convenient storage space.
- Access: Gently pull the drawers out from the footboard to access the storage compartments.
- Capacity: Ideal for storing sheets, blankets, seasonal clothing, or other bedroom accessories.
- Smooth Operation: The drawers are designed to slide smoothly on their runners. Avoid forcing them if they encounter resistance.
Image: A close-up view of one of the footboard storage drawers, demonstrating its capacity for folded items.
Maintenance
- Cleaning Upholstery: For velvet upholstery, gently vacuum with a brush attachment to remove dust. For spills, blot immediately with a clean, dry cloth. Do not rub. For stubborn stains, consult a professional upholstery cleaner.
- Frame Inspection: Periodically check all bolts and screws to ensure they remain tight. Retighten as necessary to maintain stability and prevent squeaks.
- LED Lights: The LED lights are designed for long-term use. If issues arise, check the power connection and remote control battery. Do not attempt to repair the LED strip yourself.
- Drawer Maintenance: Keep drawer runners free of debris to ensure smooth operation.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame squeaks | Loose connections; slats not properly secured. | Tighten all bolts and screws. Ensure wooden slats are correctly seated and secured with plastic snap locks. |
| LED lights not working | Power adapter unplugged; remote battery dead; app connection issue. | Check power connection. Replace remote battery. Re-pair app with LED controller if necessary. |
| Drawers not sliding smoothly | Obstruction in runner; drawer misalignment. | Check for any objects blocking the runners. Ensure drawers are correctly aligned on their tracks. |
| Bed frame feels unstable | Loose hardware; uneven floor. | Retighten all assembly hardware. If the floor is uneven, consider using furniture levelers under the support legs. |
Specifications
| Feature | Detail |
|---|---|
| Brand | HITHOS |
| Model Number | LED Bed Frame |
| Size | King |
| Product Dimensions | 84"L x 79.3"W x 46.3"H |
| Color | Black |
| Material | Upholstered Velvet, Solid Wooden Slats, Metal Accents |
| Special Features | RGB LED Headboard Lights, 2 Storage Drawers, Wingback Headboard, Noise-free Design |
| Weight Capacity | 1000 lbs |
| Compatible Mattress Size | 8 - 14 inches (thickness) |
| Assembly Required | Yes |
Warranty and Support
HITHOS products are manufactured with quality and care. For specific warranty details, please refer to the warranty card included with your purchase or visit the official HITHOS website. For technical support, missing parts, or any other inquiries, please contact HITHOS customer service through the retailer where the product was purchased or via the contact information provided on the HITHOS brand store page:
