Introduction
This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your MageGee Moon104 Wireless Mechanical Keyboard. Please read this manual thoroughly to ensure optimal performance and longevity of your device.
Image: The MageGee Moon104 Wireless Mechanical Keyboard, showcasing its full layout and the included USB receiver.
Package Contents
Upon opening the package, verify that all items are present:
- MageGee Moon104 Wireless Mechanical Keyboard
- USB-C to USB-A Cable
- 2.4GHz USB Receiver
- User Manual (this document)
Specifications
| Feature | Detail |
|---|---|
| Model | Moon104 |
| Dimensions (L x W x H) | 16.73" x 16.73" x 0.98" (42.49 cm x 42.49 cm x 2.49 cm) |
| Item Weight | 2.33 pounds (1.06 kg) |
| Connectivity | USB-C Wired, 2.4GHz Wireless, Bluetooth 3.0/5.0 |
| Keyboard Type | Mechanical, Low Profile |
| Switches | Brown Mechanical Switches |
| Backlighting | RGB Backlit (Seven-color breathing system) |
| Compatibility | Windows, macOS |
| Recommended Use | Office |
Image: An overview of the MageGee Moon104 keyboard's key features, including its tri-mode connectivity, low-profile switches, RGB backlighting, and ergonomic design.
Setup
1. Charging the Keyboard
Before first use, it is recommended to fully charge the keyboard using the provided USB-C cable. Connect the USB-C end to the keyboard and the USB-A end to a powered USB port on your computer or a wall adapter.
Image: A close-up view of the MageGee Moon104 keyboard showing the detachable USB-C cable connected to its port.
2. Connecting the Keyboard
The MageGee Moon104 supports three connection modes: USB-C Wired, 2.4GHz Wireless, and Bluetooth.
Image: The MageGee Moon104 keyboard demonstrating its tri-mode connection capabilities, showing both wired USB-C and the 2.4GHz receiver in use.
2.1. USB-C Wired Connection
- Connect the USB-C end of the cable to the keyboard's port.
- Connect the USB-A end to an available USB port on your computer.
- The keyboard will be automatically recognized and ready for use.
2.2. 2.4GHz Wireless Connection
- Locate the 2.4GHz USB receiver (usually stored in a compartment on the keyboard or included separately).
- Plug the USB receiver into an available USB port on your computer.
- On the keyboard, press Fn + Q to switch to 2.4GHz wireless mode. The indicator light will confirm the connection.
2.3. Bluetooth Connection
- On the keyboard, press Fn + W or Fn + E to select a Bluetooth channel (BT1 or BT2). The indicator light will flash, indicating pairing mode.
- On your device (computer, laptop, smart TV), enable Bluetooth and search for new devices.
- Select "MageGee Moon104" from the list of available devices to pair.
- Once paired, the indicator light on the keyboard will become solid.
Operating Instructions
1. Switching Between Connection Modes
To switch between the three connection modes, use the following key combinations:
- Fn + TAB: Switch to USB-C Wired Mode
- Fn + Q: Switch to 2.4GHz Wireless Mode
- Fn + W: Switch to Bluetooth Channel 1 (BT1)
- Fn + E: Switch to Bluetooth Channel 2 (BT2)
2. RGB Backlight Control
The keyboard features an RGB backlight system with multiple effects and brightness levels.
Image: The MageGee Moon104 keyboard displaying its vibrant RGB backlighting across the keys.
- Adjusting Brightness: Use Fn + ↑ (increase brightness) and Fn + ↓ (decrease brightness).
- Changing Lighting Modes: Use Fn + → or Fn + ← to cycle through different RGB effects.
- Adjusting Speed: Use Fn + - (decrease speed) and Fn + = (increase speed) for dynamic lighting effects.
3. Windows/macOS Compatibility Switch
The keyboard includes a physical switch to toggle between Windows and macOS layouts for optimal key mapping.
Image: A close-up of the MageGee Moon104 keyboard highlighting the physical switch to select between Windows and Mac operating system compatibility.
- Locate the WIN/MAC switch on the side or back of the keyboard.
- Slide the switch to the appropriate operating system setting.
4. Function Keys (F1-F12)
The F-keys often have secondary functions accessible by pressing them in combination with the Fn key. Refer to the keycaps for specific icons indicating these functions (e.g., media control, volume, brightness).
Ergonomic Design
The MageGee Moon104 is designed with ergonomics in mind to reduce wrist strain during extended use. It features low-profile mechanical switches and adjustable tilt feet.
Image: The MageGee Moon104 keyboard positioned on a desk, showcasing its ergonomic profile and comfortable typing angle.
- Adjustable Tilt Feet: Extend the feet on the underside of the keyboard to adjust the typing angle to your preference.
- Low Profile Switches: The low-profile design of the mechanical switches contributes to a flatter keyboard, reducing the need for excessive wrist extension.

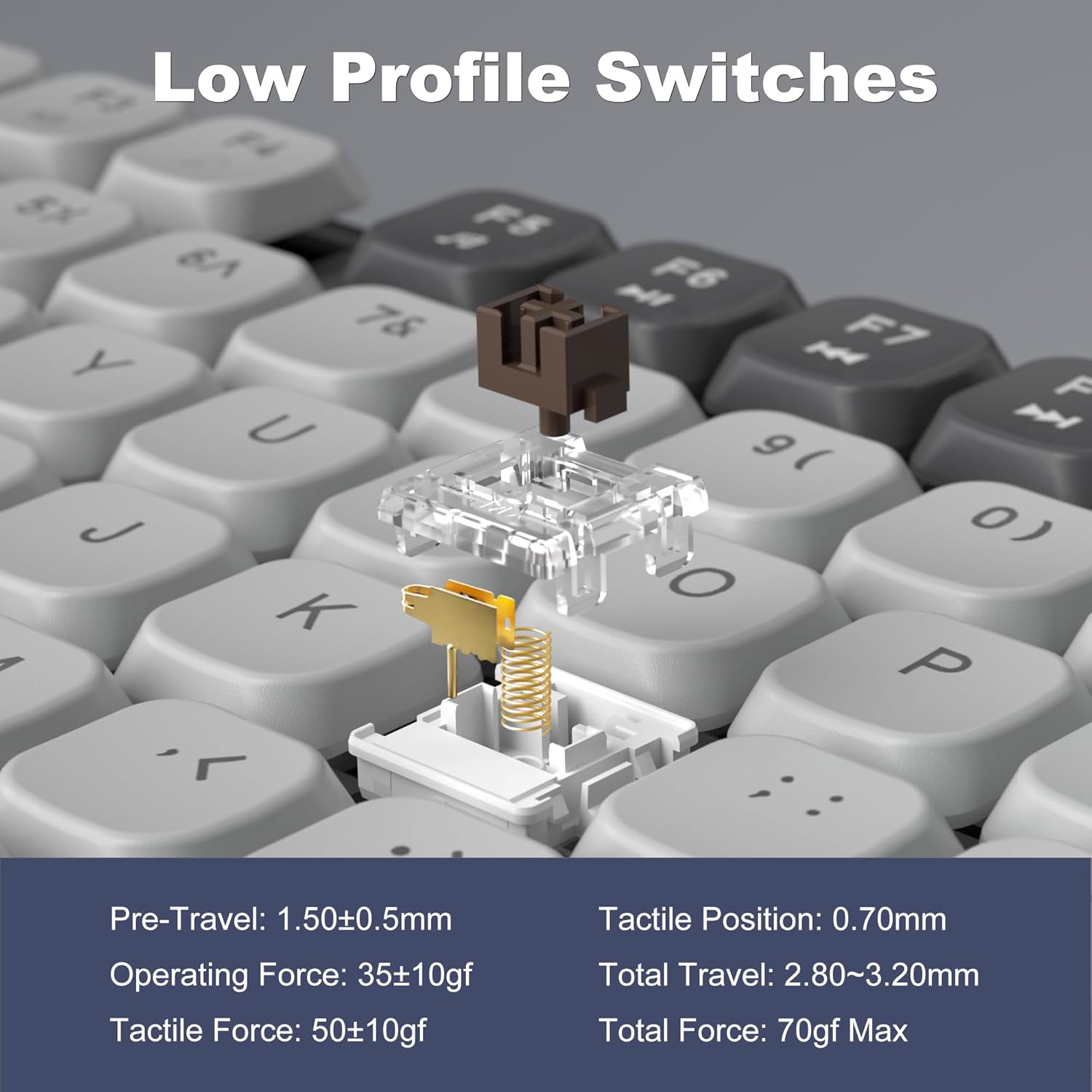

Image: A detailed diagram illustrating the internal structure and operational specifications of the low-profile mechanical switches used in the MageGee Moon104 keyboard.
Maintenance
To ensure the longevity and optimal performance of your keyboard, follow these maintenance guidelines:
- Cleaning: Use a soft, dry cloth to wipe the surface of the keyboard. For deeper cleaning, use compressed air to remove dust and debris from between the keycaps. Avoid using harsh chemicals or abrasive materials.
- Storage: When not in use for extended periods, store the keyboard in a cool, dry place away from direct sunlight and extreme temperatures.
- Battery Care: Avoid fully discharging the battery frequently. Charge the keyboard regularly to maintain battery health.
Troubleshooting
If you encounter issues with your MageGee Moon104 keyboard, refer to the following common solutions:
- Keyboard Not Responding:
- Ensure the keyboard is charged.
- Verify the correct connection mode is selected (Wired, 2.4GHz, or Bluetooth).
- For 2.4GHz, ensure the USB receiver is securely plugged in.
- For Bluetooth, ensure the keyboard is paired and within range of your device. Try re-pairing if necessary.
- If using wired mode, try a different USB port or cable.
- Backlight Not Working or Incorrect:
- Check backlight brightness settings using Fn + ↑.
- Cycle through lighting modes using Fn + → or Fn + ←.
- Ensure the keyboard battery has sufficient charge.
- Keys Not Registering or Double Typing:
- Clean the affected key with compressed air to remove any debris.
- Ensure the keyboard is fully charged.
- If the issue persists, try connecting the keyboard to a different device to rule out software or driver issues on your primary computer.
- Function Keys (F1-F12) Not Working:
- Ensure you are pressing the Fn key in combination with the desired F-key for secondary functions.
- Verify the keyboard is set to the correct operating system (Windows/Mac) using the physical switch.
Warranty and Support
MageGee provides a 1-year warranty for the Moon104 Wireless Mechanical Keyboard. If you encounter any product issues or have questions, please contact MageGee customer support via Amazon email. They aim to reply within 24 hours and provide a satisfactory solution.
For support, please visit the MageGee Store on Amazon or contact their customer service directly through your Amazon order details.
