1. Introduction
This manual provides instructions for the safe and effective use of your HONEST BCZ494 Refillable Single Jet Flame Torch Lighter. Please read this manual thoroughly before operating the device and retain it for future reference.
The HONEST BCZ494 is a versatile, refillable butane torch lighter designed for various applications, including lighting candles, grills, BBQs, and for camping use. Its slim design and adjustable single jet flame offer convenience and precision.
Image 1.1: The HONEST BCZ494 Torch Lighter in red, demonstrating its single jet flame capability next to a candle.
2. Safety Information
WARNING: Keep out of reach of children. This product contains flammable butane gas under pressure. Improper use can result in injury or property damage.
- Always operate the lighter away from face and clothing.
- Do not expose to heat above 50°C (122°F) or prolonged sunlight.
- Never puncture or incinerate the lighter.
- Ensure the flame is extinguished after each use.
- Do not attempt to disassemble or modify the lighter.
- Use only high-quality butane fuel for refilling.
- Avoid prolonged exposure to flame.
Image 2.1: The extended length of the HONEST torch lighter allows for safer ignition of items like candles, reducing the risk of finger burns compared to shorter lighters.
3. Product Components
Familiarize yourself with the main parts of your HONEST BCZ494 torch lighter:
- Fire Outlet: Where the jet flame emerges.
- Ignition Switch: Button to activate the flame.
- Clear Gas Tank: Transparent window to monitor butane fuel level.
- Flame Adjuster: Rotating mechanism at the base to control flame intensity.
Image 3.1: Lighter components diagram, showing the Fire Outlet (1), Ignition Switch (2), Clear Gas Tank (3), and Flame Adjuster (4).
4. Setup: Refilling with Butane
The HONEST BCZ494 lighter is shipped without butane fuel due to safety regulations. It must be filled before first use.
4.1 Recommended Fuel
Use only premium quality butane gas. Impure butane can clog the lighter's jets and affect performance.
4.2 Refilling Procedure
- Bleed the Lighter: Before refilling, ensure all residual air and gas are expelled from the tank. Invert the lighter and use a small tool (like a pen tip) to press the refill valve at the bottom until no more gas or air escapes. This step is crucial for proper refilling.
- Invert the Lighter: Hold the lighter upside down.
- Insert Butane Nozzle: Firmly insert the nozzle of the butane fuel can into the refill valve at the bottom of the lighter.
- Press Down: Press down firmly for 5-10 seconds. Repeat this process 2-3 times to ensure a full fill.
- Wait: After refilling, wait for at least 2-3 minutes before attempting to ignite the lighter. This allows the gas to stabilize and reach room temperature.
- Check Fuel Level: Use the clear gas tank window to monitor the fuel level.
5. Operating Instructions
5.1 Ignition
- Ensure the lighter is away from your face and clothing.
- Press and hold the Ignition Switch (2) to activate the flame.
- Release the Ignition Switch to extinguish the flame.
5.2 Flame Adjustment
The flame intensity can be adjusted to suit your needs:
- Locate the Flame Adjuster (4) at the bottom of the lighter.
- Rotate the adjuster towards the '+' sign for a larger flame or towards the '-' sign for a smaller flame.
- Test the flame after adjustment to ensure it is at the desired size and stable.
6. Maintenance
- Cleaning: Periodically wipe the lighter with a soft, dry cloth to remove dirt and grime. Do not use abrasive cleaners or solvents.
- Storage: Store the lighter in a cool, dry place, away from direct sunlight and heat sources. Ensure it is stored out of reach of children.
- Fuel: Always use high-quality butane fuel to prevent clogging and ensure optimal performance.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lighter does not ignite or flame is weak. | Low or no butane fuel. Air trapped in the tank. Flame adjuster set too low. | Refill with butane, ensuring to bleed the tank first. Adjust flame to a higher setting. |
| Lighter does not refill properly. | Air trapped in the tank. Improper butane nozzle fit. | Bleed all air from the tank before refilling. Ensure the butane nozzle is firmly inserted. Try a different brand of butane if issues persist. |
| Inconsistent or sputtering flame. | Low fuel level. Impure butane. Air in the fuel line. | Refill the lighter. Use high-quality butane. Bleed the lighter and refill. |
| Flame does not extinguish immediately after releasing button. | Internal mechanism issue. | Discontinue use immediately. Contact customer support. |
8. Specifications
- Brand: HONEST
- Model Number: BCZ494
- Dimensions: 0.6"L x 0.4"W x 6.6"H (17 x 1.0 x 1.5 cm)
- Item Weight: 3.2 ounces
- Material: Metal
- Fuel Type: Butane (not included)
- Flame Type: Single Jet Flame
- Maximum Temperature: 55 Degrees Celsius (Note: This refers to ambient operating temperature, not flame temperature)
- Color: Red (Other colors available: Purple, Gold, Black)

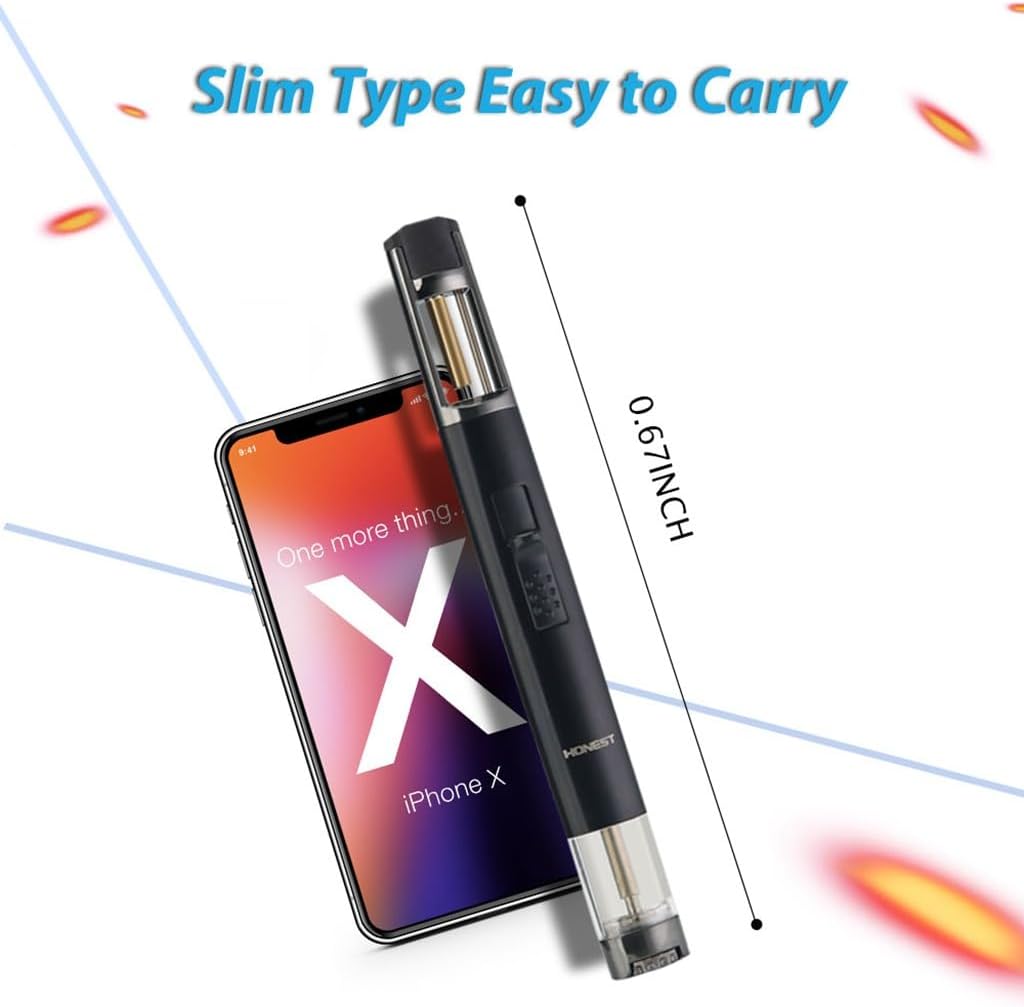

Image 8.1: The slim design of the HONEST torch lighter, shown next to a smartphone for scale, highlighting its portability.
9. Warranty and Support
For warranty information or technical support, please contact HONEST customer service directly. Refer to the product packaging or the official HONEST website for contact details.
You can also visit the official HONEST store on Amazon for more information: HONEST Store
