Lepulse F4 Pro Rechargeable Smart Scale Instruction Manual

Introduction

Thank you for choosing the Lepulse F4 Pro Smart Scale. This device is designed to provide comprehensive body composition analysis, helping you monitor your health and fitness progress. Please read this manual carefully before use to ensure proper operation and to maximize the benefits of your new scale. Keep this manual for future reference.

Safety Information

• Do not use this device if you are pregnant, have a pacemaker, or other internal medical devices.
• The scale is intended for household use only. It is not a medical device and should not be used for diagnosis or treatment of any medical condition.
• Always place the scale on a hard, flat surface. Using it on soft surfaces like carpet may affect accuracy.
• The scale surface can be slippery when wet. Ensure the surface is dry before stepping on it.
• Do not jump on the scale or use it for purposes other than weighing.
• Keep the scale away from extreme temperatures, direct sunlight, and high humidity.
• Children should use the scale under adult supervision.

Package Contents

• Lepulse F4 Pro Smart Scale
• Type-C Charging Cable
• Instruction Manual

Product Overview

The Lepulse F4 Pro Smart Scale is designed with user convenience and accuracy in mind. It features a large color display and advanced ITO sensor technology for precise measurements.

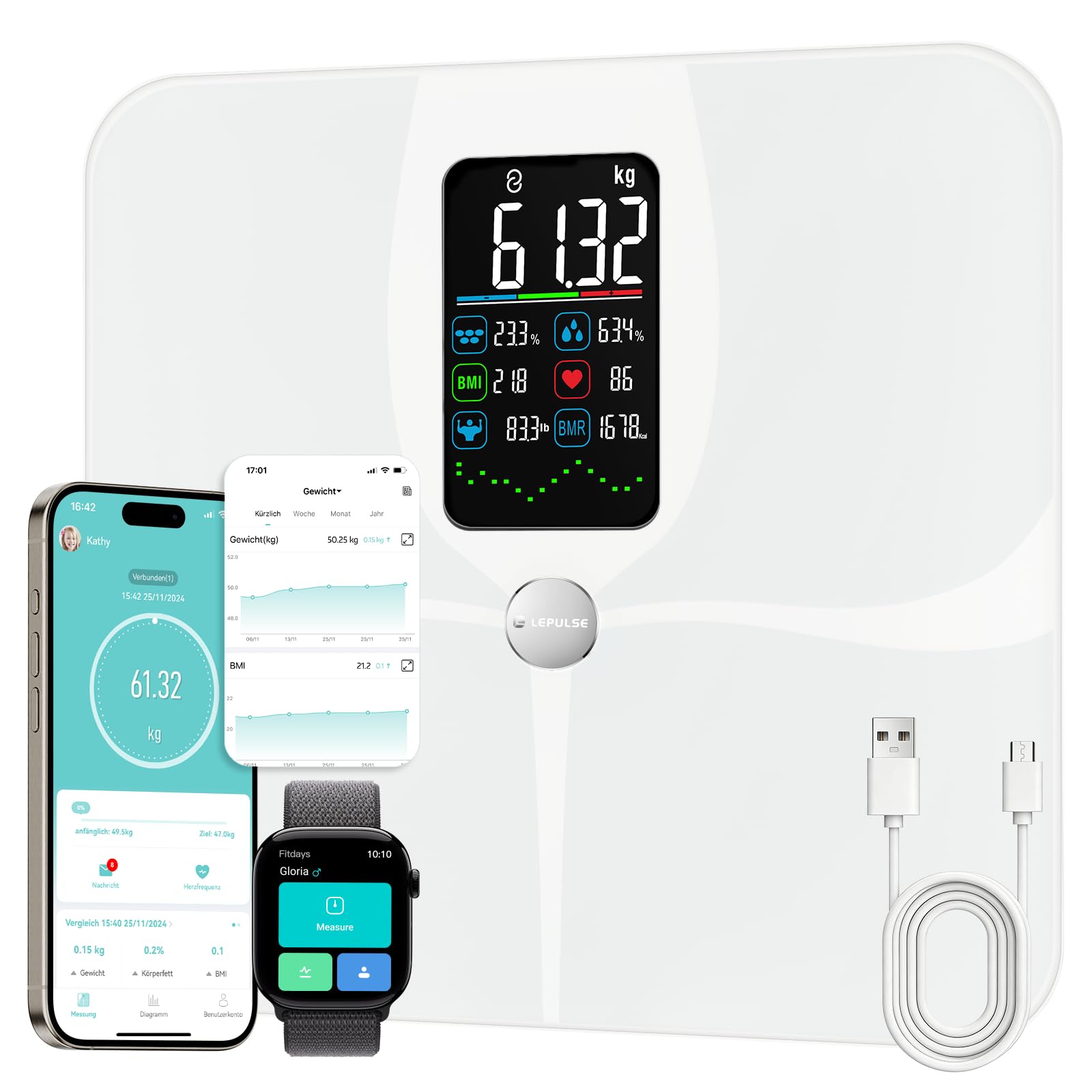

Image: The Lepulse F4 Pro Smart Scale, showcasing its sleek design and large display.

Key Features

• 22 Body Composition Metrics: Measures weight, body fat, muscle mass, BMI, body water, bone mass, BMR, skeletal muscle, visceral fat, fat-free body weight, protein, heart rate, water content, fat mass, obesity level, body type, protein mass, body age, cardiac index, and more.
• Large Color Display: Directly shows 8 key data points and 7-day trend graphs for weight, body fat, and muscle mass.
• High Precision: Utilizes ITO membrane electrodes for accurate measurements across various foot sizes, with a weighing range of 3 to 180 kg.
• Rechargeable Battery: Equipped with a Lithium-polymer battery, rechargeable via the included Type-C cable.
• Smart App Integration: Connects with the Fitdays app to track progress over days, weeks, months, and years. Syncs with Apple Health, Google Fit, and Samsung Health.
• Multi-User Support: Supports up to 24 user profiles with automatic recognition and a dedicated Baby Mode.

Image: The scale supports up to 24 users and features Standard, Athlete, and Baby modes, integrating with the Fitdays app and other health platforms.

Design Features

• Anti-slip Mat: Ensures stability and safety during use.
• Rounded Corners: Enhances safety and aesthetics.
• Tempered Glass: Durable and easy to clean surface.
• Unit Change: Easily switch between kg, lb, and st via the app.

Image: Visual representation of the scale's user-friendly design, including anti-slip mat, rounded corners, tempered glass, and unit conversion options.

Setup

1. Initial Charge

1. Before first use, ensure the scale is fully charged. Connect the provided Type-C cable to the charging port on the scale and to a USB power source.
2. The display will indicate charging status. Charge until the battery indicator shows full.

2. App Installation & Pairing

1. Download the Fitdays app from the Apple App Store or Google Play Store.
2. Enable Bluetooth on your smartphone.
3. Open the Fitdays app and follow the on-screen instructions to create an account or log in.
4. Step onto the scale to activate it. The app should automatically detect and pair with the scale. If not, manually add the device within the app's settings.

3. User Profile Creation

1. Within the Fitdays app, create your personal profile by entering your gender, height, and age. This information is crucial for accurate body composition analysis.
2. For additional users, create separate profiles within the app. The scale can store data for up to 24 users.

Operating Instructions

1. Taking a Measurement

1. Place the scale on a hard, flat surface.
2. Step onto the scale barefoot with dry feet, ensuring your feet are centered on the ITO electrodes.
3. Stand still until your weight is displayed and stabilized. The scale will then proceed to measure other body composition metrics.
4. The measurements will be displayed on the scale's screen and automatically synchronized with the Fitdays app if your phone is nearby with Bluetooth enabled.

Image: The scale's full ITO sensor technology ensures high precision and adapts to all foot sizes for accurate body composition analysis.

2. Understanding Display Readings

The large color display on the F4 Pro scale shows key metrics directly. After a measurement, you will see your weight, body fat percentage, body water percentage, BMI, BMR, and heart rate. The display also shows a 7-day trend graph for weight, body fat, and muscle mass.

Image: A close-up of the scale's display, showing weight, body fat, BMI, body water, muscle mass, BMR, heart rate, and weight trend at a glance.

3. Using the Fitdays App

The Fitdays app provides a detailed breakdown of all 22 body composition metrics and allows for long-term tracking of your health data.

• Detailed Analysis: View all 22 metrics, including those not shown on the scale's display.
• Progress Tracking: Monitor trends over days, weeks, months, and years with intuitive graphs.
• Data Synchronization: Sync your data with Apple Health, Google Fit, and Samsung Health for a comprehensive health overview.
• Unit Conversion: Change measurement units (kg/lb/st) directly within the app.

Image: The Fitdays app interface demonstrating smart tracking of unlimited data, showing trends for body fat, weight, and BMI over time (week, month, year).

4. Multiple Users & Baby Mode

• Multiple Users: The app automatically recognizes and assigns measurements to individual profiles based on weight similarity. Ensure each user has a profile set up in the app.
• Baby Mode: To weigh a baby or pet, first weigh yourself, then hold the baby/pet and step on the scale again. The app will calculate the baby's/pet's weight by subtracting your initial weight.

Maintenance

Cleaning

Wipe the scale surface with a soft, damp cloth. Do not use abrasive cleaners or immerse the scale in water.

Storage

Store the scale in a cool, dry place. Avoid placing heavy objects on the scale when not in use.

Battery Charging

When the scale displays a "LO" or low battery indicator, recharge it using the provided Type-C cable. A full charge typically lasts for several months depending on usage.

Troubleshooting

• Scale not turning on: Ensure the scale is charged. Connect it to a power source using the Type-C cable.
• Inaccurate readings:
  • Ensure the scale is on a hard, flat surface, not carpet.
  • Step on the scale barefoot with dry feet.
  • Ensure your profile information (gender, height, age) in the app is correct.
  • Calibrate the scale by stepping on it briefly, then stepping off, and waiting for it to display "0.0" before taking a measurement.
• App not connecting to scale:
  • Ensure Bluetooth is enabled on your smartphone.
  • Make sure the Fitdays app has Bluetooth permissions.
  • Step on the scale to activate it before opening the app.
  • Try restarting your phone and the scale.
• "ERR" message on display: This usually indicates an overload. The maximum weight capacity is 180 kg (396 lbs).

Specifications

Warranty and Support

Lepulse products are manufactured with high-quality standards. For warranty information, technical support, or customer service inquiries, please refer to the contact information provided on the product packaging or visit the official Lepulse website. Please have your model number (F4 PRO) and purchase details ready when contacting support.
