1. Product Overview
The Vretti 80x30mm thermal paper rolls are designed for high-quality, inkless printing. Each roll measures 80mm in width and 30mm in diameter, featuring a 19mm core. This package contains 5 rolls, sealed for protection against moisture.

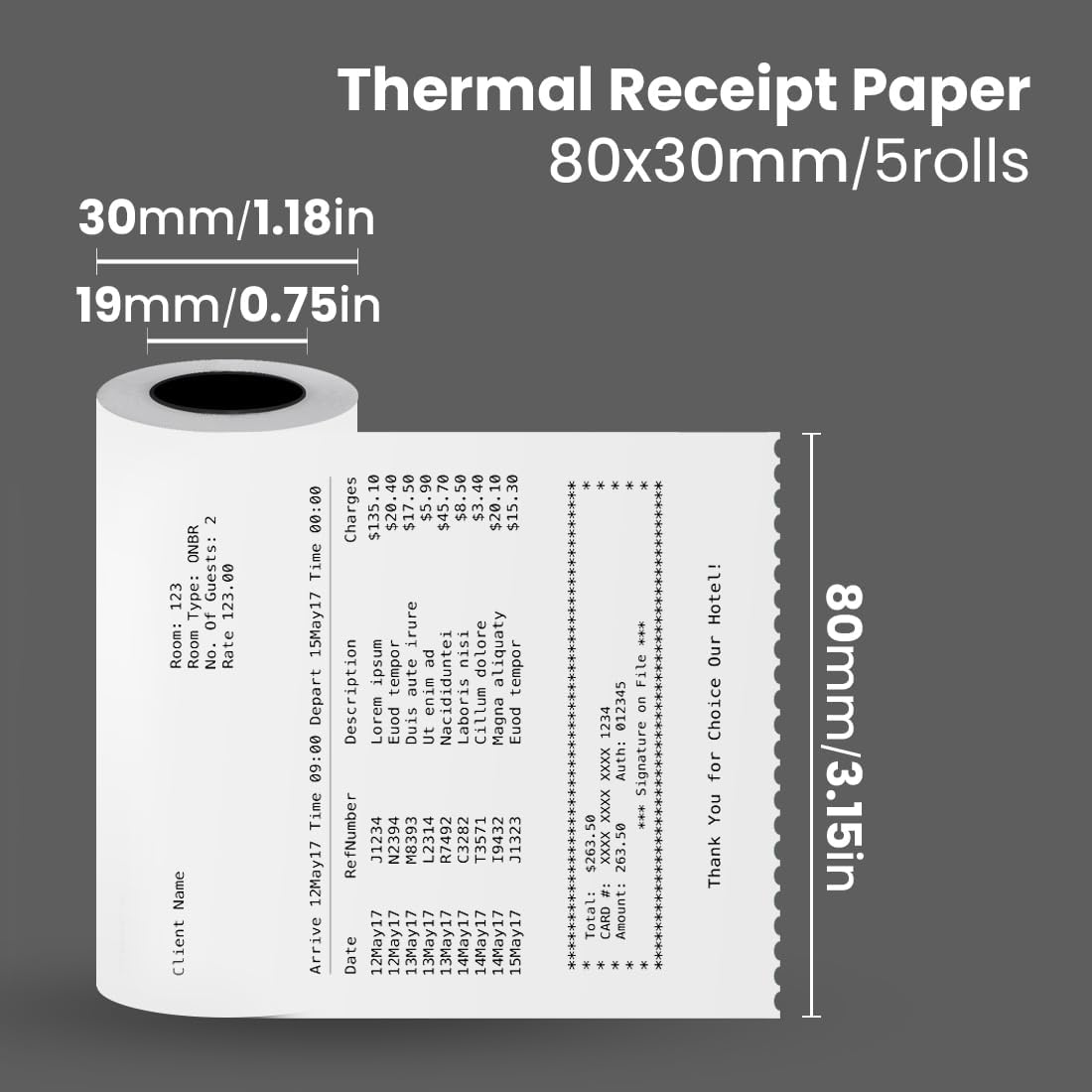

Image 1: Dimensions of the Vretti 80x30mm thermal paper roll. The image shows a thermal receipt paper roll with dimensions indicated: 30mm (1.18in) for the roll diameter, 19mm (0.75in) for the core diameter, and 80mm (3.15in) for the paper width. The text "Thermal Receipt Paper 80x30mm/5rolls" is also visible.
2. Key Features
- High-Quality Printing: Thermally coated paper ensures clear, readable, and long-lasting receipts without the need for ink.
- Durable Construction: Composed of a paper base layer, a thermal sensitive layer, and a protective layer for optimal performance and longevity.
- Red Warning Line: A red line appears near the end of the roll to indicate that the paper is running low, preventing unexpected interruptions during printing.
- Convenient Packaging: Supplied in a 5-roll pack, designed to be sweat-resistant and moisture-proof for easy storage and preservation.
Image 2: Diagram illustrating the layered structure of the Vretti thermal paper. The image shows a cross-section of a thermal paper roll, highlighting three layers: Paper base layer, Thermal sensitive layer, and Protective layer. A red warning line is also indicated on the inner core of the roll.
3. Compatibility
These thermal paper rolls are compatible with a wide range of thermal receipt printers, including specific Vretti models and other common POS devices.
- Vretti Printers: M815, M817
- Star Micronics: TSP143IIU, TSP143IIIBi, TSP143IIILAN, TSP143IIIW, TSP100 Series/SP742, TSP654IISK, TSP100, TSP650II, TSP800II, mC-Print3
- Epson: TM-T88V, TM-T88VI, TM-T20II, TM-T20III, TM-T82III
- MUNBYN: ITPP068, ITPP098, ITPP047UE, ITPP047USEW, ITPP047USEB, ITPP067
- Rongta: RP326, RP820, RP331, ACE H1, RP327
- Citizen American: CT-S310II-U-BK, CT-S310II
- Other Brands: Most 80mm receipt printers and Square POS registers.
Image 3: A visual representation of the Vretti thermal paper's compatibility with various POS devices and thermal printers, including Vretti M815/M817, Star Micronics, Epson, MUNBYN, Rongta, and Citizen American models.

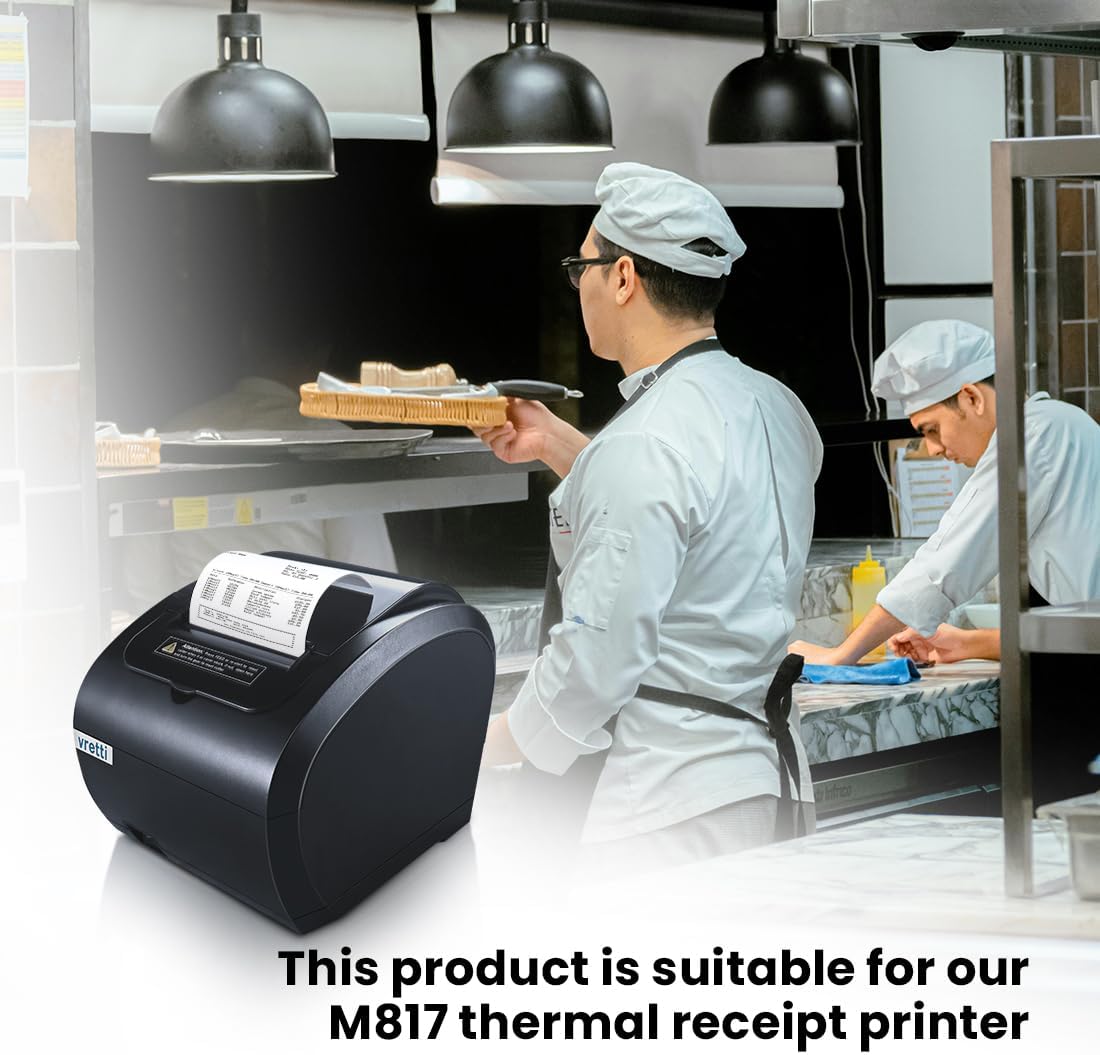

Image 4: The Vretti M817 thermal receipt printer, demonstrating its compatibility with the thermal paper rolls. This product is suitable for the M817 thermal receipt printer.
4. Usage Instructions
4.1. Loading the Paper Roll
- Open the paper cover of your thermal printer according to its specific instructions.
- Remove any remaining paper core or old roll.
- Place the new Vretti thermal paper roll into the paper compartment, ensuring the paper feeds out from the bottom of the roll towards the print head. The thermal side of the paper (usually the outer side) must face the print head.
- Pull a small length of paper out past the printer's cutting edge.
- Close the paper cover firmly until it clicks into place. Ensure there are no wrinkles or obstructions.
- Perform a test print to confirm correct loading and print quality.
4.2. Identifying the Thermal Side
If you are unsure which side of the paper is thermal, gently scratch the surface with a fingernail or apply a small amount of heat (e.g., from a lighter held briefly at a safe distance). The thermal side will show a dark mark where heat was applied.
5. Maintenance and Storage
- Storage Conditions: Store thermal paper rolls in a cool, dry place, away from direct sunlight, high temperatures, and humidity.
- Avoid Chemicals: Do not expose thermal paper to chemicals, oils, or plasticizers (e.g., from PVC binders or plastic bags) as these can degrade the thermal coating and cause fading.
- Handling: Handle rolls by the edges to avoid transferring oils from hands to the thermal surface, which can affect print quality.
- Longevity: While designed for durability, thermal prints can fade over time, especially when exposed to heat, light, or certain chemicals. For long-term archiving, consider making copies of important receipts.
6. Troubleshooting
- Faded or Blank Prints:
- Ensure the paper roll is loaded correctly with the thermal side facing the print head.
- Check if the printer's print head is clean. Refer to your printer's manual for cleaning instructions.
- Verify that the printer's heat settings are appropriate for thermal paper.
- Paper Jams:
- Ensure the paper roll is properly seated and not too tight or loose in the compartment.
- Check for any torn or crumpled edges on the paper.
- Make sure the paper cover is fully closed.
- Red Line Appears Too Early/Late:
- The red warning line is an indicator for low paper. It appears when approximately 1-2 meters of paper remain. This is a standard feature and not an error.
7. Specifications
| Feature | Detail |
|---|---|
| Product Dimensions (L x W x H) | 8 x 3 x 0.1 cm (Individual roll) |
| Weight | 220 grams (for 5 rolls) |
| Brand | Vretti |
| Paper Finish | Coated (Thermal) |
| Sheet Size / Format | 80x30mm |
| Number of Rolls | 5 |
| Brightness | 95 |
| Paper Weight / Thickness | 20 |
| Material Feature | Durable and Protective |
| Color | White (implied, as 'gris' is likely a translation error for the product itself, not the paper color) |
| UPC / GTIN | 692878861489 |
8. Warranty and Support
For specific warranty information regarding Vretti thermal paper rolls, please refer to the purchase documentation or contact Vretti customer support directly. General product support and inquiries can be directed to the manufacturer's official channels.
For printer-related issues, consult the instruction manual provided with your specific thermal printer model (e.g., Vretti M815 or M817).
