KOHE S10 Cordless Vacuum Cleaner User Manual

Important Safety Warnings

Please read and understand all safety warnings before using the KOHE S10 Cordless Vacuum Cleaner.

• Do not use non-original KOHE adapters for charging the device. Using unauthorized adapters may cause damage to the product or pose a safety risk.
• Do not use this product to vacuum water or any other liquids. This vacuum cleaner is designed for dry use only. Vacuuming liquids can lead to electric shock, damage to the motor, or other hazards.
• This product is not intended for use by children or individuals with physical, sensory, or mental disabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Keep out of reach of children.
• Ensure the dust bin and all filters are correctly installed before operation to prevent damage and maintain optimal performance.
• Do not block the air inlets or outlets during operation.
• Turn off the vacuum cleaner before performing any maintenance or cleaning tasks.

Product Overview and Components

The KOHE S10 Cordless Vacuum Cleaner is designed for efficient cleaning of various surfaces. It features a powerful motor, long-lasting battery, and multi-stage filtration system.

Included Components:

• 1 x KOHE S10 Main Unit (with brushless motor)
• 1 x 2-in-1 Brush
• 1 x Roller Brush
• 1 x Flat Nozzle (Crevice Tool)
• 1 x Telescopic Tube
• 1 x Dustbin (1.5L capacity)
• 1 x Battery (Lithium-ion, 6x2200mAh)
• 1 x Floor Brush (with LED lights)
• 1 x HEPA Filter
• 1 x Power Adapter
• 1 x Wall Mount
• 1 x User Manual

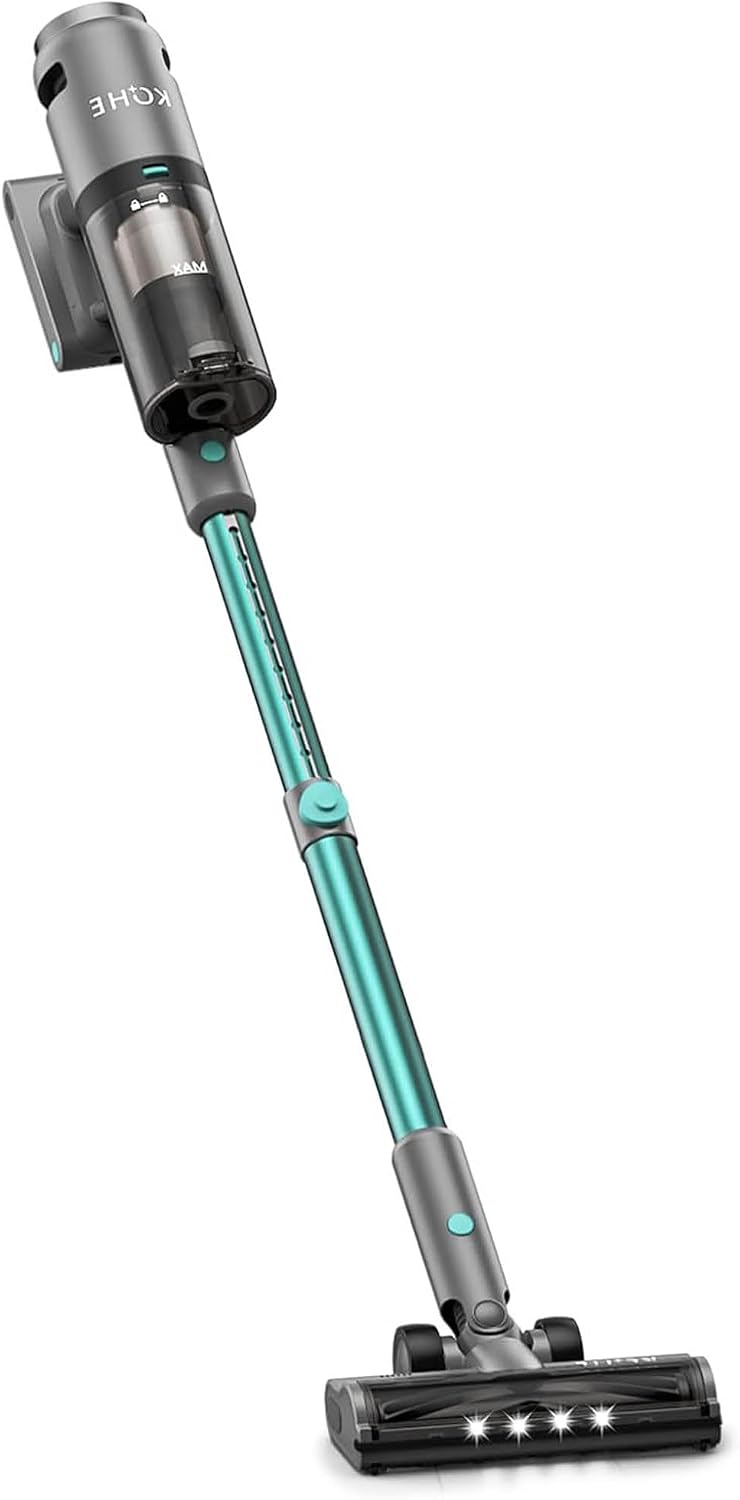

Figure 1: KOHE S10 Cordless Vacuum Cleaner Main Unit.

Figure 2: The floor brush is equipped with both hard and soft brushes, along with LED lighting to illuminate dark areas, making it suitable for various floor types including wood, tile, marble, and carpet.

Figure 3: The KOHE S10 features a high-capacity 6x2200mAh removable battery, allowing for convenient charging and replacement.

Figure 4: The vacuum cleaner incorporates a 6-layer filtration system, including Cyclone Filtration, HEPA Filtration, Multi-cone Filtration, Output Filtration, Template Filtration, and Foam Filtration, to effectively capture dust and allergens.

Figure 5: Equipped with a powerful 400W brushless motor, providing strong and consistent suction for thorough cleaning.

Figure 6: Easily switch between high power and low power suction modes with a single button press to adapt to different cleaning needs.

Figure 7: The 1.5-liter dust box features a convenient one-button release mechanism for easy and hygienic emptying.

Specifications

Setup and Assembly

Follow these steps to assemble your KOHE S10 Cordless Vacuum Cleaner:

1. Unpack Components: Carefully remove all components from the packaging and ensure all listed parts are present.
2. Attach Telescopic Tube: Insert the telescopic tube into the main unit until it clicks securely into place.
3. Attach Floor Brush: Connect the floor brush to the other end of the telescopic tube, ensuring it locks firmly.
4. Install Dustbin: If not already installed, attach the 1.5L dustbin to the main unit. Ensure it is properly aligned and secured.
5. Insert Battery: Slide the battery into the designated slot on the main unit until it clicks. Ensure it is fully seated.
6. Charge Battery: Before first use, fully charge the battery using the provided power adapter. Connect the adapter to the charging port on the battery or the wall mount. The charging indicator will show the charging status.
7. Wall Mount Installation (Optional): Choose a suitable location near a power outlet. Use the provided screws and anchors to securely mount the wall bracket. This allows for convenient storage and charging.

Operating Instructions

Charging the Battery:

• Connect the power adapter to a wall outlet and to the charging port on the battery or the wall mount.
• A full charge typically takes approximately 4 hours.
• The battery indicator lights will show the charging progress and full charge status.

Powering On/Off and Suction Modes:

• To Power On: Press the power button located on the main unit. The vacuum will start in the default suction mode.
• To Change Suction Mode: Press the mode button (often integrated with the power button or a separate button) to switch between high power (Max) and low power (Min) modes. The display will indicate the current mode.
• To Power Off: Press the power button again to turn off the vacuum cleaner.

Using Attachments:

• Floor Brush: Ideal for general cleaning of hard floors, tiles, and carpets. The integrated LED lights illuminate dark areas under furniture.
• 2-in-1 Brush: Use the brush for dusting delicate surfaces like keyboards or shelves, and the nozzle for wider areas.
• Flat Nozzle (Crevice Tool): Perfect for reaching narrow gaps, corners, and tight spaces like car interiors or between sofa cushions.
• Telescopic Tube: Extend or retract the tube to adjust the length for comfortable cleaning of floors, ceilings, or high areas.

Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your KOHE S10 vacuum cleaner.

Emptying the Dustbin:

• When the dustbin is full or suction power decreases, it's time to empty it.
• Press the one-button release mechanism on the dustbin to detach it from the main unit.
• Hold the dustbin over a trash can and press the release button to open the bottom flap and empty the contents.
• Close the flap and reattach the dustbin to the main unit until it clicks securely.

Cleaning Filters:

The KOHE S10 features a multi-layer filtration system, including a HEPA filter. Clean filters regularly (e.g., monthly or as needed) to maintain strong suction.

• Remove the dustbin and then carefully remove the internal filter components (HEPA filter, mesh filter, foam filter).
• Tap the filters gently to remove loose dust.
• Rinse the filters under running water until the water runs clear. Do not use hot water or detergents.
• Allow all filter components to air dry completely for at least 24 hours before reassembling. Ensure they are completely dry to prevent mold or damage to the motor.
• Reassemble the filters in the correct order and reattach the dustbin. The vacuum may have a reminder for forgotten HEPA installation.

Cleaning the Roller Brush:

• Turn off the vacuum cleaner and detach the floor brush.
• Locate the release mechanism for the roller brush (usually a latch or button on the side of the brush head).
• Remove the roller brush and use scissors or a cleaning tool to cut and remove any tangled hair or debris.
• Wipe the roller brush and the brush head cavity with a damp cloth.
• Reinsert the roller brush and secure it in place.

Troubleshooting

If you encounter any issues with your KOHE S10, refer to the following common problems and solutions:

Warranty and Support

KOHE products are manufactured to high-quality standards. For any warranty claims or technical support, please refer to the warranty information provided at the time of purchase or contact KOHE customer service directly.

Please retain your proof of purchase for warranty purposes.

For further assistance, visit the official KOHE website or contact their customer support channels.
