1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Simfer Chimney Hood Model 8962 SM. Please read these instructions carefully before using the appliance and retain them for future reference. Proper use and maintenance will ensure optimal performance and extend the lifespan of your hood.
2. Safety Information
General Safety:
- Ensure the appliance is installed by a qualified technician in accordance with local regulations.
- Always disconnect the power supply before performing any maintenance, cleaning, or repairs.
- This appliance is for domestic use only. Do not use it for commercial or industrial purposes.
- Keep children away from the appliance during operation and cleaning.
- Do not flambé under the range hood.
- Ensure adequate ventilation in the room when the range hood is used simultaneously with gas or other fuel-burning appliances.
Electrical Safety:
- The electrical supply must match the voltage and frequency specified on the rating plate (220-240V, 50Hz).
- Ensure the appliance is properly earthed.
- Do not use extension cords or multiple adapters.
3. Product Overview
The Simfer Chimney Hood Model 8962 SM is a 90 cm wide, wall-mounted kitchen ventilation unit designed to efficiently remove smoke, steam, and cooking odors from your kitchen. It features a powerful motor, multiple speed settings, and integrated lighting for enhanced visibility.

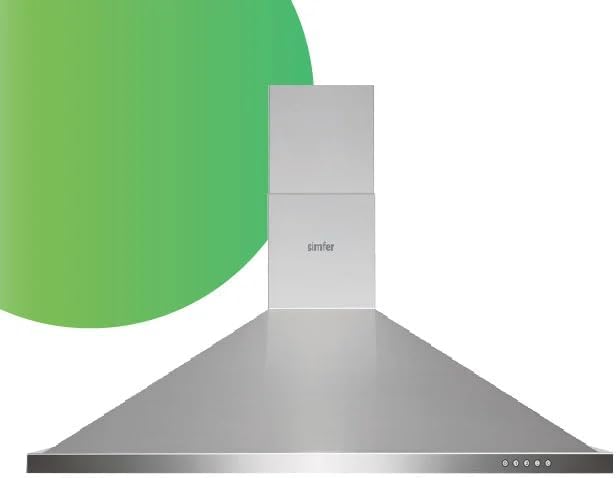

An illustration of the Simfer Chimney Hood Model 8962 SM, showcasing its stainless steel finish and control panel.
Key Features:
- Dimensions: 90 cm width, 58D x 90W x 30H cm overall.
- Airflow Displacement: 500 m³/h (CMPH).
- Speed Settings: 3 different speeds for varied ventilation needs.
- Lighting: 2 Halogen lights, 28W total, for illuminating the cooking area.
- Material: Durable stainless steel construction.
- Mounting Type: Wall Mount.
4. Installation Instructions
Note: Installation should be performed by a qualified professional to ensure safety and proper functioning.
4.1. Unpacking and Inspection:
- Carefully remove the hood from its packaging.
- Inspect the appliance for any damage incurred during transit. Report any damage to your retailer immediately.
- Ensure all components listed in the package contents are present.
4.2. Mounting the Hood:
- Determine the optimal mounting height above your cooking surface, typically between 65-75 cm for electric hobs and 70-80 cm for gas hobs, as per local regulations.
- Mark the drilling points on the wall according to the provided template (if included) or the hood's mounting brackets.
- Drill holes and insert appropriate wall plugs. Secure the mounting bracket(s) to the wall.
- Carefully lift the hood and attach it to the wall mounting bracket(s). Ensure it is level and securely fastened.
4.3. Ducting Connection:
- Connect the exhaust outlet of the hood to the external ducting system. Use a rigid duct with the recommended diameter for optimal performance.
- Ensure the ducting run is as short and straight as possible, with minimal bends, to maximize airflow efficiency.
- Seal all ducting joints with appropriate tape to prevent air leaks.
4.4. Electrical Connection:
- Connect the hood to a dedicated earthed electrical outlet (220-240V, 50Hz).
- Ensure the electrical connection is made by a qualified electrician and complies with all local electrical codes.
- Verify that the power supply is switched off at the main circuit breaker before making any electrical connections.
5. Operating Instructions
The Simfer Chimney Hood 8962 SM features a user-friendly control panel, typically located on the front edge of the hood.
5.1. Power On/Off:
- Press the power button (often indicated by a circle or '0/I' symbol) to turn the hood on or off.
5.2. Fan Speed Control:
- The hood has 3 speed settings. Press the corresponding speed button (e.g., '1', '2', '3' or '+' / '-' buttons) to select the desired extraction level.
- Use lower speeds for light cooking and higher speeds for heavy cooking or strong odors.
5.3. Light Control:
- Press the light button (often indicated by a light bulb symbol) to turn the halogen lights on or off.
6. Maintenance
Regular maintenance ensures the longevity and efficiency of your chimney hood.
6.1. Cleaning the Exterior:
- Clean the stainless steel surfaces regularly with a soft cloth and a non-abrasive stainless steel cleaner.
- Avoid using abrasive sponges, scouring pads, or harsh chemical cleaners, as these can damage the finish.
- Always wipe in the direction of the grain for stainless steel.
6.2. Cleaning/Replacing Filters:
- The hood is equipped with metal grease filters. These should be cleaned regularly (e.g., monthly, depending on usage) to maintain optimal performance.
- To remove the filters, locate the release latches or clips, typically found on the underside of the filter.
- Wash the filters by hand in hot soapy water or in a dishwasher (if suitable for dishwasher cleaning). Ensure they are completely dry before re-installing.
- If your hood uses charcoal filters for recirculation (not included with all models), these cannot be washed and must be replaced periodically (typically every 3-6 months).
6.3. Replacing Halogen Lights:
- Always disconnect power before replacing bulbs.
- Allow the bulbs to cool completely before touching them.
- Carefully remove the old bulb and replace it with a new halogen bulb of the same type and wattage (28W).
- Reconnect power and test the lights.
7. Troubleshooting
If you encounter issues with your Simfer Chimney Hood, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Hood does not turn on. | No power supply. Faulty switch. | Check if the plug is securely in the socket and the circuit breaker is on. Contact a qualified technician. |
| Low suction power. | Grease filters are clogged. Ducting is obstructed or too long/bent. Insufficient room ventilation. | Clean or replace grease filters. Check ducting for obstructions or excessive bends. Open a window or door to allow air intake. |
| Lights not working. | Bulbs are faulty. Loose electrical connection. | Replace the halogen bulbs. Contact a qualified technician. |
| Excessive noise. | Loose components. Motor issue. Improper installation. | Check for loose screws or parts. Contact a qualified technician. Ensure the hood is securely mounted. |
If the problem persists after attempting these solutions, please contact Simfer customer support or a qualified service technician.
8. Specifications
| Feature | Specification |
|---|---|
| Brand | Simfer |
| Model | 8962 SM |
| Type | Chimney Hood |
| Mounting Type | Wall Mount |
| Dimensions (D x W x H) | 58 x 90 x 30 cm |
| Airflow Displacement | 500 m³/h (CMPH) |
| Number of Speeds | 3 |
| Light Source Type | Halogen (2 lights, 28W total) |
| Voltage | 220-240 Volts |
| Frequency | 50 Hz |
| Material | Alloy Steel, Stainless Steel |
| Noise Level | 20 Decibels |
| Item Weight | 25 Kilograms |
| Annual Energy Consumption | 50 Kilowatts |
| Color | Silver-tone |
9. Warranty and Support
Your Simfer Chimney Hood Model 8962 SM comes with a three-year warranty provided by the agent. Please retain your proof of purchase for warranty claims.
For technical assistance, spare parts, or warranty inquiries, please contact your authorized Simfer dealer or customer service center. Refer to your purchase documentation for specific contact details.
