1. Introduction
This manual provides instructions for the installation, operation, and maintenance of the NyZyL PWK PZ Carburetor Clear Float Bowl. This component is designed to replace the standard float bowl on compatible carburetors, offering a transparent view of the fuel level and flow within the carburetor.

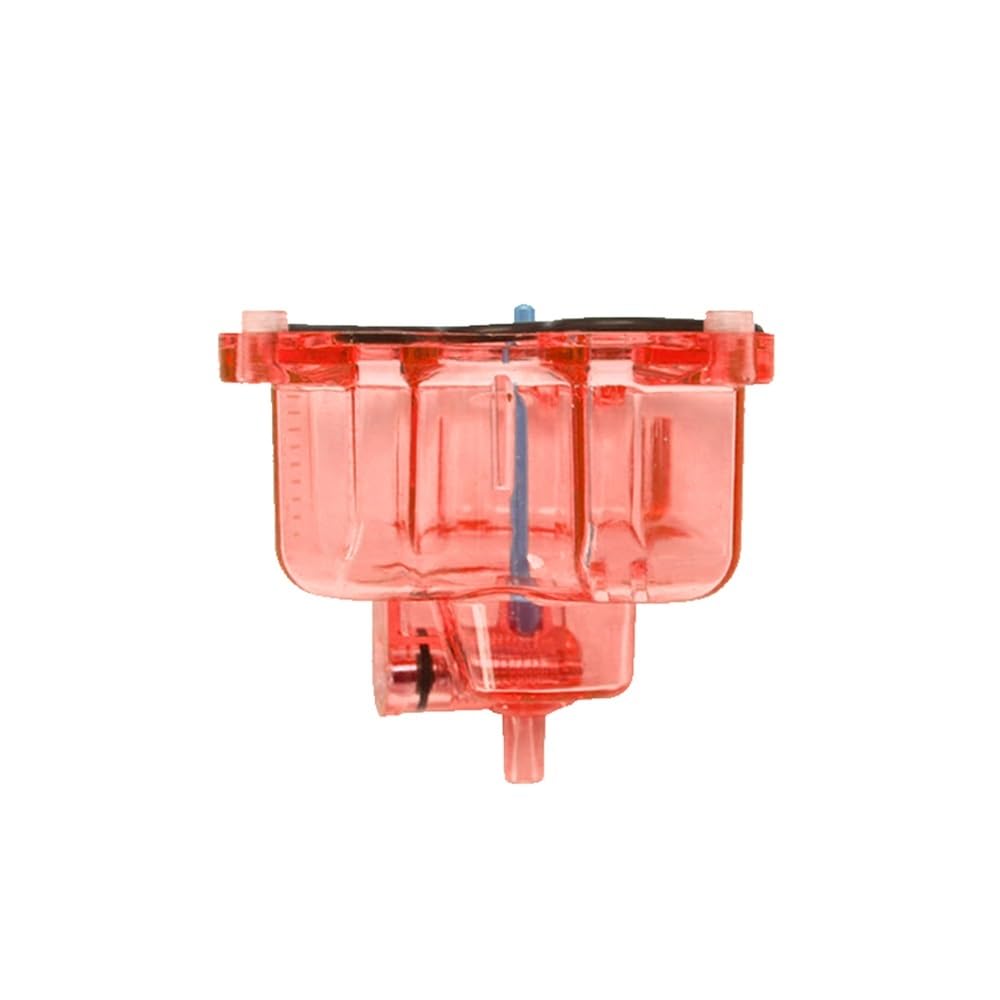

Image 1.1: Various NyZyL clear float bowls, showcasing different colors and designs.
2. Features
- Clear Design: Allows for visual inspection of fuel level and flow, aiding in diagnostics and tuning.
- Durable Construction: Manufactured from high-quality, impact-resistant materials for extended service life.
- Enhanced Performance: Designed to maintain optimal fuel delivery to the carburetor.
- Compatibility: Universal fitment for specific PWK I/II/III, PWK IV/KSR EVO, and PZ26/27/30/32 series carburetors.
3. Compatibility
The NyZyL Clear Float Bowl is designed for universal fitment with various motorcycle carburetors. It is compatible with PWK I/II/III, PWK IV/KSR EVO, and PZ26, PZ27, PZ30, PZ32 series carburetors. Please verify your carburetor model before installation to ensure proper fitment.
Image 3.1: Examples of different clear float bowl models (A, B, C) for various carburetor types.
4. Package Contents
- One (1) NyZyL Clear Float Bowl
Please inspect the package contents upon receipt to ensure all items are present and undamaged.
5. Setup and Installation
Installation of the clear float bowl requires basic mechanical knowledge. Professional installation is recommended for optimal performance and safety. Always ensure the engine is cool and the fuel supply is turned off before beginning work.
Safety Precautions:
- Ensure the engine is off and cool.
- Disconnect the fuel line and drain any fuel from the carburetor.
- Wear appropriate personal protective equipment, including gloves and eye protection.
- Work in a well-ventilated area.
Installation Steps:
- Locate the Carburetor: Identify the carburetor on your motorcycle.
- Remove Existing Float Bowl: Carefully unbolt or unclip the existing float bowl from the bottom of the carburetor. Be prepared for residual fuel to spill.
- Inspect and Clean: Remove the old gasket. Thoroughly clean the mating surface of the carburetor to ensure no debris or old gasket material remains.
- Install New Gasket: Place the new gasket (not included, typically reused or purchased separately) onto the clear float bowl or the carburetor body, ensuring it is seated correctly.
- Attach Clear Float Bowl: Carefully align the NyZyL Clear Float Bowl with the carburetor body. Ensure the float and needle valve are correctly positioned within the bowl.
- Secure the Bowl: Fasten the float bowl using the original screws or clips. Tighten evenly to ensure a proper seal, but do not overtighten.
- Reconnect Fuel Line: Reattach the fuel line to the carburetor.
- Check for Leaks: Turn on the fuel supply and inspect for any leaks around the new float bowl. Start the engine and observe for proper operation and continued absence of leaks.
Image 5.1: Comparison of carburetor float bowls, illustrating configurations with and without an oil line connection. Ensure your new float bowl matches your carburetor's requirements.
Image 5.2: Examples of the clear float bowl installed on carburetors, showing the transparent design in use.
6. Operating Instructions
The clear float bowl functions passively as part of the carburetor's fuel system. Its primary operational benefit is the ability to visually monitor the fuel level and condition within the carburetor's float chamber.
- Visual Inspection: Periodically observe the fuel level in the clear float bowl. The fuel level should remain consistent during engine operation.
- Detecting Contaminants: The transparent design allows for easy detection of water, sediment, or other contaminants in the fuel, which may indicate a need for fuel system cleaning or filter replacement.
- Diagnosing Fuel Flow Issues: Visible air bubbles or an inconsistent fuel level can help diagnose issues with fuel delivery or the float mechanism.
7. Maintenance
Regular maintenance ensures the longevity and proper function of your clear float bowl and carburetor.
- Regular Cleaning: If the clear material becomes cloudy or discolored due to fuel exposure, it can be carefully cleaned with a soft cloth and mild, fuel-safe cleaner. Avoid abrasive materials or harsh chemicals that could damage the plastic.
- Inspect for Damage: Periodically check the float bowl for cracks, chips, or signs of fuel leakage. Replace immediately if any damage is found.
- Gasket Integrity: Ensure the gasket between the float bowl and carburetor body remains pliable and free of cracks. Replace the gasket if it shows signs of wear or leakage.
8. Troubleshooting
If you encounter issues after installing the clear float bowl, consider the following:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fuel Leakage | Improperly seated gasket, damaged gasket, loose screws, cracked float bowl. | Check gasket for proper seating and damage; replace if necessary. Tighten screws evenly. Inspect float bowl for cracks and replace if damaged. |
| Incorrect Fuel Level | Float mechanism malfunction, debris in needle valve, incorrect float adjustment. | Inspect float and needle valve for free movement and debris. Adjust float level according to carburetor specifications. |
| Cloudy or Discolored Bowl | Fuel residue buildup, environmental exposure. | Clean with a soft cloth and mild, fuel-safe cleaner. If discoloration persists and visibility is impaired, consider replacement. |
9. Specifications
| Attribute | Detail |
|---|---|
| Product Dimensions | 1.18 x 0.79 x 0.39 inches |
| Item Weight | 1.76 ounces |
| Manufacturer | NyZyL |
| Model Number | NyZyL123 |
| Compatibility | PWK I/II/III, PWK IV/KSR EVO, PZ26/27/30/32 Carbs |
10. Warranty and Support
For warranty information and customer support, please refer to the retailer or manufacturer's official website. Keep your proof of purchase for any warranty claims.
If you require further assistance or have questions not covered in this manual, please contact NyZyL customer service through their official channels.
