1. Product Overview
The PuraFlame Herman 50-inch Smart Linear Electric Fireplace offers a modern heating solution with versatile installation options. This unit features a premium flame display with multiple color settings, smart control capabilities, and efficient heating for spaces up to 400 sq. ft.
- Dimensions: 50"W x 17.7"H x 5.5"D, designed for a 6" wall recess.
- Installation: Recessed in-wall, wall-mount, or freestanding.
- Control: Smart device app, voice control (Alexa/Google Assistant), or remote control.
- Flame & Fuel Bed: 9 flame colors, 9 fuel bed colors, adjustable brightness, and optional cracking sound.
- Heating: Low and high heat settings, temperature range 60°F - 84°F, heats up to 400 sq. ft.
- Fuel Bed Media: Includes driftwood logs and decorative crystals.
- Safety: Overheat protection, CSA, CUSA, FCC certified.
- Wiring: 120V outlet plug-in or hardwired options.

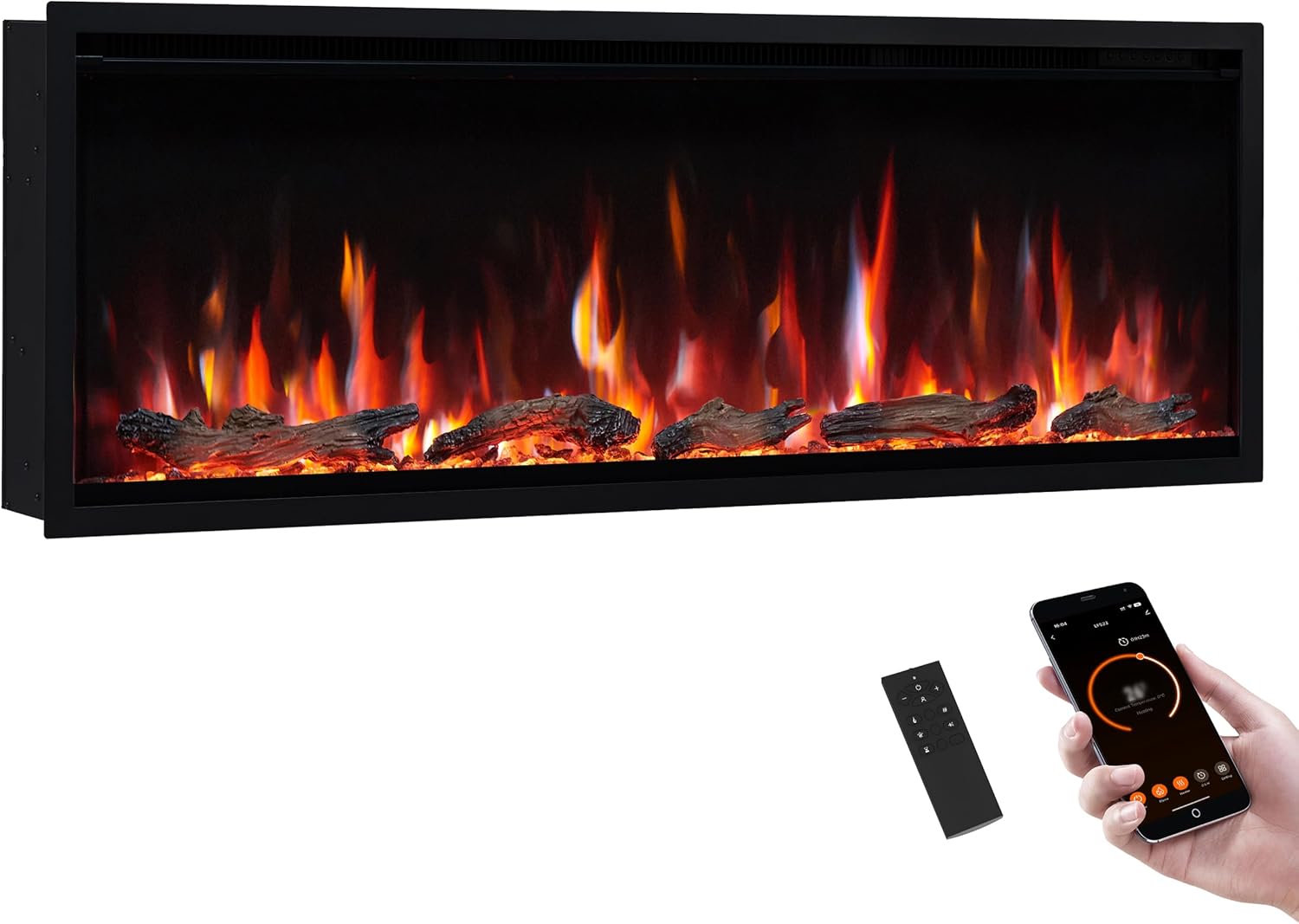

Image 1.1: The PuraFlame Herman 50-inch electric fireplace, showcasing its flame effects, remote control, and smartphone app interface.
2. Safety Information
Please read and understand all instructions before installing, operating, or servicing this fireplace. Failure to follow these instructions may result in electric shock, fire, property damage, or personal injury.
- Always disconnect power before performing any maintenance or cleaning.
- Do not operate the fireplace with a damaged cord or plug, or if the heater malfunctions.
- Keep combustible materials at least 3 feet (0.9 meters) from the front of the fireplace.
- Ensure proper ventilation and do not block air vents.
- This appliance is safe to mount a TV above it, provided installation guidelines are followed.
- For electrical connections, choose between plugging into a standard 120V outlet or hardwiring the unit. Consult a qualified electrician for hardwiring.
3. What's In The Box
Carefully unpack all components and verify that all items are present before beginning installation.
Image 3.1: Contents of the PuraFlame Herman 50-inch electric fireplace package.
- Electric Fireplace Unit (1 pc)
- Wall Mount Bracket (1 pc)
- L Bracket (2 pcs)
- Standing Bracket (2 pcs)
- Crystal Media (1 set)
- Remote Control (1 pc)
- AAA Batteries (2 pcs)
- Resin Log Set (1 set)
- Hard Wire Part (1 pc)
- ST4*10 Screw (4 pcs)
- ST4*40 Screw (4 pcs)
- ST5*40 Screw (8 pcs)
- Wall Plug (8 pcs)
- Black Chips (1 set)
- Cable Cap (3 pcs)
4. Setup and Installation
The PuraFlame Herman fireplace offers three installation options: recessed in-wall, wall-mounted, or freestanding.
4.1. Dimensions and Clearances

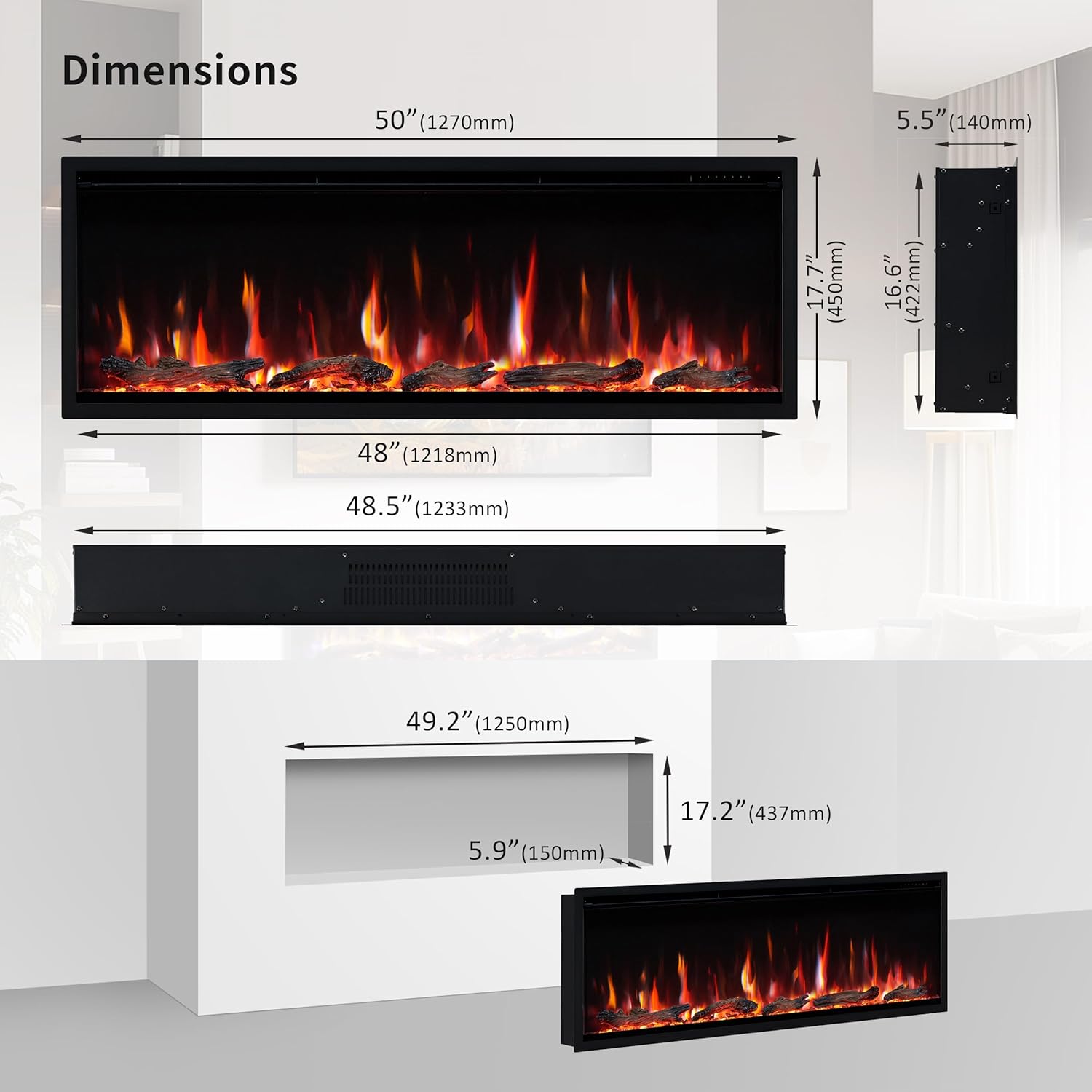

Image 4.1: Product dimensions and required recessed opening for installation.
- Overall Dimensions: 50" (1270mm) W x 17.7" (450mm) H x 5.5" (140mm) D
- Recessed Opening Dimensions: 49.2" (1250mm) W x 17.2" (437mm) H x 5.9" (150mm) D
- Ensure a minimum of 6 inches of wall depth for recessed installation.
4.2. Installation Options
Wall Recessed Installation
Wall Mounted Installation
Freestanding Installation
4.3. Recessed Installation Steps
Follow these steps for recessed installation into a framed wall:
- Step 1: Prepare the Framing. Construct a wooden frame according to the specified recessed opening dimensions (49.2" W x 17.2" H x 5.9" D).
- Step 2: Electrical Preparation. Ensure a 120V electrical outlet is available within the framed opening or prepare for hardwiring. An extension lead may be used if necessary.
- Step 3: Insert Fireplace. Carefully slide the fireplace unit into the prepared framed opening.
- Step 4: Secure the Unit. Use the provided screws to secure the fireplace to the wooden framing through the designated mounting holes.
- Step 5: Remove Front Glass. Unscrew the retaining screws on the sides of the fireplace and carefully remove the front glass panel.
- Step 6: Install Fuel Bed. Place the chosen fuel bed media (driftwood logs or crystals) onto the fuel bed tray.
- Step 7: Reattach Front Glass. Carefully reattach the front glass panel and secure it with the retaining screws.
Image 4.2: Recessed installation steps 1-4.
Image 4.3: Recessed installation steps 5-8.
4.4. Wall-Mount Installation
Use the provided wall mount bracket to secure the fireplace directly to a wall. Ensure the wall material can support the weight of the unit.
4.5. Freestanding Installation
Attach the two standing brackets to the bottom of the fireplace unit. Place the unit on a stable, level surface.
5. Operating Instructions
The PuraFlame Herman fireplace can be operated via touch buttons on the unit, the included remote control, or a smart device app with voice control.
5.1. Control Panel and Remote Control
Image 5.1: Fireplace control options including touch buttons, remote, and smart app.
- Standby Button: Powers the unit on or off.
- Flame Button: Cycles through 9 flame colors.
- Fuel Bed Button: Cycles through 9 fuel bed colors.
- Timer Button: Sets the operating timer.
- Minus & Plus Buttons: Adjust temperature, brightness, or volume.
- My Flame Button: Saves preferred flame settings.
- Heater Button: Activates low or high heat settings.
- Crackling Sound Button: Toggles the simulated fire crackling sound on/off and adjusts volume.
5.2. Flame and Fuel Bed Settings
Customize your fireplace ambiance with a wide range of visual effects.
Image 5.2: Multi-combination flame effects and brightness levels.
- Flame Colors: Choose from 9 distinct flame colors to match your mood or decor.
- Fuel Bed Colors: Select from 9 fuel bed colors, which can be combined with flame colors for diverse effects.
- Brightness: Adjust flame brightness through 5 levels, from dimmer to brighter.
- Crackling Sound: Activate or deactivate the realistic fire crackling sound and adjust its volume.
5.3. Heating Function
Image 5.3: Efficient heating capability of the fireplace.
- Heat Settings: Select between low (750W) and high (1500W) heat output.
- Thermostat: Set desired room temperature between 60°F and 84°F (16°C - 28°C). The heater will automatically turn on/off to maintain the set temperature.
- Coverage: Capable of heating rooms up to 400 sq. ft.
- The flame effect can be operated independently of the heating function.
5.4. Smart Home Integration
Image 5.4: Compatibility with smart voice assistants.
The fireplace is compatible with Alexa and Google Assistant for convenient voice control. Download the PuraFlame smart app to connect your fireplace to your home network and enable voice commands.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your electric fireplace.
- Cleaning: Ensure the unit is turned off and unplugged before cleaning. Use a soft, damp cloth to clean the exterior surfaces. Do not use abrasive cleaners or sprays.
- Glass Panel: Clean the glass panel with a soft cloth and glass cleaner. Avoid harsh chemicals that may damage the finish.
- Air Vents: Periodically check and clean the air intake and exhaust vents to ensure they are free from dust and debris. Use a vacuum cleaner with a brush attachment if necessary.
- Fuel Bed Media: The driftwood logs and crystals can be removed and cleaned with a soft cloth. Ensure they are completely dry before placing them back into the unit.
- Light Bulbs: The flame effect uses LED technology, which typically does not require replacement. If issues arise, contact customer support.
7. Troubleshooting
If you encounter issues with your PuraFlame Herman fireplace, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No power to the unit | Unit unplugged, circuit breaker tripped, power switch off. | Ensure the unit is securely plugged into a working outlet. Check the household circuit breaker. Verify the main power switch on the unit is in the 'ON' position. |
| Heater not producing heat | Thermostat set too low, air vents blocked, overheat protection activated. | Increase the thermostat setting. Clear any obstructions from the air intake/exhaust vents. If overheat protection activated, turn off the unit, unplug it, wait 15 minutes, then plug back in and restart. |
| Remote control not working | Dead batteries, remote out of range, sensor blocked. | Replace the AAA batteries in the remote. Ensure you are within range and pointing the remote at the fireplace sensor. Clear any obstructions between the remote and the unit. |
| Flame effect not working | Flame button not pressed, internal component issue. | Press the 'Flame' button on the remote or control panel. If the issue persists, contact customer support. |
| Wi-Fi/App control issues | Incorrect Wi-Fi setup, app not connected, network issues. | Ensure your fireplace is properly connected to your home Wi-Fi network via the PuraFlame app. Check your Wi-Fi router and internet connection. Refer to the app's instructions for specific pairing steps. |
8. Specifications
| Feature | Specification |
|---|---|
| Brand | PuraFlame |
| Model Name | EF539B |
| Product Dimensions | 50"W x 17.7"H x 5.5"D |
| Power Source | Corded Electric |
| Material | Metal |
| Installation Type | In-wall recessed, Wall-mount, Freestanding |
| Heat Output | 5000 BTU (1500 Watts) |
| Heating Coverage | Up to 400 sq. ft. |
| Special Features | Adjustable Flame, Adjustable Thermostat, Multicolor Flame, Safety Shut Off, Timer, Smart Control (Alexa/Google Assistant) |
| Color | Black |
| Item Weight | 49.2 Pounds |
| Batteries Required | 2 AAA batteries (for remote) |
| Certifications | CSA, CUSA, FCC |
9. Warranty and Support
9.1. Warranty Information
This PuraFlame Herman electric fireplace comes with a Limited Warranty. Please refer to the warranty card included with your product packaging for specific terms, conditions, and duration of coverage.
9.2. Customer Support
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact PuraFlame customer support. Contact information can typically be found on the product packaging, the official PuraFlame website, or your purchase receipt.
