Introduction
This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your Marelli Impact 2655B Manager Chair. Please read these instructions carefully before assembly and use to ensure proper function and longevity of your product. Keep this manual for future reference.
Package Contents
Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact Marelli customer support for assistance.
- Seat Cushion (1)
- Backrest (1)
- Armrests (2)
- Star Base (1)
- Casters (5)
- Gas Lift Cylinder (1)
- Mechanism Plate (1)
- Hardware Pack (Screws, Washers, Allen Key)
Assembly Instructions
Follow these steps carefully to assemble your Marelli Impact 2655B Manager Chair. It is recommended to assemble the chair on a soft, clean surface to prevent damage.
Step 1: Attach Casters to Base
Insert each of the five casters into the holes at the end of each leg of the star base. Push firmly until they click into place.
Figure 1: Illustration of casters being inserted into the chair's star base.
Step 2: Insert Gas Lift into Base
Place the gas lift cylinder into the central hole of the assembled star base. Ensure it is seated firmly.
Step 3: Attach Mechanism Plate to Seat Cushion
Align the mechanism plate with the pre-drilled holes on the underside of the seat cushion. Ensure the front of the mechanism plate faces the front of the seat. Secure with the provided screws and tighten using the Allen key.
Step 4: Attach Armrests to Seat Cushion
Attach the armrests to the sides of the seat cushion using the designated screws. Do not overtighten initially, allow for slight adjustment if needed for the backrest.
Step 5: Attach Backrest to Seat Cushion/Armrests
Align the backrest with the mounting points on the seat cushion and/or armrests. Secure with the remaining screws. Once all screws are in place, tighten all armrest and backrest screws firmly.
Figure 2: Side view of the fully assembled chair, illustrating the connection points of the seat, backrest, and armrests.
Step 6: Connect Seat Assembly to Gas Lift
Carefully place the assembled seat and backrest onto the gas lift cylinder, ensuring the central hole of the mechanism plate aligns with the top of the gas lift. Press down firmly to secure.

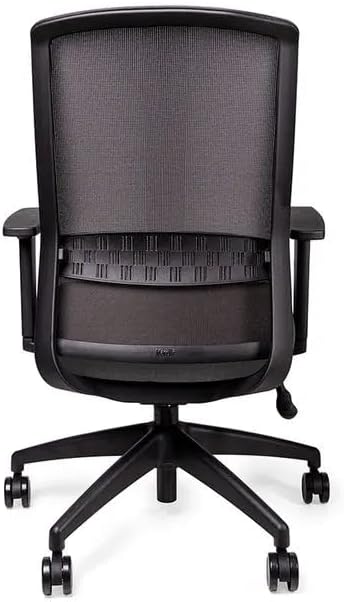

Figure 3: Rear view of the assembled chair, highlighting the backrest design and overall structure.
Operating Instructions
Your Marelli Impact 2655B chair is designed for ergonomic comfort and adjustability.
Chair Height Adjustment
To adjust the chair height, locate the lever on the right side, beneath the seat.
- To raise the seat: Lift the lever while taking your weight off the seat. The seat will rise automatically.
- To lower the seat: Lift the lever while remaining seated. The seat will lower under your weight.
- Release the lever to lock the seat at the desired height.
Tilt Mechanism and Lock
The chair features a tilt mechanism for reclining.
- To enable tilt: Pull the same lever (used for height adjustment) outwards from the chair.
- To lock the tilt: Push the lever inwards towards the chair when the backrest is in the upright position.
Tilt Tension Adjustment
A round knob located under the front-center of the seat controls the tilt tension.
- Turn clockwise to increase tension (requires more force to recline).
- Turn counter-clockwise to decrease tension (requires less force to recline).
Maintenance
Regular maintenance will help preserve the appearance and functionality of your chair.
- Cleaning Fabric: For general cleaning, use a soft brush or vacuum cleaner to remove dust and loose particles. For spills, blot immediately with a clean, dry cloth. For stubborn stains, use a mild fabric cleaner according to the product instructions, testing on an inconspicuous area first.
- Cleaning Plastic/Metal Parts: Wipe with a soft, damp cloth and mild soap. Avoid abrasive cleaners or solvents.
- Caster Maintenance: Periodically check casters for accumulated hair or debris and clean as necessary to ensure smooth movement.
- Hardware Check: Every six months, inspect all screws and bolts to ensure they are tight. Retighten if loose to prevent wobbling or instability.
Troubleshooting
If you encounter any issues with your Marelli Impact 2655B chair, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair does not adjust height. | Gas lift cylinder malfunction or lever not engaged. | Ensure the height adjustment lever is fully engaged. If the problem persists, the gas lift may need replacement. Contact customer support. |
| Chair wobbles or feels unstable. | Loose screws or improper assembly. | Check all assembly screws (seat, backrest, armrests) and tighten them firmly. Ensure the gas lift is properly seated in the base. |
| Casters do not roll smoothly. | Debris caught in casters. | Turn the chair over and remove any hair, dust, or debris from the caster wheels. |
| Chair squeaks when moving. | Loose connections or friction between parts. | Tighten all screws. Apply a small amount of silicone lubricant to moving parts of the mechanism or where components meet, avoiding fabric. |
Specifications
Key specifications for the Marelli Impact 2655B Manager Chair:
- Model: Impact 2655B
- Brand: Marelli
- Color: Graphite Fabric, Black Structure
- Product Dimensions: 64 cm (Depth) x 30 cm (Width) x 68 cm (Height)
- Product Weight: 18 kg (18000 Grams)
- Backrest Style: Solid Backrest (Mesh)
- EAN: 7893342109837
- ASIN: B0CYR98G17
Warranty and Support
For warranty information or technical support, please refer to the documentation included with your purchase or contact Marelli customer service directly. Keep your proof of purchase for warranty claims.
Marelli Customer Service: Please visit the official Marelli website or refer to your purchase receipt for contact details.
