1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Candy RapidÓ RO4 476DWMC7/1-S front-load washing machine. Please read these instructions carefully before using the appliance and keep them for future reference.
2. Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury to persons. This appliance is intended for household use only.
- Ensure the appliance is properly grounded.
- Do not allow children to play with or operate the washing machine.
- Never force the door open during operation.
- Unplug the appliance before cleaning or performing any maintenance.
- Do not install the appliance in a damp place or where it may be exposed to water.
3. Product Overview
The Candy RapidÓ RO4 476DWMC7/1-S is a high-efficiency front-load washing machine designed for optimal performance and convenience. It features a 7 kg capacity, 1400 RPM spin speed, and a range of advanced functions to simplify your laundry routine.
Key Features:
- Steam Function: Reduces ironing time by relaxing fabric fibers.
- Snap&Wash Function: Use your smartphone to photograph your laundry, and the machine suggests the most suitable rapid program.
- Rapid Programs: A comprehensive set of 9 quick wash cycles (14', 29', 30', 39', 44', 59') for efficient cleaning in under an hour.
- Speed-Drive Inverter Motor: An innovative brushless motor that enhances cleaning performance by up to 50% compared to traditional motors, while reducing energy consumption and vibrations.
- Quick&Clean Technology: Mixes water and detergent into a concentrated solution, sprayed into the drum at high pressure for deep penetration and effective cleaning even at lower temperatures.
- Daily Hygiene: Includes a Hygiene Plus 59' program for thorough sanitization at 60°C.
- Maximum Comfort: Ergonomic porthole design for easier loading and unloading.
- Energy Efficiency: 15% more efficient than standard Class A washing machines.
The control panel features a digital display and a rotary dial for program selection.
The durable stainless steel drum ensures effective and gentle washing.
4. Setup and Installation
4.1 Unpacking
Carefully remove all packaging materials. Ensure all transit bolts are removed from the rear of the machine before use. Keep packaging materials out of reach of children.
4.2 Placement
Place the washing machine on a firm, level surface. Ensure there is adequate space around the appliance for ventilation and access. The dimensions of the product are approximately 60 cm (width) x 45 cm (depth, including door and pipes) x 85 cm (height).
Product dimensions for proper installation.
4.3 Water and Drain Connection
Connect the water inlet hose to a cold water tap. Ensure the drain hose is securely placed into a standpipe or connected to a suitable drain system, preventing kinks or blockages.
4.4 Electrical Connection
Connect the power cord (included) to a properly grounded electrical outlet. Do not use extension cords or adapters. Ensure the voltage and frequency match the specifications of your appliance.
4.5 Leveling the Machine
Adjust the feet of the washing machine to ensure it is perfectly level. This will prevent excessive vibration and noise during operation.
5. Operating Instructions
5.1 Loading Laundry
Open the porthole door and load your laundry into the drum. Do not overload the machine; ensure there is enough space for clothes to tumble freely. The maximum capacity is 7 kg.
5.2 Adding Detergent
Pull out the detergent dispenser drawer. Add the appropriate amount of detergent and fabric softener to the single-compartment dispenser, following the detergent manufacturer's instructions.
5.3 Selecting a Program
Turn the program dial to select one of the 16 available wash cycles. The digital display will show the selected program's details. For quick washes, choose from the 9 rapid programs. For advanced control, use the hOn app via Wi-Fi + BLE connectivity.

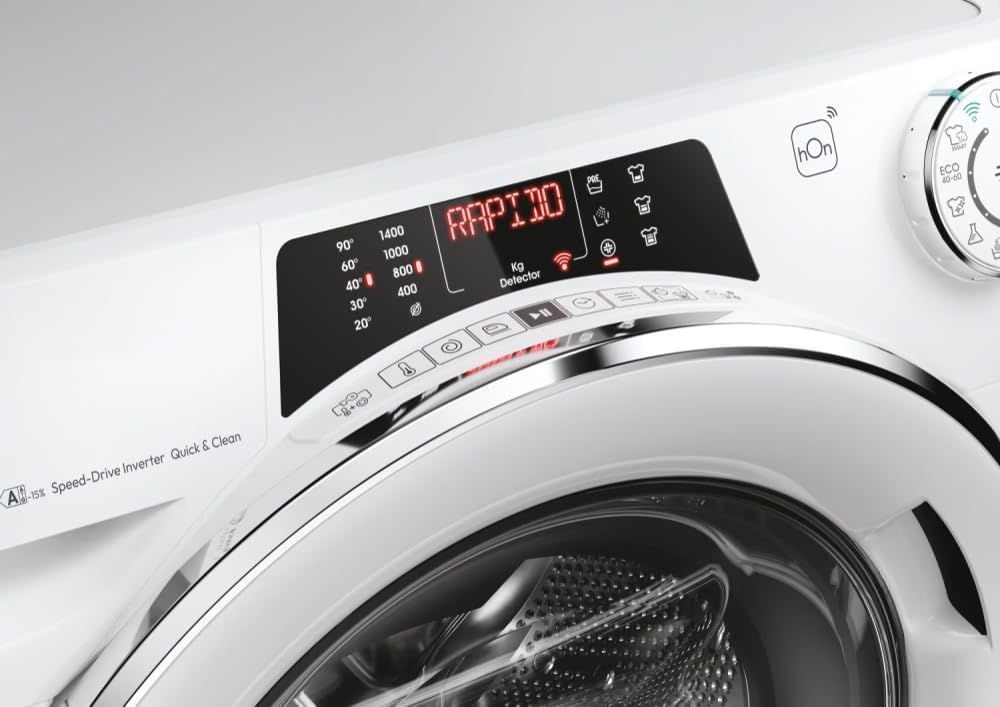

The control panel allows selection of various wash programs and displays cycle information.
5.4 Special Functions
- Steam Function: Activate this option to reduce wrinkles and make ironing easier.
- Snap&Wash: Use the hOn app on your smartphone to take a picture of your laundry. The app will recommend the best rapid program, temperature, and spin speed.
- Quick&Clean: This technology pre-mixes water and detergent for enhanced cleaning power, allowing effective washing at lower temperatures.
- Hygiene Plus 59': Select this rapid program for a thorough hygienic wash at 60°C in just 59 minutes, protecting against allergens, germs, and bacteria.
- Delayed Start: Set a delay for the wash cycle to start at a more convenient time (up to 24 hours).
Quick&Clean technology ensures powerful cleaning by pre-mixing detergent and water.
5.5 Starting and Ending a Wash Cycle
Press the Start/Pause button to begin the selected program. The machine will automatically proceed through the wash, rinse, and spin cycles. Once the program is complete, the machine will signal, and the door will unlock. Remove your laundry promptly.
6. Maintenance and Care
6.1 Cleaning the Detergent Dispenser
Regularly remove and clean the detergent dispenser drawer to prevent residue buildup. Rinse it under running water and ensure all compartments are clear before reinserting.
6.2 Cleaning the Drum
Run a maintenance wash cycle (e.g., a hot wash with no laundry and a descaling agent) periodically to clean the drum and remove any detergent or fabric softener residues.
6.3 Cleaning the Filter
Locate and clean the drain pump filter regularly to prevent blockages. Refer to the diagrams in the full manual for specific instructions on accessing and cleaning the filter.
6.4 Exterior Cleaning
Wipe the exterior of the washing machine with a soft, damp cloth. Do not use abrasive cleaners or solvents.
7. Troubleshooting
If you encounter any issues with your washing machine, consult the following common problems and solutions before contacting service.
- Machine does not start: Ensure the power cord is plugged in, the door is closed properly, and the Start/Pause button has been pressed. Check if the fuse has blown or the circuit breaker has tripped.
- No water filling: Check if the water tap is open and the water inlet hose is not kinked or blocked.
- Water not draining: Inspect the drain hose for kinks or blockages. Clean the drain pump filter.
- Excessive vibration/noise: Ensure the machine is level and all transit bolts have been removed. Check that the load is balanced inside the drum.
- Detergent residue in dispenser: Clean the detergent dispenser thoroughly. Ensure water pressure is adequate.
For more complex issues or if the problem persists, please refer to the comprehensive troubleshooting guide in the full product manual or contact customer support.
8. Specifications
| Feature | Specification |
|---|---|
| Model Number | RO4 476DWMC7/1-S |
| Loading Type | Front-Load |
| Capacity | 7 kg |
| Maximum Spin Speed | 1400 RPM |
| Energy Efficiency Class | A (15% more efficient than standard Class A) |
| Dimensions (W x D x H) | 60 cm x 45 cm x 85 cm |
| Motor Type | Speed-Drive Inverter (Brushless) |
| Drum Material | Stainless Steel |
| Number of Wash Cycles | 16 (including 9 rapid programs) |
| Control Type | Remote (Wi-Fi + BLE) / Rotary Dial |
| Detergent Dispenser | Single-compartment |
| Weight | 61.89 kg |
| Included Components | Power cord |
Official energy label indicating the appliance's efficiency and consumption.
9. Warranty and Support
Your Candy RapidÓ RO4 476DWMC7/1-S washing machine is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.
For technical assistance, spare parts, or to report a fault, please contact your retailer or the authorized Candy service center. Have your model number (RO4 476DWMC7/1-S) and serial number ready when contacting support.
You can also visit the official Candy website for additional support resources and frequently asked questions.
