Achaté Cordless Stick Vacuum Cleaner User Manual

1. Introduction

Thank you for choosing the Achaté Cordless Stick Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read this manual thoroughly before first use and keep it for future reference.

This versatile vacuum cleaner is designed for powerful cleaning across various surfaces, offering cordless convenience and a hygienic cleaning experience with its advanced filtration system.

2. Safety Instructions

To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions when using an electrical appliance.

• Read all instructions before using the appliance.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with a damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without dust cup and/or filters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Store the appliance indoors. Put away after use to prevent accidents.
• Prevent unintentional starting. Ensure the switch is in the OFF position before picking up or carrying the appliance.

3. Package Contents and Product Overview

Carefully unpack all components and check against the list below. If any parts are missing or damaged, please contact customer support.

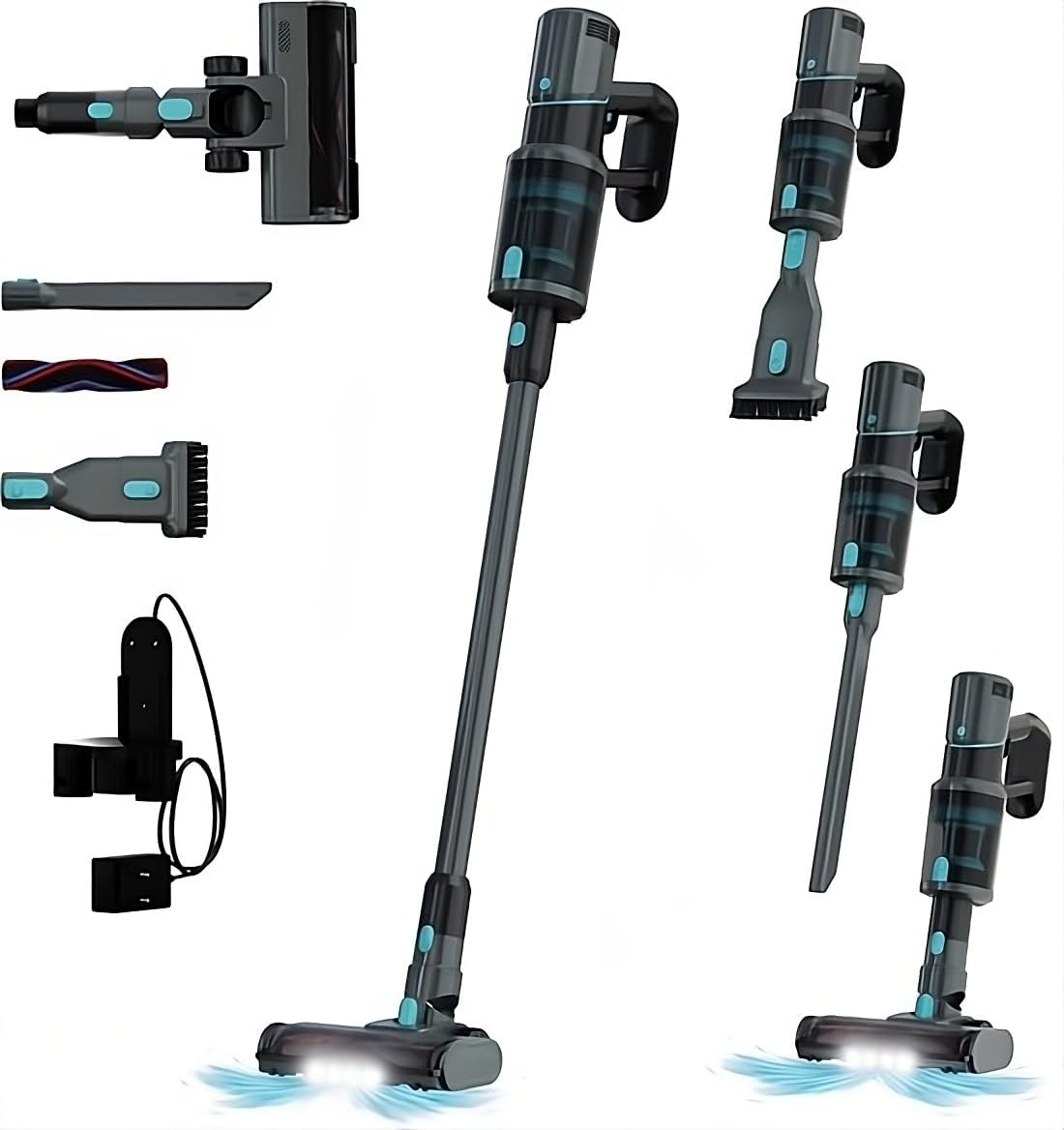

Image: The Achaté Cordless Stick Vacuum Cleaner shown with its main body, extension wand, floor brush, various nozzles, and wall-mount charging bracket.

Package Contents:

• Main Vacuum Unit (with dustbin and motor)
• Extension Wand
• Motorized Floor Brush with LED lighting
• Crevice Tool
• 2-in-1 Brush Tool
• Mini Motorized Brush (if included in your model)
• Wall-Mount Charging Bracket
• Power Adapter
• User Manual

Product Components:

Image: An exploded view illustrating the main components: Battery, Air Outlet Cover Plate, HEPA-filter, Handle, and Dust Hood.

• Main Unit: Contains the motor, battery, and dustbin.
• Dustbin: Collects dust and debris.
• HEPA Filter: Advanced filtration system to capture fine dust and allergens.
• Battery: Rechargeable power source for cordless operation.
• LED Display: Shows battery level and power mode.

4. Assembly and Setup

Follow these steps to assemble your Achaté Cordless Stick Vacuum Cleaner.

1. Attach the Extension Wand: Insert the top end of the extension wand into the main vacuum unit until it clicks securely into place.
2. Attach the Floor Brush: Connect the motorized floor brush to the bottom end of the extension wand, ensuring it clicks firmly.
3. Install Attachments: For handheld use or specific cleaning tasks, you can directly attach the crevice tool, 2-in-1 brush tool, or mini motorized brush to the main unit or the extension wand.

Image: A user demonstrating the easy attachment of the vacuum cleaner's components, highlighting its cordless convenience.

Charging the Battery:

Before first use, fully charge the vacuum cleaner's battery. The battery can be charged while attached to the main unit or separately.

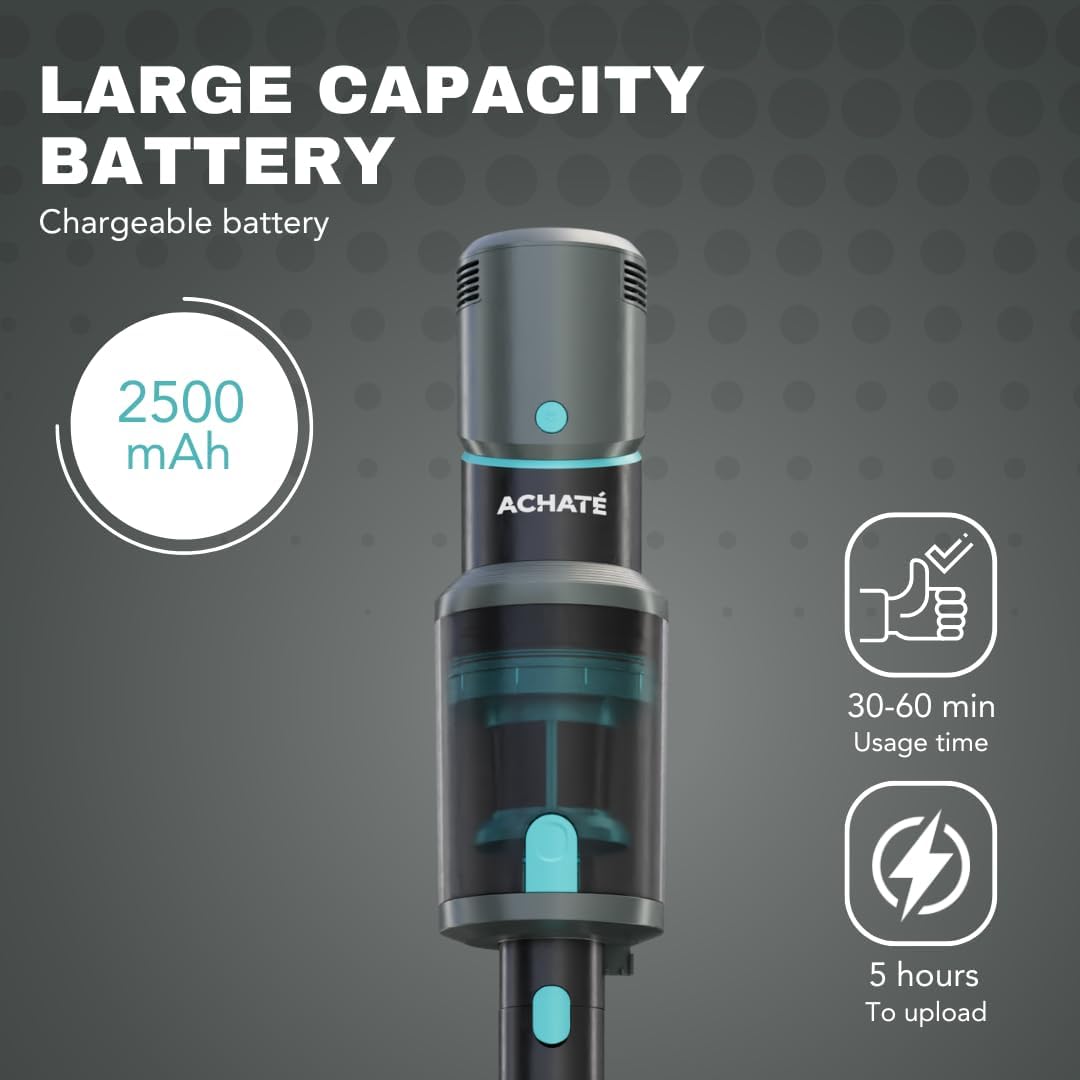

Image: Details on the large capacity battery, showing 2500 mAh, 30-60 minutes usage time, and 5 hours to full charge.

1. Connect the power adapter to the charging port on the main unit or the wall-mount charging bracket.
2. Plug the power adapter into a wall outlet.
3. The LED display will indicate the charging status. A full charge typically takes approximately 5 hours.
4. Once fully charged, the vacuum cleaner provides 30-60 minutes of usage time, depending on the power mode selected.

Wall-Mount Storage:

The included wall-mount charging bracket allows for convenient storage and charging.

Image: The Achaté vacuum cleaner neatly stored on its wall-mounted charging bracket, demonstrating its space-saving design.

1. Choose a suitable location near a power outlet for installation.
2. Secure the wall-mount bracket to the wall using appropriate screws and anchors (not included).
3. Hang the vacuum cleaner on the bracket for storage and charging.

5. Operating Instructions

Powering On/Off and Suction Modes:

The Achaté Cordless Stick Vacuum Cleaner features a 300W motor with multiple suction settings for optimal cleaning.

Image: Visual representation of the vacuum cleaner's strong suction power (22 KPA) and low noise level (75 dB).

• Press the power button to turn the vacuum cleaner ON.
• Press the mode button to cycle through the three available suction power settings (Low, Medium, High). The LED display will show the current mode.
• Press the power button again to turn the vacuum cleaner OFF.

Using Attachments:

The vacuum comes with four versatile attachments to tackle various cleaning needs.

Image: Demonstrates the vacuum cleaner's ultra-flexible and multifunctional design, including its use as a handheld unit for high-up cleaning.

• Motorized Floor Brush: Ideal for hard floors, carpets, and rugs. Its built-in LED lighting illuminates dust and debris in dark areas.
• Crevice Tool: Perfect for narrow gaps, corners, and hard-to-reach spaces.
• 2-in-1 Brush Tool: Use the brush for delicate surfaces like upholstery and curtains, or slide the brush back for a wider nozzle for general cleaning.
• Mini Motorized Brush: (If included) Excellent for pet hair on upholstery and stairs.

Image: Close-up of the motorized floor brush showing its built-in LED lighting, which helps illuminate dirt on the floor.

6. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.

Emptying the Dustbin:

Empty the dustbin after each use or when the MAX fill line is reached.

1. Ensure the vacuum cleaner is turned OFF.
2. Press the dustbin release button to detach the dustbin from the main unit.
3. Hold the dustbin over a trash can and press the bottom release latch to open the dustbin flap and empty contents.
4. Close the flap and reattach the dustbin to the main unit until it clicks.

Cleaning the Filters:

The HEPA filter and other filter components are washable for long-lasting hygiene.

Image: An exploded view illustrating the main components, specifically highlighting the HEPA-filter for easy identification during cleaning.

1. Remove the dustbin as described above.
2. Twist and pull out the filter assembly from the dustbin.
3. Separate the HEPA filter and mesh filter.
4. Rinse all filter components under cold running water until the water runs clear. Do not use detergent.
5. Allow all filter components to air dry completely for at least 24 hours before reassembling and placing back into the vacuum cleaner. Do not use a hairdryer or other heating methods.
6. Reassemble the filters and place them back into the dustbin, then reattach the dustbin to the main unit.

Cleaning the Brush Roll:

Periodically check the brush roll for tangled hair or debris and clean as needed.

Image: Close-up of the vacuum cleaner's brush roll, indicating that it is washable.

1. Ensure the vacuum cleaner is turned OFF.
2. Detach the motorized floor brush from the extension wand.
3. Locate the brush roll release tab/lock on the side of the floor brush. Unlock and remove the brush roll.
4. Use scissors or a cleaning tool to cut and remove any tangled hair or fibers from the brush roll.
5. The brush roll can be rinsed under cold water if heavily soiled. Ensure it is completely dry before reinserting.
6. Reinsert the brush roll and lock it back into place.

7. Troubleshooting

If you encounter any issues with your vacuum cleaner, please refer to the following troubleshooting guide before contacting customer support.

8. Specifications

9. Warranty and Support

Achaté products are designed and manufactured to the highest quality standards. This product comes with a standard manufacturer's warranty. Please refer to your purchase documentation for specific warranty terms and conditions.

For technical support, warranty claims, or replacement parts, please contact Achaté customer service through the retailer where you purchased the product or visit the official Achaté website for contact information.

Please have your model number (AVC-001) and purchase date ready when contacting support.
