Introduction
This manual provides essential information for the safe and efficient use of your Redodo 12V 280Ah LiFePO4 Lithium Battery. Please read it thoroughly before installation and operation.
- Low-Temp Cutoff for Cold Weather: Built-in sensor stops charging below 0°C/32°F and resumes automatically above it. Discharge is possible down to -20°C/-4°F, ensuring safe operation in various conditions.
- Upgraded BMS with Full Protection: Features a 200A Battery Management System (BMS) with 8 safeguards: overcharge, over-discharge, over-current, overheating, short circuit, dust, water, and salt spray protection.
- High Capacity & Expandable: Provides 3584Wh per battery. Supports up to 4 batteries in series and 4 in parallel, allowing for a maximum configuration of 4S4P (48V 1120Ah, 57.34kWh total).
- Long Lifespan & Grade A Cells: Utilizes EV-grade LiFePO4 cells, offering 4000+ cycles at 100% Depth of Discharge (DOD) and an estimated 10-year service life. Features a low 3% monthly self-discharge rate.
- Easy Charging: Compatible with various charging methods, including an optimal 14.6V 56A LiFePO4 battery charger, a solar panel (≥1200W) with controller, or a 56A DC to DC charger and a generator.
Setup
Before initial use, carefully unbox and inspect the battery for any damage. Ensure all included components are present.
Unboxing
The battery package includes the 12.8V 280Ah LiFePO4 Battery, M8-5/8" Terminal Bolts, and Insulating Caps For Bolts. The battery also features portable handles for easier transport.
Video: Unboxing the Redodo 12V 280Ah LiFePO4 Battery. This video demonstrates the unboxing process and shows the included accessories.
Image: An example of a Redodo battery installation, showing proper terminal connections.
Initial Connection
Connect the battery to your system using the provided M8 terminal bolts. Ensure connections are secure and polarity is correct (red for positive, black for negative). For series or parallel connections, refer to the detailed instructions in the operating section.
Operating
The Redodo LiFePO4 battery is designed for deep cycle applications and can be used in various environments.
Applications
This battery is suitable for marine, RV, solar home systems, and trolling motor applications. Its robust design and low-temperature protection make it reliable for extended adventures and off-grid use.
Image: Visual examples of the Redodo LiFePO4 battery in various applications including RVs, camping, boats, and off-grid solar home systems.
Series and Parallel Connections
The battery supports up to 4 units in series and 4 units in parallel. When connecting in series, ensure all batteries have similar State of Charge (SOC) and voltage. For parallel connections, use cables of equal length and gauge to ensure balanced current distribution. Always consult a qualified professional for complex system designs.
Image: A Redodo lithium battery labeled for marine starting applications.
Energy Output
With 3584Wh of energy, the battery can power various devices for extended periods. For example, it can power a 50W laptop for 71.7 hours, an 850W kettle for 4.2 hours, a 1050W microwave for 3.4 hours, or a 2000W air conditioner for 1.8 hours.
Image: An infographic illustrating the 3584Wh energy capacity and estimated runtimes for common appliances like laptops, kettles, microwaves, and air conditioners.
Maintenance
Proper maintenance ensures the longevity and performance of your Redodo LiFePO4 battery.
Charging
The battery can be charged using a 14.6V 56A LiFePO4 battery charger, solar panels (≥1200W) with a compatible controller, or a 56A DC to DC charger with a generator. Always use chargers specifically designed for LiFePO4 batteries.
Image: A dedicated LiFePO4 battery charger.
Video: Redodo 12V 280Ah lithium battery with low temp unboxing. This video demonstrates the unboxing process and shows the included accessories.
Storage
For long-term storage, ensure the battery is charged to approximately 50% State of Charge (SOC) and stored in a cool, dry place away from direct sunlight and extreme temperatures. The low self-discharge rate of 3% per month helps maintain charge during storage.
Temperature Considerations
The built-in low-temperature cutoff protection prevents charging below 0°C (32°F) and allows discharge down to -20°C (-4°F). Charging automatically resumes when the temperature rises above 5°C (41°F).
Video: Redodo 12V 280Ah LiFePO4 Battery Low Temp Protection. This video illustrates the low-temperature protection features of the battery.
Troubleshooting
The integrated BMS provides comprehensive protection. If the battery is not functioning as expected, check the following:
- No Power Output: Check if the BMS has triggered a protection mode (e.g., over-discharge, over-current, short circuit). Disconnect the load and allow the battery to rest or attempt to charge it with a compatible LiFePO4 charger to reset the BMS.
- Not Charging: Verify that the charger is specifically for LiFePO4 batteries and that the temperature is above 0°C (32°F). Ensure all connections are secure and correct polarity is maintained.
- Low Voltage: If the battery voltage is unusually low, the over-discharge protection may have activated. Attempt to charge the battery immediately.
- Overheating: The BMS includes overheating protection. If the battery feels excessively hot, disconnect it from the load/charger and allow it to cool down in a well-ventilated area.
Image: Diagram illustrating the upgraded BMS with 8 protections, including low temp, salt spray, corrosion, over charging, over discharging, over current, over heating, and short circuits protection.
Specifications
| Brand | Redodo |
| Model Number | R12V280-200-LOW-TEMP-4-A200 |
| Voltage | 12.8 Volts |
| Capacity | 280Ah (3584Wh) |
| Battery Cell Composition | Lithium-Phosphate (LiFePO4) |
| Item Weight | 51.1 Pounds |
| Product Dimensions (D x W x H) | 9.33"D x 20.55"W x 8.58"H |
| Resistance | 40 Milliohms |
| Terminal Type | M8 |
| BMS | 200A with Low-Temp Protection |
| Cycle Life | 4000+ cycles at 100% DOD |

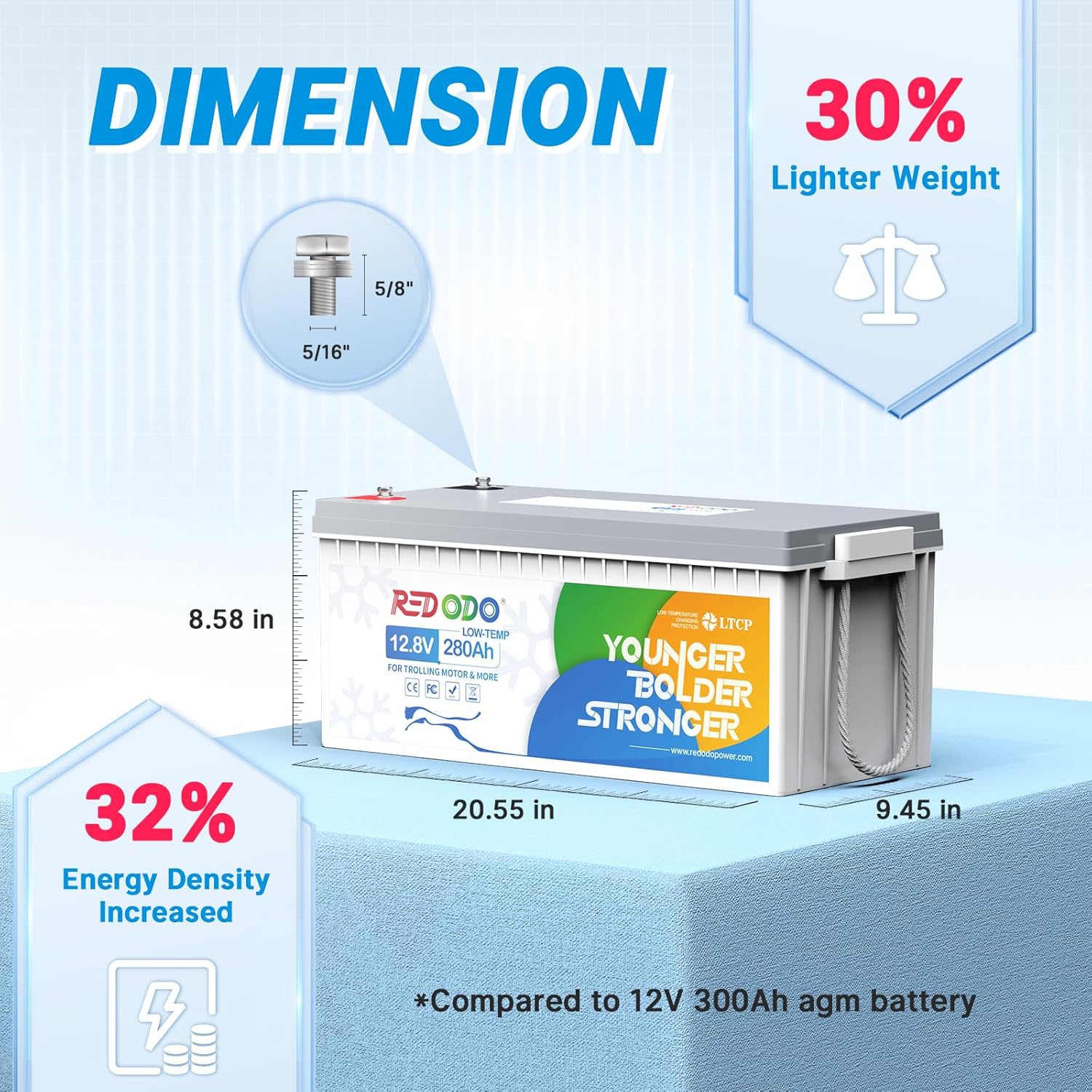

Image: Detailed dimensions of the Redodo 12.8V 280Ah battery, highlighting its 30% lighter weight and 32% increased energy density compared to a 12V 300Ah AGM battery.
Warranty
The Redodo 12V 280Ah LiFePO4 Lithium Battery comes with a 5-year warranty. Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the official Redodo website or contact customer support.
Support
Redodo prioritizes customer satisfaction. We offer personalized, one-on-one technical support within 24 hours to address any questions or concerns you may have about our products.
For assistance, please contact our 24/7 customer service team. Contact information can be found on the official Redodo website or your product packaging.
