PURPLE LEAF 12' x 16' Sunroom Gazebo Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your PURPLE LEAF 12' x 16' Sunroom Gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference. Proper installation and care will ensure the longevity and optimal performance of your gazebo.

Safety Information

CAUTION:

• Always follow local building codes and zoning requirements when installing this product.
• Use appropriate safety equipment, including a ladder and gloves, when assembling or disassembling.
• Do not exceed the weight limit of 2500 lbs (snow load capacity).
• Keep children and pets away from the installation area to prevent injuries.
• Always secure the gazebo to a stable foundation to prevent it from tipping over in strong winds (up to 40 mph wind resistance).

Product Features

• Spacious Multi-Purpose Design: This 12' x 16' gazebo accommodates 12-15 people, offering ample space for relaxation, entertaining, or dining.
• Upgraded PC Screen Walls: Provides enhanced privacy and superior resistance to wind and rain compared to traditional curtains. The panels are removable and can be stored in a dedicated rack.
• Wood-Grain Aluminum Frame: Combines the aesthetic appeal of natural wood with the durability and low maintenance of aluminum.
• Double Galvanized Steel Roof: UV resistant, offering excellent weather protection and a longer lifespan. The double-layer design facilitates ventilation.
• Windows with Netting: Designed to promote airflow, provide clear visibility, and ensure a bright interior environment.
• Magnetic Double Sliding Doors: Equipped with silent sliding tracks for smooth, bi-directional opening, allowing for easy entry and exit.

Setup and Assembly

Assembly of the PURPLE LEAF Sunroom Gazebo requires careful attention to detail and is best performed by two to three individuals. It is recommended to review all diagrams and instructions thoroughly before starting. Do not fully tighten any screws or bolts until the entire structure is assembled, as this allows for necessary adjustments and alignment. Ensure all parts are accounted for upon delivery by checking against the provided parts list.

Image: The fully assembled PURPLE LEAF 12' x 16' Sunroom Gazebo in a backyard setting.

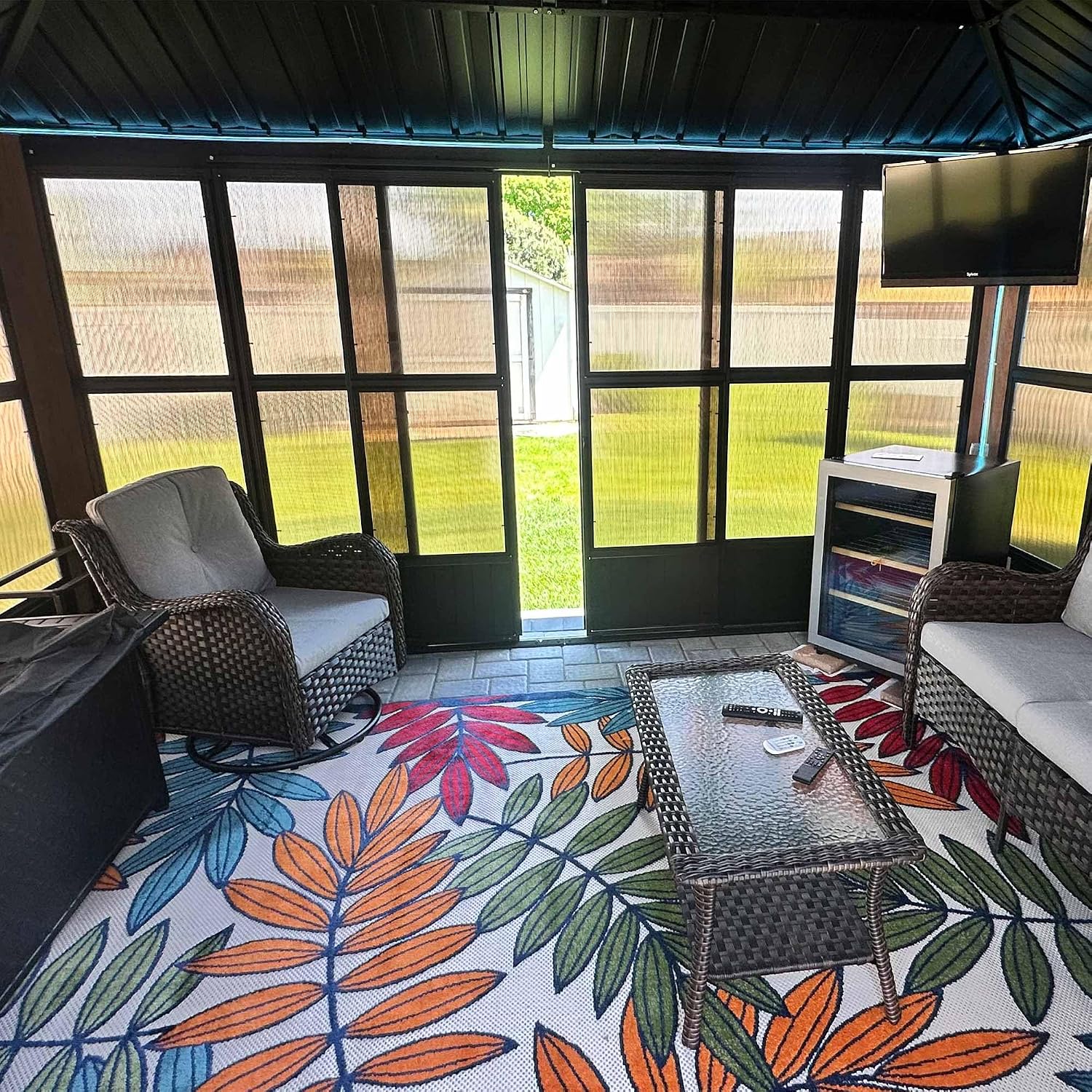

Image: Interior view of the gazebo, showcasing ample space for patio furniture and a television.

Image: Overhead and side view diagrams illustrating the dimensions and structural highlights of the gazebo.

Operation

The PURPLE LEAF Sunroom Gazebo is designed for versatile use across seasons. The magnetic double sliding doors provide smooth access and can be opened from either direction. The PC screen walls are detachable, allowing you to adjust for privacy, airflow, or protection from elements. When removed, these panels can be neatly stored in the provided storage rack.

Image: Detail of the magnetic latch system on the sliding doors, ensuring secure closure.

Image: The detachable PC screen wall, highlighting its privacy, durability, and resistance to wind and rain.

Image: The dedicated PC window panel storage shelf, designed for easy and tidy storage of removed panels.

Maintenance

Regular maintenance will help preserve the appearance and structural integrity of your gazebo.

• Cleaning: Clean the aluminum frame and PC panels periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Inspection: Annually inspect all bolts, screws, and connections to ensure they are tight. Re-tighten as necessary. Check the roof panels and screen walls for any signs of damage or wear.
• Winter Care: In areas with heavy snowfall, it is crucial to regularly clear snow from the roof to prevent excessive weight accumulation, which could lead to structural damage. Consider adding temporary supports under the roof's middle sections during winter months, as suggested by some users, to enhance snow load capacity.
• Panel Storage: When not in use, store detachable PC panels in the provided storage rack in a dry, protected area to prevent damage.

Troubleshooting

If you encounter issues during assembly or use, consider the following:

• Misaligned Holes: If pre-drilled holes do not align perfectly, ensure all components are loosely assembled before tightening. Slight adjustments to surrounding parts can often resolve minor misalignments.
• Missing or Damaged Parts: In the event of missing or damaged components upon delivery, contact customer support immediately for replacements.
• Structural Instability: Ensure the gazebo is securely anchored to a stable foundation. Verify all connections are properly tightened.
• Water Leakage: Check roof panel installation and sealing. Ensure proper drainage and clear any debris from the roof and gutters.

Specifications

Warranty and Support

Your PURPLE LEAF Sunroom Gazebo comes with a manufacturer's warranty. Specific warranty periods are typically:

• Top Panel: 5 years
• PC Screen & Netting: 2 years
• Frame: 1 year

For any questions, assistance with assembly, missing parts, or warranty claims, please contact PURPLE LEAF customer support:

Email: gazebo@purpleleafgarden.com
