DC HOUSE 48V 18A Lithium Battery Charger User Manual

Introduction

This manual provides essential information for the safe and efficient operation of your DC HOUSE 48V 18A Lithium Battery Charger. Please read this manual thoroughly before use and retain it for future reference. This charger is specifically designed for 48V lithium-ion batteries, including LiFePO4 types, commonly found in golf carts, forklifts, and marine applications.

Image: The DC HOUSE 48V 18A Lithium Battery Charger, showcasing its compact design and included charging cables.

Safety Information

Always prioritize safety when operating electrical equipment. Failure to follow these instructions may result in injury or damage to the product or battery.

• Compatibility: This charger is exclusively for 48V lithium-ion batteries. Do not attempt to charge lead-acid batteries or other battery types, as this can cause severe damage or hazards.
• Ventilation: Ensure adequate ventilation during charging. Do not cover the charger or obstruct its cooling fan.
• Environment: Avoid using the charger in wet conditions or extreme temperatures. While the unit is IP65 waterproof, direct exposure to heavy rain or submersion is not recommended.
• Connections: Always connect the charger to the battery terminals correctly (positive to positive, negative to negative) before plugging it into a power outlet. Ensure connections are secure.
• Disconnection: Disconnect the charger from the AC power outlet before disconnecting from the battery.
• Damage: Do not operate the charger if it has been dropped, damaged, or if cables are frayed. Contact customer support for assistance.
• Children: Keep the charger out of reach of children.

Image: Visual representation of the charger's multi-functional safety protections, including over current, under voltage, over voltage, short circuit, over temperature, and reverse connection protection.

Product Features

• High Efficiency Charging: Achieves a charging efficiency of ≥ 93% with a 900W power output, enabling rapid charging for 48V lithium-ion batteries.
• Robust Safety Protections: Equipped with comprehensive safety features including input undervoltage/overvoltage protection, charger overheat protection, output no-load protection, output short circuit protection, reverse connection protection, and output overcurrent/overvoltage protection. The charger automatically cuts off power when the battery is fully charged.
• Durable Construction: Features an aluminum alloy die-cast shell, providing IP65 waterproof, drop-resistant, shock-proof, and explosion-proof capabilities.
• Integrated Cooling Fan: A built-in cooling fan effectively dissipates heat during operation, ensuring stable performance and longevity.
• Intuitive Status Indicator: A 3-color LED indicator provides clear charging status: Red (Precharging), Yellow (Normal Charging), Green (Fully Charged).
• Portable Design: Designed with a convenient handle for easy transport.
• Flame Retardant Wiring: Utilizes tinned copper, anti-oxidation, anti-corrosion, and PV cable for enhanced safety and conductivity.

Image: Charger highlighting 900W power output and ≥ 93% charging efficiency.

Image: Charger demonstrating IP65 waterproof and drop-resistant features with an aluminum casting shell.

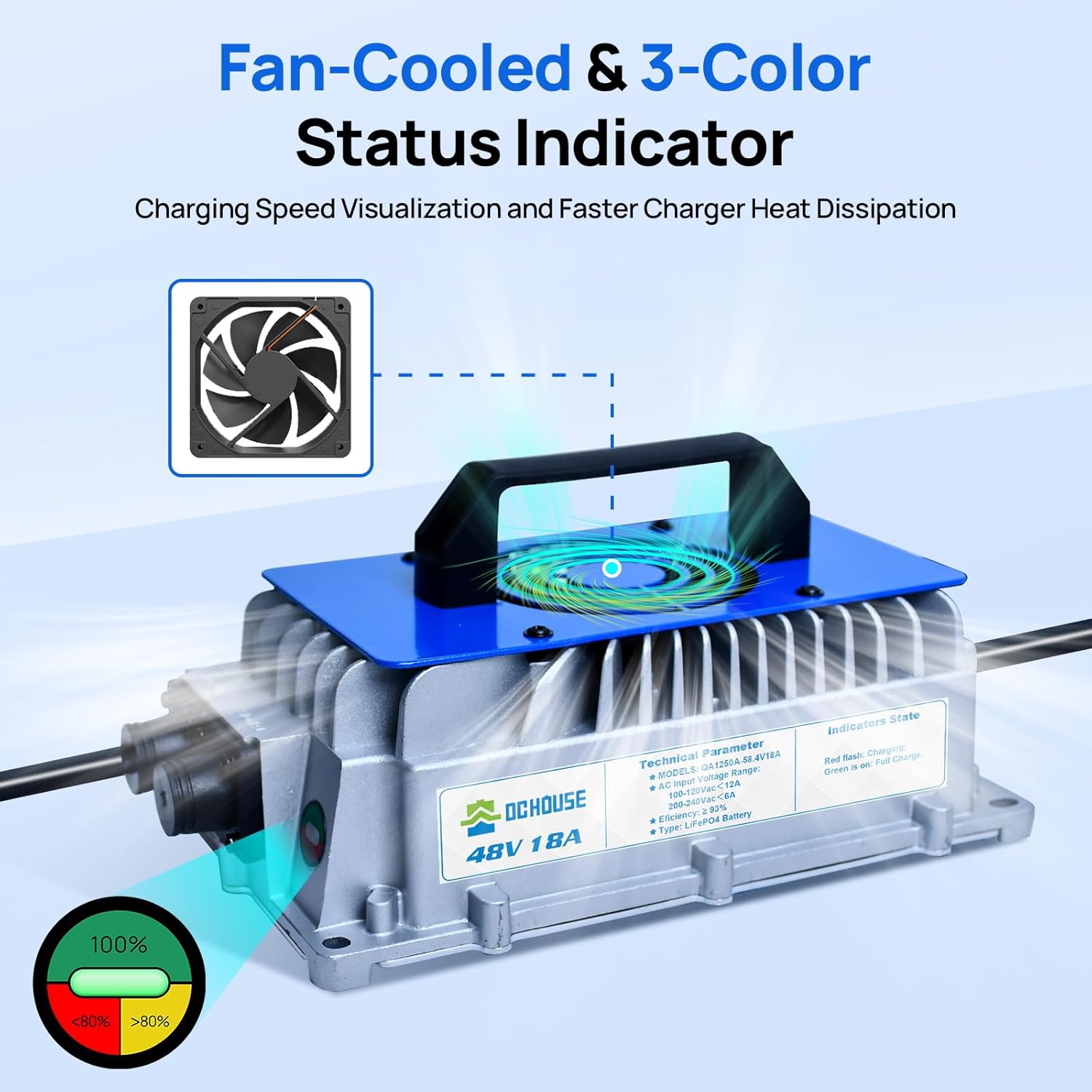

Image: Diagram showing the fan-cooled system and the 3-color status indicator for charging progress.

Image: Illustration of the flame retardant wire construction, emphasizing safety and conductivity.

Setup Instructions

Follow these steps to properly connect your DC HOUSE 48V 18A Lithium Battery Charger:

1. Prepare the Battery: Ensure your 48V lithium-ion battery is clean and its terminals are accessible.
2. Connect to Battery Terminals: Connect the charger's output cable to the battery. The charger features a 2-pin connector for golf cart lithium batteries and includes ring terminals for direct battery connection. Ensure the positive (+) terminal of the charger connects to the positive (+) terminal of the battery, and the negative (-) terminal of the charger connects to the negative (-) terminal of the battery.
3. Secure Connections: Verify all connections are tight and secure to prevent arcing or poor contact.
4. Connect to AC Power: Plug the charger's input cable into a standard AC power outlet (100-120VAC).

Image: Step-by-step visual guide on how to connect the charger to a battery and then to a power outlet.

Operating Instructions

Once connected, the charger will automatically begin the charging process. Monitor the indicator lights for status updates:

• Red Light (Fast Flash): Indicates precharging (0%-19% battery capacity).
• Yellow Light (Flash): Indicates normal charging (20%-99% battery capacity).
• Green Light (On): Indicates the battery is fully charged (100%). The charger will automatically cut off power to prevent overcharging.
• Red/Green Light (Alternating Flash): Indicates 0V Charging Wake Up Mode, used for deeply discharged batteries.

Typical charging times for 48V lithium batteries:

Image: Detailed view of the charger's built-in fan cooling function and battery indication light states.

Maintenance

To ensure the longevity and optimal performance of your DC HOUSE charger, follow these maintenance guidelines:

• Cleaning: Periodically wipe the charger's exterior with a dry, soft cloth. Do not use harsh chemicals or abrasive cleaners.
• Ventilation: Keep the cooling fan and vents free from dust and debris. Use compressed air to gently clear any blockages if necessary.
• Storage: Store the charger in a cool, dry place when not in use. Avoid extreme temperatures and direct sunlight.
• Cable Inspection: Regularly inspect the input and output cables for any signs of wear, cuts, or damage. Replace damaged cables immediately.
• Connection Points: Ensure the battery terminals and charger connectors remain clean and free of corrosion.

Troubleshooting

If you encounter issues with your charger, refer to the following common troubleshooting steps:

• Charger Not Turning On:
  • Check if the AC power cord is securely plugged into a working outlet.
  • Verify the battery connections are correct and secure.
  • Ensure the AC outlet is supplying power (test with another device).
• Charging Light Not Illuminating/Incorrect Color:
  • Confirm the battery is a 48V lithium-ion type.
  • Check for reverse polarity connection (Red/Green alternating flash). Correct immediately.
  • If the battery is deeply discharged (0V), the charger may enter '0V Charging Wake Up Mode' (Red/Green alternating flash) before normal charging begins.
  • Ensure the battery's BMS is not in a fault state.
• Slow Charging:
  • Verify the battery capacity is within the charger's recommended range.
  • Ensure the charger's vents are not obstructed, allowing for proper cooling.
• Charger Overheating:
  • Ensure the charger is in a well-ventilated area.
  • Clear any obstructions from the cooling fan.
  • If overheating persists, disconnect immediately and contact support.

If these steps do not resolve the issue, please contact DC HOUSE customer support for further assistance.

Specifications

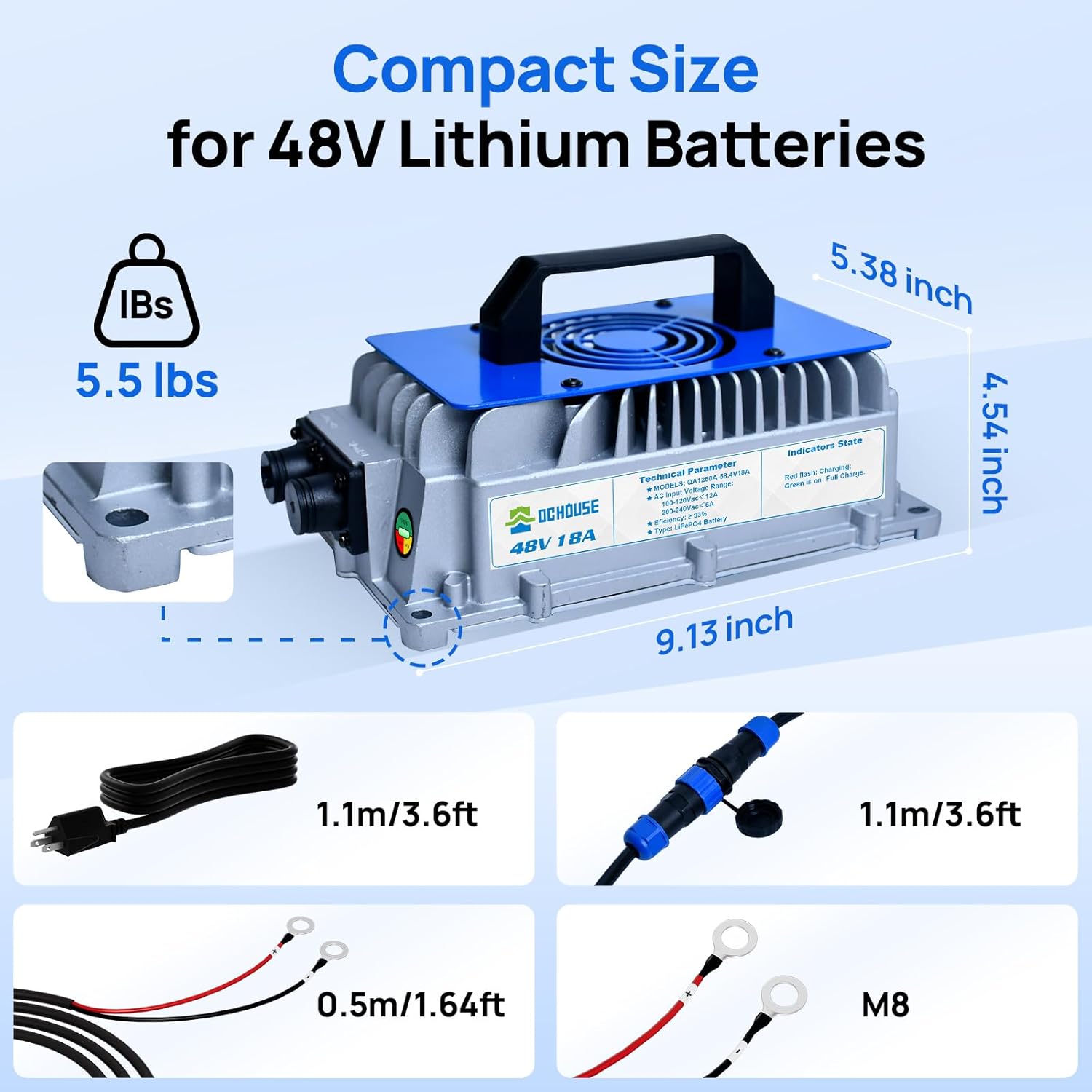

Image: The charger with its physical dimensions clearly marked, illustrating its compact size.

Warranty and Support

DC HOUSE provides quality assurance for this 48V 18A Lithium Battery Charger. For specific warranty details, please refer to the product packaging or contact DC HOUSE customer service directly. In case of any issues or questions regarding your product, please reach out to our support team:

• Customer Support: Refer to the contact information provided with your purchase or visit the official DC HOUSE website.
• Online Resources: Additional information and FAQs may be available on the DC HOUSE brand store page on Amazon or their official website.
