1. Introduction
This manual provides instructions for the safe and effective use of the DEWALT DWHT75021 5-in-1 Electric Multi-Tacker and the Arrow BN1810CS 18-Gauge Steel Brad Nails. The Multi-Tacker is a versatile electric fastening tool designed to accommodate various types of fasteners, including heavy-duty staples, narrow flat crown staples, cable staples, 18-gauge brads, and 18-gauge headless pins. The Arrow BN1810CS brad nails are specifically designed for use with compatible brad nailers, offering reliable fastening for various applications.
Figure 1: DEWALT DWHT75021 Electric Multi-Tacker and Arrow BN1810CS 18-Gauge Brad Nails.
2. General Safety Information
Always observe basic safety precautions when using electric tools to reduce the risk of fire, electric shock, and personal injury. Read and understand all instructions before operating the tool.
- Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- Electrical Safety: Power tool plugs must match the outlet. Never modify the plug in any way. Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging the power tool. Keep cord away from heat, oil, sharp edges, or moving parts.
- Personal Safety: Always wear eye protection. Use hearing protection when operating noisy tools. Dress properly. Do not wear loose clothing or jewelry. Keep hair and clothing away from moving parts.
- Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
- Service: Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
3. Product Features and Components
3.1 DEWALT DWHT75021 Electric Multi-Tacker
The DEWALT DWHT75021 is designed for versatility and ease of use, featuring:
- 5-in-1 Fastening Capability: Compatible with Heavy Duty, Narrow Flat Crown, Cable staples, 18 GA brads, and 18 GA headless pins.
- High/Low Power Switch: Allows adjustment of fastening power for various material densities, from soft pine to hard oak.
- Integrated Wire Guide: Ensures accurate staple placement over wires.
- Contact-Trip Switch: Prevents accidental firing; the tool will only fire when pressed against a work surface.
- Bottom-Loading Design: Facilitates easy and quick fastener loading.
Figure 2: Side view of the DEWALT DWHT75021 Electric Multi-Tacker, highlighting its ergonomic design.
3.2 Arrow BN1810CS 18-Gauge Steel Brad Nails
These 5/8-inch (15mm) 18-gauge brad nails are constructed from galvanized steel for durable, long-term holds. Their small 1/8" (3mm) steel head blends well for minimal visibility, suitable for various finishing applications.
- Material: Galvanized Steel for durability.
- Gauge: 18-Gauge.
- Length: 5/8 inch (15mm).
- Head Size: 1/8 inch (3mm), designed for minimal visibility.
- Applications: Ideal for crown molding, base molding, paneling, door jams, upholstery, crafts, and finish carpentry.
Figure 3: Diagram illustrating the dimensions and features of Arrow BN1810CS 18-Gauge Brad Nails.
4. Setup and Loading Fasteners
Before loading any fasteners, ensure the tool is unplugged from the power source.
- Unplug the Tool: Always disconnect the multi-tacker from the electrical outlet before handling fasteners.
- Open the Magazine: Locate the magazine release latch, typically at the bottom front of the tool. Press or slide the latch to open the fastener magazine.
- Insert Fasteners: Place the strip of staples or brad nails into the magazine with the points facing forward and the crown/head facing up. Ensure the fasteners are seated correctly within the guide rails.
- Close the Magazine: Slide the magazine cover back until it clicks securely into place. Ensure it is fully closed to prevent fasteners from falling out during operation.
- Verify Fastener Type: Double-check that the loaded fasteners are compatible with the current application and the tool's settings.
Figure 4: Arrow BN1810CS 18-Gauge Brad Nails, ready for loading into a compatible tool.
5. Operating Instructions
Once fasteners are loaded and the tool is plugged in, follow these steps for operation:
- Select Power Setting: Use the High/Low power switch to adjust the driving force. Select "High" for harder materials and longer fasteners, and "Low" for softer materials or shorter fasteners.
- Position the Tool: Place the nose of the multi-tacker firmly against the work surface where the fastener is to be driven. Ensure the contact-trip switch is fully depressed.
- Fire the Fastener: Squeeze the trigger to drive a fastener. The contact-trip mechanism requires the tool to be pressed against the surface for firing.
- Reposition: Lift the tool from the surface and reposition for the next fastener.
- Check Fastener Depth: Periodically check the depth of the driven fasteners. Adjust the power setting as needed to achieve flush or slightly countersunk results.
- Unplug When Not in Use: Always unplug the tool from the power source when finished or when leaving it unattended.
6. Maintenance
Regular maintenance ensures optimal performance and extends the life of your tool.
- Cleaning: Keep the tool clean and free of dust and debris. Use a dry cloth to wipe down the exterior. Do not use solvents or harsh chemicals.
- Magazine Inspection: Periodically inspect the fastener magazine for any obstructions or damage. Ensure the follower moves freely.
- Cord Inspection: Check the power cord for any cuts, fraying, or damage. If damaged, have it replaced by a qualified service technician.
- Storage: Store the multi-tacker in a dry, secure location out of reach of children.
7. Troubleshooting
If you encounter issues with your DEWALT DWHT75021 Multi-Tacker, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Tool does not fire |
|
|
| Fasteners not driven flush |
|
|
| Fasteners jam frequently |
|
|
If the problem persists after attempting these solutions, contact DEWALT customer service for further assistance.
8. Specifications
8.1 DEWALT DWHT75021 Electric Multi-Tacker
| Specification | Detail |
|---|---|
| Model | DWHT75021 |
| Housing Material | Nylon Composite Resin |
| Compatible Fasteners |
|
| Power Source | Electric (Corded) |
| Color | Yellow |
| Material | Alloy Steel (Internal Components) |
Figure 5: Official specifications for the DEWALT DWHT75021 Multi-Tacker.

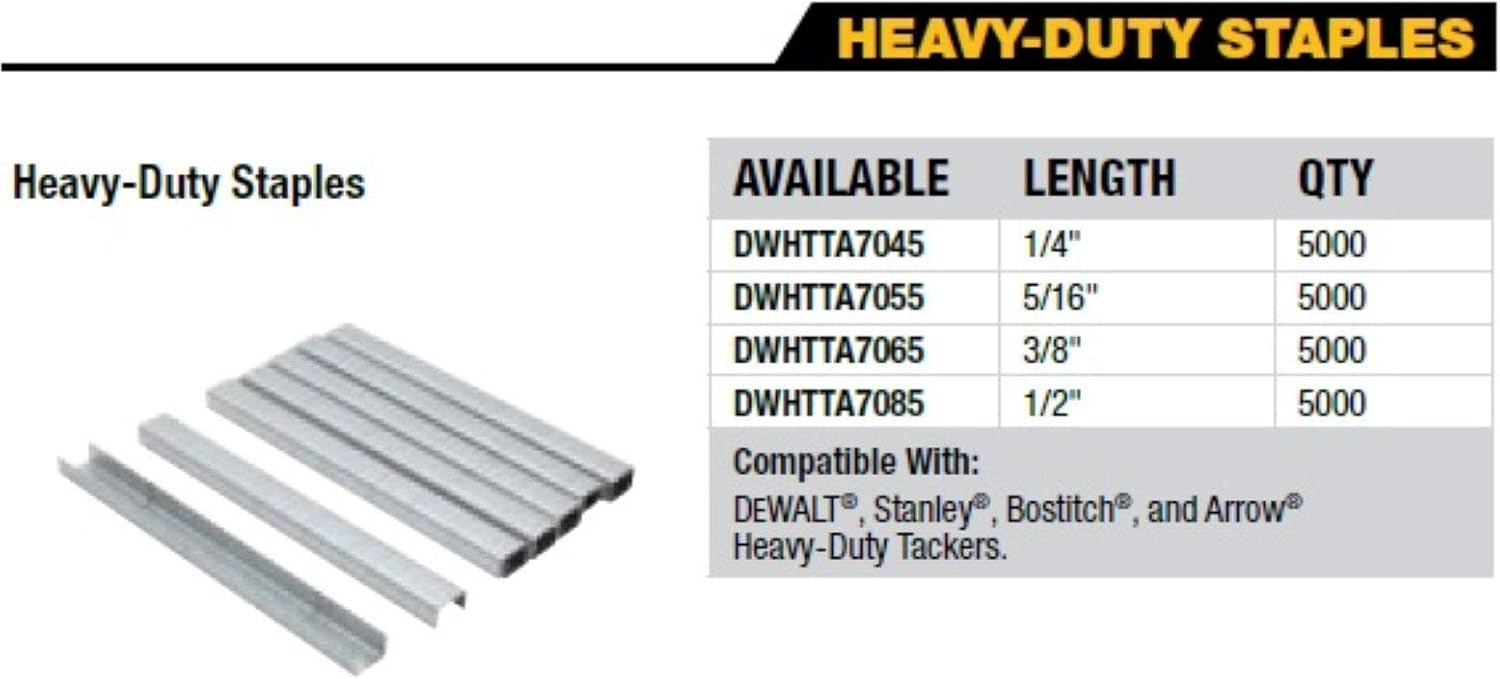

Figure 6: Table detailing heavy-duty staples compatible with the DEWALT Multi-Tacker.
8.2 Arrow BN1810CS 18-Gauge Steel Brad Nails
- Model: BN1810CS
- Gauge: 18 GA
- Length: 5/8 inch (15mm)
- Material: Galvanized Steel
- Head Size: 1/8 inch (3mm)
- Quantity: 1000 per pack
9. Warranty and Support
For warranty information, service, or technical support regarding your DEWALT DWHT75021 Electric Multi-Tacker, please refer to the warranty card included with your product or visit the official DEWALT website. For inquiries regarding Arrow BN1810CS 18-Gauge Steel Brad Nails, please refer to Arrow Fastener's official resources.
Always use genuine replacement parts and accessories to maintain product performance and warranty validity.
