1. Introduction
The Goplus 1.6HP Shallow Well Pump with Pressure Tank is engineered for efficient and reliable water supply in various applications, including residential homes, farms, cabins, and irrigation systems. This manual provides essential information for the safe installation, operation, and maintenance of your pump, ensuring optimal performance and longevity.

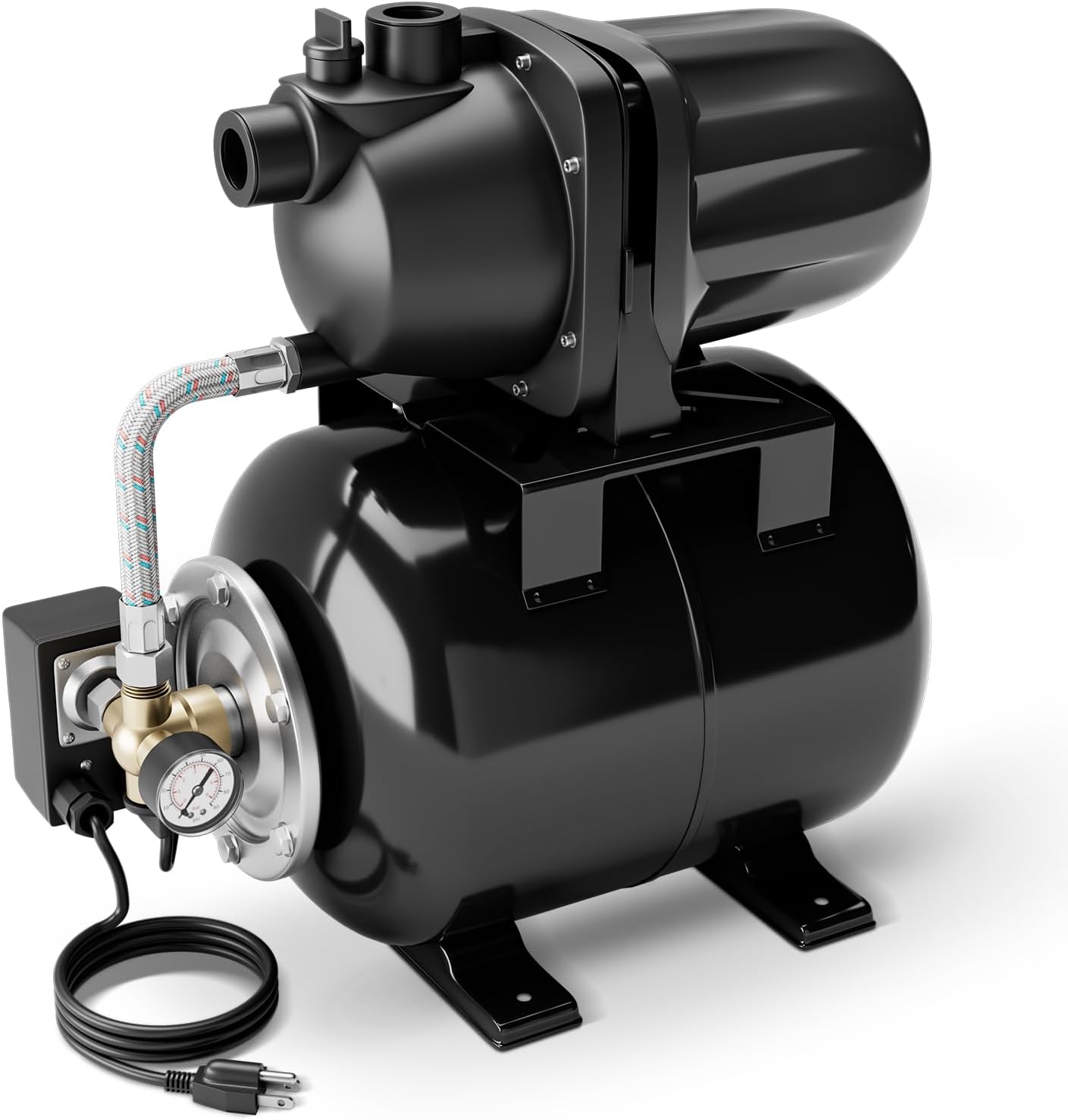

Figure 1: Goplus 1.6HP Shallow Well Pump with Pressure Tank. This image shows the complete pump unit with its pressure tank, motor, pressure gauge, and power cord.
2. Safety Instructions
Always adhere to the following safety guidelines to prevent injury and damage to the pump.
- Electrical Safety: Ensure the pump is connected to a properly grounded 120V/60Hz power outlet. Do not operate with damaged cords or plugs. Disconnect power before any maintenance or service.
- Thermal Overload Protection: The pump is equipped with thermal overload protection that automatically stops the pump if it overheats, preventing motor damage. Allow the pump to cool down before restarting.
- Water Quality: This pump is designed for clean water only. Using it with contaminated or corrosive liquids may damage internal components and void the warranty.
- Operating Environment: Do not operate the pump in explosive atmospheres or near flammable liquids. Ensure adequate ventilation around the pump.
- Children and Pets: Keep children and pets away from the operating pump.
- Pressure Monitoring: Regularly observe the built-in pressure gauge to ensure the pump is operating within safe pressure limits.
3. Components Overview
Familiarize yourself with the main components of your Goplus Shallow Well Pump:
Figure 2: Detailed view of pump components. This diagram labels key parts including the motor, pressure tank, inlet, outlet, pressure gauge, and safety switch.
- Motor: A 1.6HP copper coil motor provides powerful and efficient operation.
- Pressure Tank: A 5-gallon pressure tank helps maintain consistent water pressure and reduces pump cycling.
- Pressure Gauge: Allows real-time observation of the pressure within the system.
- Automatic Pressure Switch: Controls pump operation, automatically turning on when pressure drops below 20 Psi and off when it exceeds 40 Psi.
- Slide Valve: Facilitates easy operation and control of water flow.
- Inlet/Outlet: Standard 1" NPT connections for plumbing.
- Safety Switch: Provides overheat protection and is rated IPX4 for splash resistance.
- Heat Dissipation Vent: Ensures proper cooling of the motor.
- Non-slip Base: Offers stable support and reduces vibration during operation.
Figure 3: Internal view highlighting the 1.6HP copper coil motor and the 5-gallon pressure tank, emphasizing key performance components.
4. Setup
Follow these steps for proper installation of your shallow well pump:
- Placement: Position the pump on a stable, level surface near your water source and power outlet. Ensure the area is protected from extreme weather conditions.
- Plumbing Connections: Connect your suction line to the 1" NPT inlet and your discharge line to the 1" NPT outlet. Ensure all connections are tight and leak-free to prevent air leaks, which can affect pump performance.
- Priming the Pump: Before initial use, the pump must be primed. Remove the priming plug (usually located on top of the pump housing) and fill the pump casing with clean water until it overflows. Replace the plug securely. This step is crucial for the pump to create suction.
Figure 4: Illustration of adding clean water to the pump for priming. This step is essential before the first operation to ensure proper suction.
- Electrical Connection: Plug the pump into a grounded 120V/60Hz electrical outlet. The power cord is 4 feet long.
5. Operating Instructions
Once installed and primed, your Goplus pump is ready for operation:
- Initial Start-up: After priming and connecting to power, turn on the pump using the safety switch. The pump will begin to draw water and build pressure.
- Automatic Operation: The built-in automatic pressure switch will manage the pump's operation. It will turn the pump on when the system pressure drops below approximately 20 Psi and turn it off when the pressure reaches approximately 40 Psi.
- Monitoring: Observe the pressure gauge to ensure the pump is maintaining desired pressure levels.
- Applications: This pump is suitable for a wide range of applications, including:
- Supplying water to residential homes and cabins.
- Irrigating gardens and lawns.
- Boosting water pressure for various uses.
- Filling or circulating water for pools.
- General cleaning tasks.
Figure 5: Various applications of the Goplus Shallow Well Pump, including gardening, agriculture, pool maintenance, and cleaning.
6. Maintenance
Regular maintenance ensures the longevity and efficient operation of your pump:
- Regular Inspection: Periodically check all connections for leaks and ensure the power cord is undamaged. Inspect the pump for any signs of wear or corrosion.
- Cleanliness: The pump utilizes ceramic closed motor shafts to prevent rust water, ensuring the water remains clean. Keep the exterior of the pump clean and free from debris.
- Winterization: In regions with freezing temperatures, it is crucial to drain the pump completely to prevent damage from freezing water. Disconnect the pump, remove drain plugs, and store it in a frost-free environment.
- Pressure Tank Check: Occasionally check the air pre-charge in the pressure tank. Refer to the tank's specific instructions for proper pressure maintenance.
7. Troubleshooting
Refer to this section for common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not start | No power; Thermal overload tripped; Motor seized | Check power connection/breaker; Allow pump to cool and reset; Contact qualified technician. |
| Pump runs but no water | Pump not primed; Air leak in suction line; Suction line blocked; Water source depleted | Re-prime the pump; Check all suction connections for leaks; Clear any blockages; Ensure adequate water supply. |
| Low pressure or intermittent flow | Air in system; Clogged impeller; Pressure switch setting incorrect; Leaking pipes/fixtures | Re-prime; Clean impeller; Adjust pressure switch (if applicable, consult manual); Check and repair leaks. |
| Pump runs continuously | Pressure switch malfunction; Constant water demand; Leak in system | Inspect/replace pressure switch; Reduce water demand; Check for and repair leaks. |
8. Specifications
Key technical specifications for the Goplus 1.6HP Shallow Well Pump:
Figure 6: Dimensions and key specifications of the pump, including voltage, power, tank size, and performance metrics.
| Specification | Value |
|---|---|
| Brand | Goplus |
| Model Number | SU-25184 |
| Power Source | Corded Electric |
| Rated Power | 1.6 HP (1200W) |
| Voltage | 120V/60Hz |
| Pressure Tank Capacity | 5 Gallon |
| Maximum Suction Height | 26 Feet |
| Maximum Lifting Height | 164 Feet |
| Maximum Flow Rate | 1000 GPH |
| Protection Rating | IPX4 |
| Maximum Water Temperature | 95°F |
| Inlet/Outlet Size | 1" NPT |
| Power Cord Length | 4 Feet |
| Item Weight | 30.2 pounds |
| Package Dimensions | 21.04 x 21.04 x 14.02 inches |
9. Warranty and Support
For warranty information and technical support, please contact the manufacturer, Superbuy, or the retailer from whom you purchased the product. Keep your purchase receipt as proof of purchase.
Extended protection plans may be available for purchase. Please refer to your retailer's offerings for details on 3-Year or 4-Year Protection Plans.
