1. Introduction
This manual provides essential instructions for the safe and efficient use of your Fakir Veyron Turbo XL Premium vacuum cleaner nozzle. Please read this manual thoroughly before installation and operation, and retain it for future reference. This nozzle is designed to enhance the cleaning performance of your compatible Fakir Veyron Turbo XL Premium electric vacuum cleaner.
2. Safety Instructions
- Always ensure the vacuum cleaner is unplugged from the power outlet before attaching, detaching, or cleaning the nozzle.
- Do not use the nozzle if it appears damaged. Contact customer support for replacement parts.
- Keep fingers, hair, and loose clothing away from the rotating brush (if applicable) during operation.
- This nozzle is intended for household use with compatible Fakir Veyron Turbo XL Premium vacuum cleaners only. Do not use for industrial or commercial purposes.
- Avoid vacuuming liquids, hot ashes, sharp objects, or flammable materials with this nozzle.
3. Setup and Installation
Follow these steps to correctly attach the nozzle to your Fakir Veyron Turbo XL Premium vacuum cleaner.
- Ensure your vacuum cleaner is turned off and unplugged from the power source.
- Align the connection port of the nozzle with the end of the vacuum cleaner's extension wand or hose.
- Push the nozzle firmly onto the wand/hose until it clicks securely into place. Ensure there is no gap and the connection is tight to prevent loss of suction.
- To detach, press the release button (if present) on the nozzle or wand and pull the nozzle away.

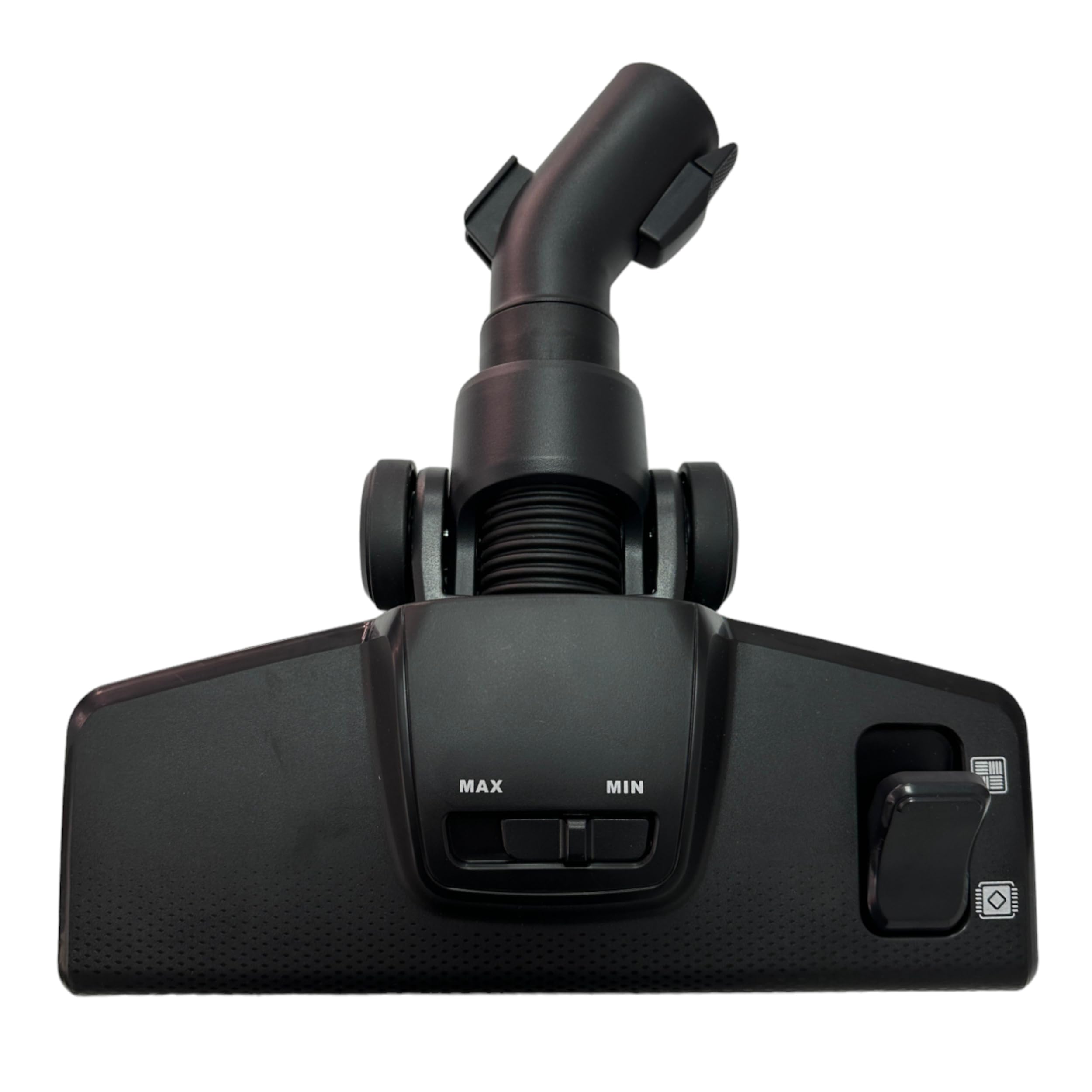

Figure 1: The Fakir Veyron Turbo XL Premium vacuum cleaner nozzle. This image shows the complete nozzle assembly, including the main brush head and the angled connector for attachment to the vacuum cleaner wand. The underside features red felt strips for effective cleaning.
4. Operation
This nozzle is designed for effective cleaning on various floor types. Its wide head allows for efficient coverage.
- Hard Floors: For hard surfaces like tile, laminate, or wood, glide the nozzle smoothly across the floor. The soft bristles (if present) and suction will collect dust and debris without scratching.
- Carpets and Rugs: For carpets, push and pull the nozzle in overlapping strokes. The design helps to agitate carpet fibers and lift embedded dirt.
- Maneuvering: The swivel joint allows for easy maneuverability around furniture and into tight spaces.
5. Maintenance and Cleaning
Regular maintenance ensures optimal performance and extends the lifespan of your nozzle.
- Cleaning the Brush Roll/Felt Strips: Periodically check the underside of the nozzle for tangled hair, threads, or debris. Use scissors to carefully cut away any tangled material from the brush roll or felt strips.
- Wiping the Nozzle: Use a damp cloth to wipe the exterior of the nozzle. Do not use harsh chemicals or abrasive cleaners.
- Checking for Blockages: If suction performance decreases, check the nozzle's air passages and the connection point for any blockages. Clear any obstructions carefully.
- Ensure the nozzle is completely dry before reattaching it to the vacuum cleaner.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Reduced suction from nozzle. | Nozzle or hose blocked; improper attachment. | Check nozzle and hose for blockages and clear them. Ensure the nozzle is securely attached to the vacuum wand/hose. |
| Nozzle not gliding smoothly. | Debris tangled in brush/felt strips; worn wheels. | Clean any tangled debris from the underside of the nozzle. Inspect wheels for damage. |
| Nozzle detaches during use. | Improper attachment; worn connection. | Ensure the nozzle is pushed firmly until it clicks. If the connection is consistently loose, the connection point on the nozzle or vacuum may be worn. |
7. Specifications
- Brand: Fakir
- Model: Veyron Turbo XL Premium Nozzle
- ASIN: B0CYHDJBG2
- Package Dimensions: 40 x 35.5 x 9 cm
- Item Weight: 500 grams
- Battery Required: No
- First Available Date: 28 May 2024
8. Warranty and Customer Support
For warranty information, technical support, or to purchase replacement parts, please refer to the main Fakir Veyron Turbo XL Premium vacuum cleaner manual or visit the official Fakir website. This manual pertains specifically to the nozzle accessory.
Please have your product model number (Veyron Turbo XL Premium) and ASIN (B0CYHDJBG2) ready when contacting customer support.
