1. Introduction
The Zündapp Z898 is a versatile 27.5-inch electric mountain bike designed for both daily commuting and light off-road adventures. This manual provides essential information for the safe and efficient use, assembly, and maintenance of your Z898 e-bike. Please read this manual thoroughly before your first ride to ensure proper operation and safety.
The Z898 combines a robust aluminum frame with a powerful electric drive system, offering a comfortable and secure riding experience. Its features include a suspension fork, a 24-speed gear system, and reliable hydraulic disc brakes, making it suitable for various terrains.
2. Safety Information
Important Safety Notice: This bicycle is not equipped with lighting and therefore does not comply with German road traffic regulations. It is strongly recommended to install appropriate lighting before riding on public roads, especially during low light conditions or at night.
- Always wear a helmet when riding.
- Familiarize yourself with local traffic laws and regulations.
- Perform a pre-ride inspection before each use, checking brakes, tires, and battery level.
- Do not exceed the maximum weight capacity of the bicycle.
- Avoid riding in adverse weather conditions if you are not experienced.
3. Product Overview & Key Features
The Zündapp Z898 is engineered for performance and durability, offering a balanced ride for various conditions.
Overall Product View: The Zündapp Z898 e-MTB in red, showcasing its robust frame, suspension fork, and knobby tires.
Extended Range: The Z898 offers an impressive range of up to 150 km on a single charge, depending on riding conditions and assist level.
Optimized Fit: Designed for riders between 170-190 cm, featuring 27.5-inch wheels and a 24-speed gear system for versatile riding.
Key Components: Equipped with precise disc brakes for reliable stopping power, a dynamic MTB saddle for comfort, and a suspension fork for shock absorption.
Design & Performance: Features a sporty riding position, a centrally located downtube battery for improved balance, knobby tire profile for grip on loose surfaces and smooth rolling on asphalt, and a lightweight, agile aluminum frame.
Rear Hub Motor: The efficient rear hub motor provides powerful assistance, making it ideal for both hilly and flat terrains, and is particularly energy-efficient.
Gear System: Features an easy-to-operate shifter with optical gear display, a straight chainline to prevent chain drops, and a low-maintenance gear shifting system with fine gradation for various terrains.

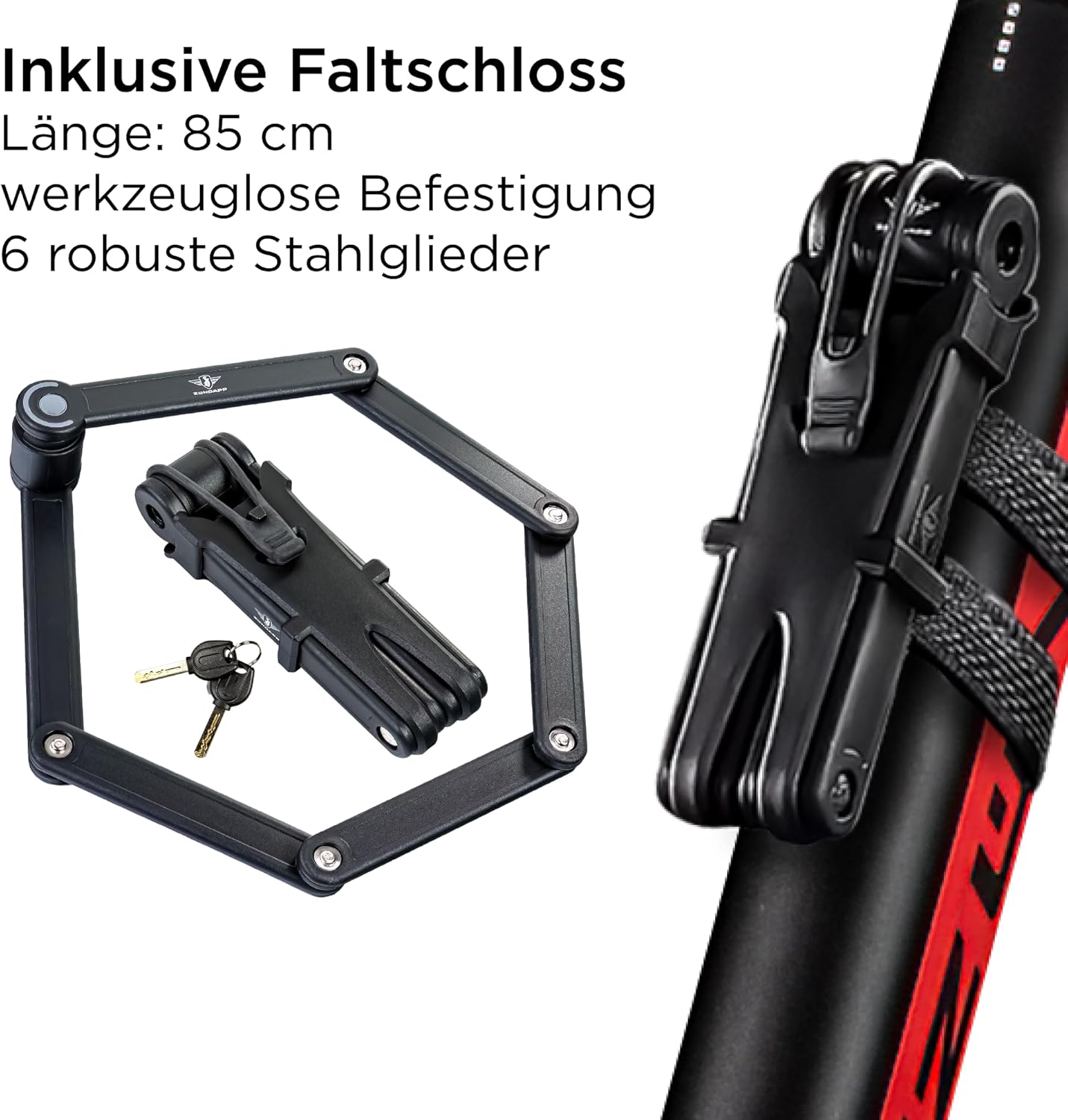

Included Folding Lock: The Z898 comes with an 85 cm folding lock, featuring tool-free attachment and 6 robust steel links for enhanced security.
4. Assembly and Setup
Your Zündapp Z898 e-bike is delivered 98% pre-assembled. Final assembly is quick and straightforward, allowing you to start riding almost immediately.
4.1 Unpacking
Carefully remove the bicycle from its packaging. Inspect all components for any signs of damage during transit. Report any damage to your retailer immediately.
4.2 Final Assembly Steps
- Handlebar Installation: Attach the handlebar to the stem. Ensure it is centered and tightened securely.
- Pedal Installation: Identify the left (L) and right (R) pedals. Thread them into the crank arms. Note that the left pedal has a reverse thread. Tighten firmly.
- Seat Post Adjustment: Insert the seat post into the frame and adjust the saddle height to ensure a comfortable and efficient pedaling position. Secure the quick-release lever or bolt.
- Pre-Ride Checks: Before your first ride, perform the following essential checks:
- Tightness of Screws: Verify that all visible screws and bolts, especially on the wheels, handlebars, and seat post, are securely tightened.
- Brake Functionality: Test both front and rear brakes to ensure they engage properly and stop the bike effectively.
- Gear Shifting: Check that all 24 gears shift smoothly and accurately. Adjust if necessary.
- Tire Pressure: Inflate tires to the recommended pressure indicated on the tire sidewall.
- Battery Charge: Ensure the battery is fully charged before your first ride.
5. Operating Your Z898 E-Bike
5.1 Electric Assist System
The Z898 features a 250W rear hub motor powered by a 504Wh integrated frame battery. The system provides assistance up to 25 km/h.
- Power On/Off: Locate the power button on the LCD display or battery. Press and hold to turn the system on or off.
- Assist Levels: Use the controls on the handlebar to select from 5 different assist levels. Higher levels provide more motor assistance and consume battery faster.
- LCD Display: The clear LCD display shows important information such as current speed, battery level, assist level, and trip distance.
- Battery Charging: Connect the charger to the charging port on the frame. A full charge typically takes several hours. Do not use unapproved chargers.
5.2 Gear Shifting
Your Z898 is equipped with a 24-speed derailleur system, offering a wide range of gears for various terrains.
- Shift gears smoothly by pedaling lightly while operating the shifters.
- Avoid shifting multiple gears at once or shifting under heavy load to prevent damage to the drivetrain.
- Use lower gears for climbing hills and higher gears for flat terrain or descents.
5.3 Braking
The hydraulic disc brakes provide strong and consistent stopping power.
- Apply both front and rear brakes simultaneously for optimal stopping performance and control.
- Avoid sudden, hard braking, especially with the front brake, as this can lead to loss of control.
- Brake levers are typically configured with the right lever for the rear brake and the left lever for the front brake.
6. Maintenance
Regular maintenance is crucial for the longevity and safe operation of your Z898 e-bike.
- Cleaning: Clean your bike regularly with mild soap and water. Avoid high-pressure washers directly on electrical components or bearings.
- Chain Lubrication: Keep the chain clean and lubricated to ensure smooth shifting and prevent wear.
- Tire Pressure: Check tire pressure before each ride and inflate to the recommended PSI.
- Brake Inspection: Regularly check brake pads for wear and ensure brake levers feel firm. If they feel spongy, the hydraulic system may need bleeding.
- Derailleur Adjustment: The 24-speed derailleur is designed for low maintenance once correctly adjusted. If shifting becomes imprecise, it may require fine-tuning.
- Battery Care: Store the battery in a cool, dry place. If storing for extended periods, charge it to about 50-70% every few months.
- Professional Service: It is recommended to have your e-bike professionally serviced at least once a year, or more frequently if you ride often or in challenging conditions.
7. Troubleshooting
This section addresses common issues you might encounter with your Z898 e-bike.
- No Power from Motor:
Check: Ensure the battery is charged and properly seated. Verify all electrical connections are secure. Check if the system is turned on via the display. - Gears Not Shifting Smoothly:
Check: Inspect the chain for dirt or rust and lubricate if necessary. Check for bent derailleur hanger or damaged shift cable. Minor adjustments to the derailleur might be needed. - Brakes Feel Spongy or Weak:
Check: Inspect brake pads for wear. Check for air in the hydraulic lines (requires bleeding) or a leak. Ensure brake calipers are properly aligned. - Unusual Noises:
Check: Identify the source of the noise. It could be loose components, dry chain, or issues with bearings. Stop riding and investigate to prevent further damage. - Short Battery Range:
Check: Battery range is influenced by assist level, terrain, rider weight, and weather. Ensure the battery is fully charged. If range significantly decreases over time, the battery capacity may be degrading.
For issues not listed here or if troubleshooting steps do not resolve the problem, please contact Zündapp customer support or a certified bicycle mechanic.
8. Specifications
| Feature | Specification |
|---|---|
| Model | Z898 |
| Bike Type | Electric Mountain Bike (Hardtail) |
| Recommended Rider Height | 170-190 cm |
| Wheel Size | 27.5 inches |
| Frame Material | Aluminum |
| Suspension | Front Suspension Fork (80mm travel) |
| Motor | 250W Rear Hub Motor |
| Battery | 504 Wh Integrated Frame Battery |
| Max Speed with Assist | Up to 25 km/h |
| Range | 35-150 km (depending on conditions) |
| Gears | 24-speed Derailleur |
| Brakes | Hydraulic Disc Brakes |
| Tires | CST (Kenda) with Knobby Profile |
| Weight | 22.5 kg |
| Included Components | Reflector, Bell, Kickstand, Folding Lock (85 cm) |
| Color | Red with folding lock |
9. Warranty and Support
Zündapp, a traditional brand founded in 1917, stands for reliability and modern technology. We are committed to providing quality products and excellent customer service.
Customer Support: Our dedicated support team is available to assist you with any questions or concerns regarding your Zündapp product.
Quality and Durability: Zündapp bikes are built to last, combining traditional standards with modern technology for reliable performance.
For specific warranty details and to register your product, please visit the official Zündapp website or contact your point of purchase. Keep your proof of purchase for warranty claims.
Contact Information:
Please refer to the contact details provided with your purchase documentation or visit the official Zündapp website for support.
