PALONE Solar Bug Zapper Outdoor Instruction Manual

Introduction

The PALONE Solar Bug Zapper is a versatile 3-in-1 device designed to effectively eliminate flying insects while providing ambient lighting. It utilizes high-efficiency UV light to attract mosquitoes, wasps, flies, and moths, which are then eliminated by a 4500V high-voltage grid. This product offers multiple charging options, including solar and USB-C, making it suitable for both indoor and outdoor use. Its safe and eco-friendly design ensures protection for curious children and pets.

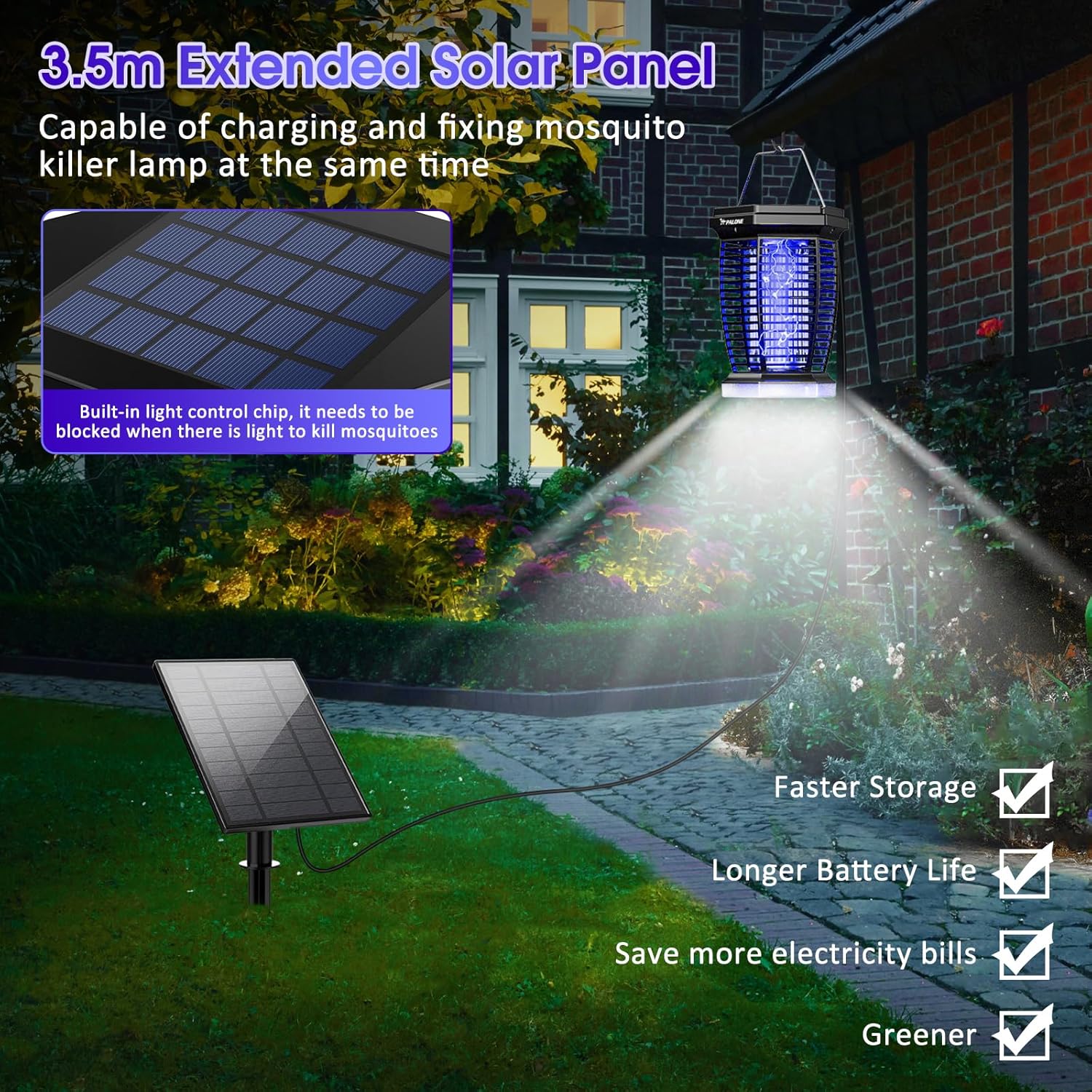

Figure 1: PALONE Solar Bug Zapper with its extended solar panel.

Safety Information

• The device features an ABS housing with a clearance of only 0.3 inches (approximately 0.76 cm) to prevent accidental contact with the high-voltage grid, ensuring safety for children and pets.
• The housing is made of sturdy, waterproof material, allowing for outdoor use even on rainy days. However, avoid direct water ingress into the electrical components.
• Ensure the product is in the "off" mode before cleaning or performing any maintenance.
• Keep the solar bug zapper away from heat sources to prevent damage.
• Do not attempt to open or repair the device yourself. Contact qualified personnel for service.
• This product uses a physical method of mosquito extermination, avoiding the use of sprays, insecticides, or attractants.

Figure 2: Safety and convenience features.

Package Contents

Please verify that all items are present in the package:

• PALONE Solar Bug Zapper Unit
• Extended Solar Panel (with 3.5m cable)
• USB-C Charging Cable
• Cleaning Brush
• Ground Stake for Solar Panel
• Instruction Manual (this document)

Figure 3: Included components in the package.

Product Features

• Effective Bug Zapping: Uses 365-395nm UV light to attract insects like mosquitoes, wasps, flies, and moths, eliminating them with a 4500V high-voltage grid.
• 3-in-1 Multifunctionality: Combines UV insect trapping with warm and cool white light illumination, serving as both a bug zapper and a night light.
• Dual Charging Options: Features a 2W top solar panel for light-controlled charging and a 4W ground-mounted solar panel with a 3.5-meter cable for flexible placement. Also supports fast USB-C charging (3-5 hours).
• Safe and Eco-friendly: Designed with a protective ABS housing to prevent accidental contact and operates without chemical sprays or attractants.
• Easy to Use and Clean: Equipped with a removable collection tray and a cleaning brush for simple maintenance.
• Durable and Weatherproof: IPX4 waterproof rating ensures reliable performance in various outdoor conditions.

Figure 4: Effective insect attraction and elimination.

Setup

1. Unpack: Carefully remove all components from the packaging.
2. Solar Panel Placement:
   • The main unit has a 2W top solar panel. For optimal charging, place the unit where it receives direct sunlight.
   • The external 4W solar panel comes with a 3.5-meter cable, allowing flexible placement. You can insert it into the ground using the provided stake or mount it on a wall. Ensure the external panel is also positioned to receive maximum direct sunlight throughout the day.
3. Connect Solar Panel: If using the external solar panel, connect its cable to the designated port on the main bug zapper unit.
4. Initial Charge: For best performance, it is recommended to fully charge the device via USB-C before first use, especially if solar charging conditions are not ideal.
5. Light Control Function Note: The bug zapper has a built-in light control chip. When using the bug zapper in areas with ambient light or during daytime, you may need to cover the top solar panel or place the bug zapper upside down to activate the zapping function, as it is designed to operate in low-light conditions for optimal insect attraction.

Figure 5: Solar and USB-C charging options.

Figure 6: Extended solar panel for versatile setup.

Operating Instructions

1. Power On/Off: Long press the power button for 3 seconds to turn the device on or off.
2. Switch Lighting Modes: Short press the power button to cycle through the 7 available lighting modes. These modes include various combinations of UV light (for zapping), warm light, and cool light.
3. Automatic Operation: The built-in light sensor will automatically activate the bug zapping function when ambient light levels are low (e.g., at dusk) and deactivate it at dawn, provided the light control function is not manually overridden.
4. Placement for Effectiveness: For outdoor use, place the zapper away from human activity areas to draw insects away. For indoor use, place it in a dark room for maximum effectiveness.

Figure 7: Operating modes and battery life.

Figure 8: Versatile indoor and outdoor usage.

Charging

The PALONE Solar Bug Zapper offers flexible charging options:

• Solar Charging: The device features a 2W top solar panel and includes a separate 4W ground-mounted solar panel with a 3.5-meter cable. These panels allow the unit to charge effortlessly from the sun. Charging time depends on sunlight intensity and duration.
• USB-C Charging: For faster charging or when solar power is unavailable, use the included USB-C cable. A full charge typically takes 3-5 hours.

Figure 9: Dual solar charging and charging indicator.

Lighting Modes

The PALONE Bug Zapper offers 7 distinct lighting modes, combining insect attraction with ambient illumination:

• UV Light (Bug Zapping Mode): Emits UV light to attract and zap insects. Provides up to 18 hours of operation on a full charge.
• Warm Light: Provides a soft, warm illumination for ambient lighting.
• Cool Light: Provides a bright, cool illumination for general lighting.
• Combined Modes: Various combinations of UV, warm, and cool light are available to suit different needs and preferences. For example, a mode combining bug zapping with lighting can operate for up to 8 hours. Illumination-only modes can last up to 13 hours.

Figure 10: Overview of the 7 lighting modes.

Maintenance and Cleaning

Regular cleaning ensures optimal performance of your bug zapper.

1. Power Off: Always ensure the product is in the "off" mode before cleaning.
2. Remove Collection Tray: Unscrew or detach the removable collection tray located at the bottom of the unit.
3. Empty Bugs: Carefully empty any accumulated dead insects from the tray.
4. Clean Tray: Wash the collection tray under tap water if necessary.
5. Clean Grid: Use the included cleaning brush to gently remove any insects or debris from the high-voltage grid. Do not use water directly on the grid.
6. Dry Components: Ensure the tray and any other wet components are completely dry before reassembling.
7. Reinstall Tray: Reinstall the collection tray securely.

Figure 11: Cleaning steps for the bug zapper.

Troubleshooting

Q: What insects can the solar bug zapper kill?

A: The solar bug zapper can kill small bugs like flies, fruit flies, moths, wasps, mosquitoes, bees, spiders, etc.

Q: What are the benefits of the bug zapper outdoor?

A: The bug zapper outdoor is perfect for catching bugs on your lawn or roof. It can be charged via both the solar panel and the Type-C USB port, offering great convenience for outdoor use.

Q: Can it be used as an exterminator?

A: Yes, it can be used as an indoor mosquito killer as well as an outdoor mosquito killer. It has a wide range of uses.

Q: The zapper is not turning on or not zapping insects effectively.

A:

• Ensure the device is fully charged. Connect it to a USB-C power source for 3-5 hours.
• Check if the power button has been long-pressed for 3 seconds to turn it on.
• Verify that the light control function is not preventing operation. If there is ambient light, cover the top solar panel or place the zapper upside down to activate the zapping mode.
• Clean the high-voltage grid and collection tray to ensure no debris is obstructing the zapping mechanism.

Specifications

Warranty and Support

For warranty information and customer support, please refer to the documentation included with your purchase or contact PALONE customer service directly. Details can often be found on the manufacturer's official website or through the retailer where the product was purchased.

PALONE is committed to providing quality products and support. For frequently asked questions, you may also visit the PALONE Brand Store on Amazon.
