1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Brabrety Full Size Murphy Bed Wall Bed with integrated closet and drawers. This multifunctional furniture piece is designed to maximize space efficiency in your living area while offering comfortable sleeping arrangements and ample storage.
Please read this manual thoroughly before beginning assembly or operation to ensure safe and correct usage of the product. Keep this manual for future reference.
2. Safety Information
- Adult Assembly Required: This product requires assembly by at least two adults. Do not attempt to assemble alone.
- Secure Wall Mounting: The Murphy bed mechanism must be securely anchored to a wall stud or appropriate structural support. Failure to properly anchor the unit can result in serious injury or property damage.
- Weight Capacity: The bed has a weight capacity of 600 lbs. Do not exceed this limit.
- Mattress Thickness: A mattress thickness of 6 inches is recommended. Using a thicker or heavier mattress may affect the folding mechanism's operation.
- Clearance: Ensure adequate clearance around the bed when folding and unfolding. Keep children and pets away from the unit during these operations.
- Regular Inspection: Periodically check all bolts, screws, and connections to ensure they remain tight. Retighten as necessary.
- Moving the Unit: If you need to move the unit, disassemble it first. Do not attempt to drag or push the assembled unit, as this can damage the structure and compromise safety.
3. Package Contents
Your Brabrety Murphy Bed is shipped in multiple packages. Please verify that all components are present and undamaged before beginning assembly. Refer to the included parts list in your separate assembly guide for a complete inventory.
Note: A mattress is not included with this product.
4. Setup and Assembly
Assembly of the Brabrety Full Size Murphy Bed requires careful attention to detail and adherence to the provided step-by-step instructions. It is highly recommended to have at least two adults for assembly.
- Unpack and Organize: Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches. Group similar parts together and identify all hardware.
- Assemble the Bed Frame: Follow the specific instructions in your assembly guide to construct the main bed frame. Ensure all connections are secure.
- Assemble the Cabinet and Storage Units: Construct the side wardrobe, drawers, and top shelf according to the instructions. Note that the wardrobe and drawers can be installed on either side of the bed to suit your room layout.
- Integrate Bed Frame with Cabinet: Attach the bed frame to the cabinet structure, paying close attention to the folding mechanism.
- Wall Anchoring: This is a critical step. Securely anchor the entire unit to a wall stud using the provided anti-tip hardware. Use a stud finder to locate suitable anchoring points. If wall studs are not available, consult a professional for appropriate anchoring solutions.
- Install Drawers and Shelves: Insert the drawers into their runners and place any adjustable shelves.
For detailed visual guidance, refer to the assembly diagrams provided in your separate instruction booklet. The image below illustrates the fully assembled unit in its unfolded state.
Image 1: Fully assembled Brabrety Full Size Murphy Bed in the unfolded position, showcasing the integrated closet, drawers, and top shelf.
Image 2: Another view of the Brabrety Full Size Murphy Bed unfolded, highlighting the open closet and drawers for storage.
5. Operating Instructions
The Brabrety Murphy Bed is designed for easy conversion between a bed and a compact cabinet. Always operate the bed smoothly and with caution.
5.1 Unfolding the Bed
- Ensure the area in front of the cabinet is clear of obstructions.
- Gently pull the bed panel downwards from the top edge. The hydraulic mechanism will assist in a controlled descent.
- Continue lowering the bed until it is fully extended and rests securely on its support legs.
- Place your mattress on the bed frame.

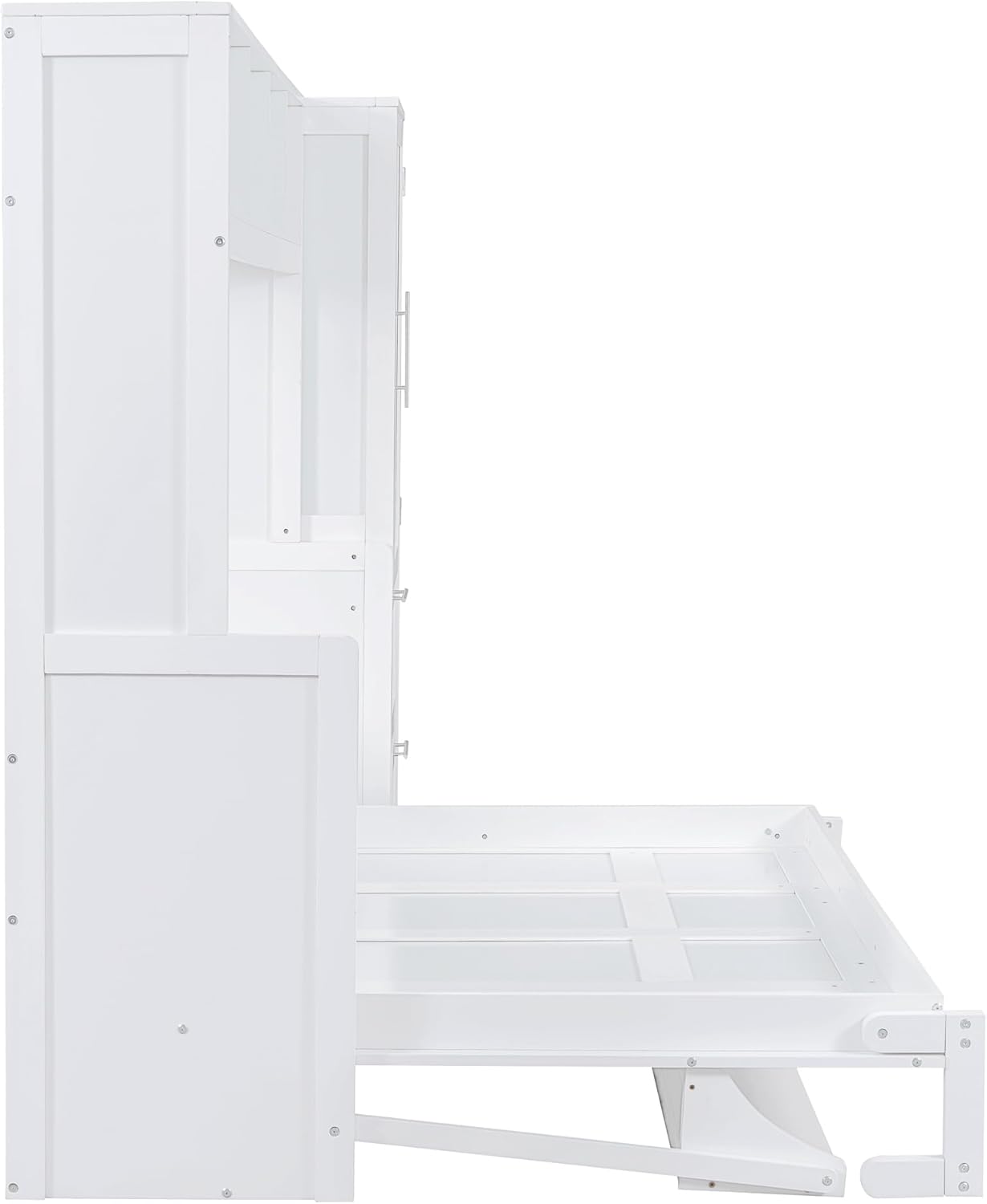

Image 3: Side view illustrating the bed's folding mechanism and support structure.
Image 4: Close-up of the hydraulic lift mechanism that assists in folding and unfolding the bed.
5.2 Folding the Bed
- Remove any bedding or pillows that might obstruct the folding process.
- Lift the bed frame from the foot end. The hydraulic mechanism will assist in lifting the bed.
- Guide the bed upwards until it is fully vertical and securely latched into the cabinet position. Ensure it is fully closed before leaving it unattended.
5.3 Using the Storage Features
- Top Shelf: Utilize the built-in top shelf for decorative items, books, or small storage bins.
- Side Wardrobe: The side wardrobe includes a hanging rod for clothes and additional shelving.
- Drawers: The two integrated drawers provide convenient storage for clothing, linens, or other personal items.
Image 5: View of the integrated side wardrobe with a hanging rod and the top shelf for additional storage.
Image 6: Detailed view of the built-in top shelf, offering open storage compartments.
Image 7: Close-up of the two integrated storage drawers located beneath the wardrobe.
6. Maintenance
- Cleaning: Wipe surfaces with a dry cloth. Avoid using harsh chemicals or abrasive cleaners, which can damage the finish.
- Hardware Check: Periodically inspect all screws, bolts, and connections. Tighten any loose hardware to maintain structural integrity and safe operation.
- Mechanism Lubrication: If the folding mechanism becomes stiff or noisy over time, a light application of silicone-based lubricant to moving parts may be beneficial. Do not use oil-based lubricants.
- Avoid Overloading: Do not overload shelves or drawers beyond their intended capacity.
7. Troubleshooting
If you encounter issues with your Brabrety Murphy Bed, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed does not fold/unfold smoothly. | Obstruction, loose hardware, mechanism stiffness. | Check for obstructions. Ensure all hardware is tight. Apply silicone lubricant to the mechanism if stiff. |
| Bed does not stay in folded position. | Improper latching, mechanism issue. | Ensure the bed is fully pushed up until it latches. Inspect the latching mechanism for damage. |
| Drawers are difficult to open/close. | Overloaded drawer, misaligned runners, debris in runners. | Reduce drawer contents. Check drawer runners for alignment and clear any debris. |
| Unit feels unstable. | Loose wall anchors, loose assembly hardware. | Immediately check and tighten all wall anchors. Verify all assembly hardware is secure. |
If you are unable to resolve an issue, please contact customer support.
8. Specifications
- Brand: Brabrety
- Model: B0CY499G37
- Size: Full
- Material: MDF + LVL (Laminated Veneer Lumber)
- Color: White
- Overall Product Dimensions (Bed Unfolded): 107.5"L x 58"W x 72"H
- Overall Product Dimensions (Bed Folded as Cabinet): 107.5"L x 21.5"W x 72"H
- Bed Weight Capacity: 600 lbs
- Recommended Mattress Thickness: 6 inches
- Item Weight: Approximately 293.46 lbs
- Assembly Required: Yes
- Care Instructions: Wipe with Dry Cloth
- Origin: Vietnam
Image 8: Detailed dimensions of the Brabrety Full Size Murphy Bed in its unfolded state.
Image 9: Detailed dimensions of the Brabrety Full Size Murphy Bed when folded into a cabinet.
9. Warranty and Support
For warranty information or customer support, please refer to the documentation included with your purchase or contact the retailer from whom you purchased the Brabrety Murphy Bed. Please have your model number (B0CY499G37) and purchase date available when contacting support.
