1. Important Safety Information
Please read and understand all safety warnings and instructions before operating the Lavor Pascal 23 Pro pressure washer. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.
- Electrical Safety: Always connect the pressure washer to a properly grounded outlet. Do not use extension cords unless absolutely necessary and ensure they are rated for outdoor use and the appliance's power requirements.
- Water Connection: Ensure the water supply is clean and free of debris. Do not connect the unit to a potable water supply without a backflow prevention device.
- Personal Protective Equipment (PPE): Always wear appropriate eye protection (safety glasses or goggles), hearing protection, and protective clothing (gloves, long pants, closed-toe shoes) when operating the pressure washer.
- Operating Environment: Operate the pressure washer on a stable, level surface. Keep children, pets, and bystanders away from the operating area. Do not operate in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- High-Pressure Jet: The high-pressure jet can be dangerous if misused. Never direct the jet at people, animals, electrical equipment, or the unit itself.
- Maintenance: Disconnect the power supply before performing any maintenance or cleaning.
2. Product Overview
The Lavor Pascal 23 Pro is a high-performance pressure washer designed for efficient cleaning tasks. Familiarize yourself with its components before use.

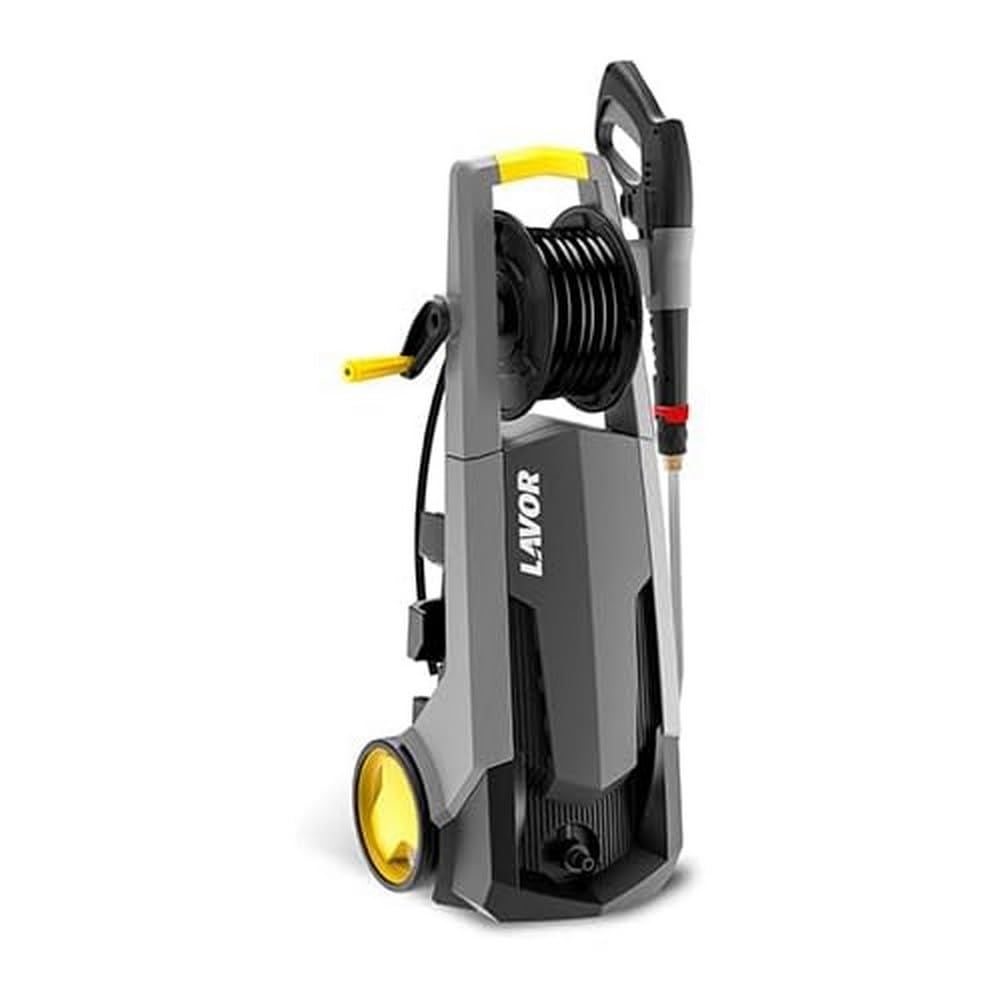

Image: Lavor Pascal 23 Pro Pressure Washer, showing its compact design and main body.
This image displays the Lavor Pascal 23 Pro pressure washer. It features a robust housing, typically in a combination of black and orange or yellow, indicating its brand. The unit is designed for portability and ease of use, with a handle for transport and a stable base. Visible components include the main motor housing, water inlet/outlet connections, and potentially a hose reel or storage for accessories. The overall design emphasizes durability and functionality for various cleaning applications.
3. Package Contents
Verify that all items are present in the package before assembly.
- Lavor Pascal 23 Pro Pressure Washer Unit
- High-Pressure Hose
- Spray Gun with Safety Lock
- Lance with Adjustable Nozzle
- Detergent Tank (integrated or external)
- Water Inlet Connector
- Nozzle Cleaning Pin
- User Manual
4. Setup
4.1 Assembly
- Attach the wheels (if not pre-assembled) to the main unit using the provided fasteners.
- Secure the handle to the main unit. Ensure it clicks into place or is firmly screwed.
- Connect the high-pressure hose to the pressure washer's outlet. Hand-tighten firmly.
- Connect the other end of the high-pressure hose to the spray gun.
- Attach the lance and desired nozzle to the spray gun.
4.2 Water Connection
- Connect a garden hose (not supplied) to the water inlet connector on the pressure washer. Ensure the connection is tight to prevent leaks.
- Connect the other end of the garden hose to a water tap.
- Turn on the water tap completely.
- Squeeze the trigger on the spray gun to purge air from the system until a steady stream of water emerges. This prevents air pockets from damaging the pump.
4.3 Power Connection
- Ensure the power switch on the pressure washer is in the 'OFF' position.
- Plug the power cord into a grounded electrical outlet.
5. Operating Instructions
5.1 Starting the Unit
- Ensure the water supply is fully open and air has been purged from the system.
- Point the spray gun in a safe direction.
- Turn the power switch to the 'ON' position. The motor will start.
- Squeeze the trigger on the spray gun to begin spraying. The motor will run continuously while the trigger is pressed.
5.2 Using Detergent (if applicable)
- Fill the detergent tank with an approved pressure washer detergent. Do not use bleach or abrasive cleaners.
- Attach the detergent nozzle or select the detergent setting on your adjustable nozzle.
- Apply detergent to the cleaning surface. Allow it to soak for a few minutes (refer to detergent instructions), but do not let it dry.
- Switch back to a high-pressure nozzle or setting to rinse the surface thoroughly.
5.3 Shutting Down
- Release the spray gun trigger.
- Turn the power switch to the 'OFF' position.
- Turn off the water supply at the tap.
- Squeeze the spray gun trigger to release any remaining pressure in the system. This is crucial for safety and to prolong pump life.
- Disconnect the garden hose and high-pressure hose.
6. Maintenance
Regular maintenance ensures optimal performance and extends the life of your pressure washer.
- Nozzle Cleaning: If the nozzle becomes clogged, use the provided nozzle cleaning pin to clear any debris. Always disconnect the power and water supply before cleaning the nozzle.
- Water Inlet Filter: Regularly check and clean the water inlet filter to prevent debris from entering the pump. Rinse it under running water.
- Hose and Connections: Inspect the high-pressure hose, spray gun, and connections for any signs of wear, cracks, or leaks before each use. Replace damaged parts immediately.
- Storage: Before storing, ensure all water is drained from the pump and hoses, especially in freezing temperatures. Run an anti-freeze solution through the pump if storing in cold conditions. Store the unit in a dry, frost-free area.
- Power Cord: Inspect the power cord for damage. Do not use the unit if the cord is damaged.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not start | No power supply; Power switch off; Thermal overload activated | Check power connection and outlet; Turn power switch ON; Allow unit to cool down for 30 minutes. |
| Low pressure | Insufficient water supply; Clogged nozzle; Air in pump; Leaks in hose/connections | Ensure water tap is fully open; Clean nozzle with pin; Purge air from system; Check all connections for tightness. |
| Motor runs intermittently | Air in pump; Water supply issues; Leaks | Purge air from system; Check water supply and inlet filter; Inspect hoses and connections for leaks. |
| Water leaks from connections | Loose connections; Damaged O-rings/seals | Tighten all connections; Replace worn or damaged O-rings/seals. |
8. Specifications
- Model Number: PASCAL 23 PRO
- Dimensions (Package): 56 x 37 x 37 cm
- Weight (Package): 15.5 kg
- ASIN: B0CY2Y2PPJ
- Note: Specific operational pressure, flow rate, and motor power details should be confirmed from the product packaging or official Lavor documentation.
9. Warranty and Support
Lavor products are manufactured to high-quality standards and are guaranteed against manufacturing defects. The warranty period typically covers a specific duration from the date of purchase. Please retain your proof of purchase for warranty claims.
For technical assistance, spare parts, or warranty service, please contact your local Lavor authorized service center or the retailer from whom you purchased the product. Refer to the official Lavor website or your product registration card for detailed warranty terms and contact information.
When contacting support, please have your product model number (PASCAL 23 PRO) and serial number (if applicable) readily available.
