Noble Falcon-ANC Wireless Earbuds Instruction Manual

1. Introduction

This manual provides detailed instructions for the proper use and maintenance of your Noble Falcon-ANC Wireless Earbuds. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

2. Package Contents

Verify that all items listed below are included in your package:

• Noble Falcon-ANC Earbuds (Left and Right)
• Charging Case (1 pc)
• USB Charging Cable (1 pc)
• Ear Tips (3 pairs - S, M, L)
• Instruction Manual (1 pc)
• Pouch (1 pc)

3. Product Overview

Figure 3.1: Noble Falcon-ANC Earbuds and Charging Case. The image displays the blue charging case with the Noble Falcon ANC logo, alongside the two black earbuds with blue accents, ready for use or charging.

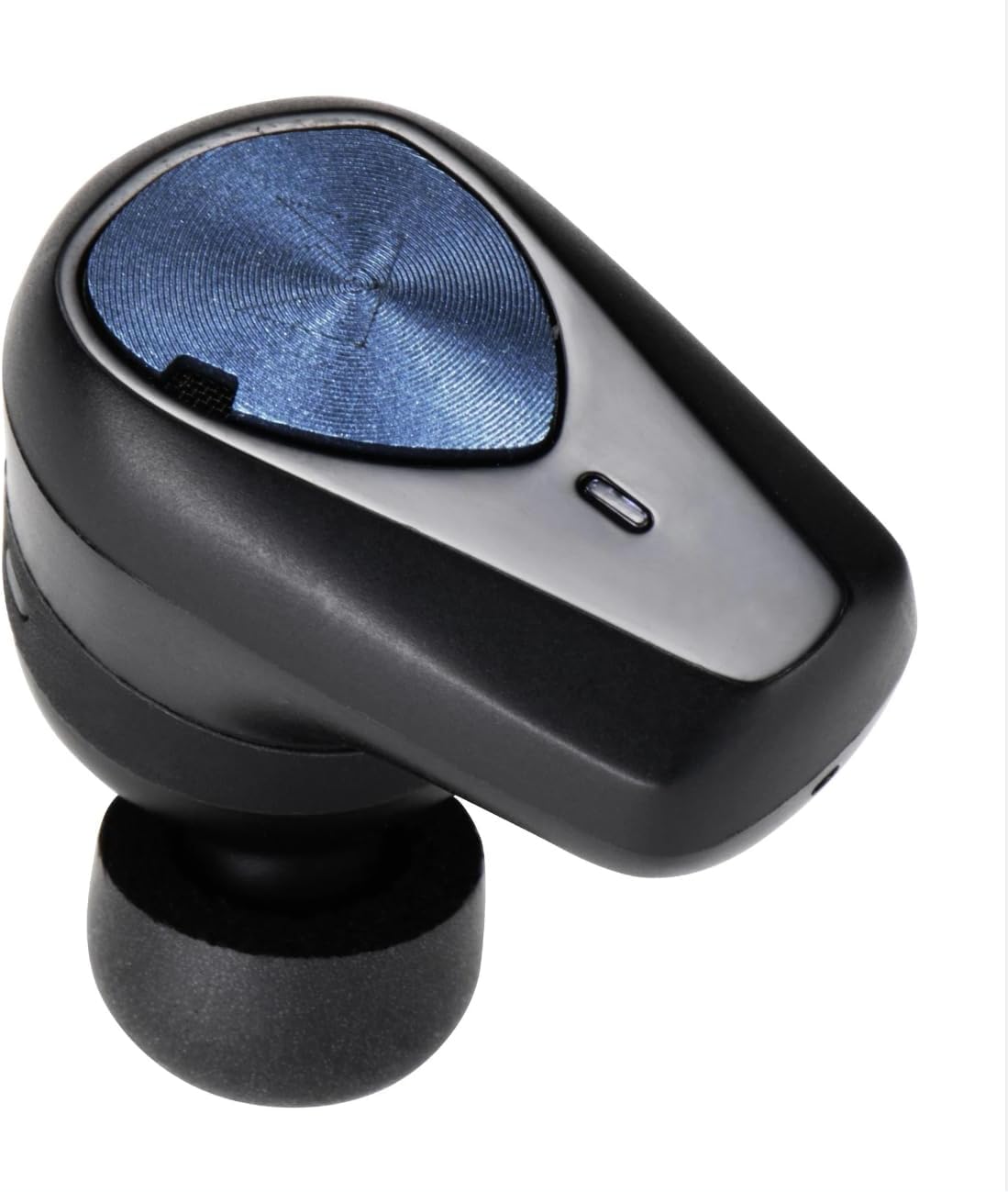

Figure 3.2: Close-up view of a single Noble Falcon-ANC earbud. This image highlights the ergonomic design, the blue metallic outer panel, and the ear tip, showing the in-ear component.

The Noble Falcon-ANC earbuds feature a hybrid driver configuration, combining a 10mm titanium membrane dynamic driver with a Knowles balanced armature driver for high-resolution audio. Each earbud is equipped with three MEMS Knowles microphones for enhanced call quality and Active Noise Cancellation (ANC) performance. The compact charging case provides additional battery life for extended listening.

4. Setup

4.1 Charging the Earbuds and Case

1. Place the earbuds into the charging case, ensuring they are correctly seated. The indicator lights on the earbuds will illuminate to show charging status.
2. Connect the USB charging cable to the charging port on the case and to a compatible USB power source.
3. The charging case indicator lights will show the charging progress. A full charge for the case and earbuds typically takes approximately 1.5 to 2 hours.
4. Once fully charged, disconnect the charging cable. The earbuds offer up to 12 hours of playback without ANC and 8.5 hours with ANC. The charging case provides an additional 2.5 full charges.

4.2 Initial Pairing

1. Ensure the earbuds are charged.
2. Open the charging case. The earbuds will automatically enter pairing mode, indicated by flashing lights (refer to specific light patterns in the quick start guide if available).
3. On your smartphone, PC, laptop, or tablet, navigate to the Bluetooth settings.
4. Search for available devices and select "Noble Falcon-ANC" from the list.
5. Once connected, a confirmation sound or indicator light change will occur. The earbuds are now ready for use.
6. For subsequent use, the earbuds will automatically connect to the last paired device when removed from the case and within range.

5. Operating Instructions

5.1 Touch Controls

The Noble Falcon-ANC earbuds feature touch-sensitive controls on the outer panel of each earbud. Specific functions may vary, but common controls include:

• Single Tap: Play/Pause music, Answer/End call.
• Double Tap (Left/Right): Previous/Next track.
• Triple Tap: Activate voice assistant.
• Long Press: Toggle ANC/Ambient/Wind Reduction modes, Reject call.

Refer to the quick start guide for precise control mapping.

5.2 Active Noise Cancellation (ANC) Modes

The Falcon-ANC earbuds offer multiple listening modes:

• ANC Mode: Reduces external noise, ideal for travel or noisy environments.
• Ambient Mode: Allows you to hear your surroundings while listening to audio, useful for awareness in urban areas.
• Wind Reduction Mode: Specifically designed to minimize wind noise during outdoor activities or calls.

Toggle between these modes using the touch controls or through the Noble FoKus app.

5.3 Noble FoKus App

Enhance your listening experience by downloading the Noble FoKus app (available for smartphones). The app provides:

• 10-Band Equalizer: Customize your audio profile.
• Hearing Test Function: Personalize sound settings based on your individual hearing profile.
• Firmware Updates: Ensure your earbuds have the latest features and improvements.

6. Maintenance

6.1 Cleaning

• Regularly clean the earbuds and charging case with a soft, dry, lint-free cloth.
• Remove ear tips and clean them with mild soap and water, then dry thoroughly before reattaching.
• Gently clean the charging contacts on both the earbuds and the case using a dry cotton swab to ensure proper charging.
• Avoid using abrasive materials, solvents, or harsh chemicals.

6.2 Storage

• When not in use, store the earbuds in their charging case to protect them and keep them charged.
• Store the product in a cool, dry place, away from extreme temperatures and direct sunlight.

6.3 Water Resistance

The Noble Falcon-ANC earbuds have an IPX5 water resistance rating, meaning they are protected against low-pressure water jets from any direction. They are suitable for use during sweaty workouts or in light rain, but should not be submerged in water.

7. Troubleshooting

8. Specifications

9. Warranty and Support

Noble provides a limited warranty for its products. For detailed warranty information, please refer to the warranty card included in your package or visit the official Noble website. If you encounter any issues or require technical assistance, please contact Noble customer support through their official channels.
