Just-V Roof Rack Cross Bars Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Just-V Roof Rack Cross Bars. Designed for vehicles with existing raised side rails, these cross bars offer a robust and adjustable solution for transporting various cargo. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Product Overview

The Just-V Roof Rack Cross Bars are constructed from thickened advanced aviation aluminum, providing high hardness and resistance to deformation. They are designed to be adjustable and secure, capable of supporting significant loads.

Key Features:

• Adjustable Length: Max 50 inches, Min 34.6 inches, with multiple hole positions for precise adjustment.
• High Load Capacity: Rated for 330 LBS (150 KG) under static conditions.
• Secure Locking Mechanism: Equipped with keys for locking and reinforcement, preventing theft and loosening.
• Wind Noise Reduction: Features leather strips to minimize wind noise during travel.
• Easy Installation: Designed for straightforward setup on compatible vehicle roof rails.

Figure 2.1: Just-V Roof Rack Cross Bars, showing the two black cross bars and an example of them installed on a blue vehicle with existing silver roof rails.

3. Compatibility

These roof rack cross bars are designed to fit most vehicles equipped with existing raised side rails. It is crucial to verify your vehicle's roof rail type and dimensions before purchase and installation.

Compatible Vehicle Models:

• Subaru Forester (2014-2024)
• Subaru Impreza (2012-2019)
• Subaru XV Crosstrek (2013-2024)
• Subaru Outback Wilderness (2022-2024)
• Toyota RAV4 (2013-2018)
• Jeep Cherokee (2014-2023)
• Jeep Grand Cherokee (2011-2021)
• VW Tiguan (2018-2024)
• Kia Telluride S SX SX-P EX (2019-2024)

Roof Rail Requirements:

The cross bars are compatible with raised side rails that have gaps on the roof, as well as flush raised side rails. The maximum adjustable size distance between the rails is 50 inches. Your roof rail cross-section width must be within 21mm-50mm.

Figure 3.1: Visual guide for checking roof rail compatibility. Shows examples of incompatible rails (no grooves on outer side, no rail on top, rails without grooves on inner/outer sides).

Figure 3.2: Instructions for measuring your original roof rail to ensure it falls within the 21mm-50mm width requirement for proper fitment.

4. Setup and Installation

Installation of the Just-V Roof Rack Cross Bars is designed to be straightforward. Follow these steps carefully to ensure a secure and correct fit.

Components Included:

• 2 x Roof Rack Cross Bars
• 2 x Keys for locking mechanism
• Hex wrenches (for adjustment)

Installation Steps:

1. Unpack Components: Carefully remove all items from the packaging. Ensure all listed components are present. The keys are typically attached to the foam inside the box.
2. Adjust Length: Open the covers at both ends of each cross bar. Use the provided hex wrench to adjust the length of the cross bar to match the distance between your vehicle's raised side rails. The adjustable range is from 34.6 inches to 50 inches. Ensure both ends are adjusted equally for a balanced fit.
3. Position Cross Bars: Place the adjusted cross bars onto your vehicle's raised side rails. Ensure they are evenly spaced and parallel to each other.
4. Clamp to Rails: The clamping mechanism has two screws to adjust the height for clamping the raised side rails. Adjust the clamp height to securely grip your vehicle's rails. For rails with gaps, ensure the clamp holds completely. For flush rails, the adjustable depth does not need to be fully embedded; about half the depth will provide a firm hold.
5. Secure and Lock: Once the cross bars are securely clamped, use the provided keys to lock the mechanism. This reinforces the attachment and helps prevent theft. Ensure the locking mechanism is fully engaged.
6. Final Check: Before driving, gently shake the installed cross bars to confirm they are firmly attached and do not wobble. Double-check all adjustments and locks.

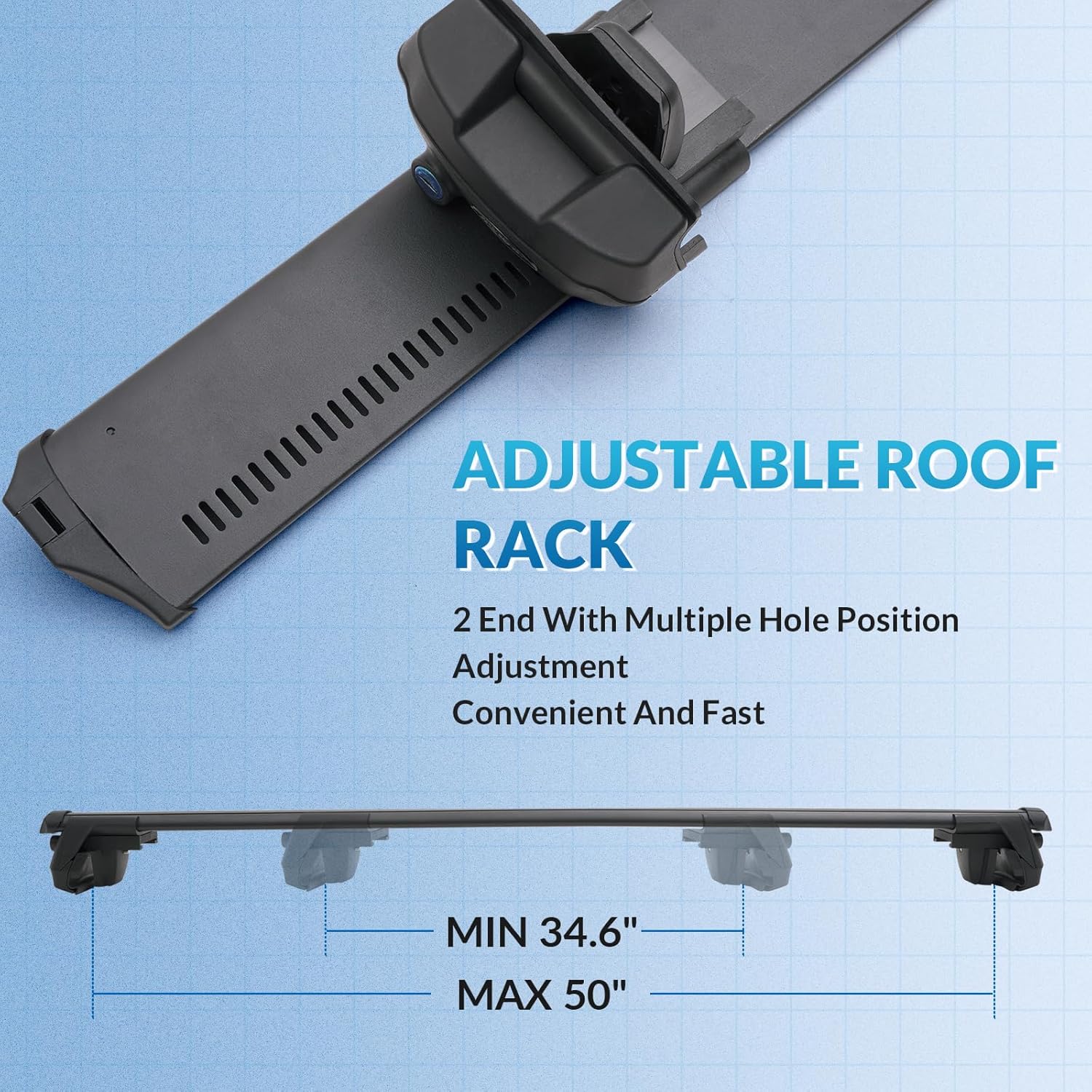

Figure 4.1: Diagram illustrating the adjustable length of the cross bars, ranging from a minimum of 34.6 inches to a maximum of 50 inches.

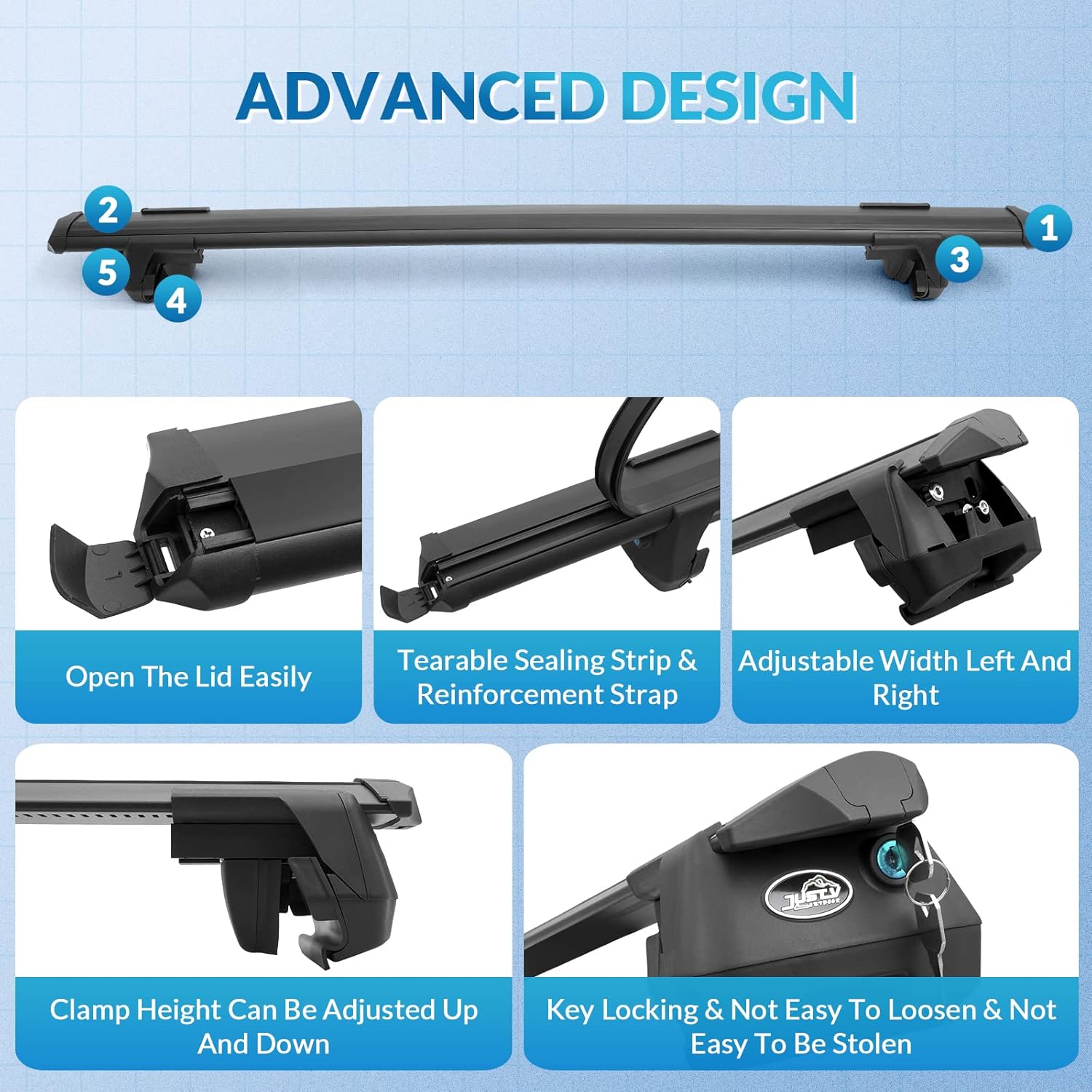

Figure 4.2: Close-up views of the cross bar's advanced design, including the easy-open lid, tearable sealing strip and reinforcement strap, adjustable width, adjustable clamp height, and key locking mechanism.

5. Operation

Once installed, your Just-V Roof Rack Cross Bars are ready for use. They provide a stable platform for various cargo types.

Using the Cross Bars:

• Cargo Attachment: Securely attach your cargo (e.g., parcel racks, bicycle racks, kayak racks, surfboard racks) to the cross bars using appropriate tie-downs or mounting systems.
• Load Distribution: Distribute the weight of your cargo evenly across the cross bars to maintain vehicle stability. Do not exceed the maximum load capacity of 330 LBS (150 KG).
• Wind Noise: The integrated leather strips are designed to reduce wind noise. Ensure they are properly seated within the cross bar channels.

Figure 5.1: Examples of various items that can be transported using the roof rack, including a parcel box, bicycle, kayak, and surfboard, demonstrating its wide application range.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your Just-V Roof Rack Cross Bars.

• Regular Cleaning: Clean the cross bars periodically with mild soap and water to remove dirt, grime, and road salt. Rinse thoroughly and dry.
• Check Tightness: Before each trip, especially when carrying large items, check the tightness of all mounting points and locking mechanisms. Vibrations during driving can cause components to loosen over time.
• Inspect for Damage: Regularly inspect the cross bars for any signs of wear, corrosion, or damage. If any damage is found, discontinue use and contact customer support.
• Storage: If removing the cross bars for extended periods, store them in a clean, dry place away from direct sunlight and extreme temperatures.

Figure 6.1: Important reminder to fasten cargo with suitable carriers or ropes, keep driving speed appropriate, and check tightness before driving, especially when large items are placed on the luggage rack, as greater wind resistance may be encountered.

7. Troubleshooting

This section addresses common issues you might encounter with your Just-V Roof Rack Cross Bars.

8. Specifications

Figure 8.1: Illustration of the 330 LBS load capacity under static conditions, highlighting the robust aluminum alloy construction.

Figure 8.2: Diagram showing the product dimensions (50"~34.6" adjustable length, 3.5" width, 4.1" height) and the package contents including two cross bars, two keys, and hex wrenches.

9. Warranty and Support

Just-V is committed to customer satisfaction. If you have any questions, concerns, or require assistance with your roof rack cross bars, please do not hesitate to contact our customer support team.

• After-Sales Support: Just-V provides dedicated after-sales support to address any inquiries or issues you may have.
• Returns and Exchanges: The manufacturer accepts returns and exchanges. Please refer to your purchase documentation or the retailer's policy for specific terms and conditions.
• Contact Information: For support, please send an email to the address provided in your product packaging or on the official Just-V website.
