1. Introduction
Thank you for choosing the HOFTRONIC LED TL Fixture. This instruction manual provides important information regarding the safe installation, operation, and maintenance of your new LED lighting fixture. Please read this manual thoroughly before installation and keep it for future reference.
This LED TL fixture is designed for efficient and durable lighting in various environments. Its robust construction ensures reliable performance in both damp and dry conditions, making it suitable for a wide range of applications.
2. Safety Instructions
- Electrical Safety: Installation must be performed by a qualified electrician in accordance with local electrical codes and regulations. Always disconnect power before installation, maintenance, or repair.
- Voltage: Ensure the supply voltage matches the fixture's specified voltage (230 Volts).
- Environment: The fixture is IP65 rated for water and dust resistance and IK08 rated for impact resistance. It is suitable for use in temperatures between -20°C and +45°C. Do not expose the fixture to corrosive chemicals that may damage the ABS and polycarbonate materials.
- Mounting: Ensure the mounting surface is strong enough to support the weight of the fixture.
- Disposal: Dispose of the product responsibly at the end of its lifespan, following local regulations for electronic waste.
3. Product Overview

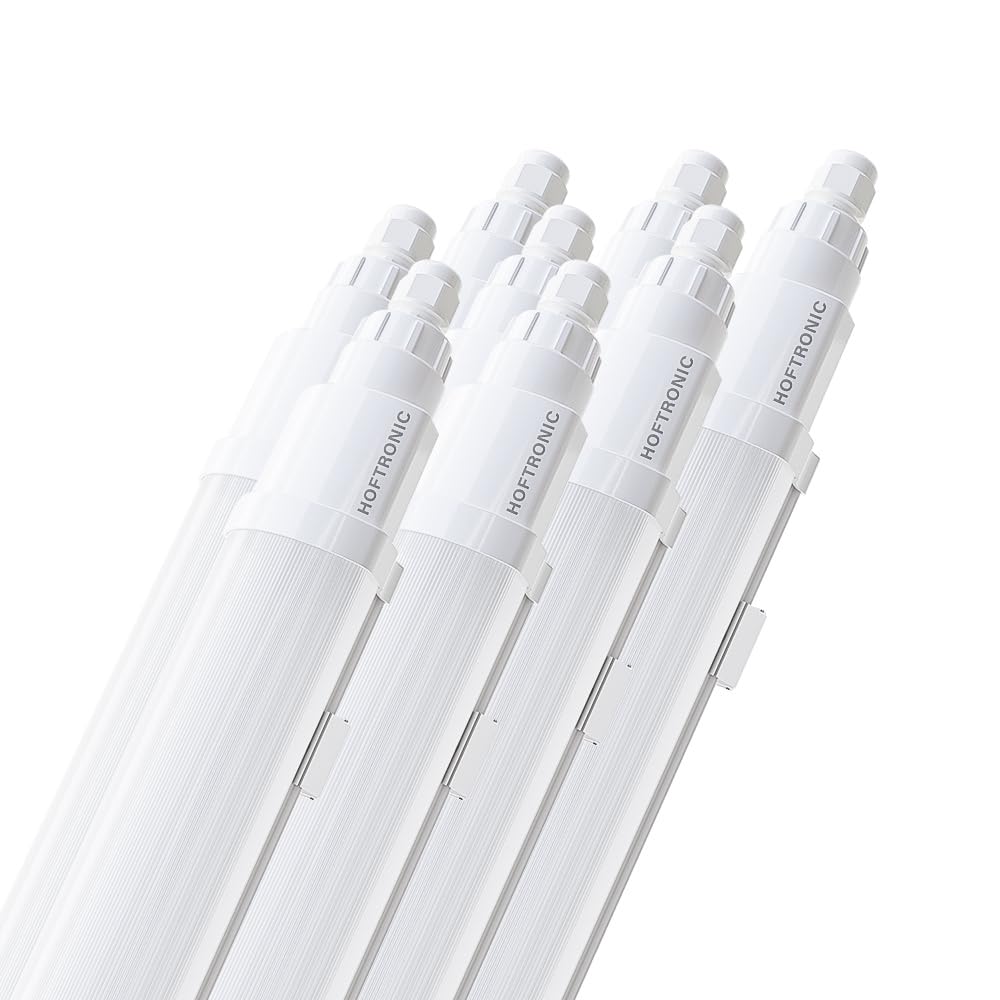

The HOFTRONIC LED TL Fixture is a high-performance lighting solution featuring:
- Waterproof and Dustproof (IP65): Suitable for damp and dusty environments such as basements, cold storage, warehouses, and garages.
- Impact Resistant (IK08): Provides superior durability and protection against mechanical impacts, making it suitable for public areas.
- High Efficiency: Consumes only 36 Watts to produce 4320 lumens, offering an efficiency of 120 lumens per Watt.
- Daylight White Light (6500K): Emits a bright, clear light ideal for workspaces, offices, and garages where optimal visibility is required.
- Linkable Design: Equipped with quick connectors for easy linking of multiple fixtures (up to 20 units) to be controlled by a single switch.
- Durable Materials: Constructed from Acrylonitrile Butadiene Styrene (ABS) and Polycarbonate (PC) to prevent material degradation from chemical vapors.
Figure 3.1: The HOFTRONIC LED TL Fixture is suitable for diverse applications including car washes, warehouses, and cold storage facilities.
Figure 3.2: Additional application examples include supermarkets, workshops, home garages, and automotive repair shops.
Figure 3.3: The fixture features a quick connect mechanism for simplified and rapid installation without the need for specialized tools.
Figure 3.4: Multiple fixtures can be linked together using a PG11 cable gland, supporting up to 20 linked units.
Figure 3.5: The IK08 rating signifies superior build quality and resistance to impacts.
Figure 3.6: The fixture provides diffuse light, reducing glare and creating a more comfortable visual environment compared to non-diffuse light sources.
4. Setup and Installation
The HOFTRONIC LED TL Fixture is designed for straightforward installation. All necessary mounting materials are included.
4.1 Mounting the Fixture
- Prepare the Mounting Surface: Choose a suitable location for installation. Ensure the surface is clean and capable of supporting the fixture's weight.
- Mark Drilling Points: Use the provided mounting clips as a template to mark the drilling points on the ceiling or wall.
- Drill Holes: Drill holes at the marked points and insert appropriate wall plugs (if required for your surface type).
- Attach Mounting Clips: Secure the mounting clips to the surface using screws.
- Attach Fixture: Snap the LED TL fixture into the mounted clips. Ensure it is securely fastened.
Figure 4.1: Step-by-step illustration of how to mount the LED TL fixture using the provided clips and hardware.
4.2 Electrical Connection
- Disconnect Power: Ensure the main power supply to the installation area is switched off at the circuit breaker.
- Open Wiring Compartment: Access the quick connector wiring compartment on the fixture.
- Connect Wires: Connect the live, neutral, and ground wires from your power supply to the corresponding terminals in the quick connector. The quick connector allows for tool-free wiring.
- Secure Connections: Ensure all connections are secure and the wiring compartment is properly closed.
- Linking Multiple Fixtures (Optional): If linking multiple fixtures, use a suitable cable (min. 5mm / max. 9mm diameter) and connect it between the quick connectors of adjacent fixtures. Ensure the cable gland is tightened to maintain IP65 rating.
- Restore Power: Once all connections are secure and verified, restore power to the circuit.
5. Operating Instructions
The HOFTRONIC LED TL Fixture operates as a standard lighting unit. Once properly installed and connected to the power supply, it can be switched on and off using a wall switch or other connected control mechanism.
- Switching On/Off: Use the connected wall switch to turn the light fixture on or off.
- Instant Illumination: LED technology provides instant full brightness without warm-up time.
- Flicker-Free: The fixture is designed to be completely flicker-free, suitable for professional applications and reducing eye strain.
6. Maintenance
The HOFTRONIC LED TL Fixture requires minimal maintenance due to its durable construction and long lifespan.
- Cleaning: Periodically clean the exterior of the fixture with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these may damage the ABS and polycarbonate materials. Ensure power is disconnected before cleaning.
- Inspection: Regularly inspect the fixture for any signs of damage, loose connections, or wear. If any damage is found, disconnect power immediately and have it inspected by a qualified technician.
- No User-Serviceable Parts: The LED light source is integrated and not user-replaceable. Do not attempt to open or repair the fixture yourself.
7. Troubleshooting
If you encounter any issues with your HOFTRONIC LED TL Fixture, please refer to the following troubleshooting guide:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fixture does not light up | No power supply Loose electrical connection Faulty fixture | Check power supply at the circuit breaker. Verify all electrical connections are secure (ensure power is off first). If problem persists, contact customer support. |
| Light output is dim or inconsistent | Incorrect voltage Environmental factors | Ensure correct voltage (230V) is supplied. Verify operating temperature is within -20°C to +45°C. |
| Flickering light | Unstable power supply Loose connection | Check power stability. This fixture is designed to be flicker-free. Verify all electrical connections are secure (ensure power is off first). |
If troubleshooting steps do not resolve the issue, please contact HOFTRONIC customer support.
8. Specifications
| Feature | Specification |
|---|---|
| Brand | HOFTRONIC |
| Model Number | 2711566 |
| Product Dimensions | 120 x 5.7 x 4.7 cm |
| Weight | 5 kg |
| Material | Acrylonitrile Butadiene Styrene (ABS), Polycarbonate (PC) |
| Voltage | 230 Volts |
| Wattage | 36 Watts |
| Luminous Flux | 4320 Lumens |
| Color Temperature | 6500 Kelvin (Daylight White) |
| Certifications | Energy Star, IP65 |
| Special Features | Tool-free quick connector, Energy efficient, Plug and Play, Linkable (up to 20 units), Flicker-free |
| Average Lifespan | 10 Years (average usage) |
| Energy Efficiency Rating | E |
Figure 8.1: Detailed dimensions of the LED TL fixture.
Figure 8.2: EU Energy Label for the HOFTRONIC LED TL Fixture. For more details, visit the EPREL database.
9. Warranty and Support
HOFTRONIC products are manufactured to high-quality standards. For warranty information or technical support, please contact your retailer or the HOFTRONIC customer service department. Please have your model number (2711566) and proof of purchase available when contacting support.
