1. Product Overview
The WANLUTECH HD-2900 is a versatile CCTV camera tester designed to support various camera types and testing functionalities. It features a 4.3-inch screen and is equipped with a built-in 3.7V/4000mAh battery for portability.
Figure 1: Front view of the WANLUTECH HD-2900 CCTV Camera Tester.
2. Setup
2.1 Package Contents
Verify that all items are present in the package:
- 1x WANLUTECH HD-2900 CCTV Tester
- 1x 5V 2A USB Charging Cable
- 1x BNC Cable
- 1x RS485 Cable
- 1x Audio Cable
- 1x Safety Cord/Wrist Belt
- 1x Cable Tester (UTP remote unit)
- 1x Power Output Cable
Figure 2: Included accessories with the HD-2900 tester.
2.2 Initial Preparation
Before first use, open the battery cover and remove the paper piece isolating the battery. This ensures proper battery contact and functionality.
2.3 Interface Overview
Familiarize yourself with the ports and controls of the device:
Figure 3: Top and bottom views illustrating the various input/output ports and controls.
- Power Button: Turns the device on/off.
- Video Input (BNC): For connecting AHD, TVI, CVI, and CVBS cameras.
- Audio In: For audio signal testing.
- UTP Cable Tester Port (RJ45): For network cable continuity and length testing.
- RS485: For PTZ control.
- DC12V/1A Power Output: Provides power to cameras.
- DC5V/2A USB Charging: For charging the device.
- LED Lamp: Provides illumination in dark environments.
3. Operating Instructions
3.1 Camera Testing (AHD/TVI/CVI/CVBS)
The HD-2900 supports testing of up to 8MP AHD, 8MP TVI, 8MP CVI, and Analog CVBS cameras. The HD app automatically recognizes AHD, CVI, and TVI cameras, displaying resolution and frame rate.

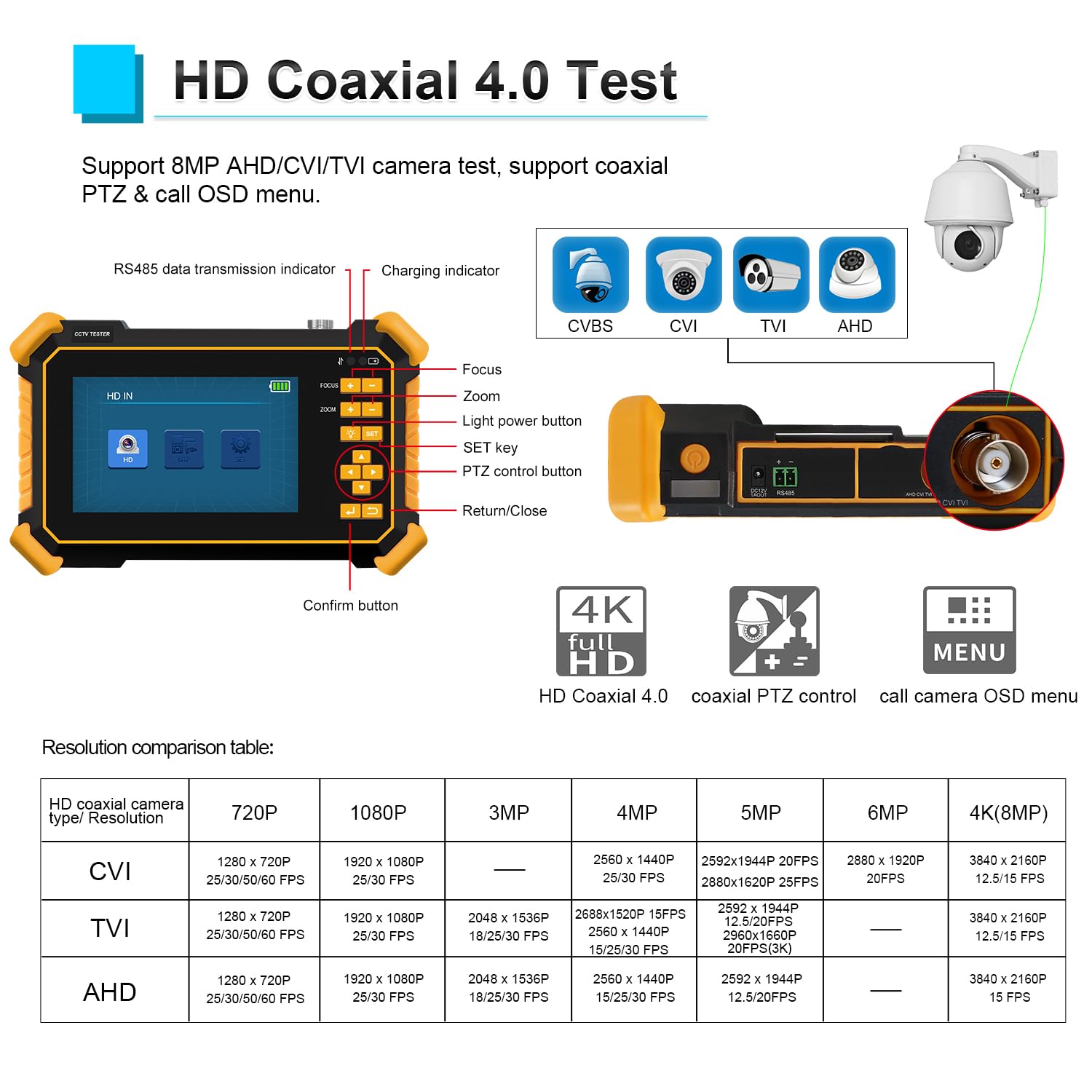

Figure 4: HD Coaxial 4.0 Test interface with camera feed and resolution details.
To test a camera:
- Connect the camera's video output to the tester's BNC video input.
- If the camera requires power, connect it to the tester's DC12V/1A power output.
- The tester will automatically detect the camera type and display the video feed.
Figure 5: Automatic HD camera recognition and display.
3.2 UTP Cable Testing
The UTP Cable Tester function checks continuity and can detect near-end fault points of RJ45 cable plugs. It can measure network cable length up to 3000 meters.
Figure 6: UTP Cable Tester displaying cable status.
Important: When testing network cable length, one end of the network cable must be connected to the tester, and the other end should not be connected to any other devices.
3.3 RS485 PTZ Control
The tester supports RS485 control for PTZ (Pan-Tilt-Zoom) cameras, compatible with over 30 protocols and baud rates from 600-115200bps. It also allows calling the OSD menu of coaxial PTZ cameras.
3.4 Audio Test
Connect an audio source to the 1-channel audio signal input to test if the audio is functioning normally.
Figure 7: Audio IN port on the tester.
3.5 LED Flashlight
The built-in LED flashlight provides illumination for working in dark environments.
Figure 8: The LED flashlight in use.
4. Operational Demonstrations
The following video demonstrates various operational aspects of a CCTV tester, including unboxing, powering on, video testing, UTC menu control, UTP cable testing, RS485 speed dome control, and LED flashlight usage. While the specific model shown may vary slightly, the functionalities are representative of the WANLUTECH HD-2900.
Video 1: CCTV Tester Operation Overview. This video demonstrates unboxing (0:00-1:10), powering on (1:10-1:27), CVBS video test (1:27-1:40), UTC menu control for CVBS, TVI, and CVI (1:40-3:30), UTP cable test (3:53-4:36), PTZ settings (4:36-4:44), RS485 speed dome test (4:44-6:52), and LED flashlight operation (6:52-7:00).
5. Specifications
| Feature | Detail |
|---|---|
| Model Number | HD-2900 |
| Supported Camera Types | 8MP AHD, 8MP TVI, 8MP CVI, Analog CVBS |
| Screen Size | 4.3 inches |
| Screen Resolution | 480*272 |
| Battery | 1 Lithium Ion battery (3.7V/4000mAh) |
| Power Output | DC12V/1A |
| Power Input | DC5V/2A |
| UTP Cable Test Length | Max 3000 meters |
| RS485 Baud Rate | 600-115200bps |
| Dimensions | 20.19 x 16.21 x 8.89 cm |
| Weight | 0.55 Kilograms |
6. Maintenance
To ensure the longevity and optimal performance of your WANLUTECH HD-2900 CCTV Camera Tester, follow these maintenance guidelines:
- Keep the device clean and free from dust and debris. Use a soft, dry cloth for cleaning.
- Avoid exposing the device to extreme temperatures, humidity, or direct sunlight.
- Store the device in a cool, dry place when not in use.
- Charge the battery regularly, even if the device is not in frequent use, to maintain battery health.
- Handle all cables and connectors with care to prevent damage.
7. Troubleshooting
If you encounter any issues with your WANLUTECH HD-2900, consider the following basic troubleshooting steps:
- Device not powering on: Ensure the battery is charged. Check if the battery isolation paper has been removed (refer to Section 2.2).
- No video signal: Verify all camera and video input connections are secure. Ensure the camera is powered correctly. Confirm the camera type is supported by the tester.
- UTP cable test failure: Ensure both ends of the UTP cable are properly connected to the tester and the remote unit. Confirm the cable is not connected to any other active network devices during testing.
- PTZ control not working: Check RS485 connections. Verify the correct protocol and baud rate are selected in the PTZ settings.
8. Support
For any questions or further assistance, please contact WANLUTECH customer support. We aim to respond to all inquiries within 12 hours.
