Bomann DBS6034CB Steam Iron Station User Manual

1. Important Safety Instructions

Please read these instructions carefully before using the appliance and keep them for future reference. Incorrect use can lead to hazards.

• Always ensure the voltage indicated on the rating label matches your mains voltage.
• Do not immerse the iron or its base unit in water or any other liquid.
• Keep the appliance out of reach of children and individuals with reduced physical, sensory, or mental capabilities.
• Never leave the iron unattended while it is switched on or connected to the power supply.
• Exercise caution when handling hot surfaces and steam. The soleplate and steam can cause burns.
• Unplug the iron from the power outlet before filling or emptying the water tank, and during cleaning or maintenance.
• Do not operate the appliance if the power cord or plug is damaged, or if the appliance has been dropped or damaged in any way. Contact authorized service personnel for repair.
• Use the iron only for its intended purpose, which is ironing garments.
• Place the iron on a stable, heat-resistant surface when not in use.

2. Product Overview

The Bomann DBS6034CB Steam Iron Station is designed for efficient garment care, featuring a ceramic soleplate and powerful steam functions.

Image: The Bomann DBS6034CB Steam Iron Station with its base unit and iron, highlighting its 2400 Watt power, 3.5 bar steam pressure, and 90g/min steam output.

Key Features:

• Powerful Steam Output: Steam pressure of 3.5 bar with a constant high steam output of up to 90 g/min.
• Efficient Steam Distribution: Equipped with 11 steam nozzles for even steam distribution across fabrics.
• Ceramic Soleplate: Scratch-resistant ceramic soleplate designed for smooth gliding over various materials.
• Versatile Steaming: Supports both horizontal and vertical steaming functions.
• Large Water Tank: Features a removable 1.2-liter water tank, providing sufficient capacity for extended ironing sessions (up to 80 minutes of medium operation).
• Temperature Control: Stepless temperature regulation for different fabric types.
• Convenience: Includes a light indicator, an extra-long 1.7-meter cable with integrated storage, and a transport lock.

Image: Front view of the Bomann DBS6034CB Steam Iron Station with a 'Super Glide' tag, emphasizing its ceramic soleplate.

3. Setup and First Use

3.1 Unpacking

• Carefully remove the appliance from its packaging.
• Remove all packaging materials, stickers, and labels.
• Inspect the appliance for any signs of damage. Do not use if damaged.

3.2 Filling the Water Tank

1. Ensure the iron is unplugged from the power outlet.
2. Remove the water tank from the base unit.
3. Fill the water tank with clean tap water or distilled water up to the 'MAX' level indicator. Using distilled water is recommended to prevent limescale buildup.
4. Securely reinsert the water tank into the base unit until it clicks into place.

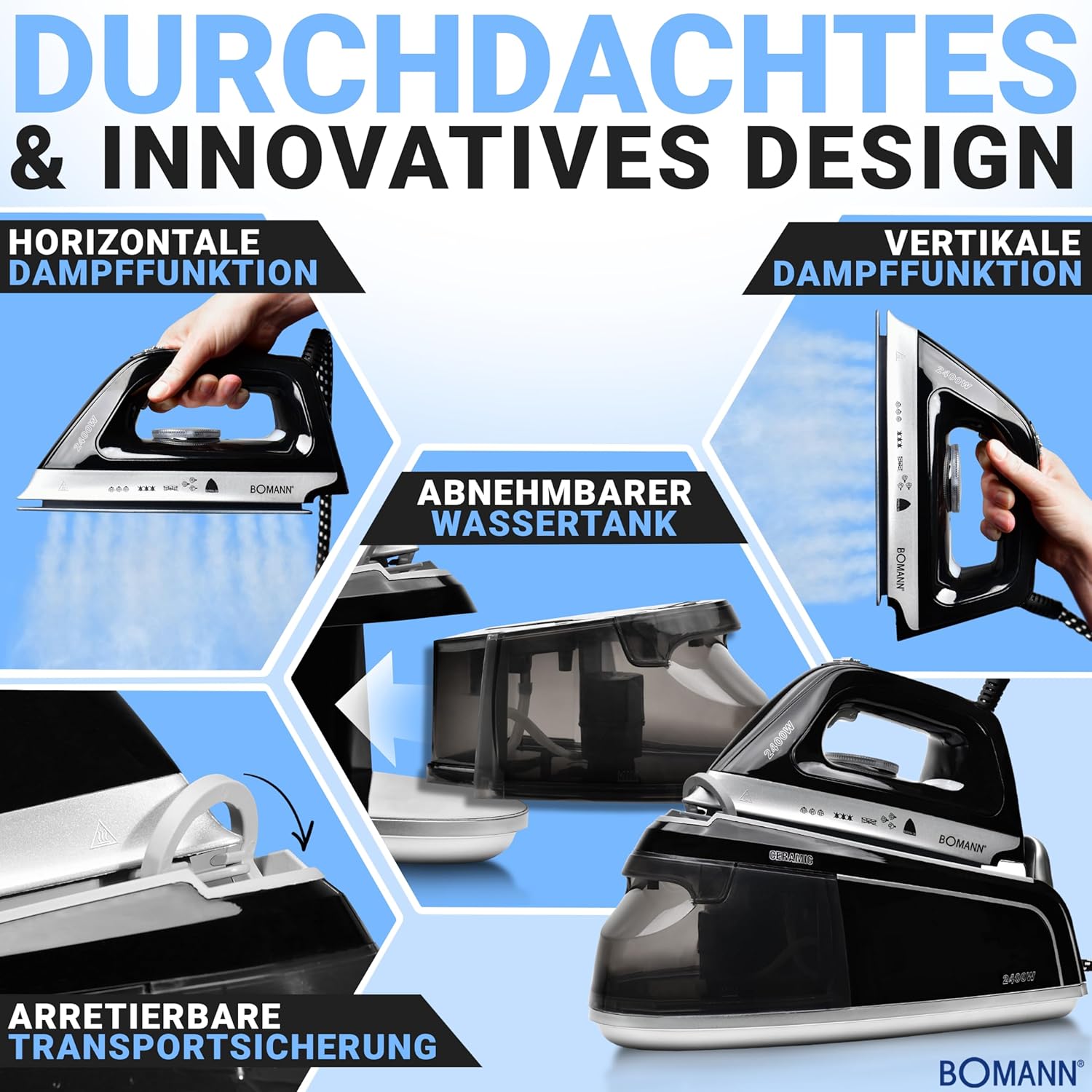

Image: Visual representation of the iron's horizontal and vertical steaming capabilities, the removable water tank, and the transport lock mechanism.

3.3 First Use

• During the first use, a slight odor or smoke may occur as manufacturing residues burn off. This is normal and will dissipate quickly.
• It is advisable to iron an old piece of fabric first to ensure no residue is transferred to your garments.

4. Operating Instructions

4.1 Powering On and Temperature Setting

1. Place the iron on its stable rest area on the base unit.
2. Plug the power cord into a suitable electrical outlet. The light indicator will illuminate.
3. Turn the temperature control dial on the iron to the desired setting according to the fabric type. Refer to garment care labels.
4. Allow the iron to heat up. The light indicator will turn off when the set temperature is reached.

Image: Composite image showing the stepless temperature control, the extra-large and stable iron rest area, the 1.2-liter water tank capacity, and the 1.7-meter cable with integrated storage.

4.2 Horizontal Steaming

• Once the iron has reached the desired temperature, press the steam button to release steam while ironing horizontally.
• Move the iron smoothly over the fabric.

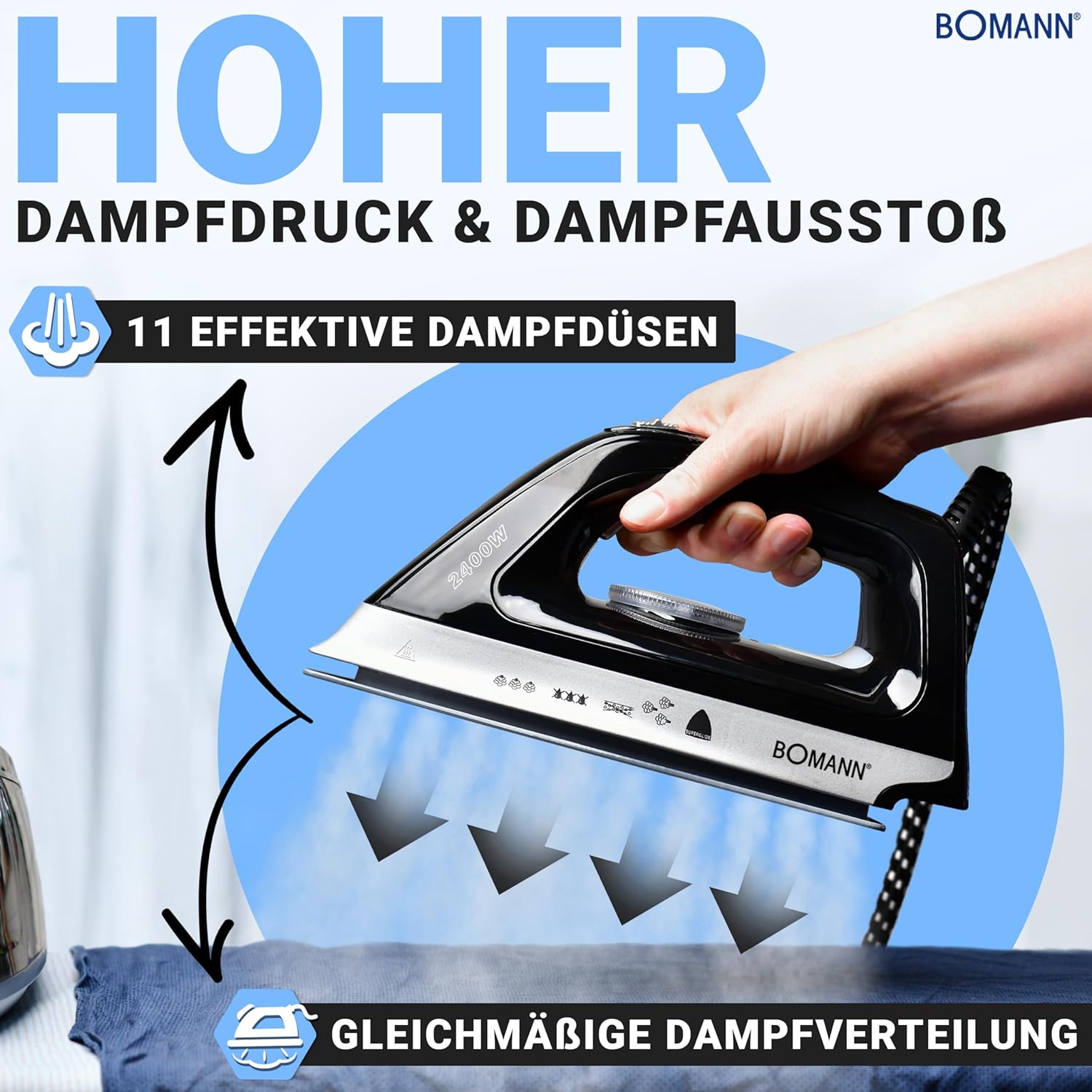

Image: Close-up image of the iron's soleplate demonstrating steam distribution from 11 effective steam nozzles, ensuring even steam coverage.

4.3 Vertical Steaming

• Hold the iron vertically, approximately 10-20 cm away from the garment.
• Press the steam button to release steam. This function is suitable for refreshing hanging garments, curtains, or delicate fabrics.

4.4 Steam Boost Function

• For stubborn creases, press the steam boost button (if available) for an extra burst of steam.
• Do not use the steam boost continuously for prolonged periods to avoid excessive water consumption.

5. Maintenance and Cleaning

Regular maintenance ensures optimal performance and extends the lifespan of your steam iron station.

5.1 Cleaning the Soleplate

• Ensure the iron is unplugged and completely cool before cleaning.
• Wipe the ceramic soleplate with a damp cloth and a mild, non-abrasive cleaner if necessary.
• Do not use abrasive pads or harsh chemicals, as these can damage the soleplate.

Image: Image showcasing the scratch-resistant ceramic soleplate with Superglide technology for smooth gliding.

5.2 Descaling

• To prevent limescale buildup, especially in areas with hard water, it is recommended to use distilled water.
• If limescale buildup occurs, consult the manufacturer's guidelines for descaling solutions or use a mixture of white vinegar and water (1:1 ratio) in the water tank. Run the steam function over an old cloth until the steam is clear.
• Always rinse the water tank thoroughly after descaling.

5.3 Emptying and Storing

• After each use, unplug the iron and allow it to cool completely.
• Empty any remaining water from the tank to prevent stagnation and mineral buildup.
• Wrap the power cord around the designated cable storage area on the base unit.
• Engage the transport lock to secure the iron to the base unit for safe storage.
• Store the appliance in a dry, safe place, away from direct sunlight and moisture.

6. Troubleshooting

If you encounter issues with your steam iron station, refer to the following table for common problems and solutions.

7. Technical Specifications

Image: Diagram illustrating the dimensions of the iron and base unit, along with the 1.7-meter cable length.

8. Warranty and Support

This product is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.

For technical support, service, or spare parts, please contact Bomann customer support through their official website or the contact information provided in your product documentation.

• Online Support: Visit the official Bomann website for FAQs and support resources.
• Contact Information: Refer to your product packaging or the Bomann website for regional customer service contact details.
