INTERGREAT Folding Bed with Mattress (Twin 75"x38") Instruction Manual

1. Introduction

Thank you for choosing the INTERGREAT Folding Bed with Mattress. This manual provides essential information for the safe assembly, operation, and maintenance of your new folding bed. Please read these instructions carefully before use and retain them for future reference.

Image: The INTERGREAT Folding Bed with Mattress, illustrating its compact folded state and its fully extended, ready-to-use configuration.

2. Safety Information

To ensure safe operation and prevent injury or damage, please adhere to the following safety guidelines:

• Weight Capacity: This product has a maximum weight capacity of 450 pounds. Do not exceed this limit.
• Assembly: Ensure all components are correctly assembled and tightened according to the instructions before use.
• Stability: Always lock the casters when the bed is in use to prevent unintended movement.
• Folding/Unfolding: Exercise caution when folding or unfolding the bed to avoid pinching fingers or other body parts. Ensure sufficient clear space around the bed during these operations.
• Children: Keep children away from the bed during assembly and folding/unfolding processes.
• Placement: Place the bed on a flat, stable surface.

3. Package Contents

Verify that all components are present before beginning assembly:

• Folding Bed Frame (pre-assembled sections)
• 5-inch Memory Foam Mattress
• Storage Cover Bag
• Assembly Hardware (screws, wrench, etc.)
• Instruction Manual

4. Assembly Instructions

Assembly is estimated to take 5-15 minutes. It is recommended to have two people for certain steps to ensure ease and safety.

Step 1: Unpack and Prepare

Carefully remove all components from the packaging. Lay out the parts on a clean, flat surface to identify them.

Step 2: Connect Frame Sections

The bed frame comes in pre-assembled sections. Align the connecting points of the frame sections. Insert part A into the designated holes. If resistance is met, slightly loosen the bolt as shown in the diagram to facilitate insertion, then tighten securely.

Image: Detailed diagram illustrating the connection of frame sections, specifically how to insert part A and adjust the bolt if needed.

Step 3: Secure All Connections

Ensure all screws and bolts are fully tightened to secure the frame. The frame is designed with a metal steel slat and wire rhombus grid base for stability.

Image: An illustration of the bed frame, highlighting its dimensions when open (75"L x 38"W x 17"H) and its robust construction, indicating a load capacity of 450 lbs.

Step 4: Place the Mattress

Unroll the 5-inch memory foam mattress onto the assembled bed frame. The mattress is designed with a combination of support foam and soft memory foam for comfort.

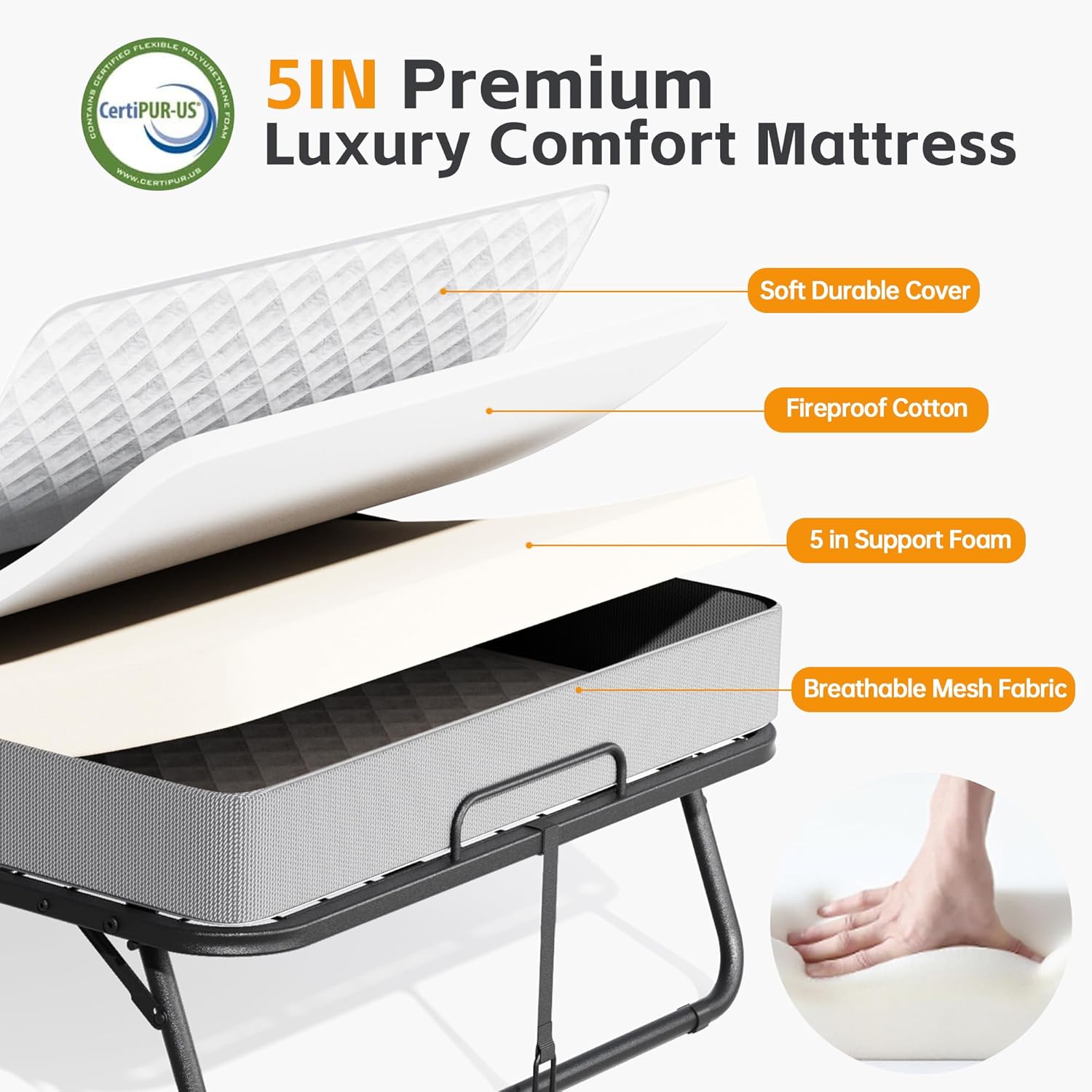

Image: A cutaway view of the 5-inch premium mattress, showing its layers: soft durable cover, fireproof cotton, 5-inch support foam, and breathable mesh fabric.

5. Operating Instructions

Unfolding the Bed

1. Position the folded bed in the desired location.
2. Unlock the casters if they are engaged.
3. Carefully unfold the bed frame until it is fully extended and flat. Ensure the support legs are securely locked into place.
4. Place the mattress onto the frame.
5. Lock the casters to prevent the bed from moving during use.

Folding the Bed for Storage

1. Remove any bedding from the mattress.
2. Unlock the casters.
3. Carefully lift one end of the bed frame and fold it inward. The bed is designed to fold into a slim 14-inch thick shape.
4. Secure the folded bed with the integrated metal hook closing strap to prevent it from unfolding.
5. Engage the caster locks for stable storage.

Image: A visual guide demonstrating the quick expansion and folding process of the bed, along with the application of the dust cover bag for storage.

Moving the Bed

The bed is equipped with 4 lockable casters that swivel 360 degrees for easy transport.

• Ensure the bed is in its folded position and secured.
• Unlock the casters.
• Gently push the bed to its new location.
• Once in place, lock the casters to prevent accidental movement.

Image: An illustration showing a person effortlessly pushing the folded bed, highlighting the 360-degree swivel and lockable design of the universal casters for easy transportation and stability.

6. Maintenance and Care

Mattress Care

The mattress cover is zippered, breathable, and removable. It is recommended to dry clean the mattress cover only. Do not machine wash or tumble dry.

Frame Care

Wipe the metal frame with a damp cloth as needed. Avoid using harsh chemicals or abrasive cleaners. Regularly check all bolts and screws to ensure they remain tight.

Storage

When not in use, store the folded bed in the provided storage cover bag to protect it from dust and bugs. This helps maintain the bed's condition over time.

7. Troubleshooting

• Difficulty Folding/Unfolding: Ensure no obstructions are present. Check that the mattress is properly aligned on the frame. If the frame feels stiff, gently apply pressure.
• Bed Feels Unstable: Verify that all frame connections are securely tightened. Ensure the casters are locked when the bed is in use.
• Casters Not Rolling Smoothly: Check for any debris or hair caught in the caster wheels. Clean as necessary.
• Mattress Shifting: The bed frame is designed with features to help keep the mattress in place. Ensure the mattress is centered on the frame.

If you encounter issues not covered here, please contact INTERGREAT customer support for assistance.

8. Specifications

9. Warranty and Support

This INTERGREAT Folding Bed comes with a Limited Warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included with your purchase or contact INTERGREAT customer support.

For any questions, concerns, or assistance with your product, please contact INTERGREAT customer service through the retailer's platform or the official INTERGREAT website.
