1. Introduction
This manual provides essential information for the safe installation, operation, and maintenance of your GeRRiT 7W High CRI LED Recessed Light. Please read these instructions carefully before installation and retain them for future reference. This product is designed for indoor use in residential and commercial settings.
2. Safety Information
- Electrical Safety: Installation must be performed by a qualified electrician in accordance with all local and national electrical codes. Ensure power is disconnected at the circuit breaker before installation, maintenance, or removal.
- Product Integrity: Do not modify or disassemble the light fixture. Doing so may void the warranty and create electrical hazards.
- Operating Environment: This fixture is rated IP44, suitable for damp locations but not for direct water exposure. Ensure the operating temperature is within specified limits.
- Handling: Handle the fixture with care to avoid damage to the LED components or housing.
3. Product Overview
The GeRRiT 7W High CRI LED Recessed Light is an adjustable downlight designed for efficient and high-quality illumination. It features a pure white flameproof PBT plastic housing and an aluminum heat sink for optimal performance and durability.
Figure 1: Front view of the GeRRiT 7W High CRI LED Recessed Light, showing the white housing and spring clips for installation.
Figure 2: Illustration of the adjustable light angle feature, allowing directional illumination.
Figure 3: Side view of the recessed light, highlighting the aluminum heat sink for thermal management and the integrated wiring.
4. Specifications
| Feature | Specification |
|---|---|
| Model | GeRRiT-3651 |
| Rated Power | 7W |
| Voltage | 110-240V |
| Material | Aluminum housing, PBT plastic trim |
| Lamp Body Color | White |
| Light Source | Integrated LED |
| Color Temperature | 4000K (Natural Light) |
| Color Rendering Index (CRI) | 80+ |
| Dimmable | No |
| Fixture Diameter | 85mm |
| Fixture Height | 70mm |
| Cut Hole Diameter | 75mm |
| Irradiation Area | 5㎡-10㎡ |
| Installation Type | Recessed Mounted |
| Area Lighting Classification | IP44 |
| Certifications | 3C, CE, FCC |
| Item Weight | 650 Grams (approx. 1.43 lbs) |
Figure 4: Dimensional diagram showing the 7W power, 85mm fixture diameter, 70mm height, and 75mm cut hole diameter.
Figure 5: Visual representation of different light color temperatures. This specific model provides Natural Light (4000K).
5. Setup and Installation
Follow these steps for proper installation. It is recommended that installation be performed by a professional electrician.

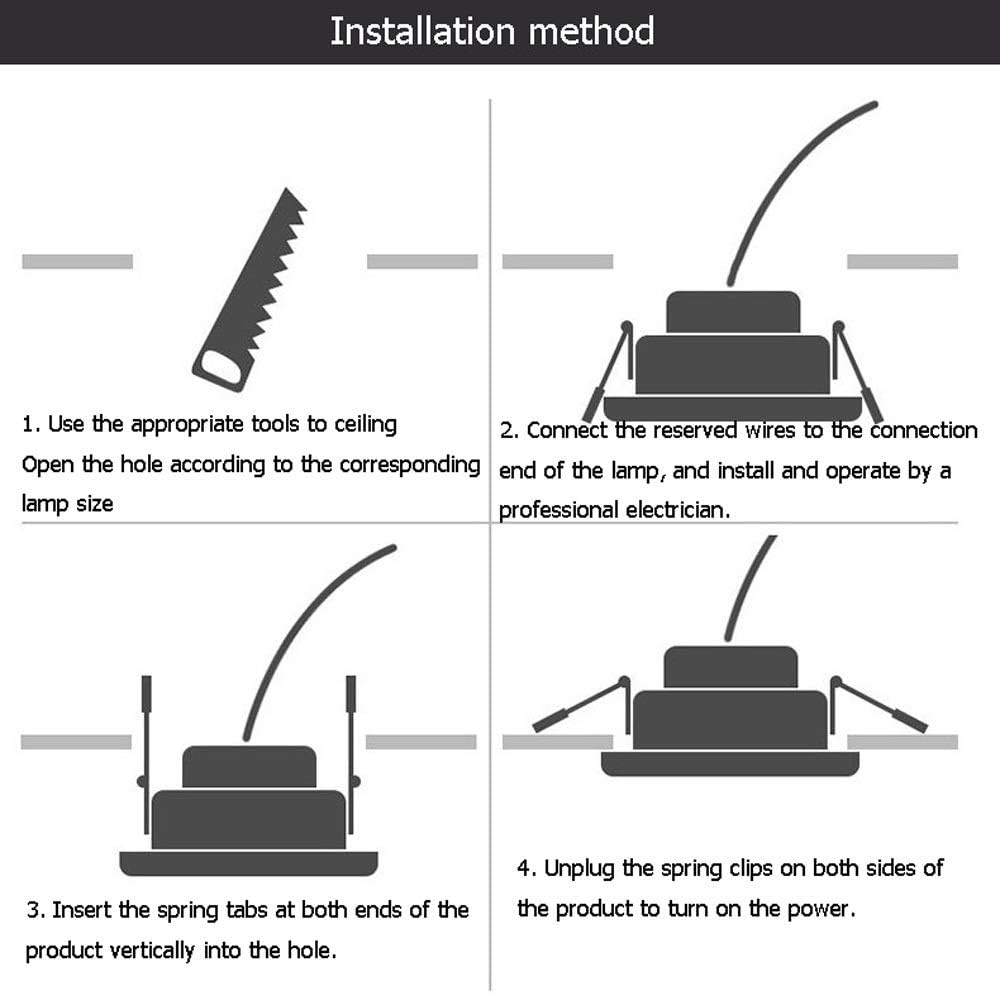

Figure 6: Step-by-step diagram illustrating the installation process for the recessed light.
- Prepare the Ceiling: Use appropriate tools to create a circular cut hole in the ceiling. The recommended cut hole diameter is 75mm.
- Electrical Connection: Connect the reserved electrical wires from the ceiling to the connection end of the lamp. Ensure all connections are secure and comply with electrical safety standards. This step should be performed by a professional electrician.
- Insert Fixture: Fold the spring tabs on both sides of the product upwards. Insert the product vertically into the prepared ceiling hole.
- Secure and Power On: Once the fixture is in the hole, the spring clips will expand to hold it securely against the ceiling. Ensure the fixture is firmly seated. Restore power to the circuit.
6. Operation
This GeRRiT LED Recessed Light operates with a simple on/off switch connected to your electrical circuit. It provides a consistent Natural Light (4000K) output and is not dimmable. Once installed and powered, the light will illuminate when the connected switch is turned on.

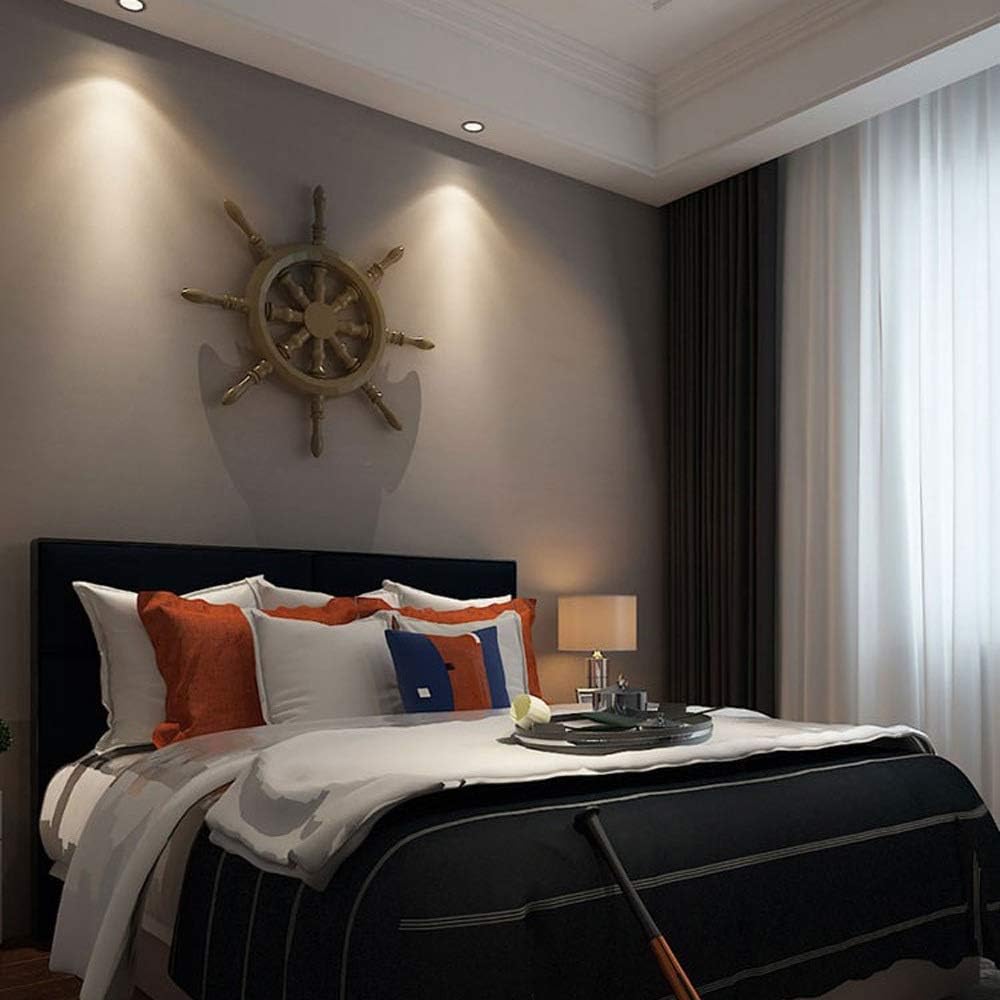

Figure 7: Example of the recessed lights installed in a bedroom, providing ambient illumination.
7. Maintenance
- Cleaning: Disconnect power before cleaning. Use a soft, dry cloth to wipe the fixture. Do not use abrasive cleaners, solvents, or liquids that could damage the finish or electrical components.
- Inspection: Periodically inspect the fixture for any signs of damage or loose connections. If any issues are found, disconnect power and consult a qualified electrician.
- LED Lifespan: The integrated LED light source is designed for long-term use and does not require replacement.
8. Troubleshooting
- Light Does Not Turn On:
- Check the circuit breaker to ensure power is supplied to the fixture.
- Verify that the wall switch is in the 'ON' position.
- Ensure all electrical connections are secure. If unsure, consult a qualified electrician.
- Flickering Light:
- This fixture is designed for no flicker operation. If flickering occurs, check for loose wiring connections or power supply issues.
- Ensure the fixture is not connected to a dimmer switch, as it is not dimmable.
- Unusual Noise or Smell:
- Immediately disconnect power at the circuit breaker. Do not attempt to operate the light. Contact customer service or a qualified electrician.
9. Customer Support
If you have any questions, require assistance, or encounter issues not covered in this manual, please feel free to contact GeRRiT customer service. We are committed to providing a satisfactory solution within 24 hours.
Contact Information: Please refer to your purchase documentation or the GeRRiT official website for current customer service contact details.
