ALLIANCE LAUNDRY SYSTEMS Doorlock Module SPPRI610060077P Instruction Manual

Introduction

This instruction manual provides essential information for the proper installation, operation, and maintenance of the ALLIANCE LAUNDRY SYSTEMS Doorlock Module, model SPPRI610060077P. This component is a genuine OEM part designed for specific Alliance Laundry Systems washer/dryer units. Please read this manual thoroughly before attempting any installation or service.

Safety Information

WARNING: Risk of Electric Shock. Disconnect power before servicing.

• Always disconnect the appliance from the main power supply before attempting any installation, repair, or maintenance. Failure to do so can result in serious injury or death.
• Installation and service should only be performed by a qualified technician.
• Wear appropriate personal protective equipment (PPE), such as insulated gloves and safety glasses.
• Ensure all wiring connections are secure and correctly matched to prevent electrical hazards.
• Do not operate the appliance if the doorlock module is damaged or improperly installed.

Product Overview

The ALLIANCE LAUNDRY SYSTEMS Doorlock Module SPPRI610060077P is a critical safety and operational component for compatible Alliance Laundry Systems washer/dryer units. It ensures the appliance door remains securely locked during operation, preventing accidental opening and potential water leaks or injury. This module is designed to replace original part numbers SPPRI610060077, Y23002897, and SPPRI610006077.

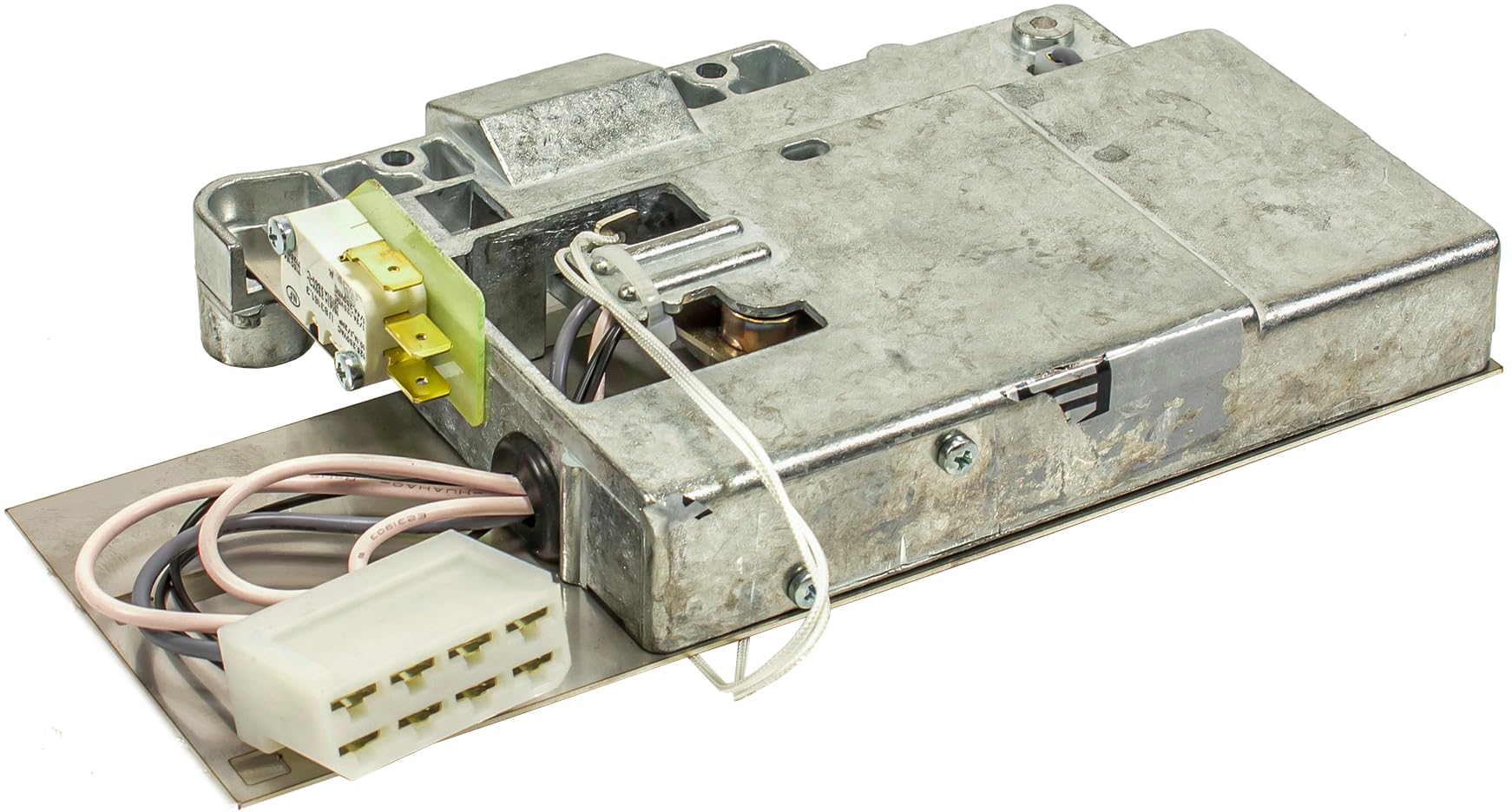

Image: The ALLIANCE LAUNDRY SYSTEMS Doorlock Module SPPRI610060077P, featuring its metallic housing, integrated wiring harness with a multi-pin connector, and a microswitch component. This view highlights the robust construction and electrical connections of the doorlock mechanism.

Installation Instructions

This doorlock module is an electrical component. Professional installation is highly recommended to ensure correct function and safety.

1. Preparation: Ensure the appliance is completely disconnected from the power supply. Turn off the circuit breaker for the laundry area.
2. Access: Depending on your specific washer/dryer model, you may need to remove the top panel, front panel, or other access covers to reach the existing doorlock module. Refer to your appliance's service manual for exact access procedures.
3. Disconnect Old Module: Carefully disconnect the wiring harness from the old doorlock module. Note the orientation and connection points if necessary, though the connector is typically keyed. Remove any mounting screws or clips securing the old module.
4. Install New Module: Position the new ALLIANCE LAUNDRY SYSTEMS Doorlock Module SPPRI610060077P in the same location as the old one. Secure it with the appropriate mounting screws or clips.
5. Connect Wiring: Reconnect the wiring harness to the new doorlock module. Ensure the connection is firm and fully seated.
6. Reassemble: Replace any panels or covers that were removed. Ensure all screws are tightened and panels are securely in place.
7. Test: Restore power to the appliance. Perform a test cycle to verify the doorlock engages and disengages correctly, and that the appliance operates as expected.

Operating Principles

The doorlock module functions automatically as part of the appliance's control system. When a wash or dry cycle is initiated, the control board sends a signal to the doorlock module to engage, securing the door. This prevents the door from being opened during high-speed cycles or when water is present. Once the cycle is complete and it is safe to open the door, the control board signals the doorlock module to disengage, allowing access to the appliance interior.

Maintenance

The ALLIANCE LAUNDRY SYSTEMS Doorlock Module SPPRI610060077P is designed for durability and typically requires no routine maintenance. However, to ensure its longevity and proper function:

• Keep the area around the door and doorlock mechanism clean and free of lint, debris, or detergent residue.
• Avoid forcing the appliance door open if it is locked. This can damage the doorlock mechanism.
• If you notice any unusual noises or difficulty with the door locking or unlocking, consult a qualified technician.

Troubleshooting

If your appliance is experiencing issues related to the doorlock, consider the following common scenarios:

• Door Not Locking:
  • Ensure the door is fully closed and latched.
  • Check for any obstructions preventing the door from closing properly.
  • Verify the appliance has power.
  • If the issue persists, the doorlock module or the main control board may be faulty.
• Door Not Unlocking:
  • Ensure the cycle is completely finished and the appliance has cooled down (if applicable).
  • Some appliances have a delay before unlocking. Wait a few minutes.
  • If the door remains locked, disconnect power to the appliance for 5-10 minutes, then restore power and try again. This may reset the control board.
  • If the problem continues, the doorlock module or control board may require replacement.
• Error Codes:

  Refer to your specific appliance's user manual for a list of error codes related to the doorlock mechanism. These codes can help diagnose the exact problem.

For complex issues or if you are unsure about troubleshooting steps, contact a certified appliance technician.

Specifications

Warranty and Support

For warranty information or technical support regarding your ALLIANCE LAUNDRY SYSTEMS Doorlock Module SPPRI610060077P, please refer to the documentation provided with your specific Alliance Laundry Systems appliance or contact Alliance Laundry Systems customer service directly. Keep your purchase receipt and model number handy when contacting support.

You can typically find contact information on the manufacturer's official website or within your appliance's user manual.
