1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of your ALLIANCE LAUNDRY SYSTEMS 10Kw-220V Element Heater Package, model M410941P. This heating element is a genuine OEM replacement part designed for various commercial and industrial dryers, ensuring optimal performance and compatibility. Please read this manual thoroughly before proceeding with any installation or service.
2. Safety Information
WARNING: Electrical shock hazard. Disconnect power before servicing. Only qualified personnel should perform installation and maintenance. Failure to follow these instructions could result in serious injury or death.
- Always disconnect the dryer from its power source before attempting any installation, repair, or maintenance.
- Wear appropriate personal protective equipment (PPE), including safety glasses and insulated gloves.
- Ensure all wiring connections are secure and comply with local electrical codes.
- Do not operate the dryer if the heating element or any electrical components are damaged.
- This heating element operates at 220V and 10Kw. Verify your dryer's electrical specifications match these requirements.
3. Product Overview
The ALLIANCE LAUNDRY SYSTEMS Element Heater-10Kw-220V Pkg (M410941P) is a critical component for commercial and industrial dryers, responsible for generating the heat required for the drying process. This package includes the heating element and any necessary associated components for replacement.
Compatibility: This genuine OEM part is compatible with various dryer models from brands such as Speed Queen, Cissell, Huebsch, IPSO, Unimac, Econo-Wash, and Primus. It replaces part numbers M410941 and TU20452.

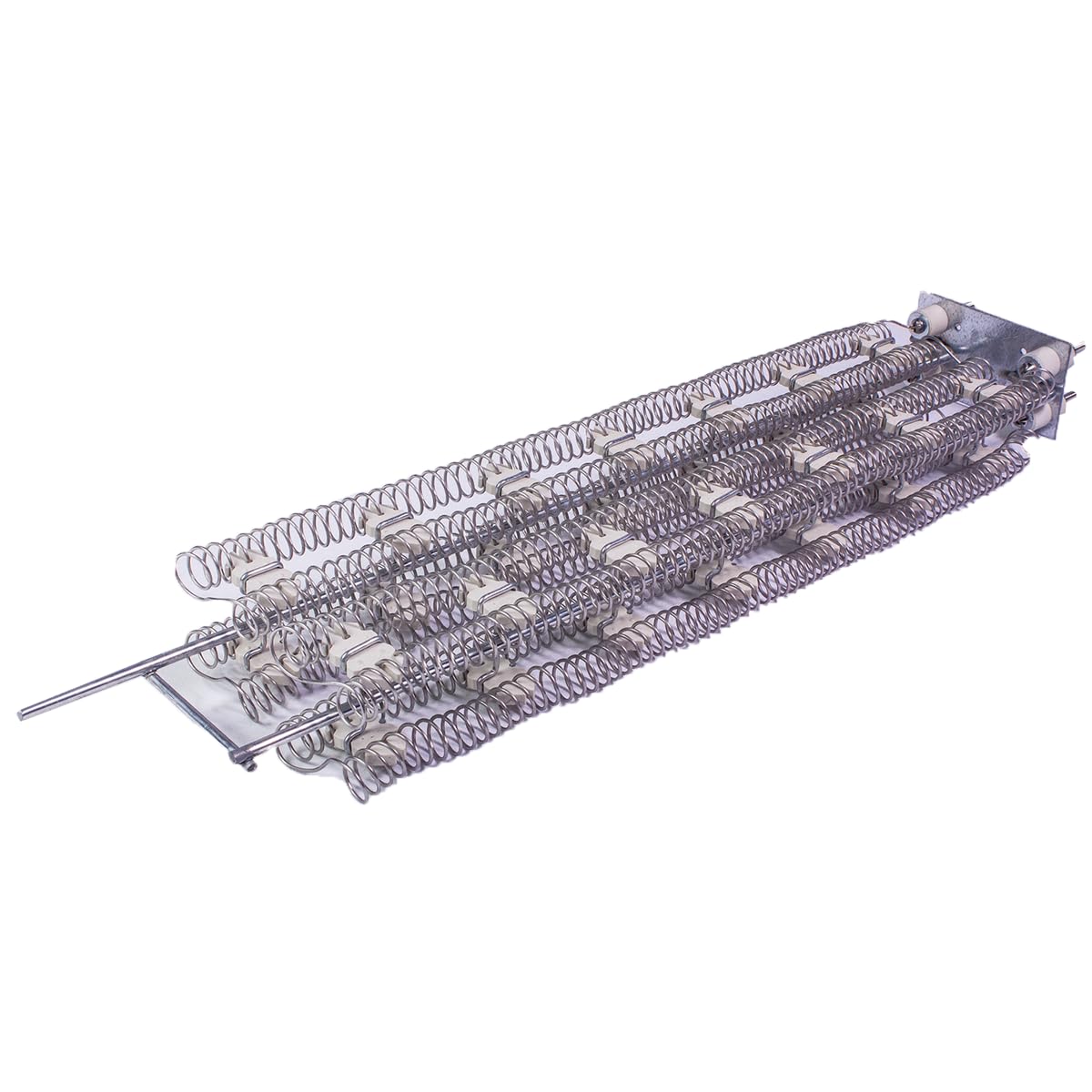

Figure 3.1: Example of a 10Kw-220V heating element. This image illustrates the typical appearance of the ALLIANCE LAUNDRY SYSTEMS Element Heater-10Kw-220V Pkg (M410941P), showing its coiled heating wires and terminal connections.
4. Installation/Setup
Installation of a heating element requires technical expertise and should only be performed by a qualified technician. Incorrect installation can lead to electrical hazards, damage to the appliance, or fire.
- Disconnect Power: Ensure the dryer is completely disconnected from the main power supply.
- Access Heating Element: Refer to your specific dryer model's service manual for instructions on how to access the heating element compartment. This typically involves removing rear or front panels.
- Remove Old Element: Carefully disconnect the electrical wires from the old heating element. Note the position of each wire for correct re-connection. Remove any mounting screws or clips securing the old element.
- Install New Element: Position the new ALLIANCE LAUNDRY SYSTEMS heating element (M410941P) into the compartment. Secure it with the appropriate mounting hardware.
- Connect Wiring: Reconnect the electrical wires to the new heating element terminals, ensuring all connections are tight and correct according to the original configuration.
- Reassemble Dryer: Replace all panels and covers that were removed.
- Test Functionality: Restore power to the dryer. Run a short cycle to verify that the heating element is functioning correctly and producing heat. Monitor for any unusual smells or sounds.
5. Operation
Once properly installed, the heating element operates automatically as part of the dryer's normal cycle. When the dryer is set to a heat-requiring program, the control board sends power to the heating element, causing it to generate heat. A thermostat regulates the temperature, cycling the element on and off to maintain the desired heat level within the dryer drum.
No direct user interaction with the heating element itself is required during normal dryer operation.
6. Maintenance
The heating element itself is generally a sealed unit and does not require routine maintenance. However, regular maintenance of the dryer can prolong the life of the heating element and ensure efficient operation:
- Clean Lint Filter: Always clean the lint filter before or after every load to ensure proper airflow and prevent overheating.
- Inspect Venting: Periodically check the dryer's exhaust vent for blockages or restrictions. A clogged vent can cause the heating element to work harder and potentially fail prematurely.
- Professional Inspection: Consider having a qualified technician inspect your dryer annually, especially for commercial applications, to check for wear on components, including the heating element and associated wiring.
7. Troubleshooting
If your dryer is experiencing issues related to heating after the element replacement, consider the following:
| Problem | Possible Cause | Solution |
|---|---|---|
| Dryer runs but produces no heat. |
|
|
| Dryer produces insufficient heat. |
|
|
| Dryer overheats. |
|
|
For complex issues or if you are unsure about any repair, it is highly recommended to contact a certified appliance technician.
8. Specifications
| Attribute | Detail |
|---|---|
| Model Number | M410941P |
| Power Rating | 10 Kilowatts (Kw) |
| Voltage | 220 Volts (V) |
| Manufacturer | Alliance Laundry Systems |
| Item Weight | 2.56 pounds |
| Package Dimensions | 8 x 8 x 6 inches |
| Replaces Part Numbers | M410941, TU20452 |
| Compatibility | Speed Queen, Cissell, Huebsch, IPSO, Unimac, Econo-Wash, Primus, Alliance Laundry Systems Dryers |
9. Warranty and Support
For warranty information and technical support regarding your ALLIANCE LAUNDRY SYSTEMS Element Heater-10Kw-220V Pkg (M410941P), please refer to the documentation provided with your original dryer appliance or contact ALLIANCE LAUNDRY SYSTEMS directly through their official website or customer service channels. As an OEM replacement part, its warranty typically aligns with the manufacturer's standard parts warranty.
For further assistance, you may also contact the seller, Appliance-Parts-Direct, via their Amazon storefront for product-specific inquiries or return policies.
