ALONEFIRE H64 Mini LED Flashlight USB Rechargeable User Manual

1. Introduction

Thank you for choosing the ALONEFIRE H64 Mini LED Flashlight. This compact and powerful flashlight is designed for various lighting needs, featuring multiple modes, USB-C recharging, and a durable aluminum alloy construction. Please read this manual carefully to ensure proper use and maintenance of your device.

2. Product Overview

Familiarize yourself with the components of your ALONEFIRE H64 flashlight.

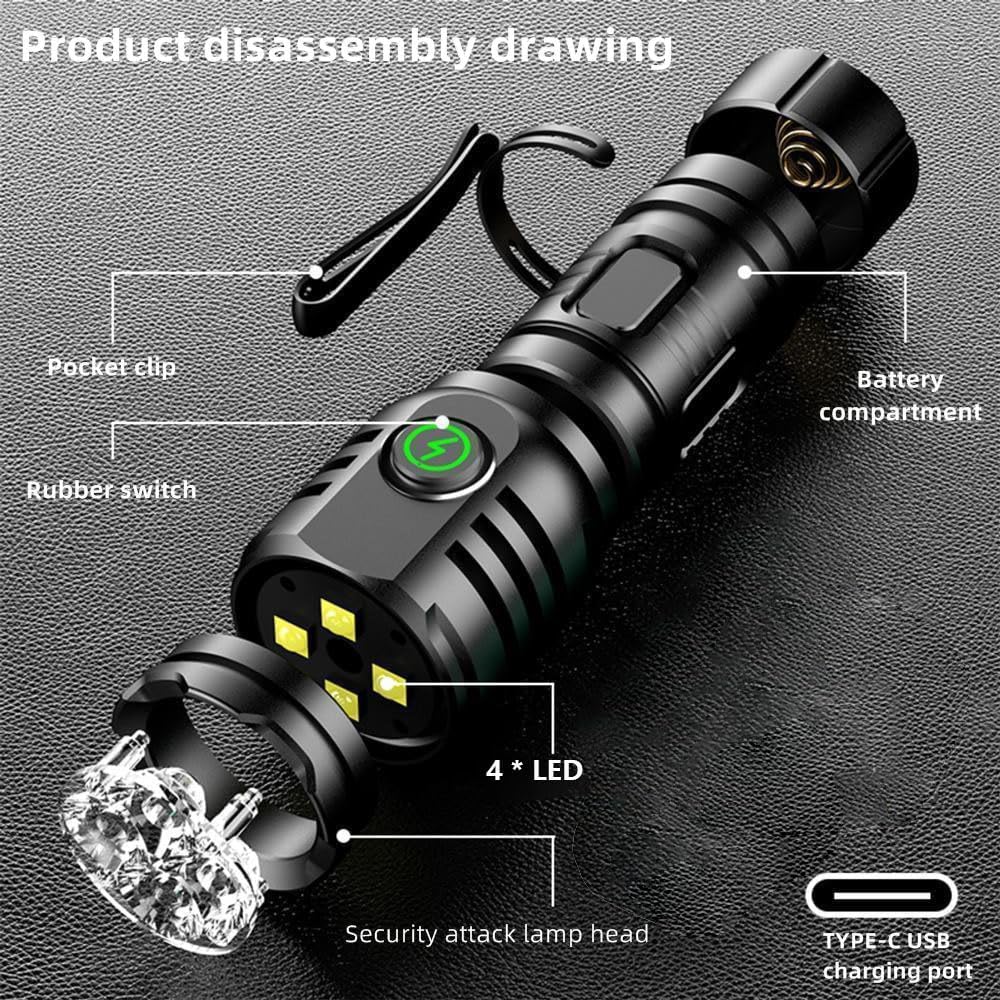

Figure 1: Product Disassembly Drawing. This image illustrates the key components of the ALONEFIRE H64 flashlight, including the pocket clip for attachment, the rubber switch for operation, the four LED light sources, the security attack lamp head, the Type-C USB charging port, and the internal battery compartment.

• Pocket Clip: For attaching the flashlight to clothing, hats, or gear.
• Rubber Switch: Main control button for power and mode selection.
• 4 * LED: The primary light sources providing illumination.
• Security Attack Lamp Head: Designed for emergency or self-defense use.
• Type-C USB Charging Port: For convenient and fast recharging.
• Battery Compartment: Houses the internal rechargeable battery.

3. Setup

3.1 Initial Charging

Before first use, fully charge the ALONEFIRE H64 flashlight. Use the provided USB Type-C cable to connect the flashlight to a compatible USB power source (e.g., computer, wall adapter).

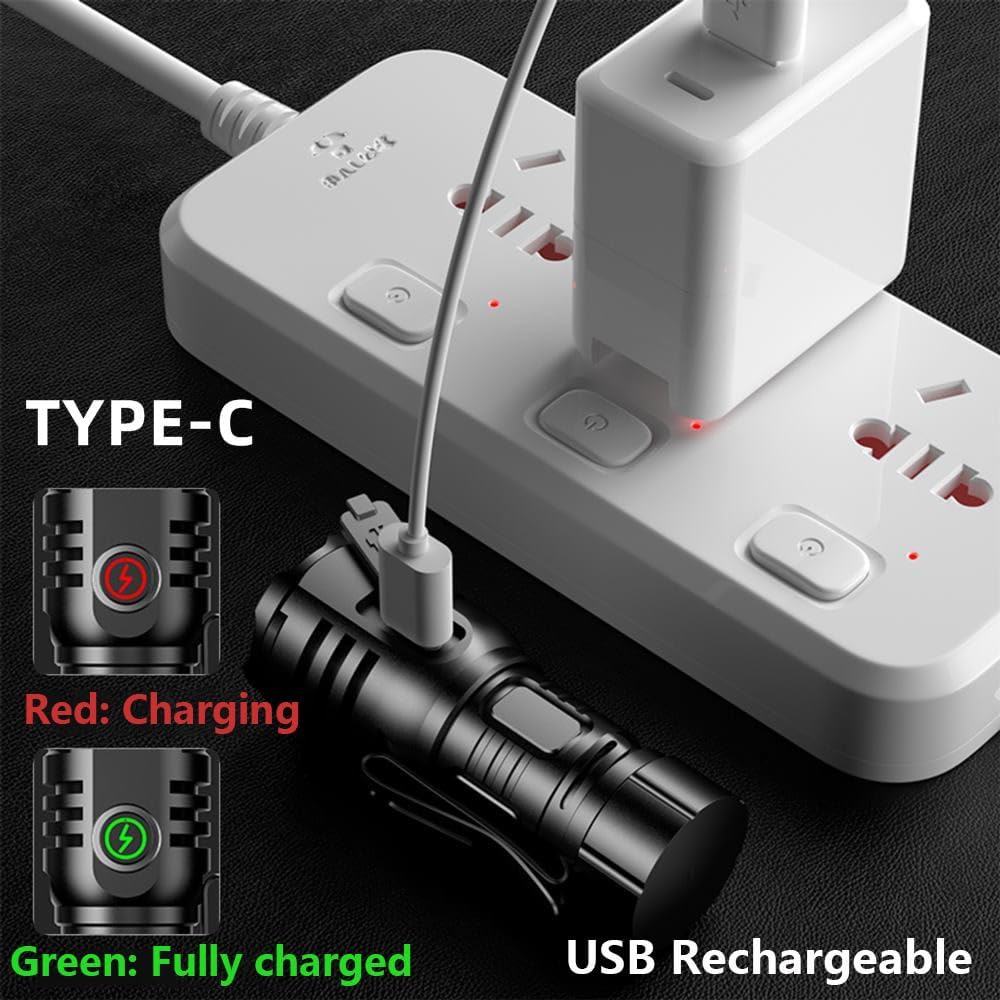

Figure 2: USB Type-C Charging. The image displays the flashlight being charged via its Type-C port. A red indicator light signifies that the device is currently charging, while a green light indicates a full charge.

• The indicator light on the flashlight will glow red during charging.
• The indicator light will turn green when the battery is fully charged.
• Charging typically takes 2.5 to 5 hours for a full charge.

4. Operating Instructions

4.1 Power On/Off and Mode Selection

The ALONEFIRE H64 features 8 distinct lighting modes for various situations.

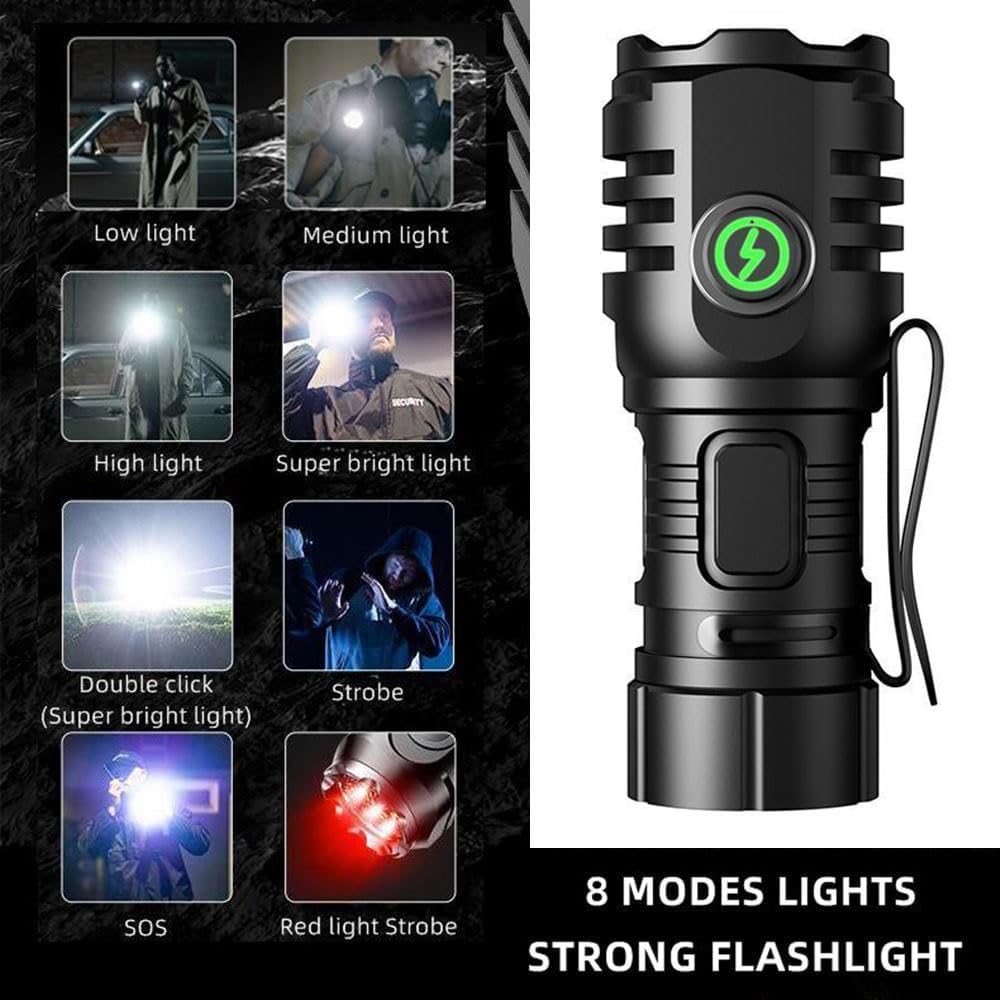

Figure 3: 8 Lighting Modes. This visual guide illustrates the different illumination levels and special modes available, including various brightness settings, a super bright mode activated by a double click, strobe, SOS, and a red light strobe.

1. To Turn On/Off: Press the rubber switch once to turn the flashlight on. Press again to turn it off.
2. To Change Modes: While the flashlight is on, press the rubber switch repeatedly to cycle through the following modes: Low light → Medium light → High light → Super bright light → Strobe → SOS → Red light Strobe.
3. Double Click for Super Bright: From any mode, quickly double-click the rubber switch to activate the Super Bright light mode instantly.

4.2 Magnetic Tail Feature

The flashlight is equipped with a strong tail magnet, allowing it to be securely attached to metal surfaces for hands-free operation.

Figure 4: Strong Tail Magnet. This image demonstrates the powerful magnet located at the tail of the flashlight, which allows it to be adsorbed onto any iron surface, providing a secure hold and freeing your hands.

• Simply place the tail of the flashlight against any ferrous metal surface.
• The strong magnet ensures it stays in place, even with its small and lightweight body.

4.3 Pocket Clip

The integrated pocket clip provides convenient carrying options.

• Attach the flashlight to your pocket, belt, hat brim, or other gear for easy access.

5. Maintenance

5.1 Cleaning

• Wipe the flashlight body with a soft, damp cloth.
• Do not use abrasive cleaners or solvents.

5.2 Charging

• Recharge the flashlight when the light output becomes dim or the indicator light signals low battery.
• Always use the Type-C USB port for charging.

5.3 Water Resistance

The ALONEFIRE H64 has an IPX5 waterproof rating.

• It is resistant to splashing water and can be used in rainy weather.
• Do not immerse the flashlight in water.

6. Troubleshooting

• Flashlight does not turn on:
  - Ensure the battery is charged. Connect to a USB-C power source and check the charging indicator (red for charging, green for full).
  - Press the rubber switch firmly.
• Flashlight is dim or battery life is short:
  - The battery may be low. Recharge the flashlight fully.
  - Ensure the flashlight is not operating in an extremely cold environment, which can affect battery performance.
• Flashlight is not charging:
  - Ensure the USB-C cable is properly connected to both the flashlight and the power source.
  - Try a different USB-C cable or power adapter.
  - Important: This flashlight may not charge with all fast-charging USB adapters. If charging fails, try connecting it to a standard (slower) USB charger or a computer's USB port. The indicator light should turn red when charging correctly.
• Flashlight gets hot during use:
  - It is normal for the flashlight to generate some heat, especially in higher brightness modes. If it becomes excessively hot, turn it off and allow it to cool down.

7. Specifications

Figure 5: Compact Design. This image emphasizes the mini size and lightweight nature of the ALONEFIRE H64, showing it comfortably fitting in the palm of a hand and stating its weight as only 39g.

8. Warranty Information

ALONEFIRE products are manufactured to high-quality standards. Specific warranty details may vary by region and retailer. Please retain your proof of purchase for any warranty claims. For detailed warranty terms, refer to the documentation provided at the time of purchase or contact your retailer.

9. Support

For further assistance, technical support, or inquiries regarding your ALONEFIRE H64 Mini LED Flashlight, please contact the retailer where you purchased the product. You may also visit the official ALONEFIRE website for general information and support resources.
