1. Introduction
Thank you for choosing the SUPERLEX 10-in-1 Handheld Steam Cleaner. This versatile and powerful appliance is designed to provide effective, chemical-free cleaning for various surfaces in your home. Please read this manual thoroughly before first use to ensure safe operation and optimal performance.
Image: The SUPERLEX 10-in-1 Handheld Steam Cleaner shown with its main unit and three common attachments for kitchen/corner, glass, and fabric cleaning. A separate brush attachment is also visible. The main unit is white and blue with a red power indicator light and the SUPERLEX logo.
2. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury.
- Always ensure the safety cap is securely tightened before operation to prevent steam leakage.
- The steam trigger is equipped with a safety lock. Steam can only be used when the safety button is engaged.
- Do not open the water tank cap while the unit is hot or under pressure. Allow the unit to cool down completely before refilling.
- Keep the appliance out of reach of children and pets.
- Do not immerse the appliance in water or other liquids.
- Use only clean tap water. Distilled water is recommended to prevent mineral buildup.
- Do not direct steam at people, animals, or electrical appliances.
- Always unplug the steam cleaner when not in use and before cleaning or maintenance.
- The appliance heats up quickly (approximately 3 minutes) and produces high-temperature steam (110°C) and high pressure (3.5 bar). Handle with care.
- The water tank cap features a decompression switch to prevent damage from atmospheric pressure differences.

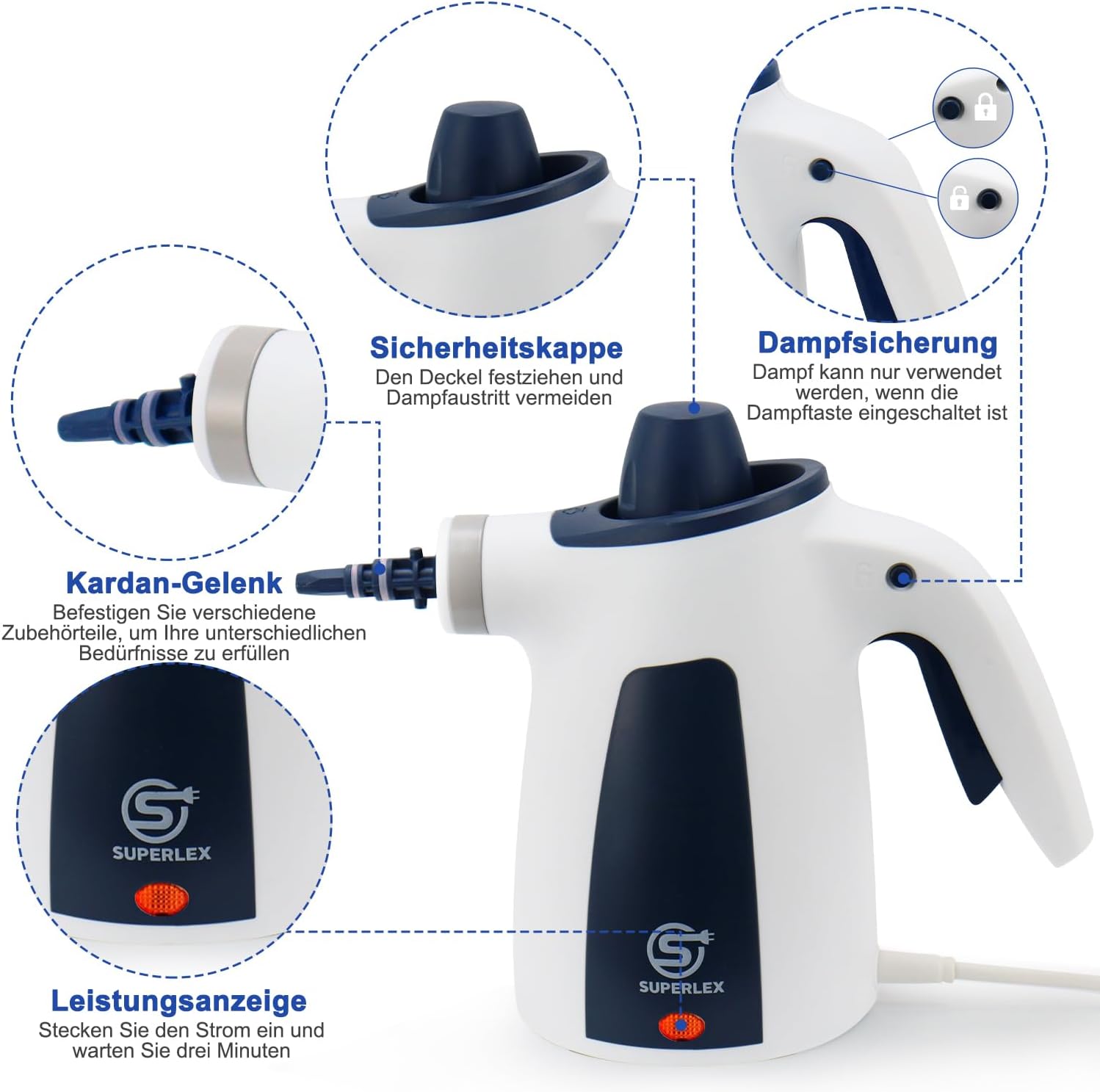

Image: A detailed diagram of the steam cleaner, pointing out key safety features: the safety cap (Sicherheitskappe) which must be tightened to prevent steam escape, the steam lock (Dampfsicherung) on the handle, the universal joint (Kardan-Gelenk) for attaching accessories, and the power indicator light (Leistungsanzeige).
3. Package Contents
Your SUPERLEX 10-in-1 Handheld Steam Cleaner package includes the following components:
- Main Steam Cleaner Unit
- Fabric Brush
- Ironing Brush
- Window Scraper
- Extension Hose
- Curved Nozzle Head
- Straight Nozzle Head
- Nylon Brushes (multiple)
- Measuring Cup
- Funnel

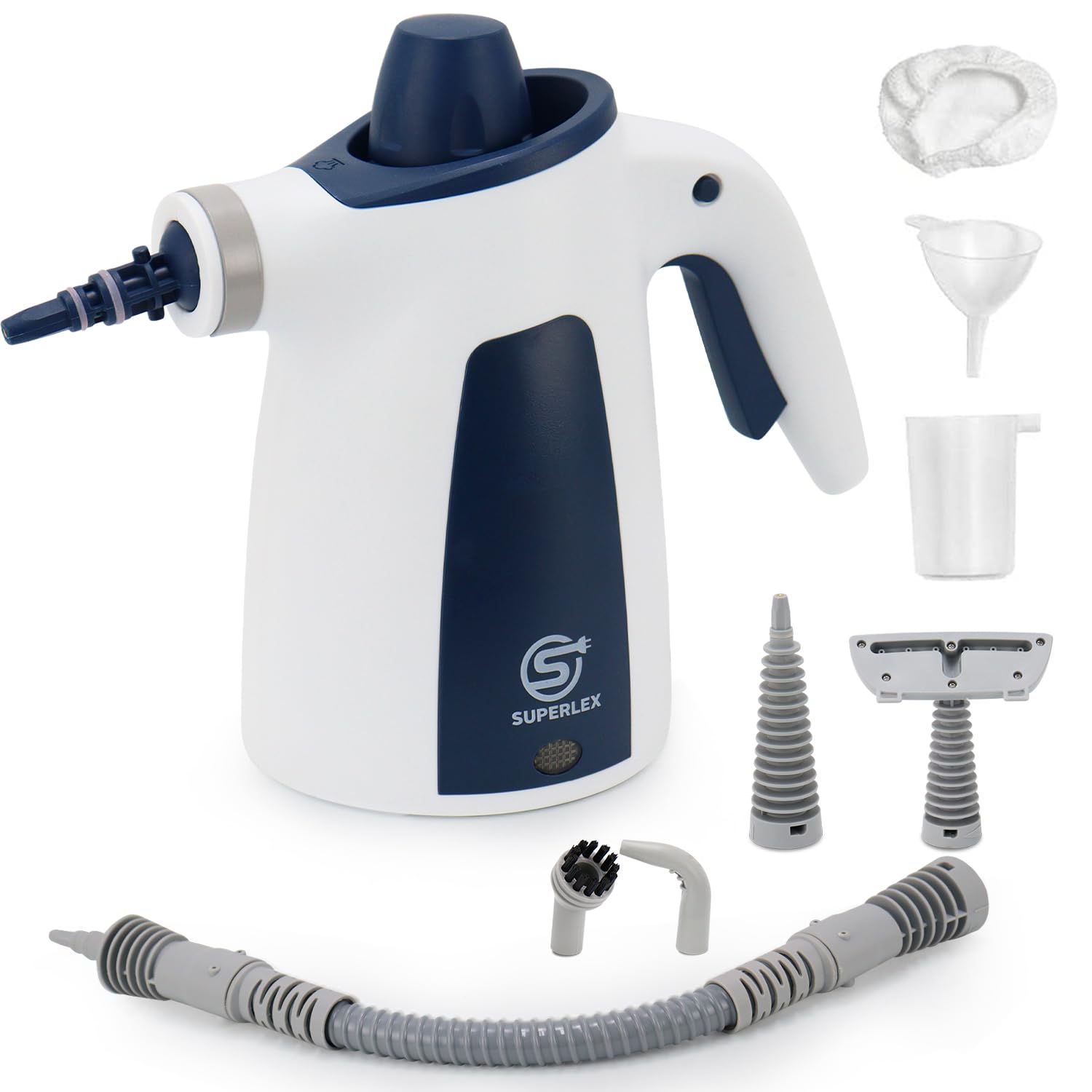

Image: The main steam cleaner unit is displayed alongside all its accessories, including various brushes, nozzles, an extension hose, a window squeegee, a measuring cup, and a funnel. Icons below indicate 1050W power, 350ml capacity, various accessories, easy operation, long cable, and safety lock design.
4. Setup
- Unpack: Carefully remove all components from the packaging.
- Fill Water Tank:
- Ensure the unit is unplugged and cool.
- Unscrew the safety cap counter-clockwise.
- Use the provided measuring cup and funnel to fill the water tank with up to 350ml of clean tap water. Do not overfill. Distilled water is recommended to prolong the life of the appliance and prevent mineral buildup.
- Securely replace the safety cap by screwing it clockwise until tight.
- Attach Accessory: Select the appropriate cleaning accessory for your task and firmly attach it to the nozzle of the main unit. Ensure it clicks into place or is securely fastened.
5. Operating Instructions
- Power On: Plug the steam cleaner into a suitable electrical outlet. The power indicator light will illuminate.
- Heating: Allow approximately 3 minutes for the unit to heat up. The indicator light may change or turn off when ready, depending on the model. The unit produces steam at 110°C and 3.5 bar pressure.
- Steam Release:
- Unlock the steam trigger safety lock on the handle.
- Press and hold the steam trigger to release steam. Release the trigger to stop steam flow.
- For continuous steam, some models may have a lock button for the trigger.
- Cleaning: Direct the steam and attached accessory towards the surface to be cleaned. Move the cleaner slowly over the area to allow the steam to penetrate and loosen dirt.
- Refilling (if needed): If the water runs out during use, unplug the unit and allow it to cool down for several minutes before attempting to unscrew the safety cap and refill the water tank.
- Power Off: When finished cleaning, release the steam trigger, unplug the unit from the power outlet, and allow it to cool down completely before storing.
Image: The SUPERLEX handheld steam cleaner is shown in action, with steam being directed onto a stovetop burner area to clean grease and grime. A brush attachment is used for this task.
Image: A person is using the SUPERLEX handheld steam cleaner with a window cleaning attachment to clean a window, demonstrating its versatility for different surfaces.
Image: The SUPERLEX handheld steam cleaner is being used to clean a kitchen sink, highlighting its effectiveness on various kitchen surfaces.
Image: The SUPERLEX handheld steam cleaner is shown cleaning a tiled floor with a floor attachment, demonstrating its use for larger surface areas.
Image: The SUPERLEX handheld steam cleaner is used with a fabric brush attachment to clean upholstery, illustrating its capability for delicate surfaces.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your steam cleaner.
- Empty Water Tank: After each use, ensure the unit is cool, then carefully unscrew the safety cap and empty any remaining water from the tank.
- Clean Accessories: Wash all removable accessories with warm, soapy water and rinse thoroughly. Allow them to air dry completely before storing.
- Wipe Down Unit: Wipe the exterior of the main unit with a damp cloth. Do not use abrasive cleaners or solvents.
- Descaling (Periodically): If you use tap water, mineral deposits may build up over time. To descale, fill the tank with a solution of equal parts water and white vinegar. Heat the unit and release steam until the tank is empty. Repeat with clean water to rinse. Perform this every few months or as needed based on water hardness.
- Storage: Store the steam cleaner and its accessories in a cool, dry place, away from direct sunlight and out of reach of children.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No steam or low steam output. |
|
|
| Water leaking from nozzle. |
|
|
| Power indicator light not on. |
|
|
8. Specifications
| Brand | SUPERLEX |
| Model Number | SSV002DE |
| Power | 1050 Watts (Note: Product description states 1050W, while specifications list 1000W. 1050W is used here as it is emphasized in the product description.) |
| Voltage | 220V |
| Water Tank Capacity | 350 Milliliters |
| Heating Time | Approximately 3 Minutes |
| Steam Temperature | 110°C (230°F) |
| Max Steam Pressure | 3.5 Bar |
| Cable Length | 5 Meters (extra long) |
| Product Dimensions (L x W x H) | 26 x 23 x 15 cm |
| Item Weight | 1.85 Kilograms |
| Special Features | Compact Design, 10-in-1 Kit, Lightweight, Edge Cleaning, Carry Handle, Automatic Shut-off |
Image: The SUPERLEX handheld steam cleaner with its dimensions indicated: 23cm height and 13cm length (excluding nozzle). Various accessories are also shown around the main unit.
9. Warranty and Support
Specific warranty information is not provided in the product details. For warranty claims, technical support, or replacement parts, please contact your retailer or the manufacturer directly. Refer to the contact information provided at the point of purchase or on the product packaging.
SUPERLEX is committed to providing quality household and kitchen appliances. For more information about SUPERLEX products, please visit their official channels.
