Yaheetech Patio Swivel Barstools Outdoor Chairs User Manual

Introduction

This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your Yaheetech Patio Swivel Barstools. Designed for outdoor use, these high bistro stools offer comfort and durability for various settings such as patios, beaches, lawns, poolsides, and gardens. Please read this manual thoroughly before assembly and use to ensure proper function and safety.

Image: Two Yaheetech patio swivel barstools with a small table, set up on an outdoor patio.

Safety Information

• Do not stand on the chair for safety reasons.
• Ensure all bolts and screws are securely tightened before use.
• Regularly inspect the chairs for any loose parts or damage.
• Keep children away from the assembly area and small parts.
• Maximum weight capacity per chair is 130 kg (286 lb). Do not exceed this limit.

Package Contents

Please verify that all components listed below are present before beginning assembly. If any parts are missing or damaged, please contact customer support.

• Chair Seat and Backrest Assembly (Textilene fabric)
• Chair Base/Legs (Metal frame with footrest)
• Swivel Plate Mechanism
• Armrests (Left and Right)
• Hardware Pack (Bolts, Washers, Nuts, Allen Wrench)
• Adjustable Foot Pads

Image: A set of six Yaheetech patio swivel barstools, showing the overall design and quantity.

Assembly Instructions

Before You Begin

• Clear a spacious area for assembly.
• Lay out all parts and hardware.
• Do not fully tighten bolts until all components are loosely assembled.
• An Allen wrench is provided for assembly.

Step-by-Step Assembly

1. Step 1: Attach Armrests to Seat.

   Secure the left and right armrests to the chair seat using the provided bolts and washers. Ensure they are aligned correctly. Do not fully tighten yet.

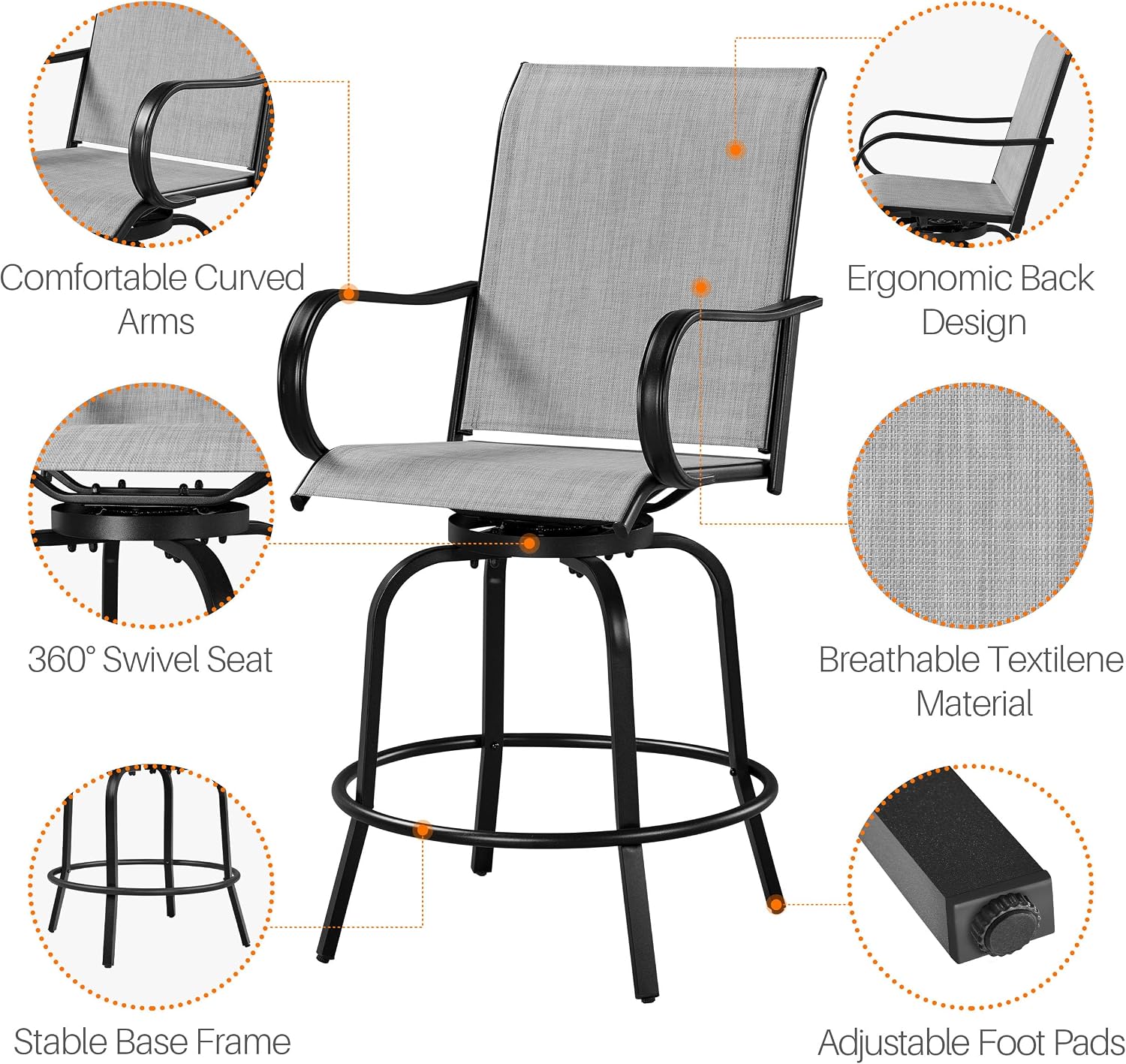

   Image: Illustrates the attachment points for armrests and the ergonomic design of the chair.

2. Step 2: Attach Backrest to Seat and Armrests.

   Connect the chair backrest to the assembled seat and armrests. Use the appropriate bolts and washers. Again, keep bolts slightly loose for final adjustments.

3. Step 3: Assemble Chair Base.

   Connect the four legs to the circular footrest using bolts and washers. Ensure the footrest is positioned correctly for stability.



   Image: Detail of the sturdy base frame and circular footrest for leg support.

4. Step 4: Attach Swivel Plate to Chair Base.

   Mount the swivel plate mechanism to the top of the assembled chair base using the designated bolts and nuts. Ensure the plate is centered and securely fastened.

5. Step 5: Connect Seat Assembly to Swivel Base.

   Carefully align the seat and backrest assembly with the swivel plate on the chair base. Attach them using the remaining bolts and washers. Once all parts are connected, gradually tighten all bolts evenly until secure.

6. Step 6: Install Adjustable Foot Pads.

   Screw the adjustable foot pads into the bottom of each leg. These can be adjusted to stabilize the chair on uneven surfaces.

Assembly Video Reference

Operating Instructions

360° Swivel Function

Your Yaheetech barstools are equipped with a smooth 360-degree swivel mechanism, allowing for easy rotation and flexible seating arrangements. Simply apply gentle pressure to rotate the seat in any direction.

Image: Visual representation of the chair's 360-degree smooth and quiet rotation.

Comfortable Footrest

The circular footrest provides a comfortable resting place for your feet, enhancing relaxation during extended periods of sitting. Its design allows for comfortable foot placement regardless of seating orientation.

Image: Shows how the circular footrest allows users to relax their legs comfortably.

Maintenance

Cleaning

The Textilene fabric and electrophoretic solid-plated iron frame are designed for easy maintenance. To clean, simply wipe with a damp cloth and mild soap. Avoid harsh chemicals or abrasive cleaners that could damage the finish or fabric. The quick-drying Textilene material ensures the chairs are ready for use shortly after cleaning or rain.

Image: Detailed view of the breathable, durable, and quick-drying Textilene material.

Seasonal Care

While designed for all-weather use, storing the chairs in a covered area during extreme weather conditions (heavy snow, prolonged rain, strong winds) can extend their lifespan. Ensure adjustable foot pads are checked periodically for wear and tear.

Troubleshooting

• Wobbling Chair: If the chair wobbles, check that all assembly bolts are tightened evenly. Adjust the foot pads on each leg to compensate for uneven surfaces.
• Stiff Swivel: If the swivel mechanism feels stiff, ensure all bolts connecting the seat to the swivel plate are not overtightened. A small amount of silicone-based lubricant can be applied to the swivel mechanism if needed, avoiding oil-based lubricants.
• Rust Spots: The frame is rust-resistant. If minor rust spots appear due to prolonged exposure or damage to the coating, clean the area and apply a rust-inhibiting paint suitable for outdoor metal furniture.

Specifications

Image: Detailed dimensions and maximum weight capacity of the Yaheetech Patio Swivel Barstool.

Warranty and Support

For warranty information, product support, or to report missing/damaged parts, please contact Yaheetech customer service directly. Refer to your purchase documentation for specific contact details or visit the official Yaheetech website.
