1. Introduction
This user manual provides essential information for the safe and efficient installation, operation, and maintenance of the Mean Well HEP-600-54 LED Driver. Please read this manual thoroughly before using the product and retain it for future reference. The HEP-600-54 is a high-performance 600W 54V 11.2A AC-DC power supply designed for various applications, including outdoor communication equipment and electronic billboards.
2. Safety Information
Warning: Improper installation or operation can lead to electric shock, fire, or damage to the device. Always follow these safety guidelines:
- Ensure the power supply is disconnected from the main power source before any installation, wiring, or maintenance.
- Only qualified personnel should perform installation and wiring.
- Verify that the input voltage matches the specifications of the LED driver.
- Do not exceed the rated output current for extended periods to prolong the service life of the power transformer.
- Ensure proper grounding to prevent electrical hazards.
- Install the device in a well-ventilated area to prevent overheating.
- Avoid exposing the device to moisture or extreme temperatures outside its operating range.
3. Product Overview
The Mean Well HEP-600-54 is a robust LED driver designed for demanding environments. Key features include:
- Fixed output voltage and current values.
- Power Factor Correction (PFC) functionality.
- IP68 rated for dust and water ingress protection.
- LED indication for power startup.
- Capable of operating at altitudes up to 5000 meters.
- High conversion rate of 96%.
- Withstands 10G vibration tests.
- Lightning surge capacity of 6KV.
- Operating temperature range: -55°C to +70°C.
- Multiple protection features: short circuit, overload, over-voltage, and over-temperature.
- Metal casing with natural air cooling.
Product Components and Views

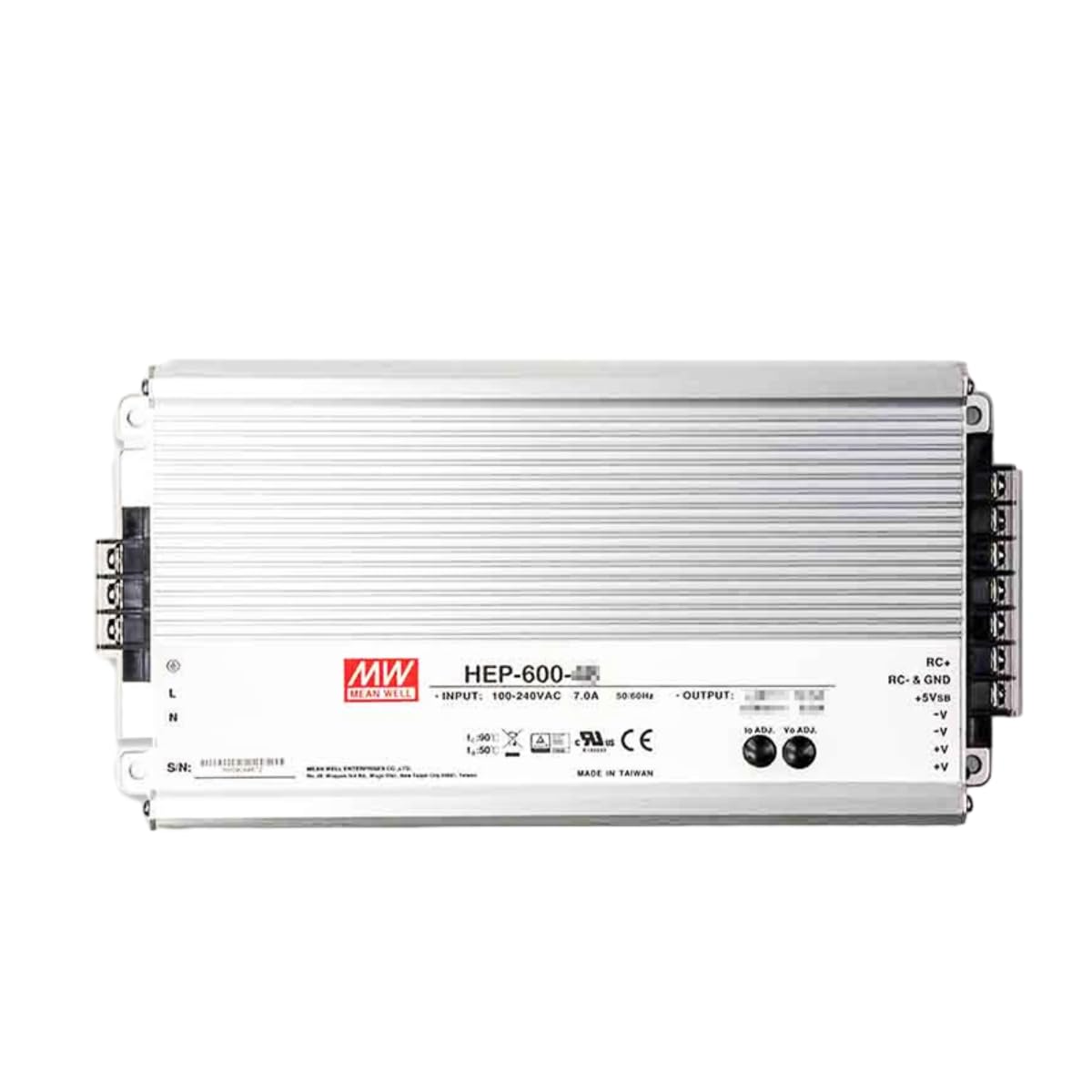

Figure 3.1: Top view of the HEP-600-54 LED Driver. This image displays the main body of the driver, highlighting the input (L, N, Ground) and output (+V, -V) terminal blocks, the model number (HEP-600), input voltage range (100-240VAC), output specifications, and various safety certifications. The serial number is also visible on the left side.
Figure 3.2: Angled view of the HEP-600-54 LED Driver. This perspective shows both the input and output terminal blocks clearly, along with the ribbed metal casing designed for natural air cooling. The overall compact form factor is evident.
Figure 3.3: End view of the HEP-600-54 LED Driver, focusing on the input terminal block. This view highlights the screw terminals for Line (L), Neutral (N), and Ground connections, ensuring secure wiring for the AC input.

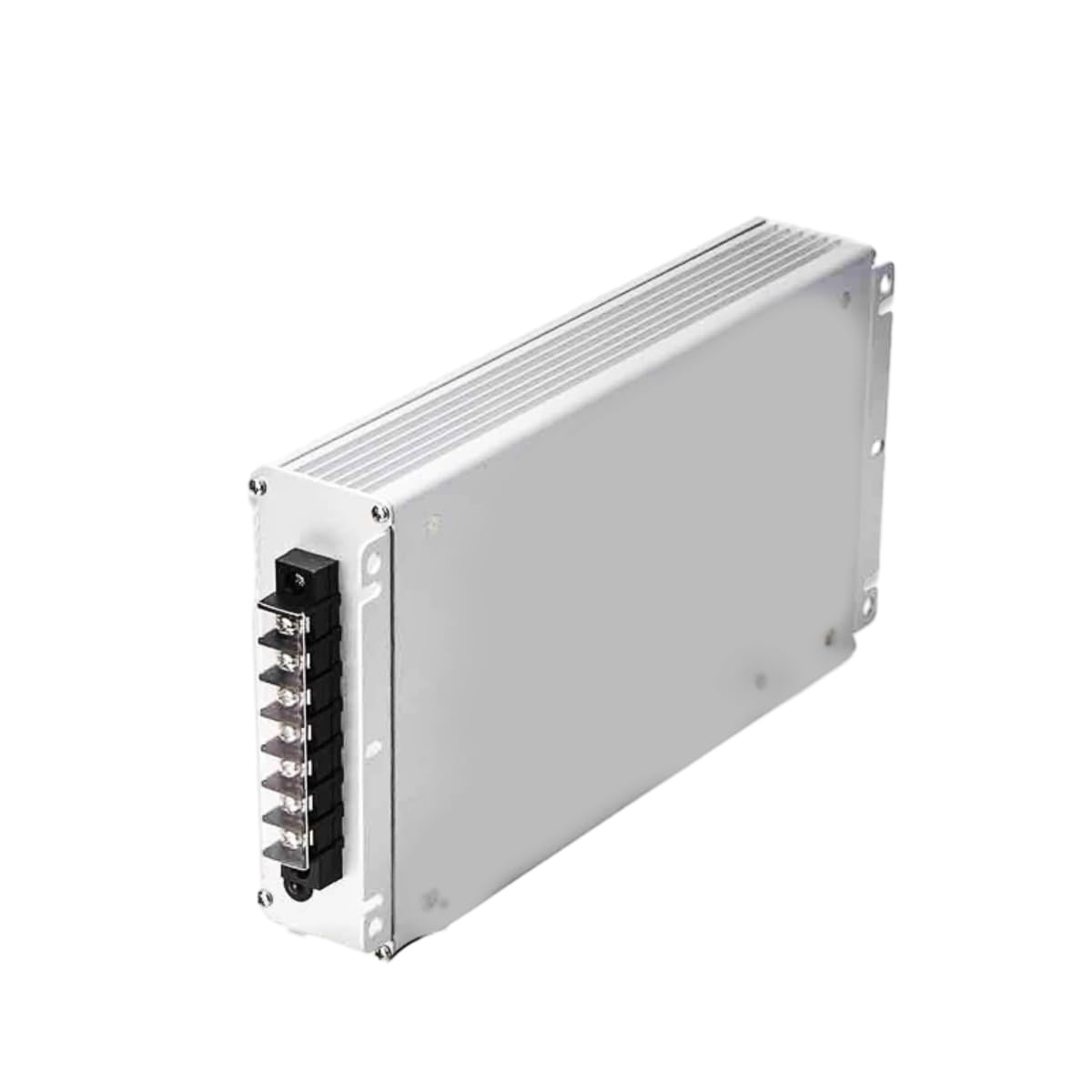

Figure 3.4: End view of the HEP-600-54 LED Driver, focusing on the output terminal block. This view displays the multiple screw terminals for the DC output (+V and -V), allowing for connection to LED loads.
4. Setup and Installation
Before proceeding with installation, ensure all safety precautions are understood and followed. The HEP-600-54 is designed for fixed installations and requires proper wiring.
4.1 Mounting
- Mount the LED driver on a stable, non-flammable surface.
- Ensure adequate clearance around the unit for natural air circulation. Do not obstruct the cooling fins.
- The unit can be mounted in various orientations, but ensure that heat dissipation is not compromised.
4.2 Wiring Connections
Refer to the product labels and diagrams for correct terminal identification. Use appropriate gauge wiring for both input and output connections to handle the specified current.
- Input Wiring (AC): Connect the AC input power to the terminals labeled 'L' (Line), 'N' (Neutral), and 'Ground'. Ensure the ground wire is securely connected to a proper earth ground.
- Output Wiring (DC): Connect the LED load to the output terminals labeled '+V' and '-V'. Observe correct polarity.
- Remote Control (RC+/RC-): If applicable, connect remote control wires to the designated terminals. Refer to specific application notes for detailed remote control functionality.
- Auxiliary Power (5VSB): If applicable, connect auxiliary devices to the 5VSB output.
- Voltage Adjustment (V.ADJ): If present, this potentiometer allows for fine-tuning of the output voltage. Adjust only when necessary and with caution.
After all connections are made, double-check all wiring for tightness and correct polarity before applying power.
5. Operating Instructions
Once the HEP-600-54 LED Driver is correctly installed and wired:
- Power On: Apply AC power to the input terminals. The LED indicator on the unit should illuminate, signifying power startup.
- Load Operation: The connected LED load should now receive power. Monitor the load for proper operation.
- Voltage Adjustment (if applicable): If fine-tuning of the output voltage is required, carefully adjust the V.ADJ potentiometer using an insulated tool while monitoring the output voltage with a multimeter.
- Power Off: To shut down the system, disconnect the AC input power.
The HEP-600-54 is designed for continuous operation within its specified parameters. Avoid operating the unit beyond its rated current for extended periods to ensure longevity.
6. Maintenance
The Mean Well HEP-600-54 LED Driver is designed for minimal maintenance. However, periodic checks can help ensure optimal performance and longevity.
- Cleaning: Ensure the metal casing and cooling fins are free from dust and debris. Use a soft, dry cloth or compressed air for cleaning. Do not use liquid cleaners.
- Connections: Periodically inspect all wiring connections for tightness and signs of corrosion. Re-tighten if necessary, ensuring power is disconnected first.
- Environment: Verify that the operating environment remains within the specified temperature and humidity ranges. Ensure proper ventilation is maintained.
- Damage Inspection: Check the unit for any physical damage, such as dents, cracks, or discolored areas. If damage is found, discontinue use and contact support.
7. Troubleshooting
This section addresses common issues you might encounter with the HEP-600-54 LED Driver.
| Problem | Possible Cause | Solution |
|---|---|---|
| No output voltage / LED indicator off | No AC input power; Incorrect wiring; Internal fault; Overload protection activated. | Check AC power source and connections. Verify input wiring (L, N, Ground). Disconnect load to check if overload protection is active. If problem persists, contact support. |
| Output voltage unstable or incorrect | Loose output connections; Faulty load; V.ADJ potentiometer misadjusted. | Check output wiring for secure connections. Test with a known good load. Carefully adjust V.ADJ if present and necessary. |
| Unit is excessively hot | Insufficient ventilation; Overload condition; High ambient temperature. | Ensure proper airflow around the unit. Reduce load if it exceeds specifications. Verify ambient temperature is within operating limits. |
| Flickering or inconsistent LED output | Loose connections; Incompatible LED load; Driver fault. | Check all wiring connections. Ensure the LED load is compatible with the driver's specifications. If issues persist, the driver may be faulty. |
For issues not covered here or if troubleshooting steps do not resolve the problem, please contact customer support.
8. Specifications
The following are the technical specifications for the Mean Well HEP-600-54 LED Driver:
| Feature | Detail |
|---|---|
| Model Number | HEP-600-54 |
| Brand | MEANWNVV (Mean Well) |
| Output Voltage | 54 Volts |
| Output Amperage | 11.2 Amps |
| Power Output | 600 Watts |
| Input Voltage | 100-240VAC (as per image) |
| Operating Temperature | -55°C to +70°C |
| Protection Features | Short circuit, Overload, Over-voltage, Over-temperature |
| Ingress Protection | IP68 |
| Vibration Resistance | 10G |
| Lightning Surge Capacity | 6KV |
| Product Dimensions | 0.04 x 0.04 x 0.04 inches (Note: This dimension seems incorrect for a 600W power supply, likely a placeholder. Using provided data.) |
| Form Factor | Rack (Note: This also seems inconsistent with images, which show a standalone unit. Using provided data.) |
Note: Some specifications like "Product Dimensions" and "Form Factor" from the source data appear to be generic or placeholder values. Please refer to the manufacturer's official datasheet for the most accurate and up-to-date information.
9. Warranty and Support
For warranty information, please refer to the specific terms and conditions provided by the manufacturer or your point of purchase. Keep your proof of purchase for warranty claims.
If you encounter any issues or have questions regarding the Mean Well HEP-600-54 LED Driver, please contact the vendor or manufacturer's customer support for assistance. Provide your model number (HEP-600-54) and a detailed description of the issue.
