TOMOLOO Electric Scooter F2 User Manual

1. Introduction

Thank you for choosing the TOMOLOO Electric Scooter F2. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your new electric scooter. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.

2. Safety Information

Your safety is paramount. Always wear a helmet and appropriate protective gear (knee pads, elbow pads) when riding. Adhere to local traffic laws and regulations. Do not ride under the influence of alcohol or drugs. Avoid riding in heavy rain or on slippery surfaces.

• Always perform a pre-ride check: ensure tires are properly inflated, brakes are functional, and all quick releases are secured.
• Maintain a safe distance from other vehicles and pedestrians.
• Do not exceed the maximum weight limit of 265 pounds.
• Avoid sudden braking or sharp turns at high speeds.
• The scooter is UL2272 Certified, indicating compliance with electrical safety standards.

3. Components Overview

Familiarize yourself with the main components of your TOMOLOO Electric Scooter F2:

• Handlebar: Features ergonomic grips, brake levers, and the digital display.
• Digital Display: Shows speed, battery level, and selected speed mode.
• Throttle: Thumb-operated for acceleration.

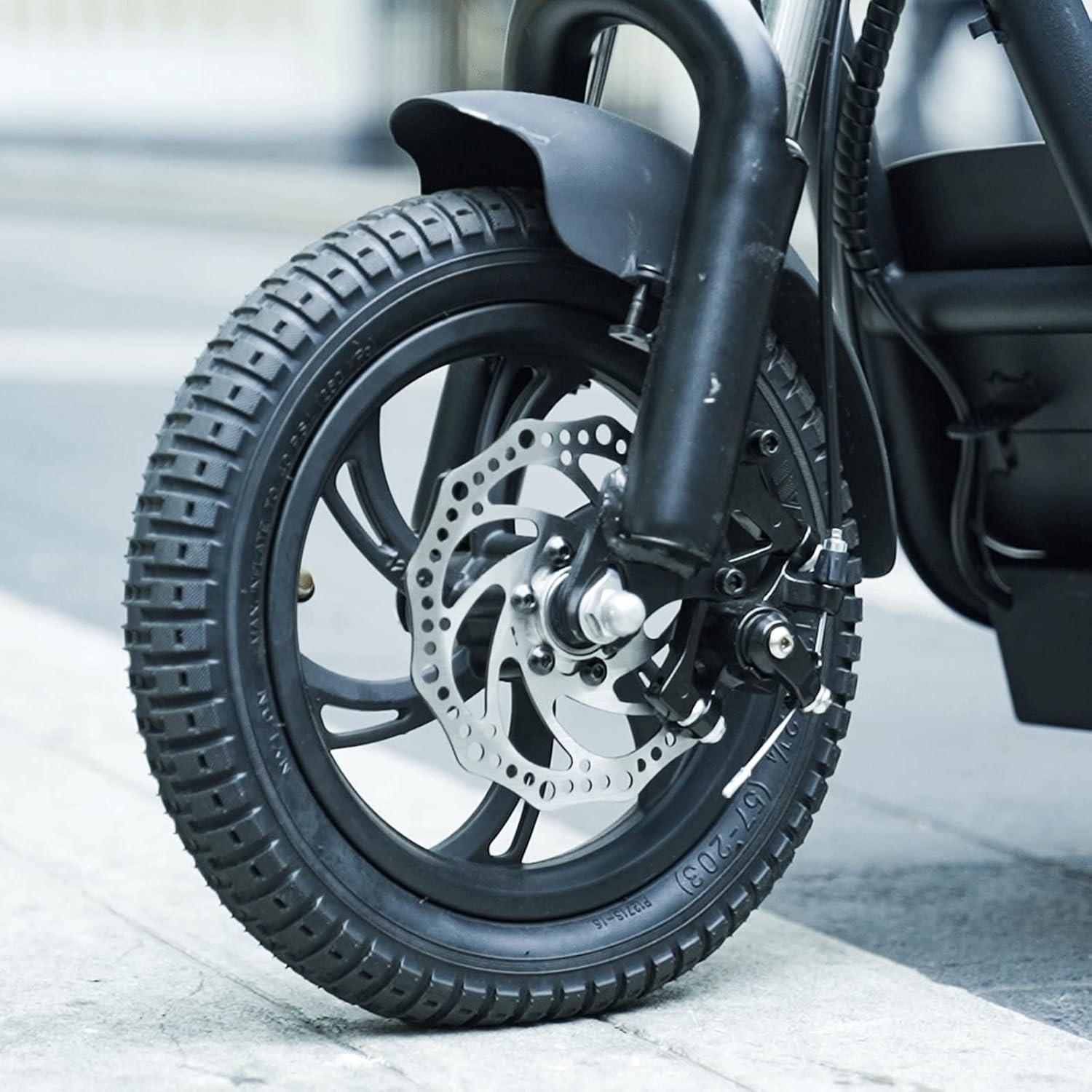

• Brakes: Dual braking system (Disc Brake and Drum Brake) for reliable stopping power.
• Headlight & Taillight: For visibility and safety.
• Folding Mechanism: Allows for compact storage and transport.
• Deck: Extra-wide (20cm) for comfortable foot placement.
• Tires: 12-inch shock-absorbing pneumatic tires for various terrains.
• Suspension: Front suspension and double spring shock absorption for a smooth ride.

4. Setup

The TOMOLOO Electric Scooter F2 comes mostly pre-assembled. Follow these steps for final setup:

1. Unboxing: Carefully remove the scooter and all accessories from the packaging.
2. Handlebar Assembly: Lift the handlebar stem until it locks into place. Secure the handlebar to the stem using the provided screws and tools. Ensure all connections are tight.
3. Inflate Tires: Check the tire pressure. The 12-inch pneumatic tires should be inflated to the recommended PSI (typically 40 PSI, refer to tire sidewall for exact specification).
4. Initial Charge: Before first use, fully charge the scooter's battery. Refer to the 'Charging' section for detailed instructions.

5. Operating

5.1 Power On/Off

Press and hold the power button on the digital display to turn the scooter on or off.

5.2 Speed Modes

The scooter features three adjustable speed levels:

• Level 1: 0-6 MPH (0-10 km/h) - Ideal for beginners or crowded areas.
• Level 2: 6-12 MPH (10-20 km/h) - Balanced speed for general riding.
• Level 3: 12-16 MPH (20-25 km/h) - Maximum speed for experienced riders on open paths.

Press the mode button on the display to cycle through speed levels.

5.3 Riding Instructions

1. Place one foot firmly on the deck and push off with the other foot to gain initial momentum.
2. Once moving, gently press the thumb throttle to accelerate.
3. To brake, release the throttle and gently squeeze the brake levers.
4. For optimal range and performance, maintain consistent speed and avoid frequent sudden accelerations or decelerations. The scooter can reach distances of up to 50 miles on a single charge.

6. Charging

To charge your scooter:

1. Ensure the scooter is powered off.
2. Locate the charging port, usually covered by a rubber flap, on the scooter's frame.
3. Connect the charger to the charging port, then plug the charger into a standard wall outlet.
4. The charging indicator light on the charger will typically turn red while charging and green when fully charged.
5. A full charge takes approximately 6 hours. Do not overcharge the battery.

7. Maintenance

Regular maintenance ensures the longevity and safe operation of your scooter.

7.1 Cleaning

Wipe the scooter with a damp cloth. Do not use high-pressure water jets or immerse the scooter in water. The scooter has an IPX4 waterproof rating, meaning it is resistant to splashing water from any direction, but not submersion.

7.2 Tire Care

Regularly check tire pressure and inflate as needed. Inspect tires for wear and tear or punctures. The 12-inch pneumatic tires provide excellent shock absorption.

7.3 Brake Adjustment

Ensure brakes are responsive. If braking performance degrades, consult a qualified technician for adjustment or replacement of brake pads.

7.4 Storage

Store the scooter in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, charge the battery to about 50-70% and recharge every 30-60 days to prevent deep discharge.

8. Troubleshooting

This section addresses common issues you might encounter.

If you encounter issues not listed here or if solutions do not resolve the problem, please contact TOMOLOO customer support.

9. Specifications

10. Warranty and Support

TOMOLOO offers comprehensive support for your electric scooter:

• Warranty: 3 months for problem-free replacement, 1 year free warranty.
• After-Sales Service: Lifetime after-sales service.

For technical assistance, warranty claims, or any other inquiries, please contact TOMOLOO customer support through their official channels. Refer to your purchase documentation for specific contact details or visit the TOMOLOO Store on Amazon.
