1. Introduction
This manual provides essential information for the safe and efficient use of your KEMPER PK5808 Portable 2-Burner Gas Stove. Designed for outdoor cooking, this stove offers two independent burners with automatic piezo ignition, making it ideal for camping, picnics, and other outdoor activities. Please read these instructions carefully before use and retain them for future reference.
Image 1: KEMPER PK5808 Portable 2-Burner Gas Stove in its compact, folded state.
2. Safety Information
WARNING: Failure to follow these instructions may result in fire, explosion, serious injury, or death.
- Outdoor Use Only: This appliance is designed for outdoor use only. Do not operate indoors or in enclosed spaces.
- Ventilation: Ensure adequate ventilation during operation to prevent carbon monoxide buildup.
- Flammable Materials: Keep the stove clear of flammable materials, liquids, and vapors. Maintain a safe distance from walls, tents, and other objects.
- Gas Leaks: Check for gas leaks before each use. Never use a flame to check for leaks. Use soapy water; bubbles indicate a leak.
- Children and Pets: Keep children and pets away from the stove during operation and when it is hot.
- Stable Surface: Always operate the stove on a firm, level, non-combustible surface.
- Gas Cartridge: Use only compatible gas cartridges (7/16" valve type, butane/propane mix). Do not attempt to refill non-refillable cartridges.
- Hot Surfaces: The stove and cooking surfaces become very hot during use. Allow to cool completely before handling or storing.
- Transportation: Ensure the gas cartridge is disconnected and the stove is cool and securely folded before transport.
3. Package Contents
Verify that all items are present and undamaged:
- KEMPER PK5808 Portable 2-Burner Gas Stove
- Gas supply hose
- 1 x Butane/Propane gas cartridge (450g, 7/16" valve)
- Instruction Manual
4. Setup
Follow these steps to set up your KEMPER PK5808 Portable 2-Burner Gas Stove:
- Unfold the Stove: Place the stove on a stable, level surface. Unlatch the side clips and unfold the stove to reveal the two burners and pot supports. Ensure the pot supports are securely in place.
- Connect the Gas Hose: Screw one end of the gas supply hose into the designated inlet on the stove. Hand-tighten only.
- Attach Gas Cartridge: Screw the other end of the gas supply hose onto the 7/16" valve of the butane/propane gas cartridge. Hand-tighten only. Ensure a tight seal to prevent leaks.
- Leak Check: Before lighting, apply a soapy water solution to all gas connections. If bubbles appear, there is a leak. Tighten connections or replace faulty parts. Do not use if a leak is detected.

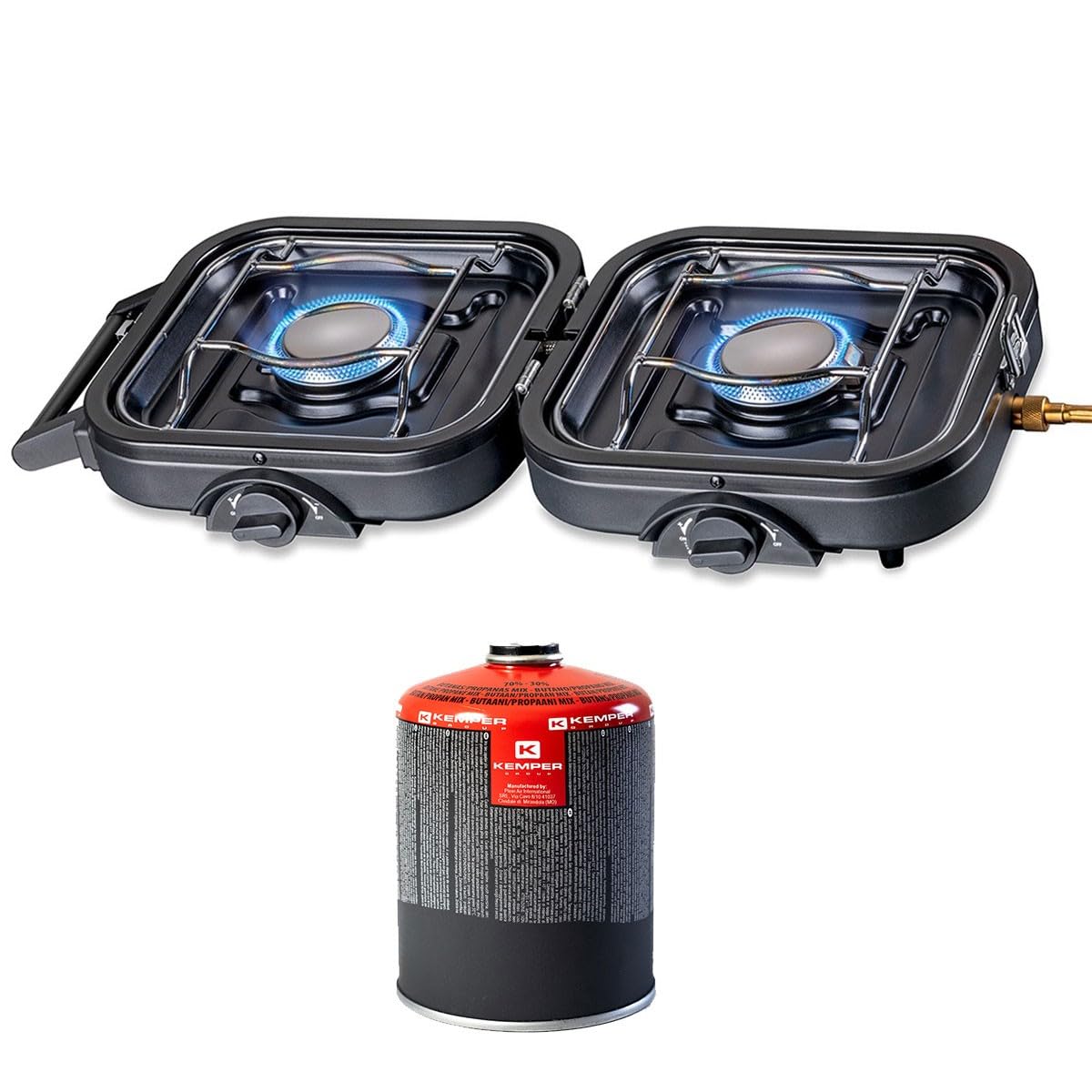

Image 2: The stove unfolded, connected to the gas canister, with burners ready for use.
Image 3: The stove in use with a coffee maker, demonstrating its functionality.
Setup Video Guide
Video 1: This video demonstrates the unfolding of the stove, connecting the gas hose to the stove and the gas cartridge, and preparing it for use. It visually guides you through the initial setup steps.
5. Operation
To operate your KEMPER PK5808 Portable 2-Burner Gas Stove:
- Place Cookware: Place your pot or pan securely on the pot support over the desired burner.
- Open Gas Valve: Slowly turn the control knob for the desired burner counter-clockwise to release gas. You should hear a faint hissing sound.
- Ignite Burner: The stove features automatic piezo ignition. Continue turning the control knob counter-clockwise past the 'click' point to ignite the burner. If it doesn't light immediately, repeat the process.
- Adjust Flame: Once lit, adjust the flame intensity by turning the control knob.
- Turn Off: To turn off the burner, turn the control knob clockwise until the flame extinguishes and the knob is in the 'OFF' position.
- Disconnect Gas: After cooking and once the stove has cooled, turn off both burner control knobs. Then, carefully unscrew the gas cartridge from the hose.
Image 4: The stove actively used for cooking outdoors, demonstrating its dual-burner capability.
6. Maintenance and Storage
Proper maintenance ensures the longevity and safe operation of your stove:
- Cleaning: Allow the stove to cool completely. Wipe down the stainless steel burners and painted steel structure with a damp cloth. For stubborn stains, use a mild detergent. Do not use abrasive cleaners or scourers.
- Drying: Ensure all parts are thoroughly dry before folding and storing.
- Storage: Fold the stove into its compact form and secure the latches. Store in a cool, dry place away from direct sunlight and heat sources. Disconnect the gas cartridge before storage.
- Inspection: Regularly inspect the gas hose and connections for any signs of wear, cracks, or damage. Replace if necessary.
Image 5: The stove in its folded, compact state, ready for storage or transport.
Image 6: The stove and gas canister stored neatly on a shelf, highlighting its portability and ease of storage.
7. Troubleshooting
If you encounter issues with your stove, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Burner does not light | No gas flow, empty cartridge, faulty igniter, clogged burner. | Ensure gas valve is open. Check gas cartridge level and replace if empty. Check for gas leaks. Clean burner if clogged. |
| Weak flame | Low gas pressure, nearly empty cartridge, partially clogged burner. | Replace gas cartridge. Clean burner. Ensure gas valve is fully open. |
| Gas leak detected (hissing sound or smell) | Loose connections, damaged hose or cartridge valve. | Immediately turn off gas. Tighten all connections. If leak persists, replace faulty component. Do not use until leak is resolved. |
8. Specifications
- Model Number: PK5808
- Power Output: 4600 W (2 x 2.3 kW)
- Fuel Type: Butane/Propane gas cartridge (7/16" valve)
- Material: Stainless steel burners, painted steel structure
- Dimensions (L x W x H): 51 x 22 x 7 cm (unfolded)
- Weight: 2.2 kg
- Ignition: Automatic Piezo
- Certification: CERTIGAZ
9. Warranty and Support
KEMPER products are manufactured to high-quality standards. This product comes with a 2-year warranty on spare parts, covering manufacturing defects from the date of purchase. For warranty claims, technical support, or spare parts, please contact your retailer or visit the official KEMPER website for customer service information.
Please retain your proof of purchase for warranty purposes.
