1. Product Overview
The Ninja Woodfire Pro Connect XL is a versatile outdoor electric grill and smoker designed for comprehensive cooking control. It features app connectivity, an integrated digital probe, and 7-in-1 cooking functions, including grilling, smoking, air frying, roasting, baking, dehydrating, and reheating. Its Woodfire Technology uses natural wood pellets to infuse authentic smoky flavors into your food, without the need for charcoal or gas. The unit is weather-resistant, making it suitable for year-round outdoor use.
The large cooking capacity allows for preparing meals for a crowd, accommodating up to 10 hamburgers, 6 steaks, or 2 whole 3 kg chickens.
2. What's Included
Your Ninja Woodfire Pro Connect XL package includes the following components:
- Ninja Woodfire Pro Connect XL BBQ Unit (EU plug)
- Digital Temperature Probe
- Removable Smoker Box
- Crisper Basket
- Grill Plate
- Grease Tray and Drip Pan
- 2 x Wood Pellet Starter Bags (All-Purpose Blend and Robust Blend)
- Pellet Scoop
3. Setup
Before first use, ensure all packaging materials are removed. Place the unit on a stable, heat-resistant, and level surface outdoors. Ensure adequate clearance from walls and other appliances. Insert the grill plate, grease tray, and drip pan into their designated positions. Connect the power cord to a suitable outdoor electrical outlet.
4. Operating Instructions
4.1 Powering On and Basic Controls
Press the power button to turn on the unit. Use the control dial and buttons on the front panel to select cooking functions, set temperature, and adjust time. The digital display will show current settings and cooking progress.
4.2 App Control (Ninja Pro Connect)
The Ninja Woodfire Pro Connect XL can be controlled remotely via the Ninja Pro Connect app on your smartphone. This allows you to adjust cooking settings, monitor progress, and receive real-time notifications.
The app provides real-time updates, allowing you to enjoy your outdoor activities without constantly monitoring the grill.
4.3 7-in-1 Outdoor Cooking Functions
This appliance offers seven versatile cooking functions:
- BBQ: For traditional grilling with authentic char and searing.
- Smoker: Infuse deep, smoky flavors into your food using wood pellets.
- Air Fry: Achieve crispy results with little to no oil.
- Roast: Perfect for tender meats and vegetables.
- Bake: Ideal for outdoor baking, such as breads or desserts.
- Dehydrate: Create dried fruits, jerky, and more.
- Reheat: Warm up leftovers while maintaining flavor and texture.
4.4 Integrated Temperature Probe and Smart Cook System
The integrated digital probe ensures precise cooking by monitoring the internal temperature of your food. Simply insert the probe into the thickest part of the food and select your desired doneness using the Smart Cook System. The grill will automatically adjust to achieve perfect results.

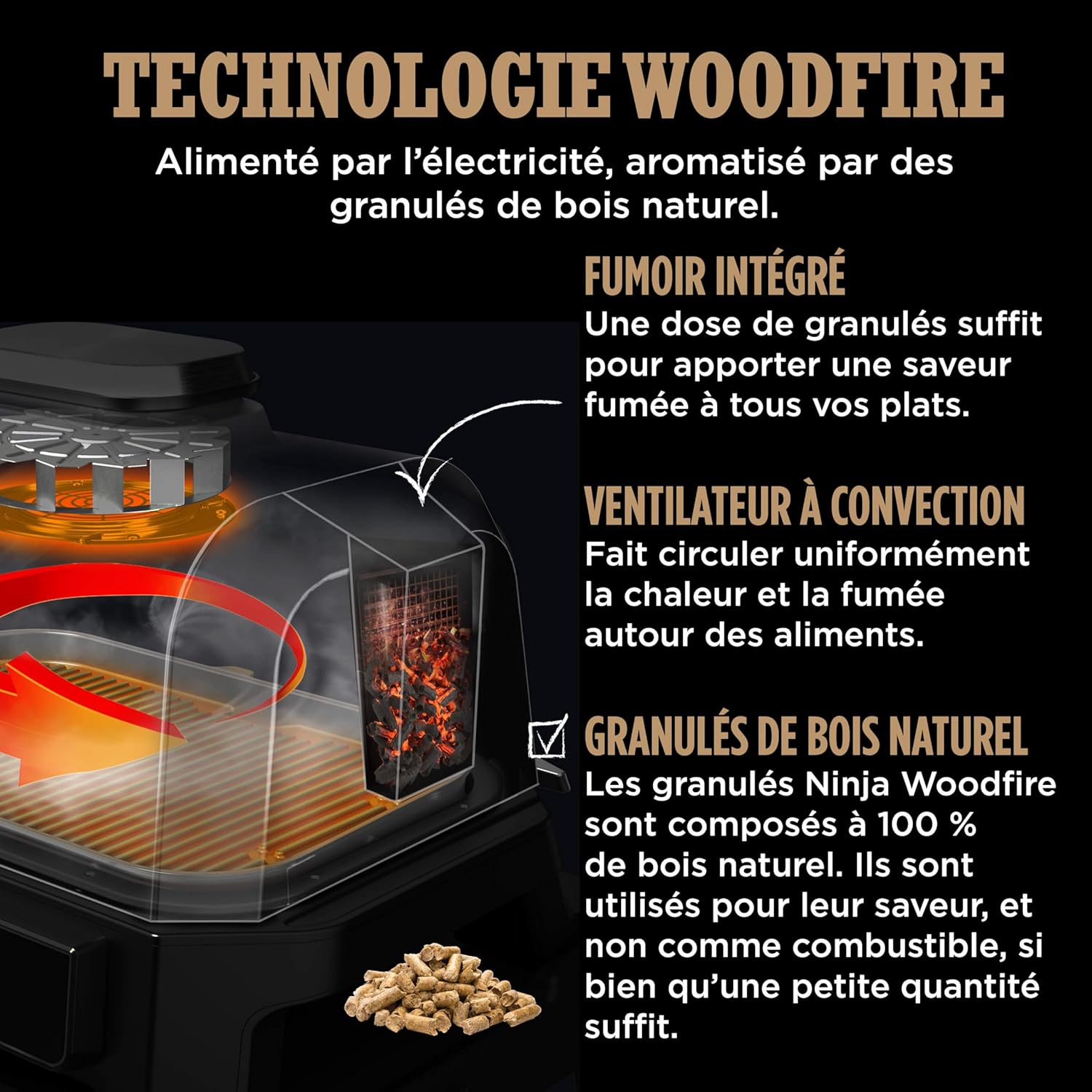

4.5 Woodfire Technology
The Woodfire Technology uses 100% natural wood pellets to generate authentic smoky flavors. The integrated smoker box and convection fan ensure even distribution of heat and smoke around your food. Only a small scoop of pellets is needed for each cooking session.
To add woodfire flavor, simply fill the pellet scoop with Ninja Woodfire Pellets and add them to the integrated smoker box. Close the lid and select the desired cooking function with the Woodfire option enabled.
4.6 Cooking Capacity
The Ninja Woodfire Pro Connect XL offers a generous cooking surface, providing 30% more space compared to the OG700 series. This allows you to cook larger quantities of food simultaneously.
4.7 Official Product Video
5. Maintenance and Cleaning
Regular cleaning ensures optimal performance and longevity of your Ninja Woodfire Pro Connect XL. The non-stick grill plate is designed for easy cleaning.
After each use, allow the unit to cool completely. Remove the grill plate, crisper basket, grease tray, and drip pan. Wash these components with warm, soapy water or place them in the dishwasher if they are dishwasher-safe. Wipe down the main unit with a damp cloth. Do not immerse the main unit in water.
6. Troubleshooting
If you encounter any issues with your Ninja Woodfire Pro Connect XL, please refer to the following common troubleshooting tips:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not power on | Not plugged in; power outlet issue; circuit breaker tripped | Ensure power cord is securely plugged in. Test outlet with another device. Check household circuit breaker. |
| Food not cooking evenly | Overcrowding; lid not fully closed; improper temperature setting | Avoid overcrowding the grill plate. Ensure lid is fully closed during cooking. Verify correct temperature setting for your recipe. |
| No smoke flavor when using pellets | Insufficient pellets; pellets not ignited; smoker box not properly inserted | Ensure smoker box is filled with pellets and properly inserted. Confirm Woodfire function is activated. Allow time for pellets to ignite and produce smoke. |
| App connectivity issues | Bluetooth/Wi-Fi off; app not updated; grill too far from device | Ensure Bluetooth and Wi-Fi are enabled on your device. Update the Ninja Pro Connect app. Move closer to the grill for better signal. |
For further assistance, please contact Ninja customer support.
7. Specifications
- Model Number: OG901EU

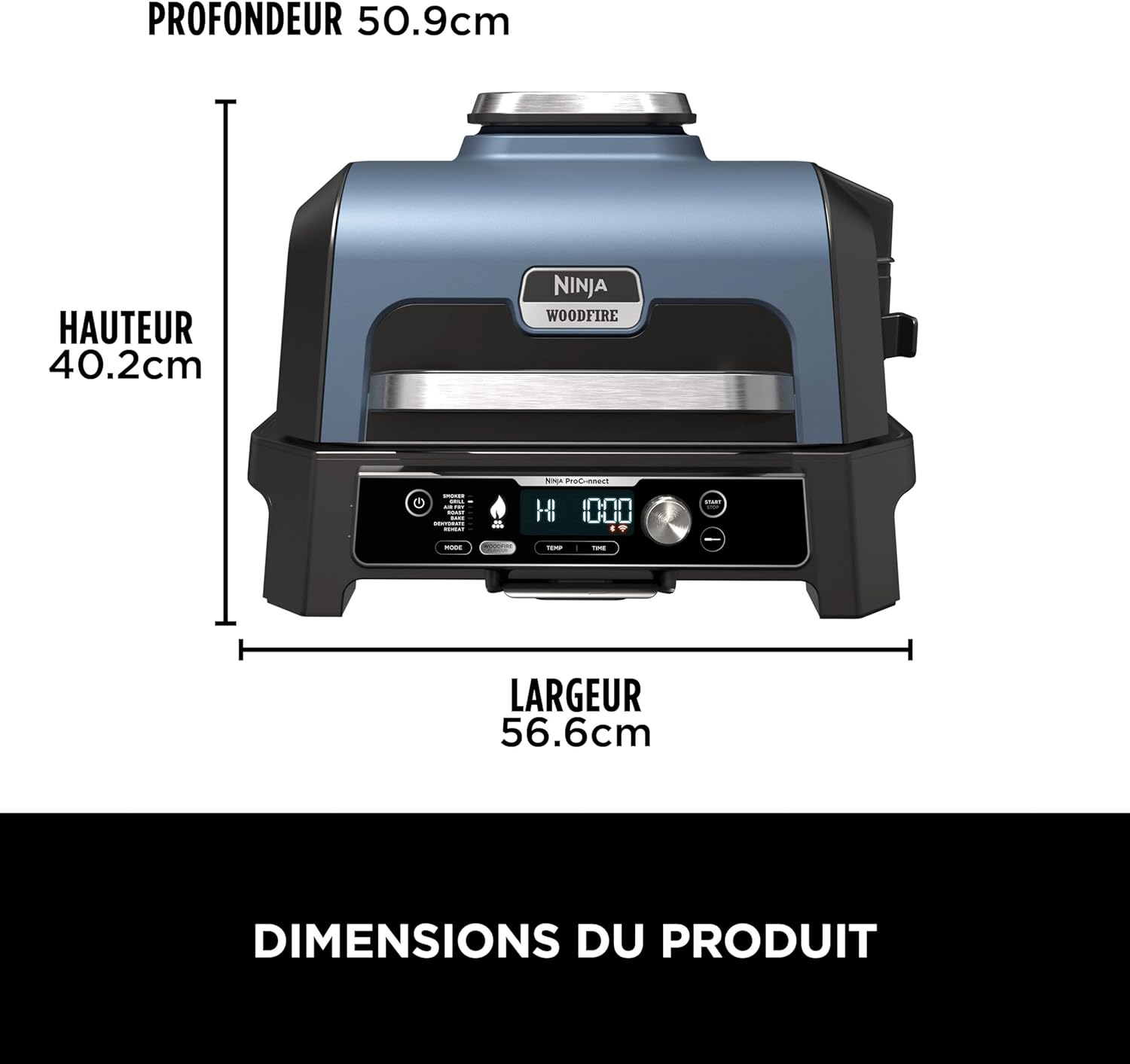

- Dimensions (L x W x H): 51 x 57 x 41 cm
- Weight: 18.3 Kilograms
- Material: Stainless Steel
- Power Source: Electric Corded
- Outdoor Use Rating: IPX4 (Weather Resistant)
- Cooking Functions: BBQ, Smoker, Air Fry, Roast, Bake, Dehydrate, Reheat
- Special Features: App Control, Digital Temperature Probe, Woodfire Technology
- UPC: 622356276573
8. Warranty and Support
Your Ninja Woodfire Pro Connect XL comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions. For product support, spare parts, or to register your product, visit the official Ninja website or contact their customer service department.
