BORUIT ET28 Tactical Multi-Color Rechargeable Flashlight User Manual

1. Introduction

Thank you for choosing the BORUIT ET28 Tactical Multi-Color Rechargeable Flashlight. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new device. Please read it thoroughly before use and retain it for future reference.

Image 1.1: Overview of the BORUIT ET28 Tactical Multi-Color Rechargeable Flashlight.

2. Setup

2.1. Unboxing and Initial Inspection

Upon receiving your BORUIT ET28 flashlight, carefully unbox all components and inspect for any signs of damage. The package should contain the flashlight, a USB-C charging cable, and a belt clip.

2.2. Battery Installation

The flashlight is equipped with a rechargeable Lithium Polymer battery. Before first use, ensure the battery insulator is removed.

1. Unscrew the tail cap of the flashlight.
2. Remove the plastic battery insulator from the battery.
3. Insert the battery with the positive (+) end facing towards the head of the flashlight.
4. Securely screw the tail cap back on.

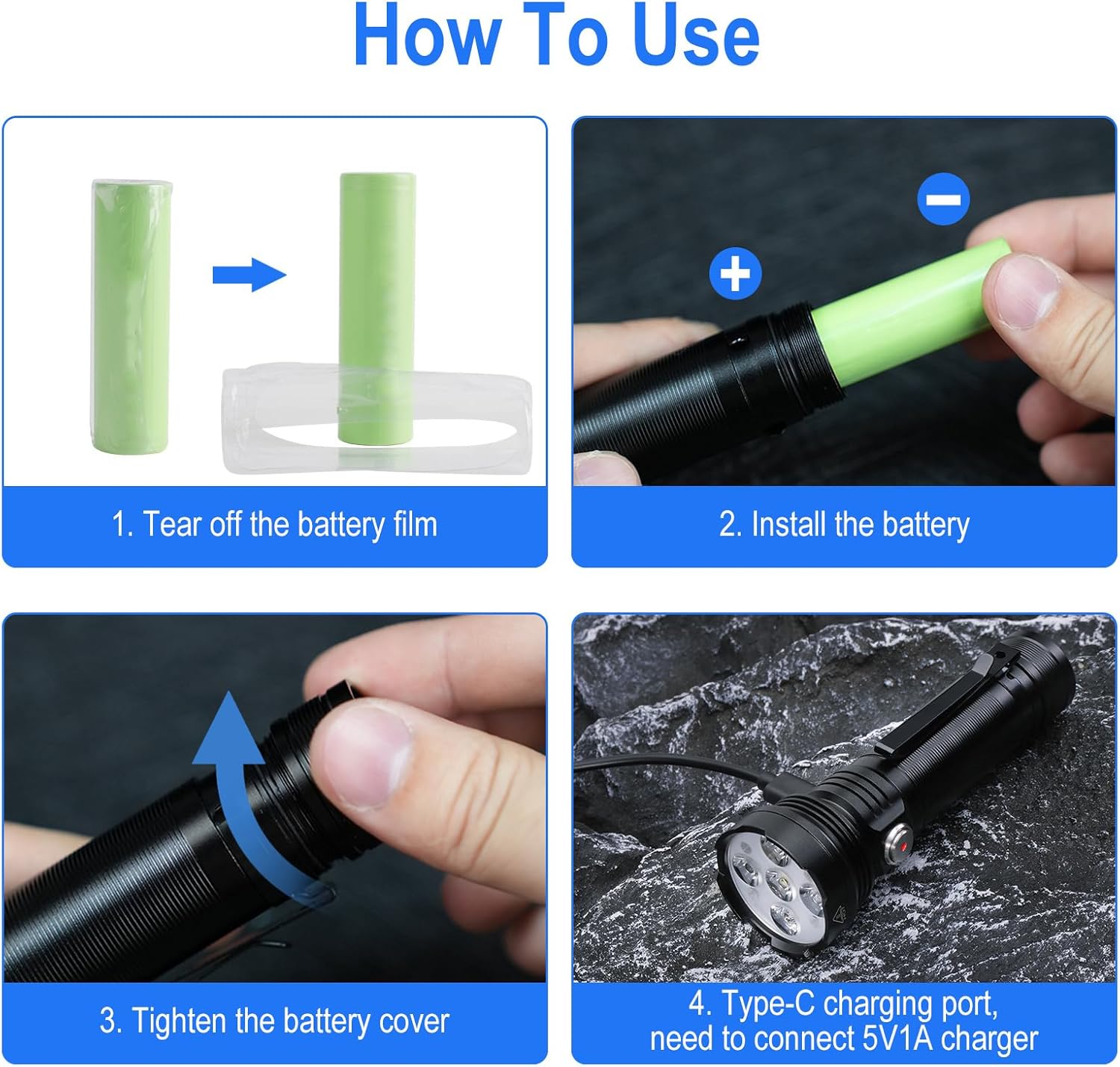

Image 2.2: Step-by-step guide for battery installation and initial charging of the flashlight.

2.3. Charging Instructions

The ET28 flashlight features a USB-C charging port. A full charge takes approximately 1.5 hours.

1. Locate the USB-C charging port on the side of the flashlight, usually covered by a rubber tab.
2. Open the rubber tab and connect the provided USB-A to USB-C charging cable to the flashlight and a 5V/1A power source.
3. The indicator light will flash red while charging.
4. The indicator light will turn solid green when fully charged.
5. Close the rubber tab securely after charging to maintain the waterproof rating.

Image 2.3: Visual representation of the flashlight's charging status indicators (red for charging, green for full) and battery life for various modes.

3. Operating Instructions

The BORUIT ET28 offers 10 light modes, including white light with adjustable brightness, multiple color lights, and a red and blue flashing mode.

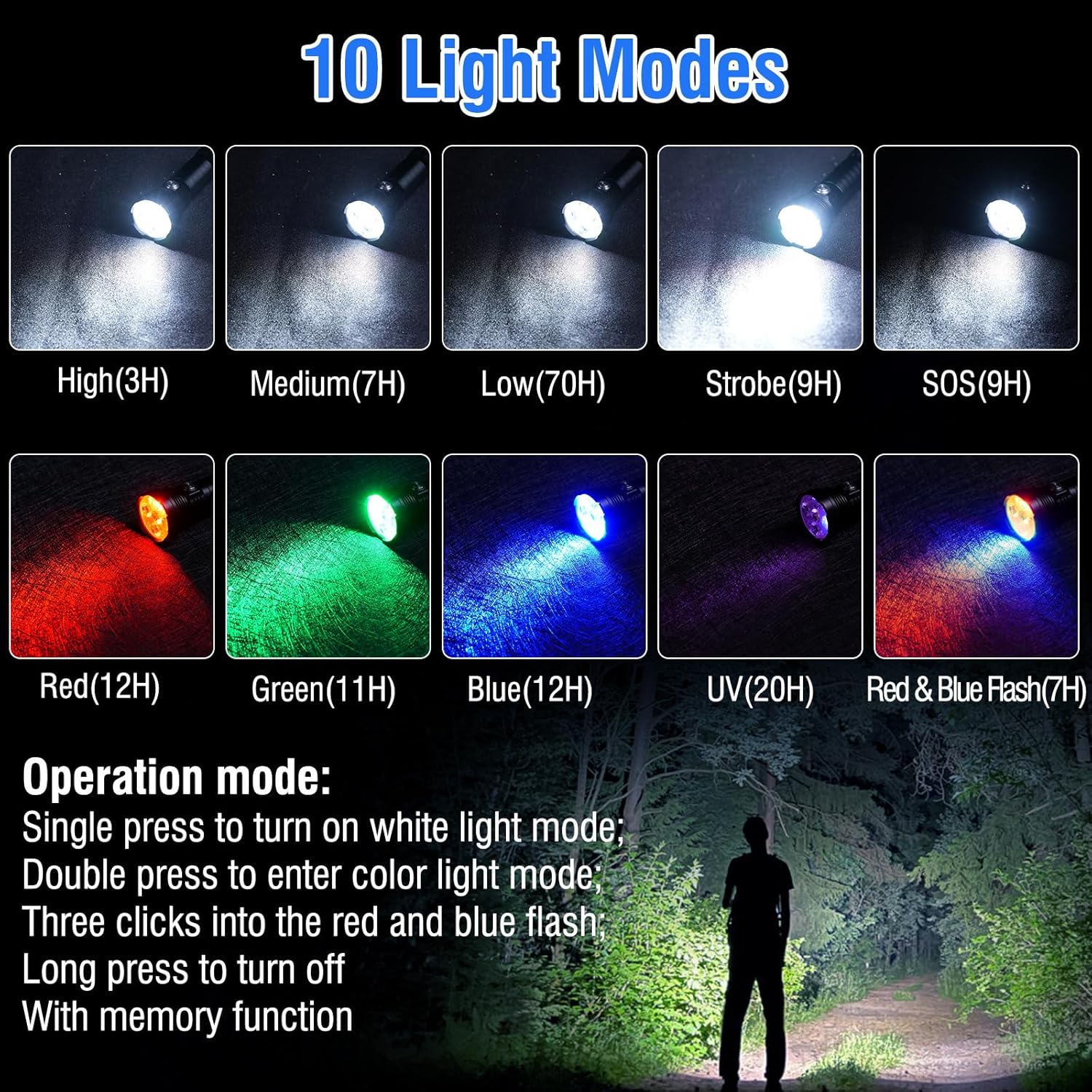

Image 3.1: Diagram illustrating the 10 light modes and basic operation of the flashlight.

3.1. Power On/Off and White Light Modes

1. To Turn On: Single click the power button to activate the white light mode.
2. To Cycle White Light Brightness: While in white light mode, single click the power button to switch between High, Medium, Low, Burst Flash, and SOS.
3. To Turn Off: Long press the power button for approximately 2 seconds in any mode.

3.2. Color Light Modes

The ET28 features Red, Green, Blue, and UV light modes for various applications.

1. To Enter Color Light Mode: From the OFF state, double click the power button.
2. To Cycle Color Lights: While in color light mode, single click the power button to switch between Red, Green, Blue, and UV.

Image 3.3: Examples of how different color lights (blue for fishing, red/green for observing animals, UV for detection, white for daily use) can be applied.

3.3. Red and Blue Flashing Mode

This mode is useful for signaling or emergency situations.

1. To Activate: From the OFF state, triple click the power button.
2. To Turn Off: Long press the power button.

3.4. Memory Function

The flashlight has a memory function. If you use any mode for more than 10 seconds, the flashlight will remember that mode. When you turn it off and then turn it on again, it will resume the last used mode.

Image 3.6: The flashlight featuring a portable two-way clip for versatile attachment and illustrating the memory mode function.

4. Maintenance

4.1. Cleaning

Wipe the flashlight with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure the USB-C port cover is closed when cleaning to prevent water ingress.

4.2. Waterproofing

The BORUIT ET28 is IP67 waterproof, meaning it is protected from dust and can withstand immersion in water up to 1 meter for 30 minutes. Always ensure the USB-C charging port cover is securely closed to maintain its waterproof integrity.

Image 4.1: The flashlight demonstrating its IP67 waterproof capability and highlighting its durable aluminum alloy construction.

4.3. Battery Care

To prolong battery life, avoid fully discharging the battery frequently. Recharge the flashlight regularly, especially if it has not been used for an extended period.

5. Troubleshooting

• Flashlight not turning on: Ensure the battery insulator has been removed and the tail cap is securely tightened. Check if the battery is charged.
• Light is dim or flickering: The battery may be low. Recharge the flashlight.
• Charging not working: Ensure the USB-C cable is properly connected to both the flashlight and the power source. Try a different cable or power adapter.

6. Specifications

7. Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official BORUIT website. Keep your proof of purchase for warranty claims.
