1. Introduction
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your Slinger Slam Pack Pickleball Machine. Please read this manual thoroughly before using the product to ensure safe and efficient operation.
The Slinger Slam Pack is designed to enhance your pickleball training by offering adjustable ball delivery for speed, spin, and trajectory, allowing for varied practice sessions without a partner.
Figure 1.1: The Slinger Slam Pack Pickleball Machine, a portable unit with wheels and an extendable handle.
2. Safety Guidelines
Adhering to these safety guidelines is crucial for preventing injury and damage to the machine.
- Always ensure the machine is stable on a flat surface before operation.
- Keep hands, hair, and loose clothing away from the ball launching mechanism during operation.
- Do not attempt to retrieve balls directly from the machine while it is powered on.
- Use only pickleballs specifically designed for machine use.
- Keep children and pets at a safe distance from the machine during use.
- Disconnect the power source before performing any maintenance or cleaning.
3. Package Contents
Verify that all items listed below are present in your package:
- Slinger Pickleball Launcher (Main Unit)
- Remote Control
- Oscillator
- Ball Tube
- Li-Ion Battery Charger
- 60 Premium Pickleballs

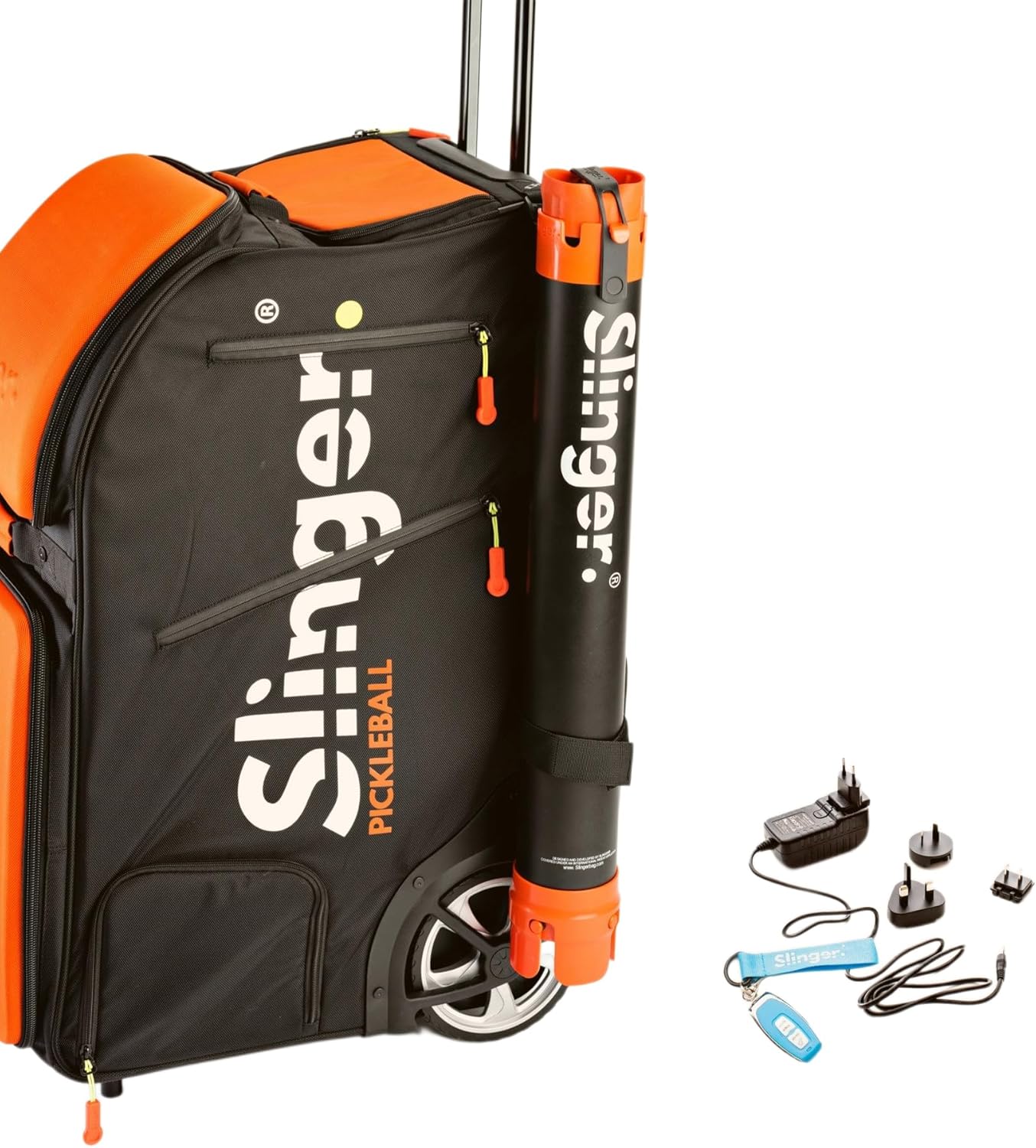

Figure 3.1: The Slinger Slam Pack Pickleball Machine shown with its included accessories.
4. Initial Setup
4.1 Unpacking
Carefully remove all components from the packaging. Retain packaging for future storage or transport.
4.2 Charging the Battery
- Locate the Li-Ion Battery Charger.
- Connect the charger to the charging port on the Slinger Slam Pack.
- Plug the charger into a standard electrical outlet.
- Allow the battery to charge fully. A full charge can last up to 3 hours of operation.
Note: Some users prefer to remove the battery for charging to ensure safety. Consult the manufacturer's specific instructions regarding battery charging procedures.
4.3 Attaching the Oscillator
The oscillator provides horizontal ball distribution. Attach it to the designated port on the machine according to the instructions provided with the oscillator accessory.
Figure 4.1: The Slinger Pickleball Oscillator, used for varying ball direction.
4.4 Loading Pickleballs
Open the ball compartment and load up to 92 pickleballs. Ensure balls are clean and free of debris to prevent jamming.
Figure 4.2: The Slinger Slam Pack ready for use with pickleballs.
Figure 4.3: Internal view of the ball compartment filled with pickleballs.
5. Operating Instructions
5.1 Powering On/Off
Use the convenient remote control to power the Slinger Slam Pack and the oscillator on or off.
5.2 Adjusting Launch Settings
- Launch Speed: Adjust the speed from 10-45 mph (16-73 km/h). Note that pickleball type may influence actual speed and spin.
- Elevation: Use the Elevation Knob to adjust the launch angle between 10 and 40 degrees.
- Feed Frequency: Set the ball feed interval between 2 and 7 seconds to vary drill intensity.
Figure 5.1: The Slinger Slam Pack with its control panel visible for adjustments.
5.3 Using the Oscillator
When the oscillator is attached and powered on via the remote, the machine will alternate ball delivery horizontally across the court, simulating varied shot placements.
5.4 Pickleball Specifications
The included pickleballs are crafted from high-quality polyethylene with an innovative single-piece design for durability. They feature:
- Official size and weight: 26 grams; 74mm in diameter.
- Balanced flight pattern due to 40 precisely drilled holes.
- Durable one-piece construction with rotational molding for enhanced longevity.
6. Maintenance
6.1 Cleaning
Wipe the exterior of the machine with a damp cloth. Ensure the ball launching mechanism is free of dust and debris. Do not use harsh chemicals or abrasive cleaners.
6.2 Storage
Store the Slinger Slam Pack in a cool, dry place when not in use. Ensure the battery is charged periodically if stored for extended periods to maintain battery health.
6.3 Battery Care
To prolong battery life, avoid fully discharging the battery frequently. Charge the battery after each use and before long-term storage.
7. Troubleshooting Guide
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not power on. | Battery is discharged or not connected. | Charge the battery fully. Ensure battery connections are secure. |
| Balls are not launching or jamming. | Incorrect ball type, debris in launcher, or feed mechanism issue. | Ensure only approved pickleballs are used. Power off and clear any obstructions. |
| Remote control not working. | Remote battery low or out of range. | Replace remote battery. Ensure remote is within operating range of the machine. |
| Inconsistent ball speed/trajectory. | Settings incorrect or worn launching wheels. | Verify speed and elevation settings. Inspect launching wheels for wear. |
8. Product Specifications
| Feature | Detail |
|---|---|
| Model Name | Slam Pack |
| Brand | Slinger |
| Dimensions (LxWxH) | 34" x 14" x 34" (86.4cm x 35.6cm x 86.4cm) |
| Weight | 42 lbs (19 kg) |
| Launch Speed | 10-45 mph (16-73 km/h) |
| Elevation Adjustment | 10-40 degrees |
| Ball Feed Frequency | 2-7 seconds |
| Battery Life | Up to 3 hours (Lithium Ion) |
| Ball Capacity | Up to 92 pickleballs |
| Strap Type | Wheeled with Strap |
| Pocket Description | Stash Pocket |
| Closure Type | Zipper |
9. Warranty Information
The Slinger Slam Pack Pickleball Machine comes with a 1-year product warranty from the date of purchase. This warranty covers normal use of the machine, including all parts and the trolley bag. It also specifically covers the use of pickleballs only.
Please note: If returning the product, the customer is responsible for shipping costs and a $125 restock fee. Pickleballs are not covered under warranty.
10. Customer Support
For technical assistance, warranty claims, or general inquiries, please refer to the contact information provided with your purchase documentation or visit the official Slinger website.
