Introduction
The K-Rain Pro-S 6" Pop-Up Spray with 30 PSI Pressure Regulator is engineered for efficient and reliable landscape irrigation. This manual provides essential information for installation, operation, maintenance, and troubleshooting to ensure optimal performance and water conservation.

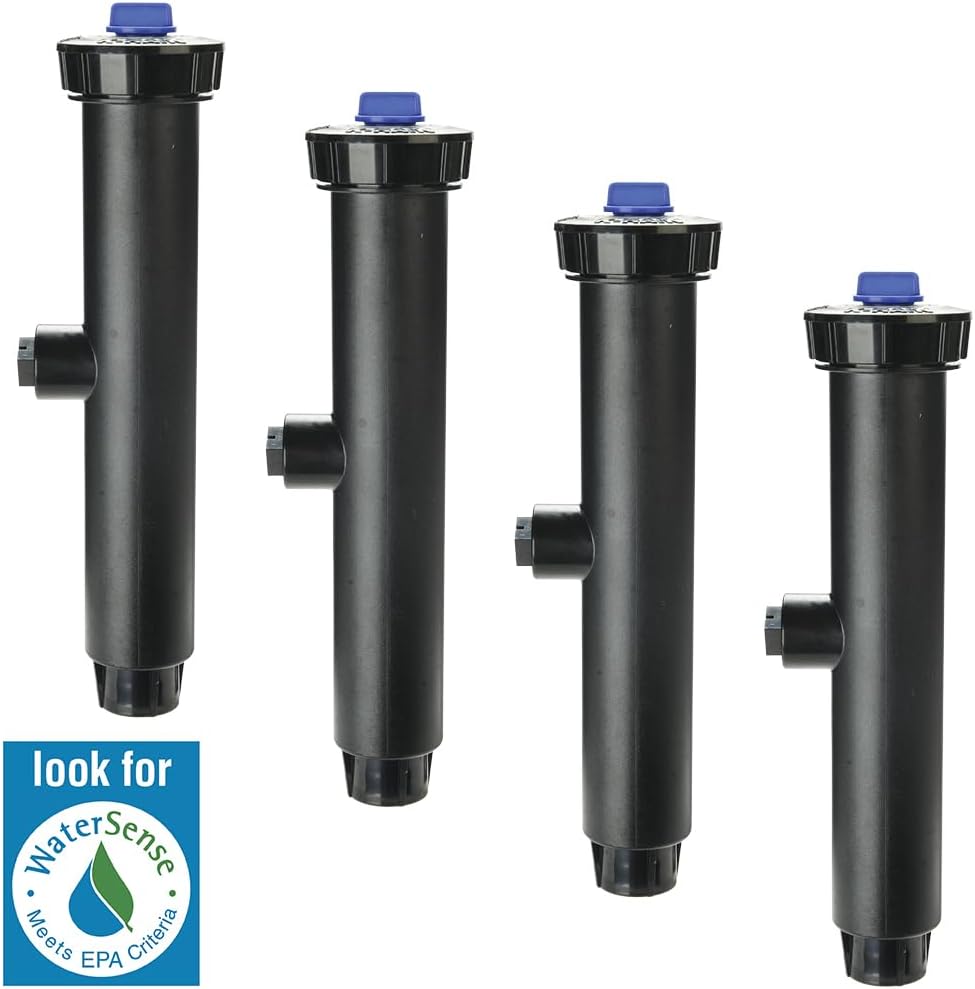

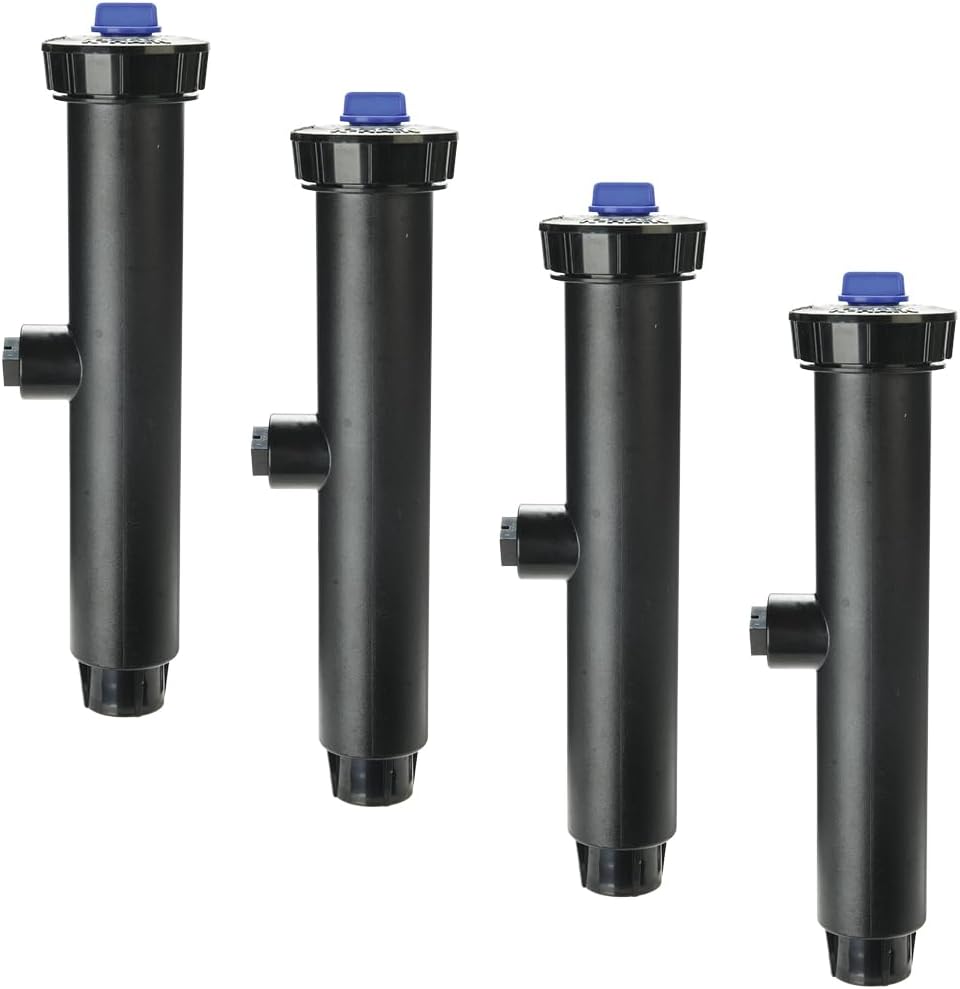

Image: Four K-Rain Pro-S 6-inch pop-up spray heads with 30 PSI pressure regulators, black in color with blue caps, standing upright. A WaterSense logo is visible in the bottom left corner, indicating compliance with EPA criteria.
Key Features
- 6-inch Pop-Up Height: Provides effective clearance for various landscape needs.
- 30 PSI Pressure Regulator: Maintains consistent water pressure for optimal spray performance and water efficiency, preventing misting.
- Strong Retraction Spring: Ensures complete retraction into the ground, preventing damage from lawn equipment and foot traffic.
- Co-Molded Wiper Seal: Guarantees reliable operation with minimal flow-by, enhancing durability.
- Compatibility: Designed to fit all standard female-threaded nozzles and is compatible with Rain Bird 1800 Series spray bodies.
- WaterSense Certified: Meets or exceeds federal regulations and is 50-state-compliant for water conservation.
Setup and Installation
The K-Rain Pro-S spray head is designed for straightforward installation. It features a standard 1/2-inch inlet and comes with a pre-installed flush cap to assist during the initial setup process.
Installation Steps:
- Prepare the Area: Ensure the irrigation system is turned off and the area for the spray head is clear.
- Connect to Piping: The spray head has a standard 1/2-inch inlet for connection to your irrigation piping.
- Flush the System: Utilize the pre-installed flush cap to clear debris from the lines before installing the nozzle.
- Install Nozzle: The Pro-S spray accepts all female-threaded nozzles. Screw the desired nozzle onto the riser.
- Positioning: Place the spray head in the ground, ensuring the top is flush with the ground level when retracted.
Video: K-Rain Pro-S Spray Product Overview. This video provides a general overview of the Pro-S spray series, including features like the strong retraction spring, high-quality wiper seal, and compatibility with Rain Bird 1800 Series bodies. It also demonstrates the pre-installed flush cap and various riser sizes.
Replacing an Existing Spray Head:
The Pro-S spray head has the exact same body size as the Rain Bird 1800 Series, allowing for easy replacement without extensive digging.
- Unscrew Top: Simply unscrew the top of the existing spray head.
- Remove Assembly: Pull out the top and internal assembly.
- Insert Pro-S Assembly: Replace it with the top and assembly from a K-Rain Pro-S spray head. No digging required.
Image: A K-Rain Pro-S pop-up spray head with a blue cap, partially submerged in green grass, spraying water. This illustrates the product in an operational setting.
Operating Instructions
Adjusting Spray Arc and Distance:
The Pro-S spray heads with adjustable nozzles allow for precise control over the spray pattern and distance. This ensures water is delivered only where needed, minimizing waste.
- Adjusting Arc (Left Start): While the sprinkler is operating, grasp the lower part of the riser and twist it to set the left start position of the spray arc. It will click into place.
- Adjusting Arc (Right Stop): Grasp the very top of the spray head (the nozzle) and twist it to adjust the right stop position of the spray arc.
- Adjusting Distance (Radius): To reduce the spray distance, use a flat-head screwdriver to turn the silver screw located in the very middle of the nozzle counter-clockwise. Turning it clockwise will increase the distance. Hold the riser steady with one hand while adjusting with the screwdriver.
Video: Adjust Arc & Distance: K-Rain Pro-S Sprays Adjustable Nozzle. This video demonstrates how to adjust both the arc (left start and right stop) and the spray distance (radius) for K-Rain Pro-S adjustable nozzles.
Maintenance
Regular maintenance ensures the longevity and efficiency of your K-Rain Pro-S spray heads.
- Cleaning: Periodically inspect nozzles for clogs from debris. Clean as needed to maintain optimal spray patterns.
- Wiper Seal Inspection: The co-molded wiper seal is designed for durability, but inspect it annually for any signs of wear or damage that could affect retraction or lead to leaks.
- Winterization: In colder climates, ensure proper winterization procedures are followed to prevent freeze damage. Consult local irrigation guidelines for specific steps.
Optional Features for Enhanced Performance:
- Stop Flow: An optional feature that automatically stops water flow in case of nozzle damage or removal, preventing water waste.
- In-Stem Pressure Regulation: Available for 4", 6", or 12" models (in both 30 and 40 PSI), this feature prevents misting and saves water by maintaining consistent pressure.
- Nozzle Guard: Adds a protective lip around the nozzle to prevent damage from foot traffic and lawn equipment.
- Pre-installed Check Valve: Prevents low head drainage, saving water and reducing erosion. Can also be purchased separately and installed in the field. Check valves hold up to ten feet of head pressure.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No water or low flow: | Clogged nozzle or filter, insufficient water pressure. | Clean the nozzle and filter. Check system pressure. |
| Head not retracting fully: | Debris around the riser, worn wiper seal, weak spring. | Clear debris. Inspect and replace wiper seal or spring if necessary. |
| Uneven spray pattern or misting: | Incorrect pressure, damaged nozzle, clogged nozzle. | Verify system pressure is within optimal range (30 PSI for this model). Clean or replace nozzle. |
| Leaks at the base of the head: | Loose connection, damaged body, worn seal. | Tighten connections. Inspect for cracks or damage; replace head if necessary. |
Specifications
- Model: K-Rain Pro-S Pop-Up Spray
- Pop-Up Height: 6 inches
- Pressure Regulation: 30 PSI (in-stem)
- Inlet Size: 1/2 inch NPT female threaded
- Material: Durable Plastic
- Color: Black
- Compatibility: All female-threaded nozzles, Rain Bird 1800 Series bodies
- Certifications: WaterSense (meets EPA criteria), 50-state compliant
- Dimensions (L x W x H): 6.25 x 2.25 x 9.75 inches
- Maximum Pressure: 30 PSI (regulated)
- Maximum Flow Rate: 1 Gallon Per Minute
- UPC: 671923126704
Warranty Information
K-Rain products are manufactured to high standards and are backed by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the official K-Rain website or contact customer support. Keep your proof of purchase for warranty claims.
Customer Support
For further assistance, technical support, or to purchase replacement parts, please visit the official K-Rain website or contact their customer service department.
- K-Rain Official Website: Visit the K-Rain Store on Amazon
- Manufacturer: K-Rain
