1. Introduction
This manual provides essential instructions for the safe and efficient use of your Sekey XXL Plus Folding Transport Cart, Model FW27. Please read this guide thoroughly before assembly and operation to ensure proper handling and to maximize the lifespan of your product. This cart is designed for transporting various items in outdoor and indoor environments.

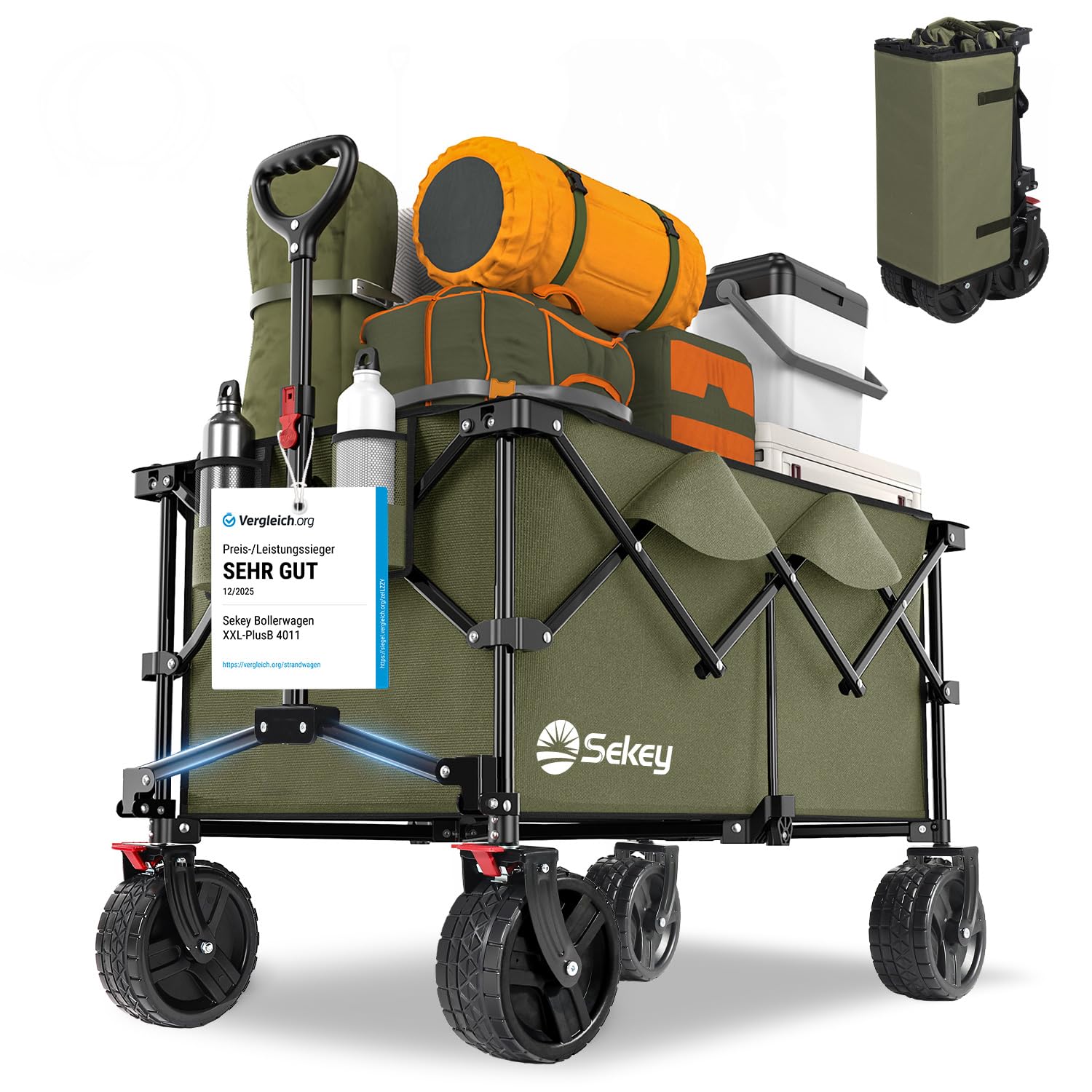

Image 1.1: The Sekey XXL Plus Folding Transport Cart, Model FW27.
2. Safety Instructions
Always observe the following safety precautions to prevent injury or damage to the product:
- Maximum Load Capacity: Do not exceed the maximum load capacity of 150 kg (330 lbs). Overloading can cause structural damage and potential injury.
- Secure Load: Always secure items within the cart using the provided straps or other appropriate means to prevent shifting or falling during transport.
- Brakes: Engage the brakes when the cart is stationary, especially on inclines, to prevent unintended movement.
- Uneven Terrain: Exercise caution when operating on uneven, soft, or sloped surfaces. The cart's stability may be compromised.
- Children and Pets: This cart is not designed for transporting children or pets. Keep children and pets away from the cart during operation and storage.
- Assembly: Ensure all parts are correctly assembled and secured before use. Refer to the assembly section for detailed instructions.
- Handle Operation: Use both hands on the handle when pulling or pushing heavy loads for better control.
- Storage: Store the cart in a dry, secure location when not in use.
- Incorrect Load Capacity Information: Please note: Disregard any conflicting load capacity information found in older versions of the user manual. The correct maximum load capacity is 150 kg.
3. Package Contents
Verify that all components are present and undamaged upon unpacking:
- Sekey XXL Plus Folding Transport Cart (Main Unit)
- Retractable Handle
- Wheels (Pre-installed)
- Securing Straps (Included for load stability)
- Cup Holders (Integrated)
- User Manual (This document)
4. Setup and Assembly
The Sekey XXL Plus Folding Transport Cart is designed for quick and easy setup. No complex assembly is required.
- Unfolding the Cart:
Place the folded cart on a flat, stable surface. Gently pull the sides of the cart outwards until the frame fully extends and locks into place. Press down on the center of the cart's base to ensure it is flat and stable.
Image 4.1: Cart in an unfolded state, ready for loading.
- Adjusting the Handle:
Locate the retractable handle. Pull the handle upwards to extend it to your desired length. Ensure the handle locks securely into position before use. The handle is designed to spring back to an upright position when released.
- Checking the Wheels:
Verify that all four wheels are securely attached and rotate freely. The front wheels are universal (360° swivel) for easy maneuverability, and the rear wheels typically include brakes.
5. Operating Instructions
5.1 Loading the Cart
- Distribute the load evenly within the cart to maintain balance and stability.
- Place heavier items at the bottom and lighter items on top.
- Utilize the provided securing straps to prevent items from shifting or falling out during transport.
- Do not exceed the maximum load capacity of 150 kg.
5.2 Moving the Cart
- Ensure the brakes are disengaged before moving.
- Hold the handle firmly with both hands.
- Pull or push the cart smoothly. Avoid sudden movements, especially with heavy loads.
- The 360° swivel wheels allow for easy navigation around obstacles.
5.3 Engaging/Disengaging Brakes
- To engage the brakes, press down on the brake levers located on the rear wheels.
- To disengage the brakes, lift the brake levers upwards.
- Always engage the brakes when the cart is parked or being loaded/unloaded.
5.4 Folding the Cart for Storage
- Remove all contents from the cart.
- Ensure the cart is clean and dry.
- Locate the pull tab or strap in the center of the cart's base.
- Pull the tab upwards firmly. The cart will begin to fold inwards.
- Continue to pull until the cart is fully collapsed.
- Secure the folded cart with any integrated straps or clips to prevent it from unfolding.
- Retract the handle to its shortest position.
6. Maintenance
- Cleaning: The waterproof Oxford 600D fabric can be cleaned with a damp cloth and mild soap. Allow to air dry completely before folding or storing. Do not use harsh chemicals or abrasive cleaners.
- Frame: Wipe the alloy steel frame with a damp cloth to remove dirt and debris. Dry thoroughly to prevent rust.
- Wheels: Periodically check the wheels for debris (e.g., mud, grass, small stones) that may impede rotation. Clean as necessary. Ensure wheel axles are free of obstruction.
- Storage: Store the folded cart in a cool, dry place, away from direct sunlight and extreme temperatures.
- Inspection: Regularly inspect all moving parts, fasteners, and fabric for signs of wear or damage. Do not use the cart if any components are damaged.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Cart does not unfold or fold easily. | Mechanism is stiff or obstructed. | Ensure no debris is caught in the folding mechanism. Apply a small amount of silicone lubricant to moving joints if necessary. Ensure the center pull tab is fully engaged when folding. |
| Wheels do not rotate smoothly. | Debris in wheel axles; brakes engaged. | Check for and remove any debris (dirt, hair, string) from the wheel axles. Ensure brakes are fully disengaged. |
| Cart is unstable during transport. | Uneven load distribution; overloaded. | Redistribute the load evenly. Ensure the total weight does not exceed 150 kg. Avoid sudden turns or movements. |
| Handle does not extend or retract. | Release button stuck; mechanism obstructed. | Check for obstructions around the handle mechanism. Ensure the release button (if applicable) is fully pressed. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Sekey |
| Model Number | FW27 |
| Color | Green (as per current variant) |
| Product Dimensions (L x W x H) | 92 x 57 x 97 cm (36.2 x 22.4 x 38.2 inches) |
| Maximum Weight Capacity | 150 Kilograms (330 lbs) |
| Material | Alloy Steel frame, PVC, Waterproof 600D Oxford Fabric |
| Special Features | 200L extra-large capacity, 4-way folding, All-terrain wide tires (17x10 cm), Retractable/adjustable handle, 360° silky universal wheels with brakes |
| Item Weight | 11.97 Kilograms (26.4 lbs) |
| Number of Wheels | 4 |
| Recommended Use | Outdoor |
| Country of Origin | China |
9. Warranty and Support
For warranty information, technical support, or to inquire about replacement parts, please contact Sekey customer service through the retailer where the product was purchased or visit the official Sekey website. Please have your model number (FW27) and purchase date available when contacting support.
Note: Spare parts availability information is not provided in the product details.
