Cosori Turbo Blaze Chef Edition Air Fryer User Manual

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons.

• Read all instructions before operating the air fryer.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or air fryer housing in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• This appliance is for household use only.
• Ensure the air fryer is placed on a stable, heat-resistant surface.
• Do not block any ventilation openings.

Product Overview

Familiarize yourself with the components of your Cosori Turbo Blaze Chef Edition Air Fryer.

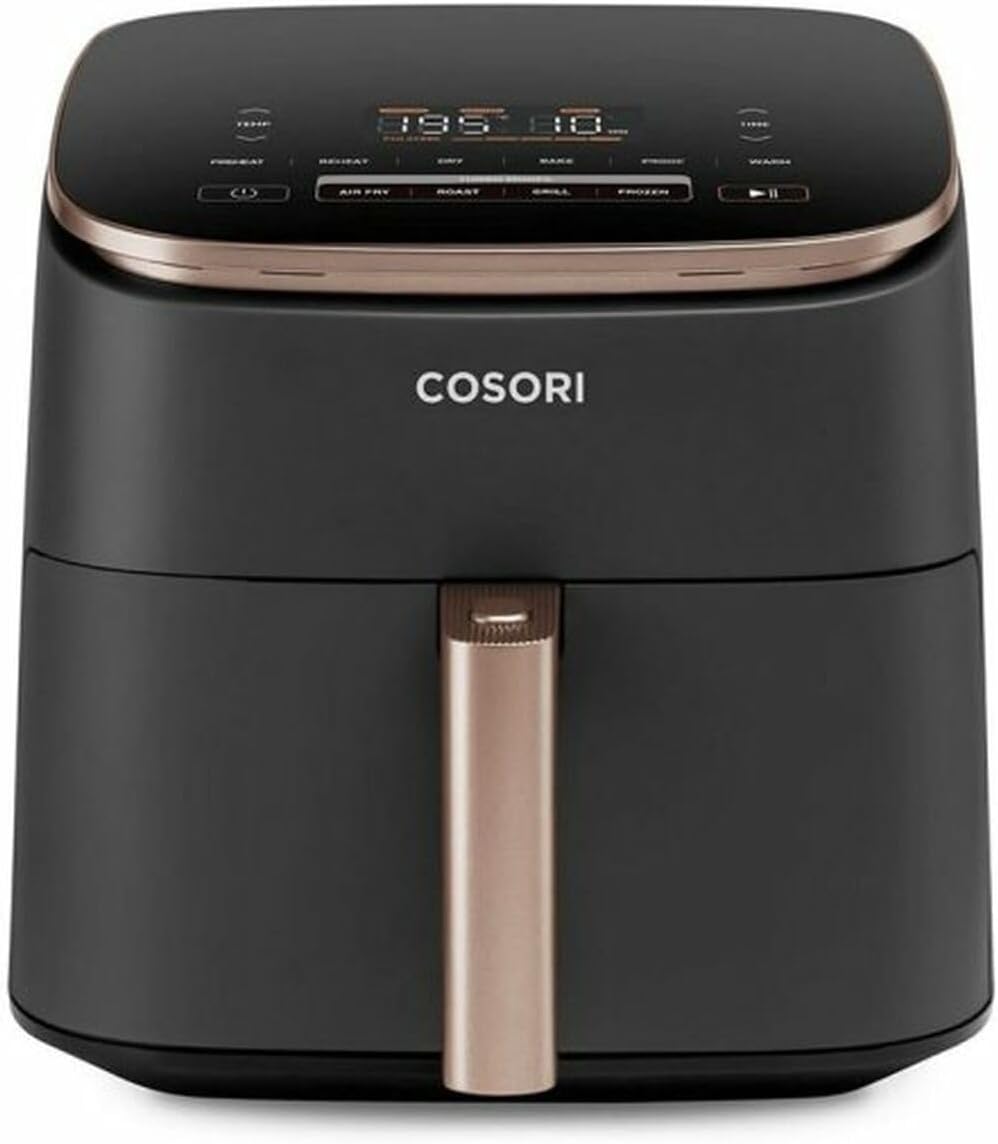

Figure 1.1: Front view of the Cosori Turbo Blaze Chef Edition Air Fryer, showcasing its sleek black design with a rose gold handle and digital display panel.

Figure 1.2: Side view of the Cosori Turbo Blaze Chef Edition Air Fryer, highlighting its compact and modern form factor.

Figure 1.3: The air fryer with its cooking basket pulled out, demonstrating the ample space for food, here shown with french fries.

Figure 1.4: The air fryer displayed with additional accessories, including a rack with skewers, indicating versatility for various cooking methods.

Components:

• Main Unit: Houses the heating element and fan.
• Control Panel: Digital display with touch controls for settings and presets.
• Cooking Basket: Non-stick, removable basket for holding food.
• Crisper Plate: Removable plate inside the basket for optimal air circulation.
• Handle: Ergonomic handle for safely pulling out the cooking basket.

Setup and First Use

1. Unpacking: Carefully remove all packaging materials from the air fryer and its accessories. Ensure all parts are present.
2. Cleaning: Before first use, wash the cooking basket and crisper plate thoroughly with warm, soapy water. Rinse and dry completely. Wipe the exterior of the main unit with a damp cloth.
3. Placement: Place the air fryer on a stable, level, heat-resistant surface, away from walls or other appliances to allow for proper air circulation. Ensure there is at least 5 inches (13 cm) of space behind and above the unit.
4. Power Connection: Plug the power cord into a grounded electrical outlet.
5. Initial Run (Optional but Recommended): For the first use, it is recommended to run the air fryer empty for 10-15 minutes at 200°C (390°F) to eliminate any manufacturing odors. A slight smell may be present, which is normal and will dissipate.

Operating Instructions

The Cosori Turbo Blaze Chef Edition Air Fryer features intuitive controls for various cooking functions.

Control Panel Overview:

• Power Button: Turns the unit on/off.
• Temperature Controls: Adjust temperature up/down.
• Time Controls: Adjust cooking time up/down.
• Preset Functions: Dedicated buttons for common foods (e.g., Air Fry, Roast, Bake, Grill, Frozen, Reheat, Warm, Proof).
• Shake Reminder: Icon indicating when to shake the basket for even cooking.

Basic Operation:

1. Prepare Food: Place food in the cooking basket. Do not overfill the basket to ensure proper air circulation.
2. Insert Basket: Slide the cooking basket firmly into the main unit.
3. Power On: Press the Power button to turn on the air fryer.
4. Select Function:
   • Using Presets: Select a desired preset function (e.g., "Air Fry"). The air fryer will automatically set a default time and temperature.
   • Manual Setting: Use the Temperature and Time controls to set your desired cooking temperature and time.
5. Start Cooking: Press the Start/Pause button to begin cooking.
6. Shake Reminder: For some foods, the air fryer may beep and display a "SHAKE" icon. Carefully remove the basket, shake the contents, and reinsert the basket to resume cooking.
7. Completion: The air fryer will beep when cooking is complete. Carefully pull out the basket and remove food using tongs.

Figure 2.1: The Cosori Turbo Blaze Chef Edition Air Fryer in operation, illustrating a whole chicken being cooked inside the basket, with the internal light illuminating the cooking process.

Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the lifespan of your air fryer.

1. Unplug and Cool: Always unplug the air fryer from the power outlet and allow it to cool completely before cleaning.
2. Basket and Crisper Plate:
   • Wash the cooking basket and crisper plate with warm, soapy water. Use a non-abrasive sponge.
   • For stubborn food residue, soak the basket and plate in warm water for about 10 minutes before cleaning.
   • These parts are dishwasher safe, but hand washing is recommended to preserve the non-stick coating.
   • Dry all parts thoroughly before reassembling.
3. Interior of the Unit:
   • Wipe the interior with a damp cloth or non-abrasive sponge.
   • For heavily soiled areas, a small amount of mild dish soap can be used.
   • Do not immerse the main unit in water or any other liquid.
4. Exterior of the Unit:
   • Wipe the exterior with a damp cloth.
   • Do not use abrasive cleaners or scouring pads, as they may damage the finish.
5. Heating Element: If necessary, gently clean the heating element with a soft brush to remove any food particles. Do not use water or liquid cleaners directly on the heating element.

Troubleshooting

Refer to this section for common issues and their solutions.

Specifications

Warranty and Support

COSORI provides a warranty for this product. Please refer to the warranty card included in your product packaging for specific terms and conditions, including the warranty period and coverage details.

For technical support, troubleshooting assistance, or warranty claims, please contact COSORI Customer Support:

• Website: Visit the official COSORI website for FAQs, product registration, and contact information.
• Email: Refer to your warranty card or the COSORI website for the appropriate customer service email address.
• Phone: Contact numbers for regional support can be found on the COSORI website.

Please have your model number (KOSP0019EUN) and purchase information ready when contacting support.
