HGLRC Specter 1804-2450KV Brushless Motor Instruction Manual

1. Introduction

The HGLRC Specter 1804-2450KV motor is engineered for high performance, quality, and efficiency in 3-3.5 inch FPV freestyle and racing drones. This motor features a robust design and advanced components to ensure stable and powerful operation.

Key design elements include a brand-new rotor appearance, constructed from 7075 high-strength aviation aluminum with an anodized two-color finish. Internally, it utilizes customized N52H arc-shaped magnetic steel for ultra-high magnetic properties and high temperature resistance, ensuring strong torque and efficiency. The motor incorporates 260° high-temperature resistant copper wire windings for stability during continuous high-throttle flight and Kawasaki silicon steel sheets for the stator to minimize heat loss and improve efficiency. The magnetic circuit and winding tuning are optimized for linear power output and precise response.

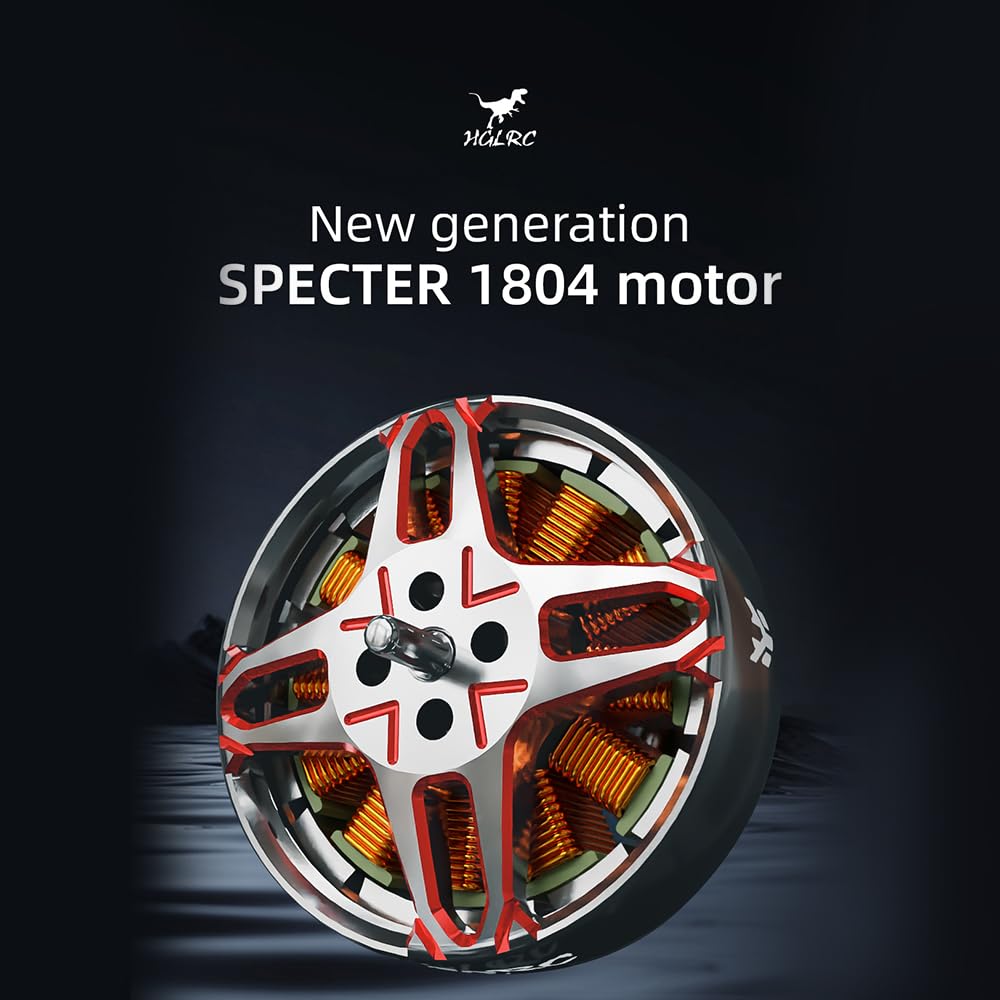

Image 1.1: Overview of the HGLRC Specter 1804 motor, highlighting its new generation design.

2. What's in the Box

The HGLRC Specter 1804-2450KV motor package includes the following components:

• 1 x HGLRC Specter 1804-2450KV Motor
• 5 x M2x6mm Round Head Screws
• 2 x M2x7mm Round Head Screws

3. Setup and Installation

3.1 Motor Mounting

The Specter 1804 motor features a 12x12mm mounting hole pattern, compatible with M2 screws. Use the provided M2x6mm or M2x7mm round head screws to securely attach the motor to your drone frame. Ensure screws are tightened firmly but do not overtighten to avoid damaging the motor or frame.

3.2 Wiring to ESC

The motor comes with 26AWG-150mm wires. Connect these wires to your Electronic Speed Controller (ESC). For standard rotation, connect the motor wires to the ESC in any order. If the motor spins in the wrong direction, swap any two of the three motor wires, or reverse the direction in your ESC configuration software (e.g., BLHeliSuite, Betaflight Configurator).

3.3 Propeller Installation

Ensure propellers are balanced and free from damage. Mount the propellers securely onto the motor shaft. Verify that the rotation direction of each propeller matches the motor's intended spin direction for proper flight.

Image 3.1: The motor's rotor design, made from 7075 aviation aluminum with an anodized two-color process.

4. Operating Guidelines

4.1 Power Supply

The HGLRC Specter 1804-2450KV motor is designed to operate with 4-6S LiPo batteries. Using batteries outside this voltage range may result in reduced performance or damage to the motor and ESC.

4.2 ESC Compatibility

Pair this motor with an ESC capable of handling its maximum current draw (18A) and voltage range (4-6S). Ensure your ESC firmware is up-to-date for optimal performance and compatibility.

4.3 Initial Testing

Before flight, perform a bench test to verify motor rotation and smooth operation. Check for any unusual noises or vibrations. Ensure all connections are secure.

Image 4.1: Illustration of the motor's high-performance N52H arc-shaped magnetic steel for stronger magnetism and efficiency.

Image 4.2: Depiction of the motor's optimized tuning, providing linear power output and quick, precise response.

5. Maintenance

5.1 Regular Inspection

Periodically inspect the motor for any signs of wear or damage. Check the motor bell for dents, the shaft for bends, and the bearings for smooth rotation. Ensure all wires are intact and connections are secure.

5.2 Cleaning

Keep the motor clean from dirt, dust, and debris. Use compressed air or a soft brush to remove foreign particles that may affect performance or cause overheating.

5.3 Bearing Care

While the ISC bearings are durable, extreme impacts can affect them. If you notice excessive play or rough spinning, consider replacing the bearings. Avoid lubricating sealed bearings unless specifically designed for it.

Image 5.1: Close-up of the motor's 260-degree ultra-high temperature resistant copper wire winding, ensuring stability.

Image 5.2: Detail of the imported low-loss silicon steel sheets used in the stator for improved efficiency and reduced heat generation.

6. Troubleshooting

6.1 Motor Not Spinning

• Check Connections: Ensure all three motor wires are securely connected to the ESC.
• ESC Calibration: Verify that your ESCs are properly calibrated with your flight controller.
• Motor Damage: Inspect the motor for any physical damage, such as bent shafts or loose magnets.

6.2 Motor Overheating

• Propeller Size/Pitch: Ensure you are using propellers suitable for the motor's KV and your drone's weight. Oversized or high-pitch propellers can cause excessive load.
• ESC Timing: Incorrect ESC timing settings can lead to overheating. Refer to your ESC manual for recommended settings.
• Physical Obstruction: Check for any debris or foreign objects obstructing the motor's rotation.

6.3 Excessive Vibrations

• Propeller Balance: Unbalanced or damaged propellers are a common cause of vibrations. Replace or balance them.
• Motor Mount: Ensure the motor is securely mounted and that mounting screws are not loose.
• Bent Shaft/Damaged Bearings: Inspect the motor shaft for bends and check the bearings for smooth operation.

7. Specifications

Image 7.1: Detailed specifications for the HGLRC Specter 1804 motor.

Image 7.2: Efficacy table showing performance data for the Specter 1804 motor with various propellers and voltages.

8. Warranty Information

HGLRC products are covered by a manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary. Please retain your proof of purchase for any warranty claims. For detailed warranty information, refer to the official HGLRC website or contact their customer support.

9. Support

For further assistance, technical support, or to view additional products, please visit the official HGLRC store or website:

• HGLRC Amazon Store: Visit HGLRC Store
• General Inquiries: Refer to the contact information provided on the HGLRC official website.
