Weytoll Angle Grinder 125mm, 21V Instruction Manual

1. General Safety Instructions

Always observe basic safety precautions when using electrical tools to reduce the risk of fire, electric shock, and personal injury. Read all instructions carefully before operating this angle grinder.

• Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Avoid body contact with earthed or grounded surfaces. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Personal Safety: Always wear eye protection. Use hearing protection when operating the tool for extended periods. Wear a dust mask if operations create dust. Dress properly; avoid loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts.
• Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Store idle power tools out of the reach of children.
• Battery Tool Use and Care: Recharge only with the charger specified by the manufacturer. Use power tools only with specifically designated battery packs.

2. Product Overview

The Weytoll 125mm, 21V Angle Grinder is a cordless power tool designed for various applications such as grinding, cutting, and polishing. It features a brushless motor for efficiency and extended lifespan, and is powered by 21V lithium-ion batteries.

Image: Overview of the Weytoll Angle Grinder with key components labeled, including the spindle lock, ON/OFF switch, ergonomic handle, battery release button, speed adjustment button, 4.0Ah battery, speed and battery LED indicator panel, 2-position auxiliary side handle, brushless motor, and wheel guard.

Key Components:

• Brushless Motor: Provides up to 9000 RPM for efficient operation.
• Spindle Lock: For easy accessory changes.
• Wheel Guard: Protects against sparks and debris.
• Auxiliary Handle: Offers improved control and comfort.
• Battery Pack: 21V 4.0Ah Lithium-Ion battery.

3. Setup

3.1 Battery Charging and Installation

The angle grinder is powered by 21V 4.0Ah lithium-ion batteries. Ensure batteries are fully charged before use.

Image: Two 21V 4.0Ah Lithium-Ion batteries and a fast charger. These batteries provide power to the angle grinder.

1. Connect the charger to a power outlet.
2. Insert the battery pack into the charger. The indicator light on the charger will show the charging status.
3. Once fully charged, remove the battery from the charger.
4. To install the battery on the tool, align the battery pack with the battery port on the grinder and slide it in until it clicks into place.
5. To remove, press the battery release button and slide the battery out.

3.2 Auxiliary Handle Installation

The auxiliary handle can be installed in two positions for optimal control and comfort.

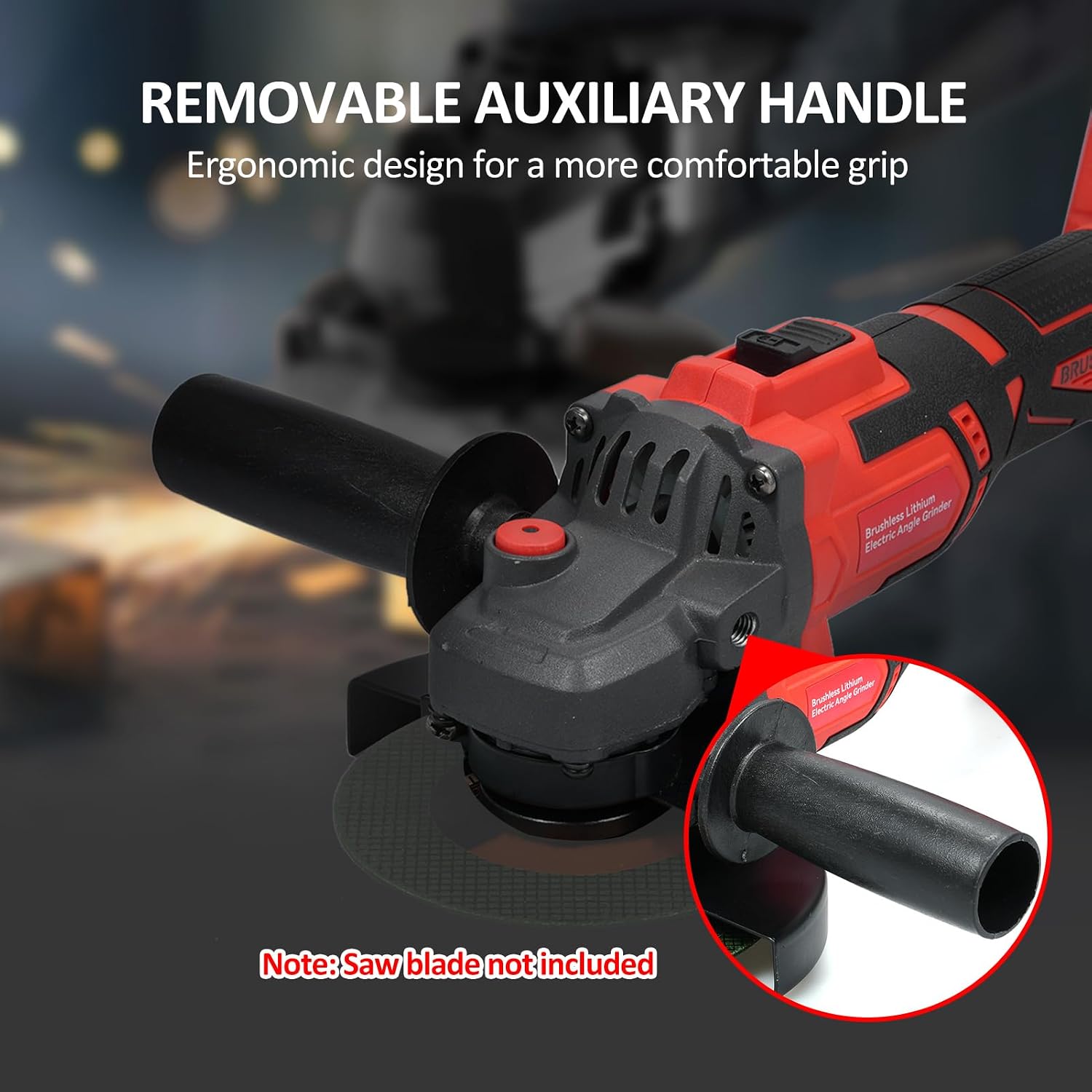

Image: A close-up view of the angle grinder showing the attachment point for the removable auxiliary handle, highlighting its ergonomic design for comfortable grip.

1. Identify the threaded holes on either side of the grinder's gear housing.
2. Screw the auxiliary handle into the desired position (left or right) until it is securely tightened.

3.3 Grinding Disc Installation

Ensure the tool is switched off and the battery is removed before changing discs.

Image: A four-panel image detailing product features: Thick Protective Cover, Powerful Heat Dissipation, Quick Release Main Locking Spindle, and Convenient Switch. The spindle lock mechanism is shown for disc installation.

1. Press and hold the spindle lock button.
2. Use the provided wrench to loosen and remove the pressure plate (outer flange nut).
3. Place the desired M14 compatible grinding disc onto the inner flange, ensuring it is centered.
4. Re-attach the pressure plate and tighten it securely with the wrench while holding the spindle lock button.
5. Verify the disc is properly seated and secured before operation.

4. Operating Instructions

4.1 Powering On/Off and Speed Adjustment

The grinder features a convenient switch for operation and a speed adjustment button.

Image: The angle grinder with its dimensions (33.5cm length, 11.9cm width) and a detailed inset showing the power indicator and 3-speed adjustment buttons.

1. To Turn On: Push the start switch to the 'ON' position.
2. To Turn Off: Push the start switch to the 'OFF' position.
3. Speed Adjustment: Use the speed adjustment button to cycle through the available speed settings (e.g., 3-speed adjustment). The LED indicator panel will show the current speed and battery level.

4.2 General Operation

Always hold the grinder firmly with both hands, using the main handle and the auxiliary handle. Position the wheel guard to deflect sparks and debris away from you.

Image: An angle grinder actively grinding metal, producing sparks. The image highlights the maximum rotational speed of 9000 RPM and the upgraded brushless motor.

• Allow the tool to reach full speed before contacting the workpiece.
• Apply light, even pressure. Do not force the tool, as this can lead to kickback or damage.
• Move the grinder smoothly across the surface of the material.
• For cutting, ensure the workpiece is securely clamped.

4.3 Multi-Scene Application

The Weytoll Angle Grinder is versatile and can be used for various tasks with appropriate discs.

Image: A collage demonstrating the angle grinder's versatility across multiple applications: Metal Cutting, Wood Grinding, Stone Cutting, and Metal Grinding. A note indicates that the saw blade is not included.

• Metal Cutting: Use appropriate cut-off wheels for steel, aluminum, or other metals.
• Wood Grinding: Utilize specialized woodworking blades or sanding discs.
• Stone Cutting: Employ diamond cutting blades for masonry and stone.
• Metal Grinding: Use grinding wheels for smoothing welds, removing rust, or shaping metal.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your angle grinder.

Image: A detailed view of the angle grinder's aluminum alloy sturdy head shell, emphasizing its quality material for strength and heat dissipation. The enlarged heat sink is noted to extend machine life.

• Cleaning: Keep the tool's ventilation openings clean to prevent overheating. Use a soft brush or compressed air to remove dust and debris. Do not use water or chemical cleaners.
• Disc Inspection: Regularly inspect grinding and cutting discs for cracks, chips, or excessive wear. Replace damaged discs immediately.
• Battery Care: Store batteries in a cool, dry place. Do not store fully discharged batteries for extended periods.
• General Inspection: Check all screws and fasteners periodically for tightness. Tighten any loose components.

6. Troubleshooting

If you encounter issues with your angle grinder, refer to the following common problems and solutions:

7. Specifications

Technical data for the Weytoll Angle Grinder 125mm, 21V.
