1. Introduction
Thank you for choosing the PURPLE LEAF 4.25 x 3 m Outdoor Gazebo. This gazebo is designed to provide a comfortable and elegant outdoor living space, featuring a durable galvanized steel hardtop, robust aluminum frame, integrated LED lighting, and versatile curtains. This manual provides essential information for safe assembly, operation, maintenance, and troubleshooting to ensure long-lasting enjoyment of your product.
Image 1: The PURPLE LEAF 4.25 x 3 m Outdoor Gazebo with integrated lighting, set up in an outdoor patio area at dusk.
2. Safety Instructions
- Read All Instructions: Before assembly and use, carefully read and understand all instructions provided in this manual.
- Two-Person Assembly: Assembly requires at least two adults. Do not attempt to assemble alone.
- Secure Installation: Ensure the gazebo is securely anchored to the ground using appropriate hardware for your surface. Failure to do so may result in instability and damage.
- Weather Conditions: While designed for various weather conditions, disassemble or secure the gazebo during extreme weather such as heavy winds, snowstorms, or thunderstorms to prevent damage or injury.
- Weight Limits: Do not exceed the maximum load capacity of 9 kg for the integrated ceiling hooks.
- Electrical Safety: Ensure all electrical connections for the integrated lighting are properly sealed and protected from moisture. Do not use damaged electrical components.
- Clearance: Maintain adequate clearance around the gazebo from heat sources, open flames, and sharp objects.
3. Package Contents
Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer service.
- Aluminum Frame Components (posts, beams, connectors)
- Galvanized Steel Roof Panels
- Fabric Curtains (160 g/m²)
- Mosquito Nets (110 g/m²)
- Integrated LED Lighting Kit (14.6 m string with 24 bulbs)
- Hardware Kit (screws, bolts, anchors, tools)
- Instruction Manual
4. Assembly and Setup
Assembly time is reduced by 20% due to simplified steps and pre-drilled bases. Detailed video tutorials are available for guidance.
- Unpack and Identify Parts: Lay out all components and compare them with the parts list in the manual.
- Assemble the Frame: Connect the aluminum posts and beams. The robust aluminum structure features 10 cm triangular posts and 15 cm reinforced crossbeams for exceptional stability.
- Attach Roof Panels: Install the double galvanized steel roof panels. Ensure proper alignment for efficient water drainage.
- Install Curtains and Mosquito Nets: Attach the fabric curtains and mosquito nets to the frame.
- Connect LED Lighting: Secure the 14.6 m integrated LED lighting string (24 bulbs, 2700K warm white) along the interior frame. Ensure all connections are secure and weather-resistant.
- Anchor the Gazebo: Securely anchor the gazebo to your chosen surface using the provided hardware.

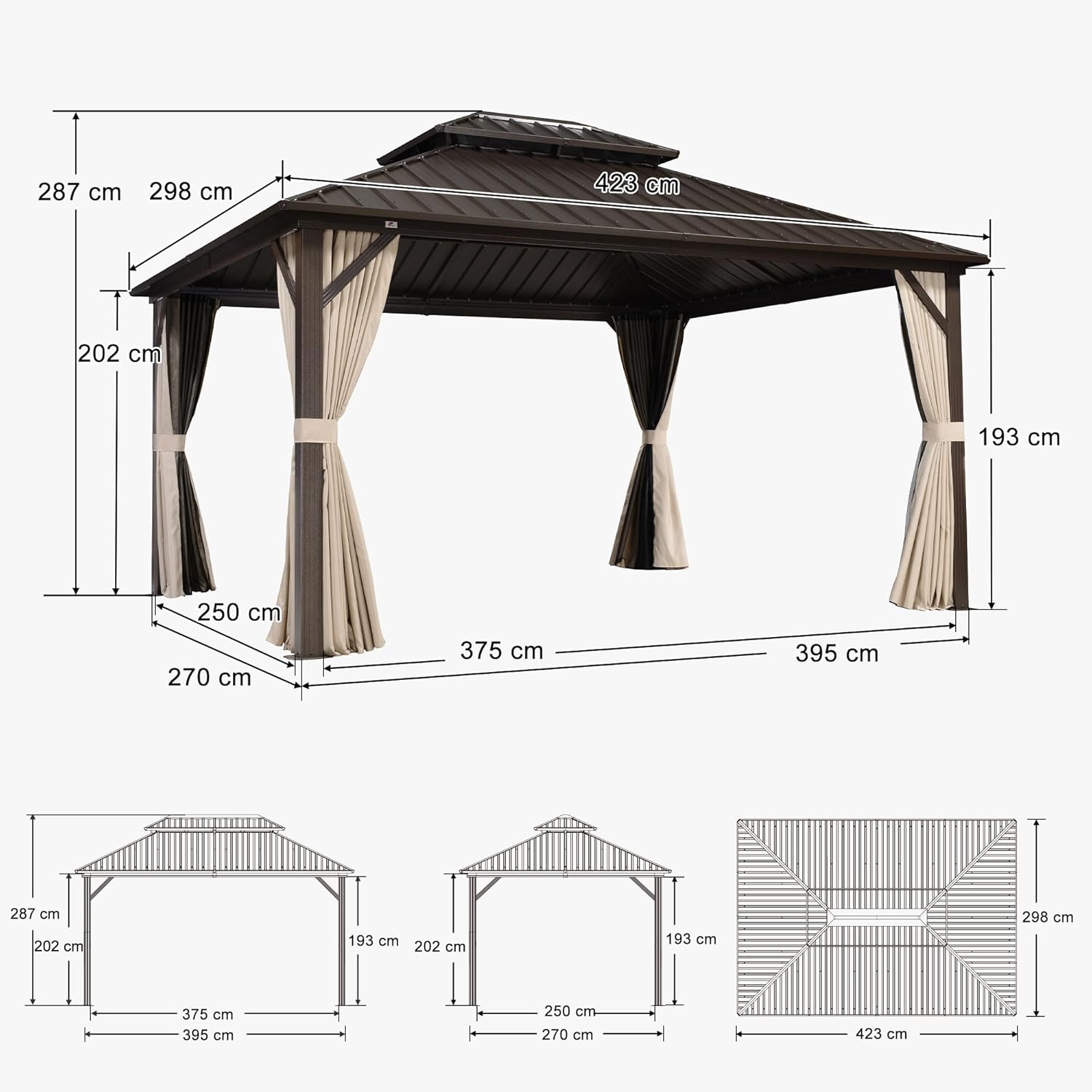

Image 2: Detailed diagram showing the dimensions of the gazebo, including height, width, and depth measurements.
Image 3: Visual comparison highlighting the larger 10 cm x 10 cm posts of the PURPLE LEAF gazebo compared to smaller posts from other brands, emphasizing enhanced stability.
5. Operating Instructions
Your gazebo offers flexible usage options to suit your needs:
- Fully Open: Retract all curtains and mosquito nets to enjoy an optimal outdoor view and maximum airflow.
- Semi-Open: Deploy the mosquito nets to provide insect-free ventilation while maintaining an open feel.
- Fully Closed: Extend both the curtains and mosquito nets for privacy, warmth, and enhanced UV protection. The reinforced 160 g/m² fabric is resistant to fading and wear.
- Integrated Lighting: Use the switch to turn on the integrated LED string lights for a warm and inviting ambiance.
Image 4: Illustration of the three usage modes: Fully Open for optimal view, Semi-Open for insect-free ventilation, and Fully Closed for privacy and UV protection.
6. Maintenance
Regular maintenance will extend the life and appearance of your gazebo.
- Cleaning the Frame: Wipe the aluminum frame with a damp cloth and mild soap. Rinse thoroughly and dry. The aluminum is rust and corrosion resistant.
- Cleaning the Roof: The double galvanized steel roof is weather-resistant and designed for easy maintenance. Periodically clear any debris, leaves, or snow accumulation. The sloped design ensures smooth rainwater runoff.
- Cleaning Fabric and Nets: The 160 g/m² fabric and 110 g/m² mosquito nets can be spot cleaned with mild soap and water. Allow to air dry completely before retracting or storing.
- Hardware Check: Periodically inspect all bolts and screws to ensure they are tight. Tighten as necessary.
- Winter Storage: While the gazebo is designed for year-round outdoor use, consider removing fabric components and storing them indoors during harsh winter conditions to prolong their lifespan.
Image 5: Close-up of the double galvanized steel roof, illustrating its UV protection, weather resistance, and optimal ventilation features with airflow arrows.
Image 6: A close-up image of one of the integrated LED bulbs, showing its waterproof design under simulated rain, indicating its suitability for all seasons.
7. Troubleshooting
- Gazebo Feels Unstable: Ensure all frame connections are tight and the gazebo is properly anchored to the ground. Re-check assembly steps.
- Water Accumulation on Roof: The sloped roof is designed for efficient drainage. If water pools, check for any obstructions on the roof or ensure the roof panels are correctly installed and aligned.
- LED Lights Not Working: Check the power connection and ensure the switch is in the 'on' position. Inspect the wiring for any visible damage.
- Curtains/Nets Not Moving Smoothly: Check the tracks for debris or obstructions. Ensure the fabric is not snagged.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | ZYFRDPD03JJHTG1014 |
| Dimensions (L x W x H) | 4.23 m x 2.98 m x 2.87 m |
| Weight | 117 Kilograms |
| Frame Material | Aluminum (Rust and Corrosion Resistant) |
| Roof Material | Galvanized Steel (Double Layer, UV Protection, Weather Resistant) |
| Fabric Material | 160 g/m² (Fade and Wear Resistant) |
| Mosquito Net Material | 110 g/m² (High Strength, 3x Stronger than Standard) |
| Color | Bronze |
| Occupancy Capacity | 6 to 9 people |
| Snow Load Capacity | 20 kg/m² |
| Wind Resistance | Up to 65 km/h |
| Integrated Lighting | 14.6 m string, 24 bulbs, 2700K Warm White |
| Ceiling Hook Max Load | 9 kg |
9. Warranty and Support
PURPLE LEAF is committed to providing high-quality products and customer satisfaction.
- Returns: This product is eligible for 30-day returns. Please refer to your purchase platform for specific return policies.
- Legal Guarantees: Your product is covered by applicable legal guarantees.
- Customer Service: For any questions, assistance with assembly, or to report missing/damaged parts, please contact PURPLE LEAF professional customer service.
For more information and support, visit the official PURPLE LEAF store: PURPLE LEAF Store
