Introduction
Thank you for choosing the Beldray BEL0700TBVDE Compact Pet Plus+ Cylinder Vacuum Cleaner. This manual provides essential information for the safe and efficient use, maintenance, and troubleshooting of your new appliance. Please read these instructions thoroughly before first use and keep them for future reference.
Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury. This appliance is for domestic use only.
- Ensure the voltage indicated on the rating label matches your mains supply voltage.
- Do not immerse the appliance, power cord, or plug in water or any other liquid.
- Unplug from the mains socket when not in use, before cleaning, or before changing accessories.
- Keep the appliance out of reach of children and pets.
- Do not use the vacuum cleaner to pick up liquids, hot ashes, sharp objects, or flammable materials.
- Regularly inspect the power cord and plug for damage. If damaged, it must be replaced by a qualified person to avoid a hazard.
- Do not operate the appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
Product Components
Familiarize yourself with the various parts of your Beldray BEL0700TBVDE vacuum cleaner:
- Main Unit: Compact cylinder design with a 700W motor and cyclonic technology.
- Dust Container: 2-liter capacity, bagless design for easy emptying.
- Washable HEPA Filter: Traps household allergens and dust for cleaner air.
- Hose: Flexible hose for connecting attachments.
- Telescopic Extension Tube: Adjustable for reaching difficult areas and comfortable use.
- Floor Head: Standard attachment for general floor cleaning.
- 2-in-1 Crevice Tool: For narrow spaces and corners.
- Brush Tool: For upholstery and curtains.
- Pet Turbo Brush: Specifically designed to remove pet hair from upholstery and carpets.
- Rubber Wheels: For smooth movement and floor protection.
- Power Cord: 5-meter length for extended reach.

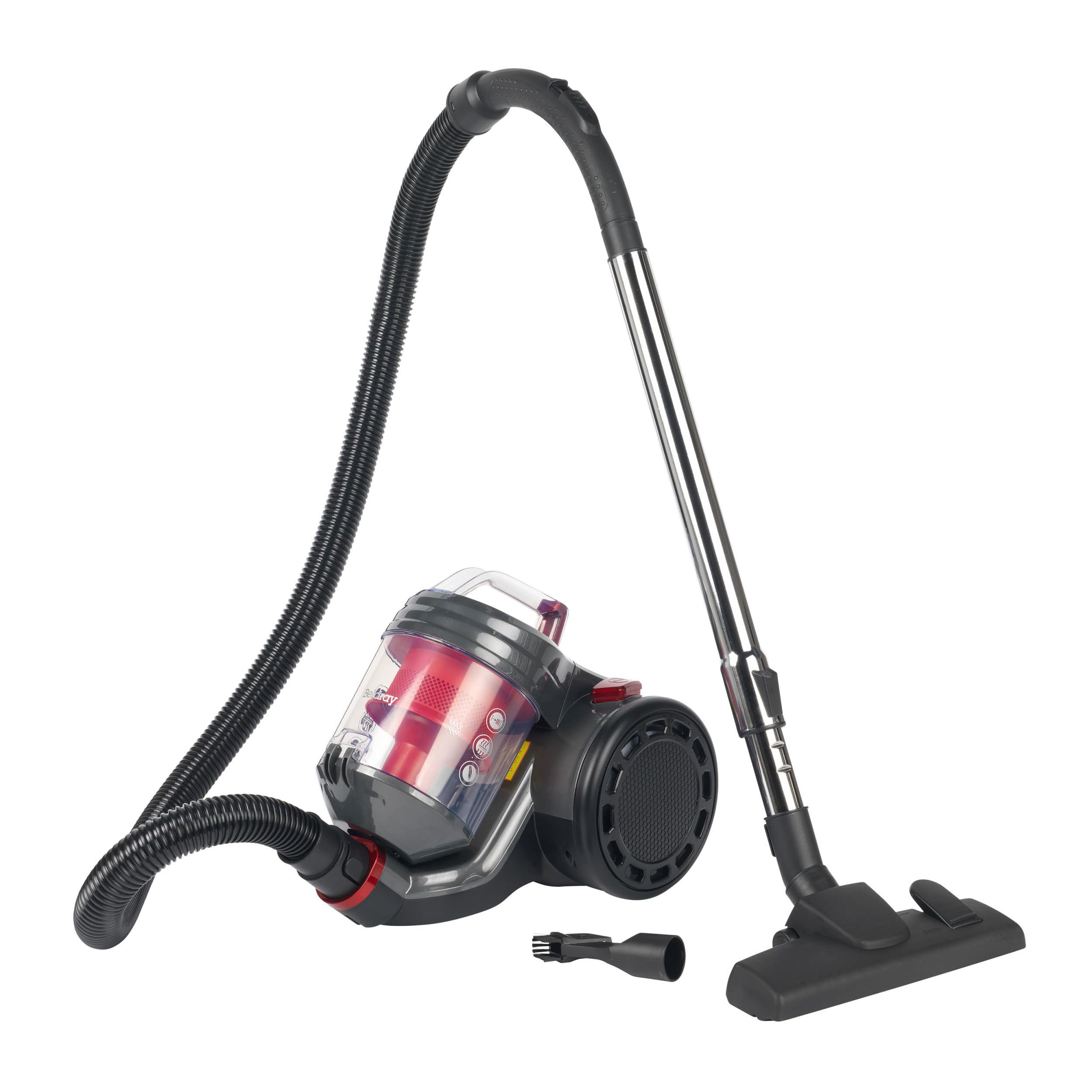

Image: Key features and accessories of the Beldray BEL0700TBVDE vacuum cleaner, including the crevice tool, brush tool, cyclonic technology, and pet turbo brush.
Setup Instructions
- Unpack: Carefully remove all components from the packaging.
- Attach Hose: Insert the flexible hose into the suction inlet on the main unit until it clicks securely into place.
- Connect Extension Tube: Attach the telescopic extension tube to the handle end of the hose. Adjust the length by pressing the release button and sliding the tube to your desired height.
- Attach Floor Head/Accessory: Connect the desired cleaning accessory (e.g., floor head, crevice tool, pet turbo brush) to the end of the telescopic extension tube. Ensure it is firmly attached.
- Power Connection: Unwind the power cord and plug it into a suitable mains power socket.
Image: A person demonstrating the use of the Beldray BEL0700TBVDE vacuum cleaner on a carpeted floor.
Operating Instructions
Once assembled, your vacuum cleaner is ready for use.
- Power On: Press the power button located on the main unit to switch on the vacuum cleaner.
- General Cleaning: Use the main floor head for cleaning carpets and hard floors. Some floor heads may have a switch to adjust for different floor types.
- Using the Crevice Tool: For tight spaces, corners, and edges, detach the main floor head and attach the 2-in-1 crevice tool.
- Using the Brush Tool: For delicate surfaces like upholstery, curtains, or shelves, use the brush tool.
- Using the Pet Turbo Brush: For effective removal of pet hair from carpets, rugs, and upholstered furniture, attach the pet turbo brush. Guide it slowly over the surface for best results.
- Maneuvering: The compact design and rubber wheels allow for easy movement around your home. The 5-meter power cord provides ample reach.
- Power Off: After cleaning, press the power button to switch off the vacuum cleaner and unplug it from the mains socket.
Image: The Beldray BEL0700TBVDE vacuum cleaner's pet turbo brush being used to clean a pet bed, effectively removing pet hair.
Image: The crevice tool attachment of the Beldray BEL0700TBVDE vacuum cleaner being used to clean crumbs from a sofa.
Maintenance
Regular maintenance ensures optimal performance and extends the life of your vacuum cleaner.
Emptying the Dust Container
- Ensure the vacuum cleaner is switched off and unplugged.
- Press the release button to detach the dust container from the main unit.
- Position the container over a waste bin and press the release latch to open the bottom flap, allowing dirt and debris to fall out.
- Close the flap securely and reattach the dust container to the main unit.
Cleaning the Filters
The Beldray BEL0700TBVDE features a washable HEPA filter and a synthetic mesh filter. Clean them regularly to maintain suction power.
- With the dust container detached, locate the filters inside.
- Remove both the HEPA filter and the synthetic mesh filter.
- Tap the filters gently over a bin to remove loose dust.
- Rinse both filters under cold running water until the water runs clear. Do not use detergents or hot water.
- Allow the filters to air dry completely for at least 24 hours before reinserting them. Do not use a hairdryer or other heating devices.
- Once completely dry, reinsert the filters into the dust container and reattach the container to the vacuum cleaner.
Note: The manufacturer includes a second HEPA filter for extended use. Replace the HEPA filter if it becomes permanently discolored or damaged.
Troubleshooting
If you encounter issues with your vacuum cleaner, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum cleaner does not turn on. | No power supply. | Check if the plug is securely in the socket and the power outlet is working. |
| Reduced suction power. | Dust container full or filters clogged. | Empty the dust container and clean/dry the filters as per maintenance instructions. |
| Reduced suction power. | Hose or attachments blocked. | Switch off and unplug the vacuum. Inspect the hose, extension tube, and attachments for blockages and remove them carefully. |
| Unusual noise during operation. | Blockage in the hose or brush head. | Switch off and unplug. Check for and remove any obstructions in the hose or brush head. |
Specifications
- Model Number: BEL0700TBVDE
- Brand: Beldray
- Power: 700 Watts
- Capacity: 2 Litres
- Dimensions (L x W x H): 36 x 25 x 36 cm
- Weight: 4.2 Kilograms
- Filter Type: HEPA Filter
- Special Features: Compact, HEPA, Lightweight, Rubber Wheels, Bagless
- Power Source: Corded Electric
- Recommended Surface: Carpet
Warranty Information
Your Beldray BEL0700TBVDE Compact Pet Plus+ Cylinder Vacuum Cleaner comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms, conditions, and registration details. Keep your proof of purchase for any warranty claims.
Customer Support
For further assistance, technical support, or spare parts, please contact Beldray customer service. Contact details can typically be found on the Beldray official website or on the product packaging.
Website: www.beldray.com (Please check for your regional website)
