1. Introduction and Overview
This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Huanyu 18L Automatic Steam Autoclave Sterilizer, model WL-MLY-18B1. This intelligent control laboratory electric autoclave is designed for high-pressure steam sterilization with adjustable temperature and time settings. It is suitable for various applications including scientific research, agricultural research, food hygiene, university laboratories, and the sterilization of instruments, liquids, and textiles.
2. Safety Information
Always read and understand all safety warnings and operating instructions before using the autoclave. Failure to follow these instructions may result in injury or damage to the equipment.
2.1 Anti-Dry Burn Protection
The autoclave sterilizer is equipped with a liquid level switch to prevent dry burning. If the water level falls below this switch, the autoclave will automatically cut off heating power and sound an alarm. This feature ensures safe operation and extends the device's lifespan. Always ensure adequate water levels before starting a sterilization cycle.
2.2 Dual Valve System
This steam sterilizer features two critical valves: a purge valve and a safety valve.
- Purge Valve: This valve must be manually operated to expel cold air from the chamber at the beginning of the sterilization cycle. It is also used to release internal steam pressure at the end of the cycle.
- Safety Valve: The safety valve has an overpressure auto-discharge function. It automatically releases pressure when the internal pressure exceeds 0.17 MPa, ensuring user safety and preventing over-pressurization of the chamber.
3. Product Components
Familiarize yourself with the main components of the Huanyu 18L Automatic Steam Autoclave Sterilizer.

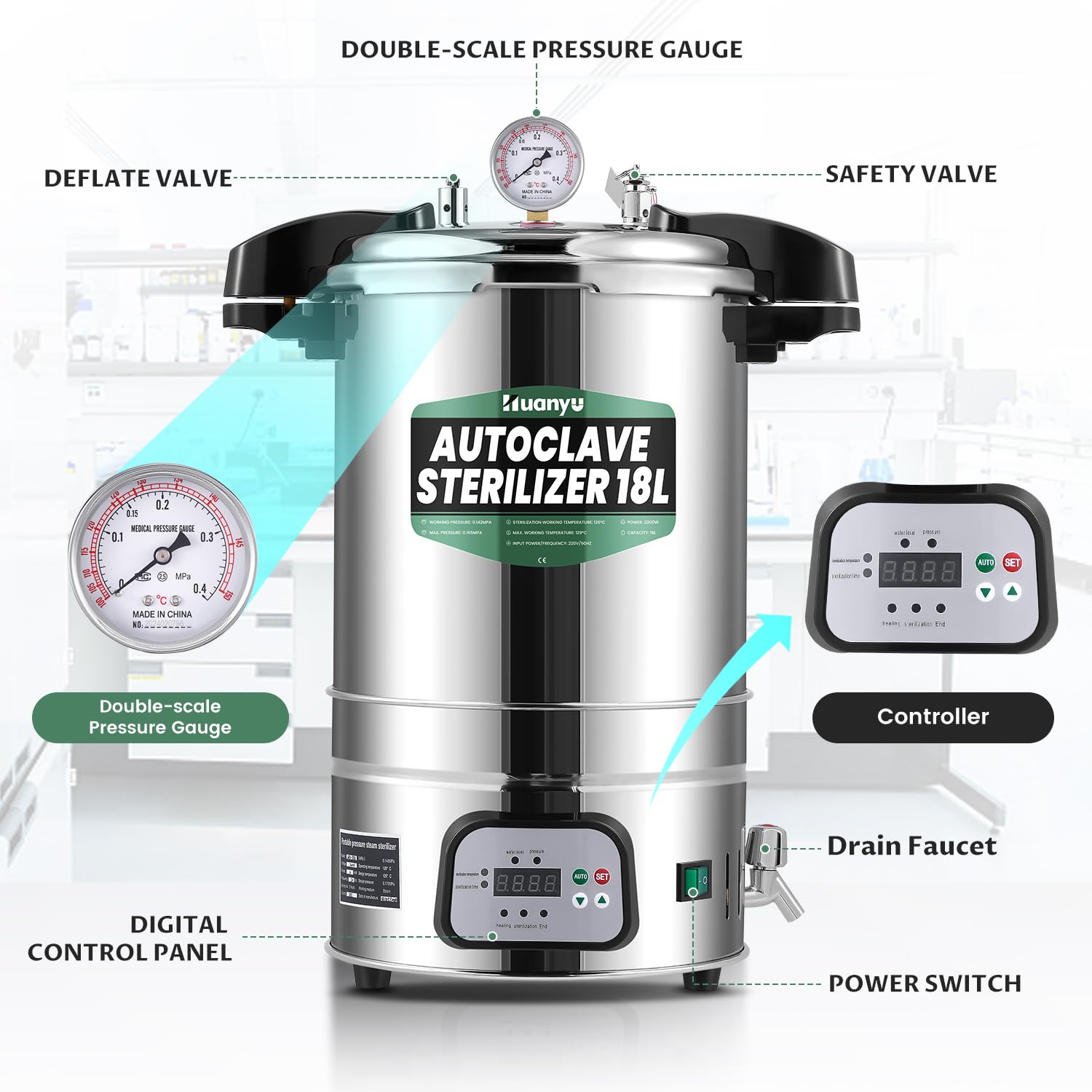

Figure 3.1: Autoclave Sterilizer Main Components. This image displays the Huanyu 18L Autoclave Sterilizer with key components labeled, including the Double-Scale Pressure Gauge, Deflate Valve, Safety Valve, Controller, Drain Faucet, Power Switch, and Digital Control Panel.
Figure 3.2: Packing List. The image shows the main autoclave sterilizer unit, a stainless steel inner bucket, a stainless steel steaming plate, and an insulation glove, which are included with the product.
- Autoclave Sterilizer Unit: The main device for steam sterilization.
- Double-Scale Pressure Gauge: Displays internal pressure.
- Deflate Valve (Purge Valve): Manually releases air and steam.
- Safety Valve: Automatic overpressure release mechanism.
- Controller / Digital Control Panel: Microcomputer-controlled interface for setting and monitoring sterilization parameters.
- Drain Faucet: For draining water from the chamber.
- Power Switch: Controls the power supply to the unit.
- Stainless Steel Inner Bucket: Used to hold items for sterilization.
- Stainless Steel Steaming Plate: Placed at the bottom of the inner bucket.
- Insulation Glove: For safe handling of hot components.
4. Setup
Proper setup is crucial for safe and effective operation.
- Unpacking: Carefully remove all components from the packaging. Inspect for any shipping damage.
- Placement: Place the autoclave on a stable, level, heat-resistant surface. Ensure adequate clearance around the unit for ventilation and access.
- Water Filling: Open the lid and fill the chamber with distilled water up to the indicated maximum level. Do not use tap water as it can cause mineral buildup and damage the unit.
- Insert Inner Bucket: Place the stainless steel steaming plate at the bottom of the chamber, then insert the stainless steel inner bucket.
- Power Connection: Connect the power cord to a grounded electrical outlet with the correct voltage.
5. Operating Instructions
The Huanyu 18L Autoclave features intelligent control for precise sterilization.
Figure 5.1: Automatic Control Panel. This image highlights the digital control panel, showing the display for temperature and time, along with 'AUTO' and 'SET' buttons for operation. It also indicates the working temperature range (126-129°C), sterilization time setting (0-60 min), and working pressure (0.142-0.165 MPa).
- Load Items: Place the items to be sterilized inside the stainless steel inner bucket. Ensure items are arranged to allow steam circulation. Do not overfill.
- Close Lid: Securely close the autoclave lid, ensuring it is properly sealed.
- Power On: Turn on the main power switch. The digital control panel will illuminate.
- Set Sterilization Parameters:
- Press the 'SET' button to adjust the sterilization temperature and time.
- The operating temperature range for sterilization is 126 to 129 °C.
- The adjustable time range is 0 to 60 minutes.
- The system can recall the last set temperature and time for automatic sterilization without requiring a reset.
- Start Sterilization: Press the 'AUTO' button to begin the sterilization cycle. The unit will start heating.
- Purge Cold Air: Once steam begins to escape from the purge valve, manually open the purge valve to release cold air from the chamber. Close the valve once only pure steam is escaping. This ensures proper steam penetration.
- Monitoring: Monitor the pressure gauge and the digital display during the cycle. The working pressure range is typically 0.142-0.165 MPa.
- Cycle Completion: The unit will automatically complete the sterilization process according to the set parameters. An alarm will sound upon completion.
- Cool Down and Depressurize: Allow the autoclave to cool down naturally. Once the pressure gauge reads zero, carefully open the purge valve to ensure all remaining pressure is released before opening the lid.
- Remove Items: Using the provided insulation glove, carefully open the lid and remove the sterilized items.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your autoclave.
- Cleaning: After each use, allow the unit to cool. Drain any remaining water. Clean the interior of the chamber and the inner bucket with a soft cloth and distilled water. Do not use abrasive cleaners.
- Gasket Inspection: Regularly inspect the lid gasket for any signs of wear, cracks, or damage. A damaged gasket can lead to steam leaks and improper sterilization. Replace if necessary.
- Valve Check: Periodically check the purge valve and safety valve for proper function. Ensure they are not clogged and operate smoothly.
- Water Quality: Always use distilled water to prevent mineral buildup on heating elements and internal surfaces, which can affect performance and lifespan.
- Exterior Cleaning: Wipe the exterior of the unit with a damp cloth.
7. Troubleshooting
This section addresses common issues you might encounter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not power on. | No power supply; Power cord not connected; Faulty power switch. | Check power outlet; Ensure power cord is securely connected; Contact support if switch is faulty. |
| No heating or insufficient heating. | Insufficient water level (dry-burn protection activated); Heating element failure. | Add distilled water to the appropriate level; Contact support for heating element issues. |
| Steam leaks from lid. | Lid not properly sealed; Damaged lid gasket. | Ensure lid is securely closed and latched; Inspect and replace lid gasket if damaged. |
| Pressure does not build up. | Lid not sealed; Purge valve open; Safety valve faulty. | Check lid seal; Ensure purge valve is closed after expelling air; Contact support for safety valve issues. |
| Alarm sounds during operation. | Low water level (dry-burn protection); Over-pressure (safety valve activation). | Check water level and add if necessary; Allow unit to cool and depressurize, then investigate cause of over-pressure. |
8. Specifications
Key technical specifications for the Huanyu 18L Automatic Steam Autoclave Sterilizer.
Figure 8.1: Capacity and Dimensions. This image illustrates the 18L capacity and internal diameter of the autoclave, which is approximately Ø260x270mm, with an overall product size of Ø283x600mm.
- Model Number: WL-MLY-18B1
- Capacity: 18 Liters
- Operating Temperature Range: 126 - 129 °C
- Adjustable Sterilization Time: 0 - 60 minutes
- Working Pressure: 0.142 - 0.165 MPa (Safety valve activates above 0.17 MPa)
- Product Dimensions (Overall): Approximately 28.3 cm (Diameter) x 60 cm (Height)
- Internal Diameter: Approximately Ø260 x 270 mm
- Package Dimensions: 68.5 x 41.5 x 40.5 cm
- Item Weight: 15.26 kilograms
- Manufacturer: Huanyu
9. Applications
The Huanyu 18L Autoclave Sterilizer is versatile and suitable for a wide range of professional applications.
Figure 9.1: Wide Application. This image displays six common applications for the autoclave, including Instrument Ware sterilization, Bacterial Culture preparation, Clothes Sterilization, Experimental Research, Substrate Sterilization, and Laboratory Teaching.
- Scientific Research Units
- Agricultural Research
- Food Hygiene
- University Laboratories
- Instrument Sterilization
- Liquid Sterilization
- Textile Sterilization
- Bacterial Culture Preparation
- Substrate Sterilization
- Experimental Research
- Laboratory Teaching
10. Warranty and Support
Huanyu is committed to providing professional after-sales service.
We offer a one-year free warranty service for each product. Every product undergoes careful inspection before delivery. However, if you encounter any issues with the product upon receipt or during its use, please do not hesitate to contact us. Our dedicated team is ready to provide satisfactory and professional after-sales support to ensure your complete satisfaction.
