AEG JP18L3-402TB 18V 3-Tool Combo Kit Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your AEG JP18L3-402TB 18V 3-Tool Combo Kit. This kit includes an 18V Impact Drill, an 18V Brushless Rotary Hammer, and an 18V Brushless 125mm Angle Grinder, along with two 4.0 Ah batteries and a carrying case. Please read this manual thoroughly before using the tools and retain it for future reference.

2. General Safety Information

Always follow basic safety precautions when using power tools to reduce the risk of fire, electric shock, and personal injury. Keep your work area clean and well-lit. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Always wear appropriate personal protective equipment (PPE) including safety glasses, hearing protection, and gloves. Ensure the tool is switched off before making any adjustments, changing accessories, or storing it. Disconnect the battery pack from the tool before making any adjustments, changing accessories, or storing tools.

3. Package Contents

• 1 x AEG 18V Impact Drill
• 1 x AEG 18V Brushless Rotary Hammer
• 1 x AEG 18V Brushless 125mm Angle Grinder
• 2 x AEG 18V 4.0 Ah Lithium-ion Batteries
• 1 x Battery Charger
• 1 x Carrying Case
• Instruction Manuals for each tool

4. Setup

4.1 Battery Installation and Charging

Before first use, fully charge the battery pack. Insert the battery pack into the charger, ensuring it clicks into place. The charger indicator light will show the charging status. Once fully charged, remove the battery from the charger. To install the battery on a tool, align the battery with the tool's battery port and slide it in until it locks securely. To remove, press the release button and slide the battery out.

Image of the AEG 18V 4.0 Ah Lithium-ion Battery. This battery powers all tools in the kit.

4.2 Impact Drill Setup

To install a drill bit, twist the chuck counter-clockwise to open the jaws. Insert the drill bit fully and then twist the chuck clockwise to tighten it securely. Ensure the bit is centered and firmly gripped. Adjust the torque setting ring to the desired level for your application. The drill also features a mode selector for drilling, impact drilling, and screwdriving.

The AEG 18V Impact Drill, ready for bit installation and use.

4.3 Brushless Rotary Hammer Setup

For SDS-Plus bits, pull back the chuck collar, insert the bit, and release the collar. The bit should have slight play for proper hammer action. Select the desired mode: drilling, hammer drilling, or chiseling (if applicable). Ensure the side handle is securely attached and adjusted for optimal control.

The AEG 18V Brushless Rotary Hammer, designed for heavy-duty drilling in masonry.

4.4 Brushless Angle Grinder Setup

Attach the auxiliary handle to either side of the grinder for comfortable and safe operation. To install or change a grinding/cutting disc, press the spindle lock button and use the provided wrench to loosen or tighten the flange nut. Ensure the disc is correctly seated and the guard is adjusted to protect against sparks and debris.

The AEG 18V Brushless 125mm Angle Grinder, featuring a robust design for cutting and grinding tasks.

5. Operating Instructions

5.1 Impact Drill Operation

Hold the drill firmly with both hands if possible. Position the drill bit on the workpiece. Press the trigger to start the drill. Apply steady, even pressure. For impact drilling, ensure the impact mode is selected and use appropriate masonry bits. For screwdriving, select the screwdriving mode and adjust the torque to prevent over-tightening or stripping screws.

A user demonstrating the AEG 18V Impact Drill in a construction setting, drilling into a wooden beam.

5.2 Brushless Rotary Hammer Operation

Ensure the correct bit and mode are selected. Hold the tool securely. For hammer drilling, allow the tool to do the work; do not force it. Apply light, consistent pressure. For chiseling, ensure the chisel is correctly oriented and the chiseling mode is engaged. Always be aware of potential electrical wiring or plumbing behind the drilling surface.

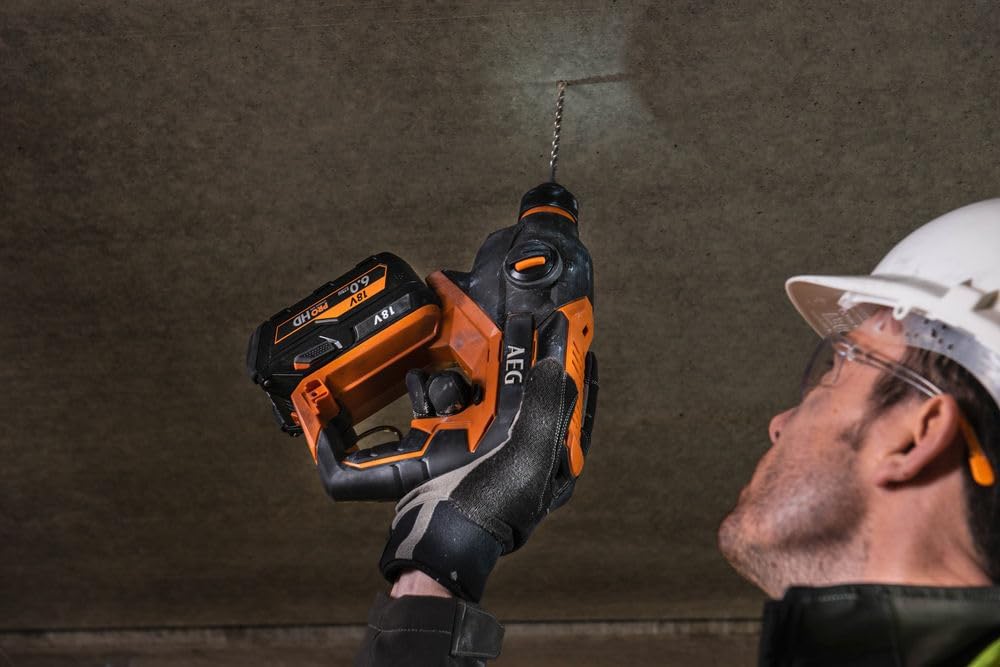

A user operating the AEG 18V Brushless Rotary Hammer, drilling into a concrete ceiling.

5.3 Brushless Angle Grinder Operation

Always wear safety glasses, hearing protection, and heavy-duty gloves. Hold the grinder firmly with both hands. Start the grinder before making contact with the workpiece. Use a steady, controlled motion. For cutting, use a thin cutting disc and avoid twisting the tool. For grinding, use a grinding disc and maintain a slight angle to the workpiece. Be aware of sparks and debris, and ensure bystanders are at a safe distance.

A user operating the AEG 18V Brushless 125mm Angle Grinder, cutting metal on a construction site.

6. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your tools. Keep all tools clean and free from dust and debris. Use a dry cloth to wipe down surfaces. Do not use harsh chemicals or abrasive cleaners. Inspect power cords and battery contacts for damage. Store tools and batteries in a dry, secure location away from direct sunlight and extreme temperatures. For detailed maintenance procedures, refer to the individual tool manuals.

6.1 Battery Care

Do not store batteries in a discharged state. Recharge them regularly, even if not in use. Avoid exposing batteries to water or extreme heat. If a battery is damaged, discontinue use and dispose of it properly according to local regulations.

7. Troubleshooting

• Tool not starting: Ensure the battery is fully charged and correctly inserted. Check for any safety lockouts or switches.
• Reduced power or runtime: The battery may need recharging or could be nearing the end of its lifespan. Ensure the battery contacts are clean.
• Excessive vibration or noise: Check that accessories (bits, discs) are correctly installed and not damaged. Inspect the tool for any loose parts. Discontinue use if unusual noises persist.
• Overheating: Allow the tool to cool down. Ensure proper ventilation around the motor. Avoid continuous heavy-duty use without breaks.

If problems persist after attempting these solutions, contact AEG customer support or an authorized service center.

8. Specifications

9. Warranty and Support

AEG power tools are designed for durability and performance. This product kit is covered by AEG's standard warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical support, spare parts, or service, please visit the official AEG Powertools website or contact your local authorized AEG service center. Online registration of your tools may extend the warranty period.

For more information, visit: aeg-powertools.fr
