AVATTO WT410-BH-3A-W Smart Thermostat User Manual

1. Introduction

Thank you for choosing the AVATTO WT410-BH-3A-W Smart Thermostat. This device is designed to provide intelligent control over your gas boiler system, allowing you to manage your home's heating efficiently. With Wi-Fi connectivity, you can remotely adjust temperatures via a mobile application, integrate with popular voice assistants, and utilize advanced scheduling options. This manual provides detailed instructions for installation, operation, and maintenance to ensure optimal performance and energy savings.

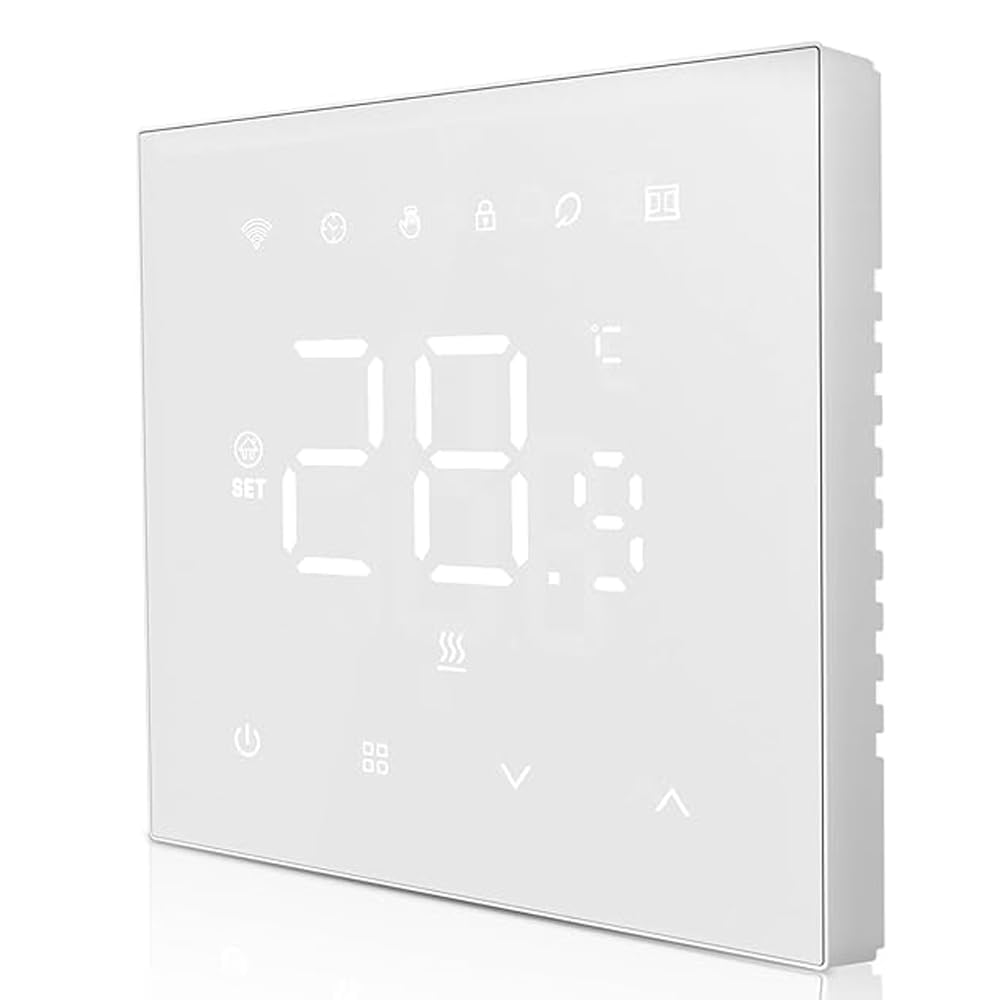

Figure 1: Front view of the AVATTO WT410-BH-3A-W Smart Thermostat, showing its sleek design and LED display.

2. Safety Information

• Electrical Hazard: Installation must be performed by a qualified electrician. Disconnect power at the circuit breaker before installation to prevent electrical shock.
• Voltage Compatibility: Ensure the thermostat's voltage requirements match your electrical system.
• Boiler Compatibility: This thermostat is designed for gas boiler systems with a maximum load of 3A. Verify compatibility with your boiler before installation.
• Environmental Conditions: Do not install in areas with high humidity, direct sunlight, or extreme temperatures.
• Children Safety: Keep the device out of reach of children.

3. Package Contents

Please check the package for the following items:

• AVATTO WT410-BH-3A-W Smart Thermostat Unit
• Mounting Screws (2 pcs)
• User Manual (this document)

4. Installation

Important: Installation should only be carried out by a qualified professional. Ensure the main power supply to your heating system is turned off before proceeding.

1. Power Disconnection: Turn off the main power supply to your boiler system at the circuit breaker. Verify that the power is off using a voltage tester.
2. Remove Old Thermostat (if applicable): Carefully remove your existing thermostat from the wall. Note the wiring connections before disconnecting them.
3. Mounting the Base Plate: Separate the front panel of the AVATTO thermostat from its base plate. Secure the base plate to the wall using the provided mounting screws. Ensure it is level.
4. Wiring: Connect the wires from your boiler system to the appropriate terminals on the thermostat's base plate. Refer to the "Wiring Diagram" section for detailed instructions. Ensure all connections are secure.
5. Attach Thermostat Unit: Carefully attach the front panel of the thermostat onto the mounted base plate, ensuring it clicks securely into place.
6. Restore Power: Turn the main power supply back on at the circuit breaker. The thermostat display should illuminate.

5. Wiring Diagram

The AVATTO WT410-BH-3A-W thermostat typically requires connections for power supply and boiler control.

Standard Wiring (Gas Boiler 3A):

• L (Live): Connect to the live wire from your power supply.
• N (Neutral): Connect to the neutral wire from your power supply.
• NO (Normally Open): Connect to the boiler's control input (often labeled as 'SW' or 'COM' on the boiler).
• COM (Common): Connect to the other boiler control input.

Note: Always refer to your boiler's specific wiring diagram and consult a qualified electrician if you are unsure about any connections. Incorrect wiring can damage the thermostat or your boiler system.

6. App and Wi-Fi Setup

To unlock the full potential of your AVATTO Smart Thermostat, connect it to your home Wi-Fi network and the compatible mobile application.

1. Download the App: Search for "Smart Life" or "Tuya Smart" in your mobile app store (iOS or Android) and download the application.
2. Register/Login: Open the app and register for a new account or log in if you already have one.
3. Add Device: In the app, tap the "+" icon (usually in the top right corner) to add a new device. Select "Thermostat" or "Heater" from the device list.
4. Pairing Mode: On the thermostat, press and hold the Wi-Fi icon button (or a similar pairing button) until the Wi-Fi indicator light starts blinking rapidly. This indicates it's in pairing mode.
5. Connect to Wi-Fi: Follow the on-screen instructions in the app. You will need to enter your home Wi-Fi network name (SSID) and password. Ensure your phone is connected to a 2.4GHz Wi-Fi network (5GHz networks are generally not supported by smart home devices).
6. Confirmation: Once connected, the Wi-Fi indicator on the thermostat will become solid, and the app will confirm successful pairing. You can now control your thermostat remotely.

For voice assistant integration (e.g., Amazon Alexa, Google Assistant), follow the instructions within the "Smart Life" or "Tuya Smart" app to link your account.

7. Operating Modes

The AVATTO WT410-BH-3A-W thermostat supports four main operating modes to suit your heating needs:

• Manual Mode: In this mode, the thermostat maintains a constant temperature set by the user until manually changed. It overrides any programmed schedules.
• Programming Mode: The thermostat follows the pre-set weekly schedule, automatically adjusting the temperature at specified times.
• Temporary Programming Mode: While in Programming Mode, you can temporarily adjust the temperature. The thermostat will maintain this new temperature until the next scheduled program change, then revert to the schedule.
• Absence Mode (Holiday Mode): Designed for extended periods away from home. You can set a lower, energy-saving temperature for a specified duration, and the thermostat will automatically resume normal operation afterward.

Switch between modes using the dedicated mode button on the thermostat or through the mobile application.

8. Weekly Programming

The thermostat allows for advanced weekly programming, enabling you to set different temperatures for specific time periods throughout the week. This helps optimize comfort and energy efficiency.

You can set up to 6 time periods for weekdays (Monday-Friday) and 2 time periods for weekends (Saturday-Sunday).

1. Access Programming: Press and hold the "M" (Mode) button or navigate to the "Schedule" section in the mobile app.
2. Set Weekday Schedule: For Monday to Friday, define up to 6 time periods (e.g., Wake, Leave, Return, Sleep) and their corresponding desired temperatures.
3. Set Weekend Schedule: For Saturday and Sunday, define up to 2 time periods and their desired temperatures.
4. Save Settings: Confirm and save your programming. The thermostat will now follow this schedule when in Programming Mode.

The thermostat offers high precision with temperature settings, accurate to 0.5°C, and displays temperature with 0.1°C precision. An adjustable hysteresis function (0.5°C to 10°C) allows fine-tuning of temperature deviation.

9. Maintenance

The AVATTO WT410-BH-3A-W Smart Thermostat requires minimal maintenance to ensure long-term performance.

• Cleaning: Gently wipe the display and casing with a soft, dry cloth. Do not use abrasive cleaners, solvents, or chemical sprays, as these can damage the device.
• Avoid Obstructions: Ensure no objects are blocking the thermostat's vents or sensors, as this can affect temperature readings.
• Software Updates: Periodically check the mobile application for firmware updates for your thermostat. Updates can improve performance and add new features.

10. Troubleshooting

If you encounter issues not listed here or require further assistance, please contact AVATTO customer support.

11. Specifications

12. Warranty and Support

AVATTO products are manufactured to the highest quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official AVATTO website.

For technical support, troubleshooting assistance, or any questions about your AVATTO WT410-BH-3A-W Smart Thermostat, please contact AVATTO customer service through their official channels.

Website: www.avatto.com (Note: This is a placeholder URL as no official support link was provided.)
